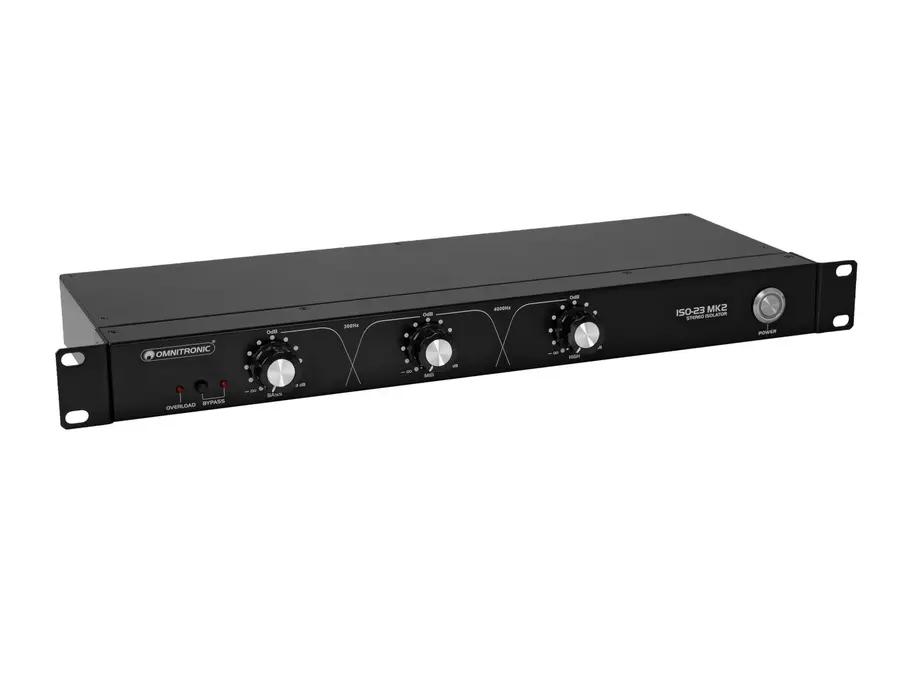

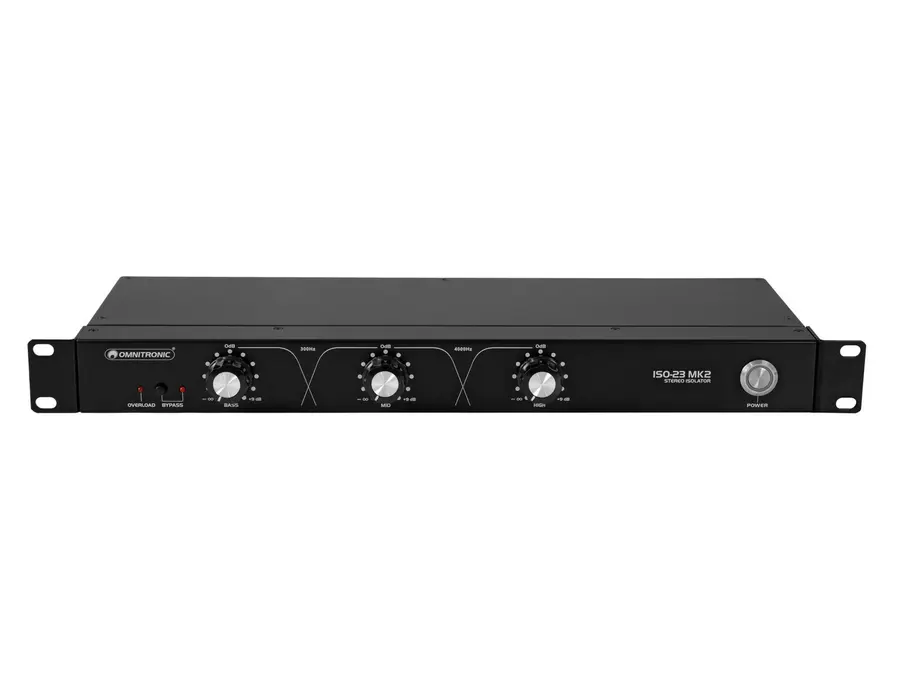

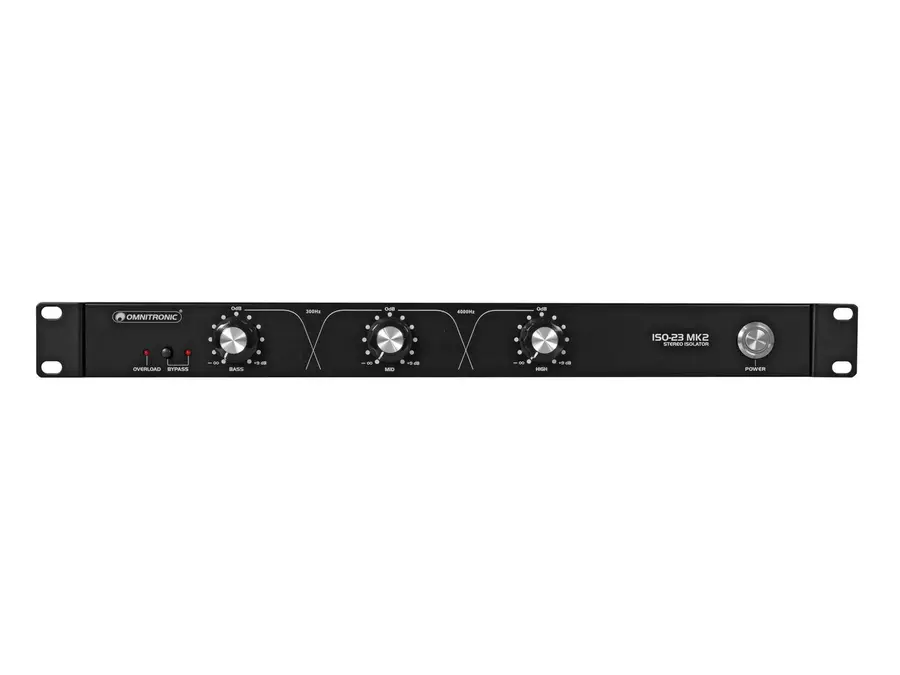

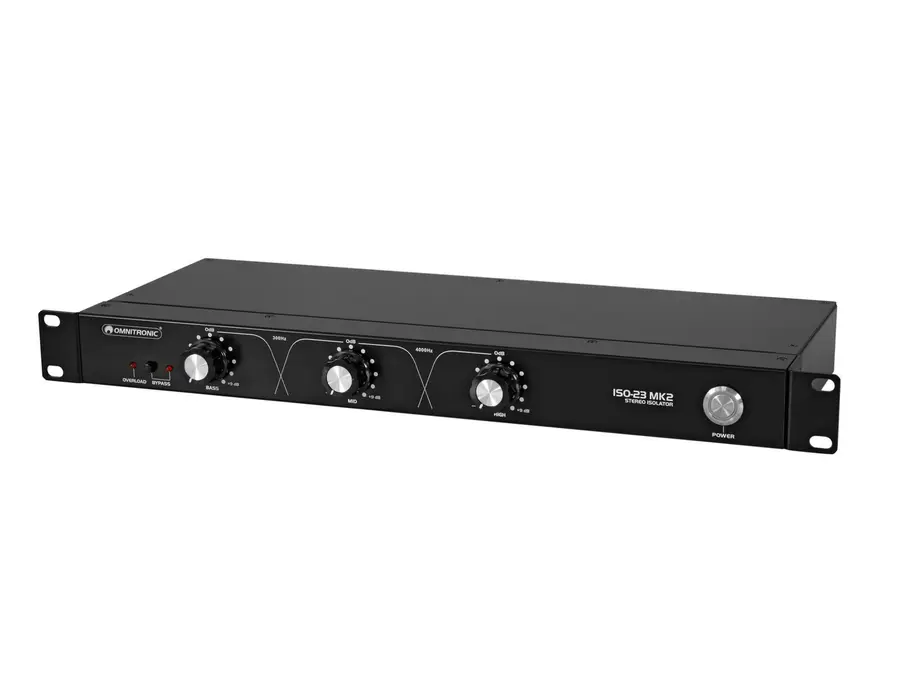

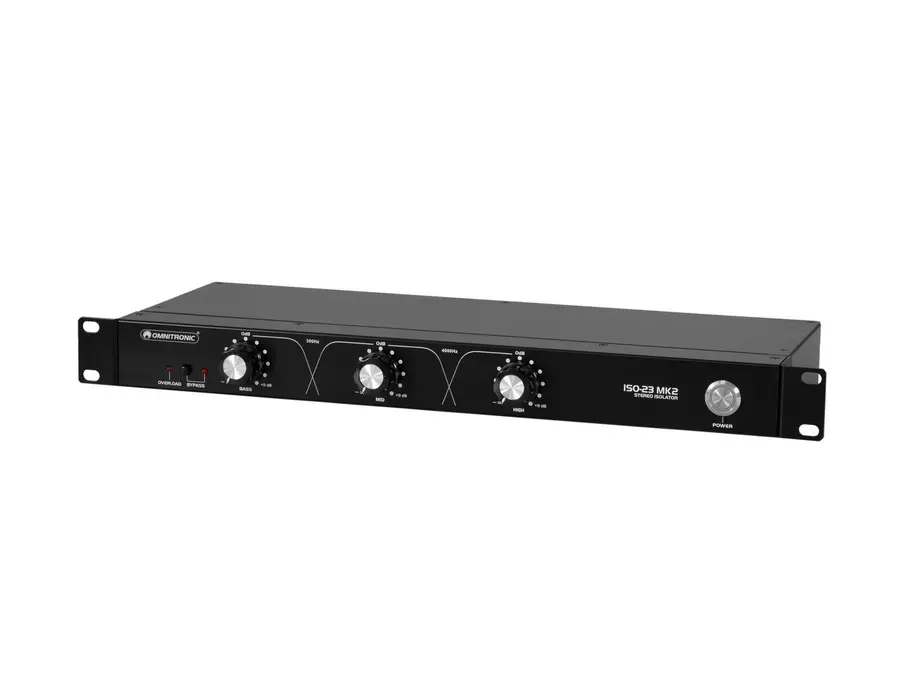

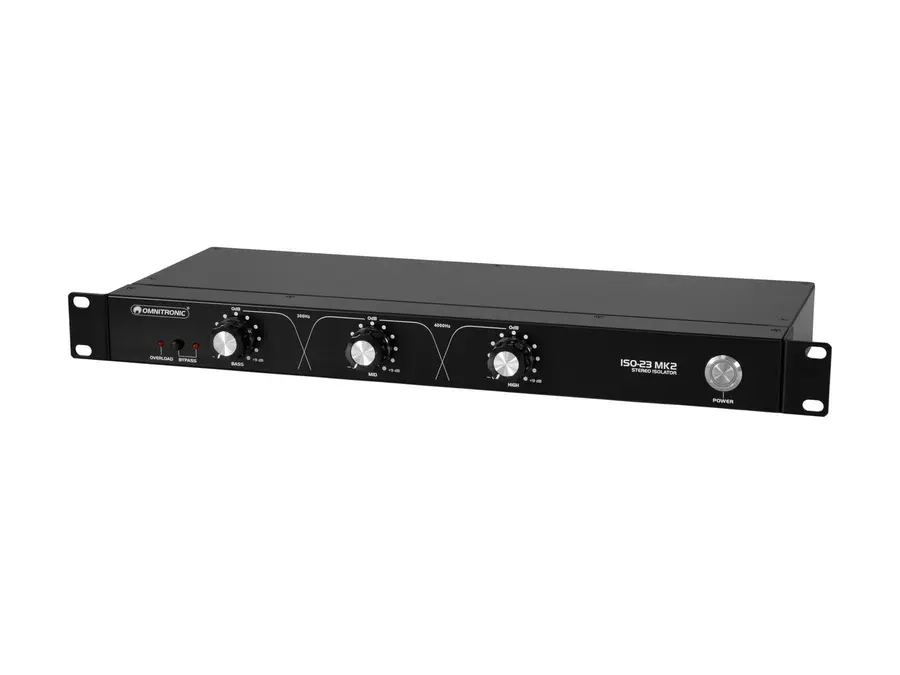

The OMNITRONIC ISO-23 MK2 is a 3-band stereo frequency isolator for DJs, suitable for club use, mobile setups, home recording and studios. Dedicated controls for the low, mid and high bands allow substantial boosting or cutting, while the kill cut function can completely remove each frequency range for creative mixing and instrumental or a cappella-style transitions.
- 3-band frequency isolator with dedicated boost and kill cut for low, mid and high frequencies
- Frequency ranges: lows 20–300 Hz, mids 300 Hz–4 kHz and highs 4–20 kHz
- Classic ALPS Blue Velvet RK27 potentiometers with large rotary knobs
- Bypass switch and status LEDs for power, peak and bypass

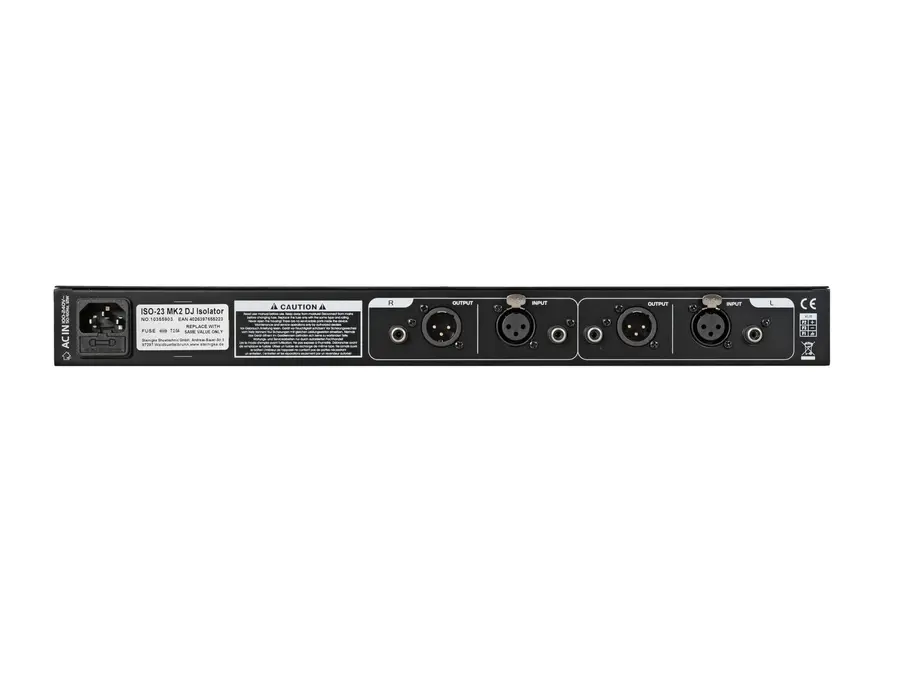

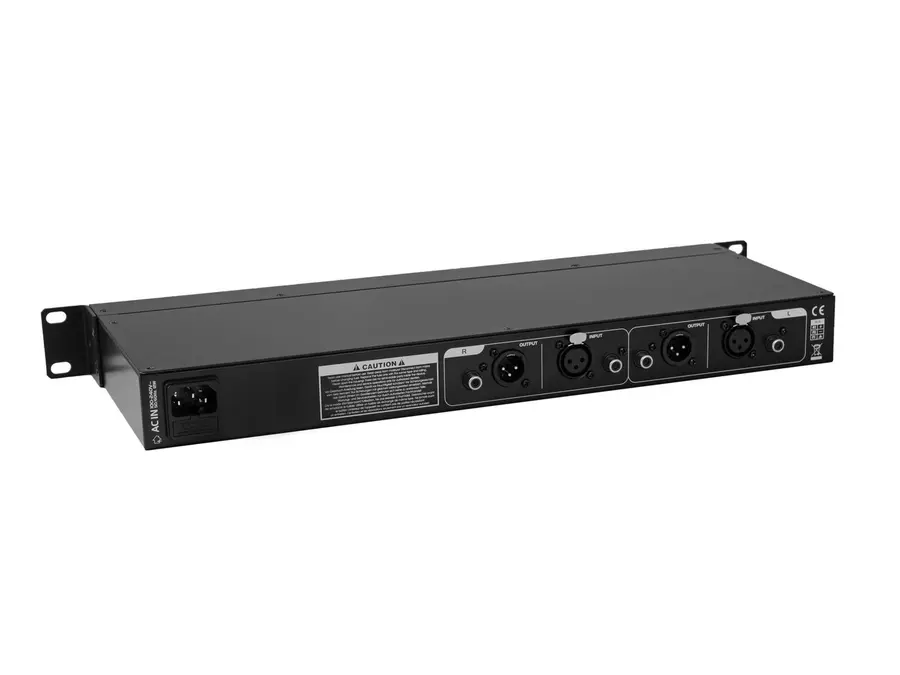

- Balanced and unbalanced line inputs and outputs via 3-pin XLR and RCA
- Maximum input level: +22 dBu
- 19-inch rackmount housing, 1 U high
Technical specifications
- Power supply: 100–240 V AC, 50/60 Hz
- Power consumption: 12 W
- Mounting depth: 16.7 cm
- Dimensions: 48.3 × 14.5 × 4.45 cm
- Weight: 2.04 kg
- Matte black housing
- Protection class I
Included
- Power cord
- 4 feet
- User manual
