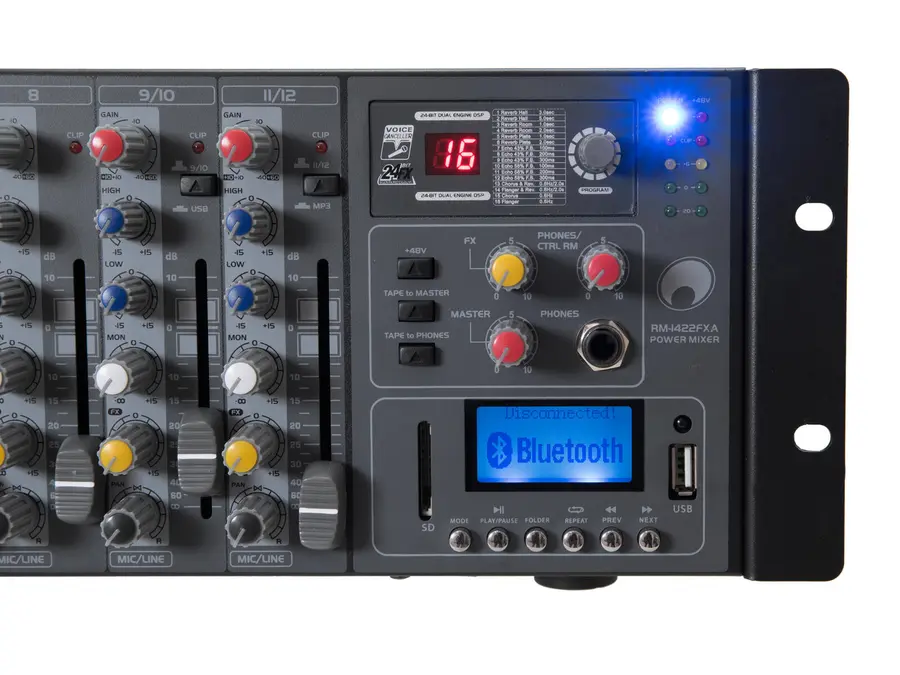

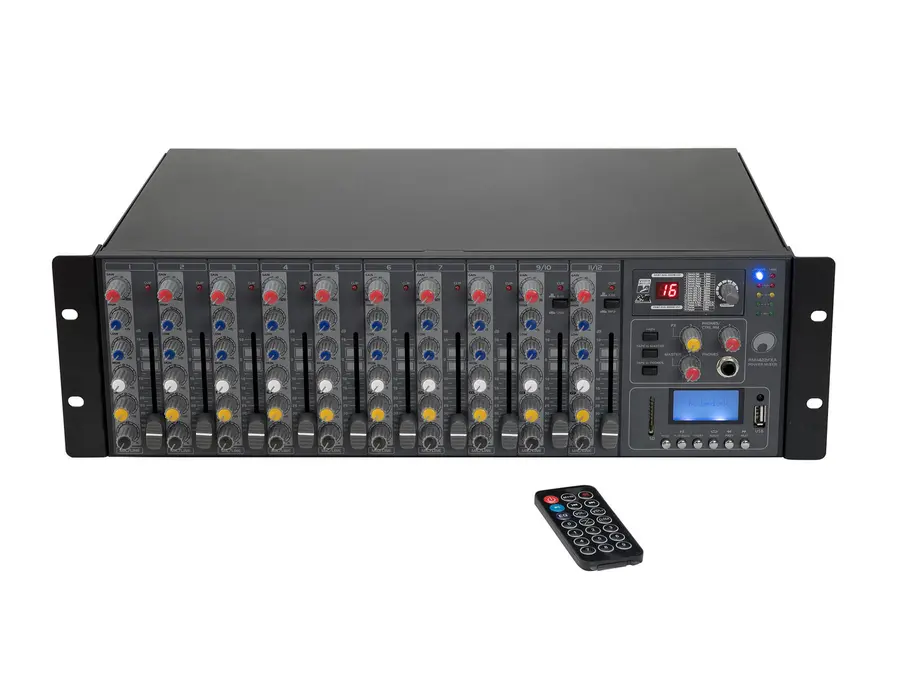

The OMNITRONIC RM-1422FXA is a 19-inch powered mixer with a 12-channel mixer section, a digital amplifier and a DSP effects unit with 16 effects. Its built-in USB audio interface supports recording and playback of digital audio files with PC and Mac, while the integrated audio player supports USB devices, SD cards and Bluetooth.

• 6 mono input channels with gain, 2-band EQ, pan control and channel fader
• 2 stereo input channels with 2-band EQ, balance control and channel fader
• 8 channel inserts
• Separate main mix and control room outputs
• 2 AUX send outputs and adjustable headphones output
• Tape input and output
• Central +48 V phantom power switch
• 4-digit stereo LED level display
• 24-bit DSP with 16 effects
• Control via IR remote control and Bluetooth
• 19-inch rack housing, 3 U
• Suitable for clubs and dance schools, stages, theatres, concerts and rental applications

Technical specifications

• Output power: 2 x 250 W RMS at 8 ohms or 2 x 400 W RMS at 4 ohms
• Frequency range: 20–20,000 Hz
• Signal-to-noise ratio: >89 dB
• THD: <0.05% at 1 kHz

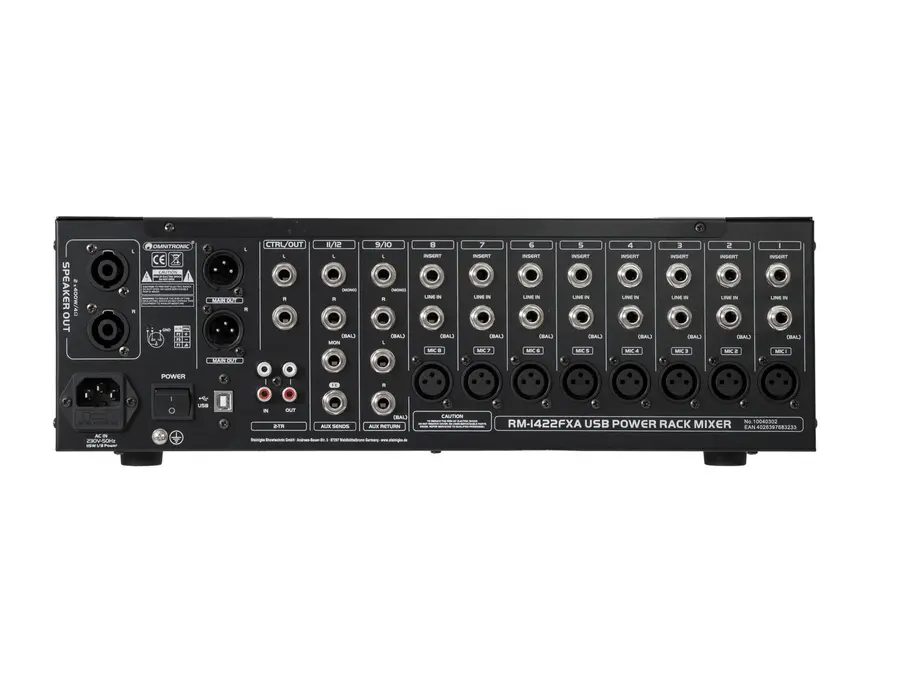

• Inputs: 8 x 3-pin XLR microphone inputs, 12 x 6.3 mm jack line inputs, 1 x stereo RCA line input and 2 x 6.3 mm jack AUX inputs
• Outputs: 2 x 3-pin XLR master outputs, 2 x 6.3 mm jack AUX outputs, 1 x stereo RCA recording output and 2 x speaker outputs
• USB Type A port and SD card support
• Power supply: 230 V AC, 50 Hz
• Dimensions: 48.3 x 34 x 13.35 cm
• Weight: 6.55 kg
• Protection class I

Included

• IR remote control
• Battery
• Power cord
• User manual
