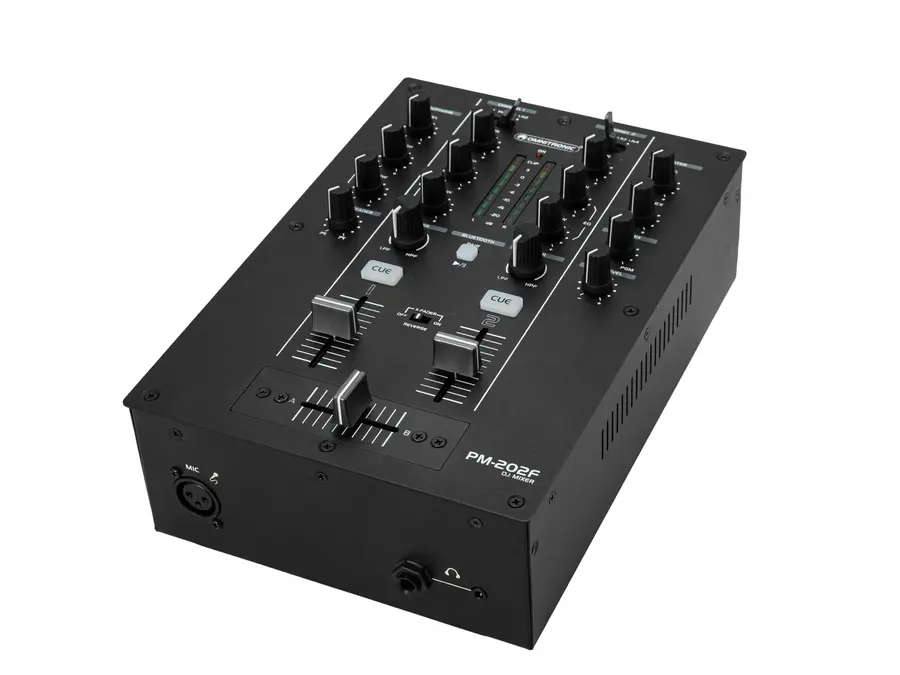

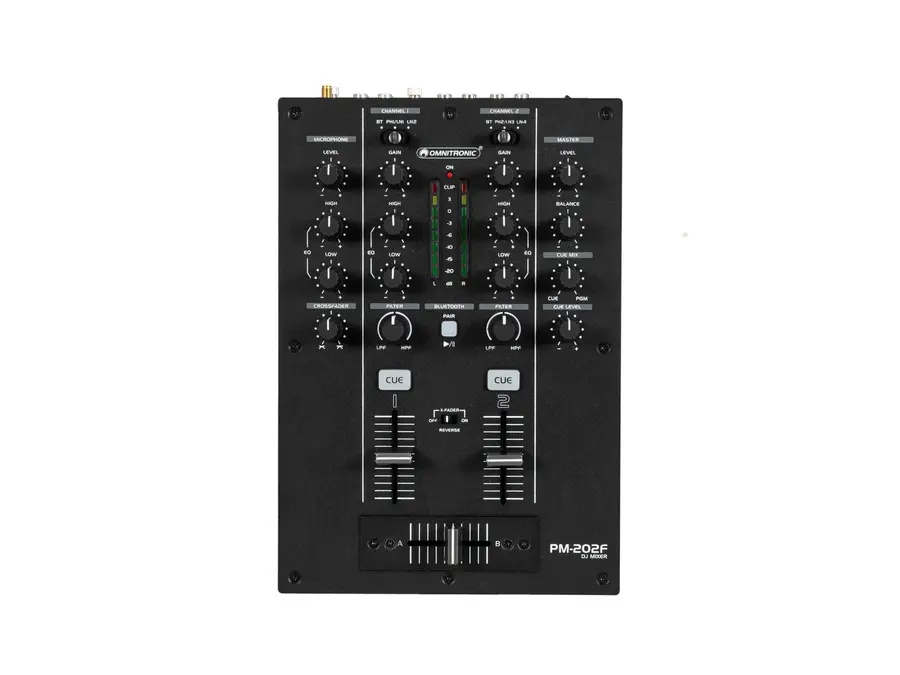

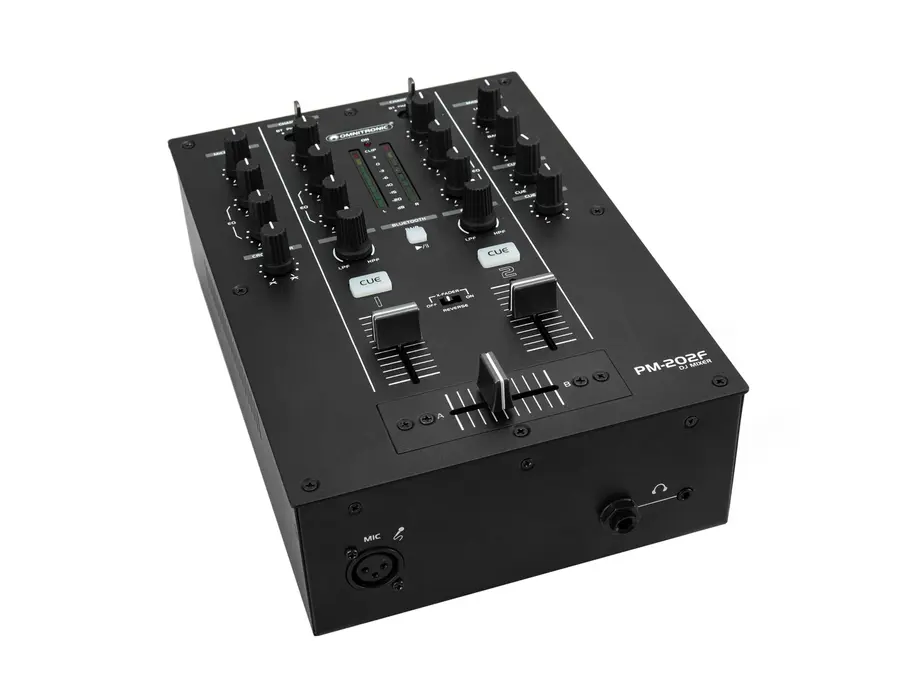

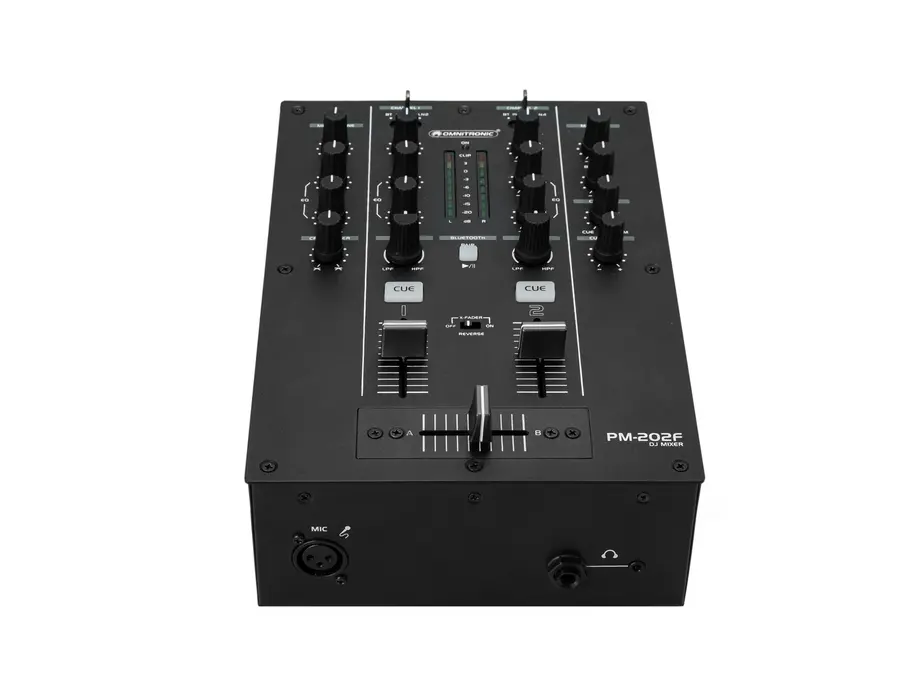

The OMNITRONIC PM-202F is a two-channel DJ mixer with Bluetooth connectivity and a bipolar LPF/HPF filter on each channel. Bluetooth audio can be routed to either input channel, making the mixer suitable for party rooms, mobile use and mobile DJs or entertainers.
- Two stereo input channels with Line/Line-Phono/Bluetooth selection, 60 mm channel faders, gain controls, 2-band EQ and CUE switches
- Bluetooth 4.2 + EDR with A2DP and AVRCP profiles; operating range up to 15 m
- Bipolar LPF/HPF DJ filter on each channel
- DJ microphone channel with level control and 2-band EQ, connected via 3-pin XLR
- Crossfader with adjustable curve and reverse function
- Master channel with level control, balance control and stereo LED level meter

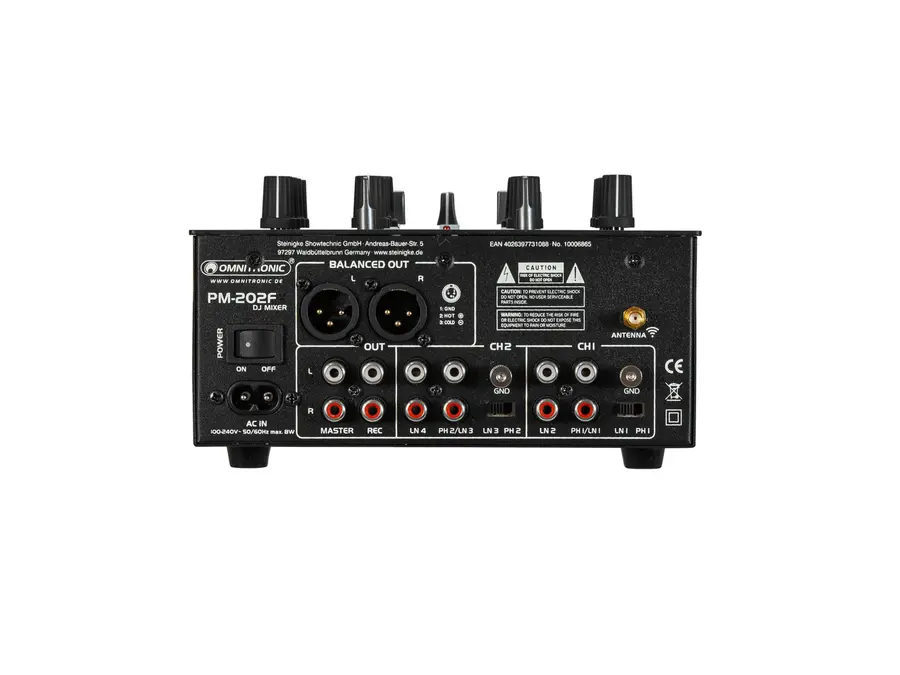

- Four line inputs and two phono inputs via RCA connections
- Master output via XLR or stereo RCA, plus an additional stereo RCA recording output
- Pre-fader monitoring of all input channels and the master output via adjustable stereo headphone output with cue mix function
- Headphone connections: 6.3 mm stereo jack and 3.5 mm stereo jack
- Metal desktop console housing with a matte black finish
Technical specifications
- Frequency range: 20–20,000 Hz
- Signal-to-noise ratio: >80 dB
- THD: <0.1% at 1 kHz
- Power supply: 100–240 V AC, 50/60 Hz
- Power consumption: max. 8 W
- Protection class II
- Dimensions: 30.5 × 19.0 × 11.0 cm
- Weight: 2.15 kg
Included
- Mixer
- Power cord
- Antenna
- RCA cable
- User manual
- Declaration of conformity
