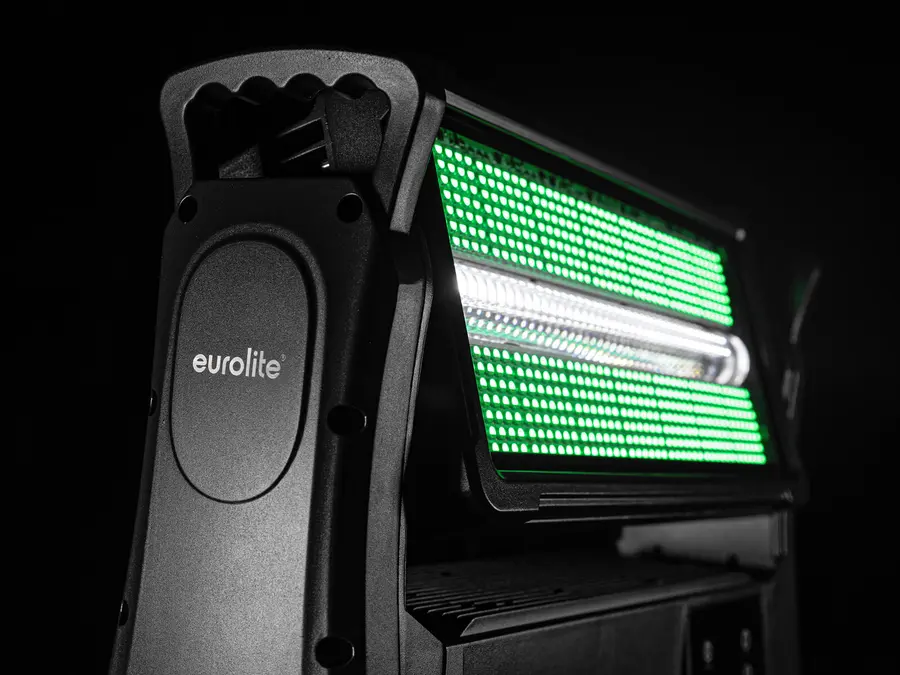

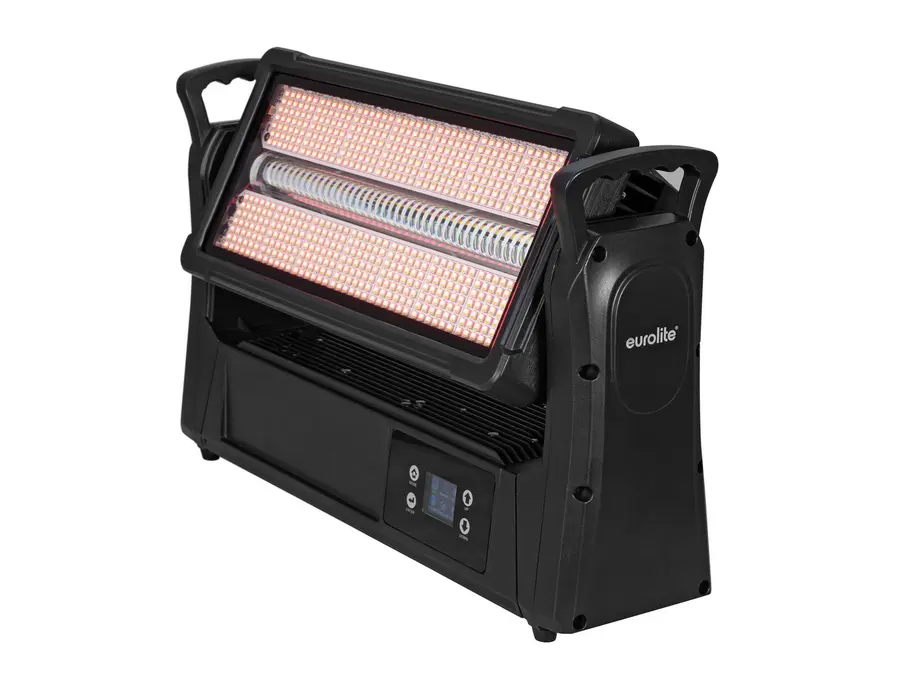

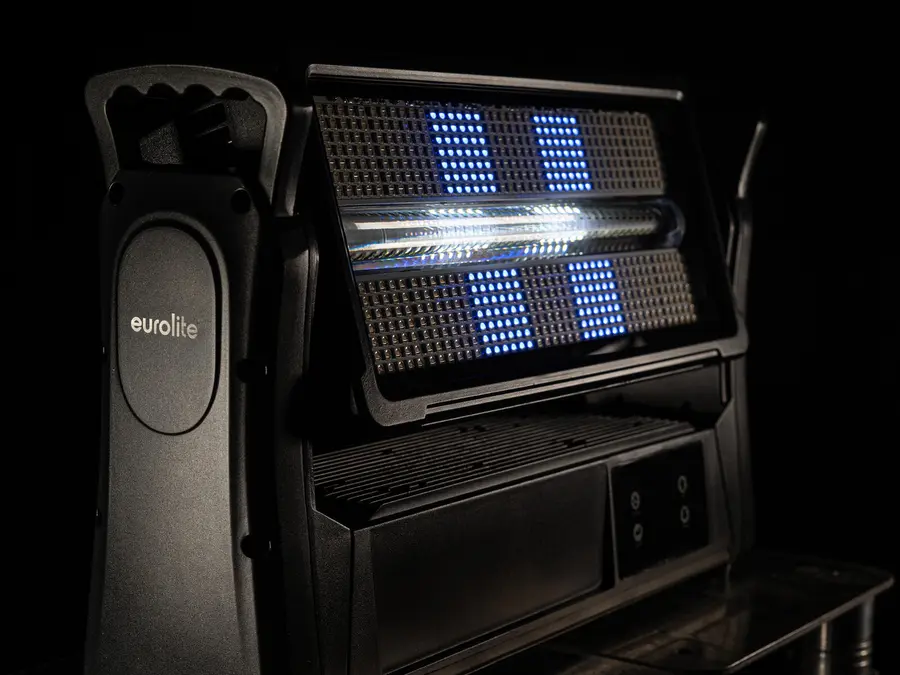

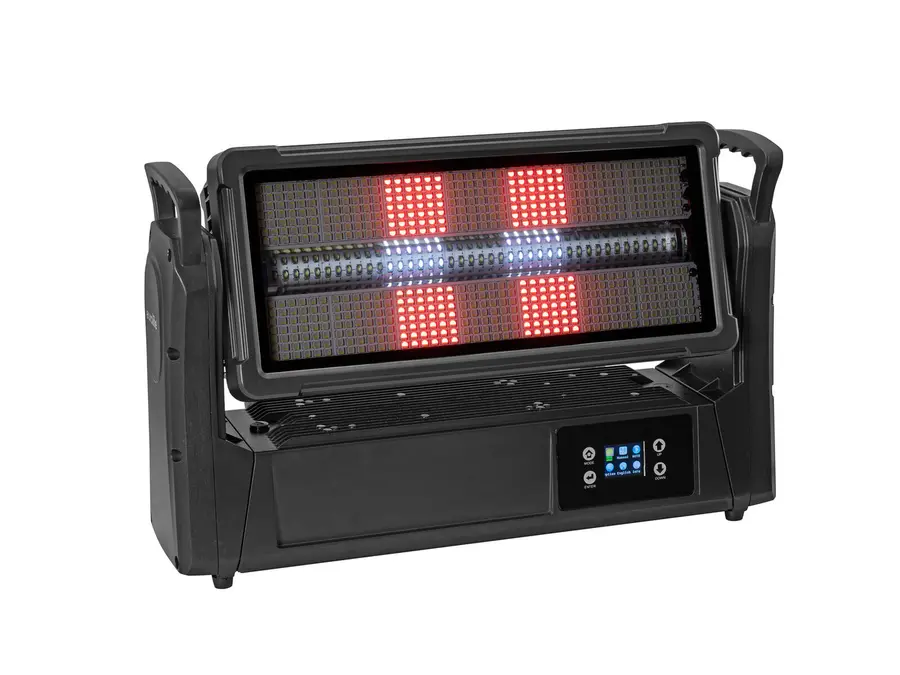

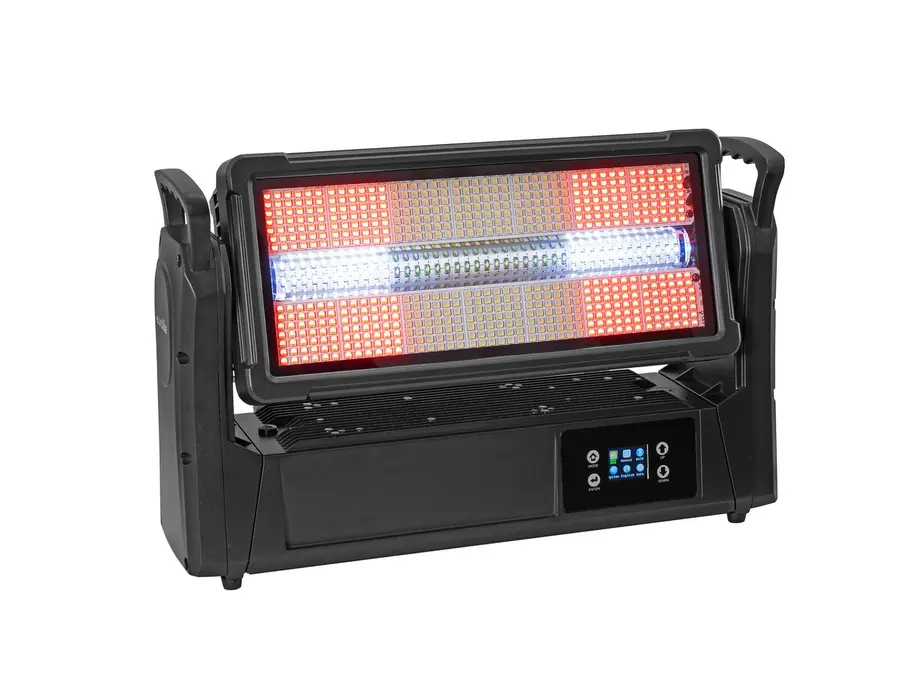

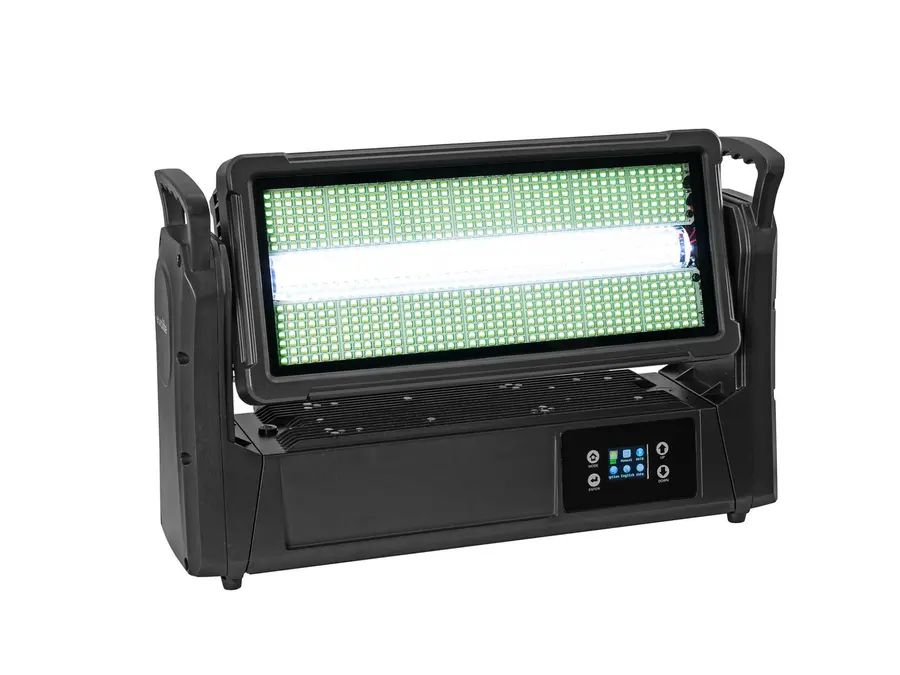

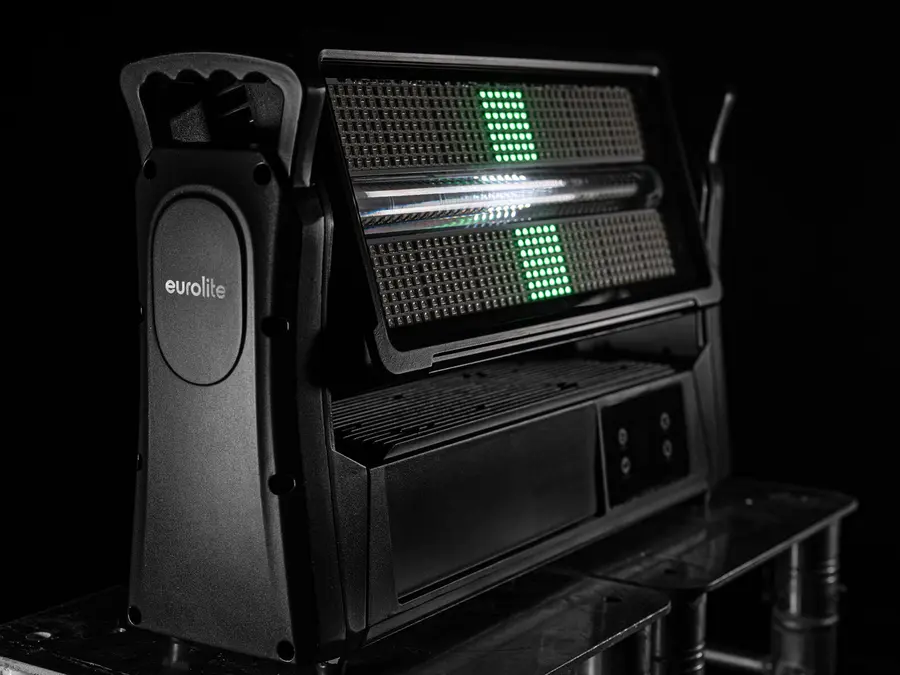

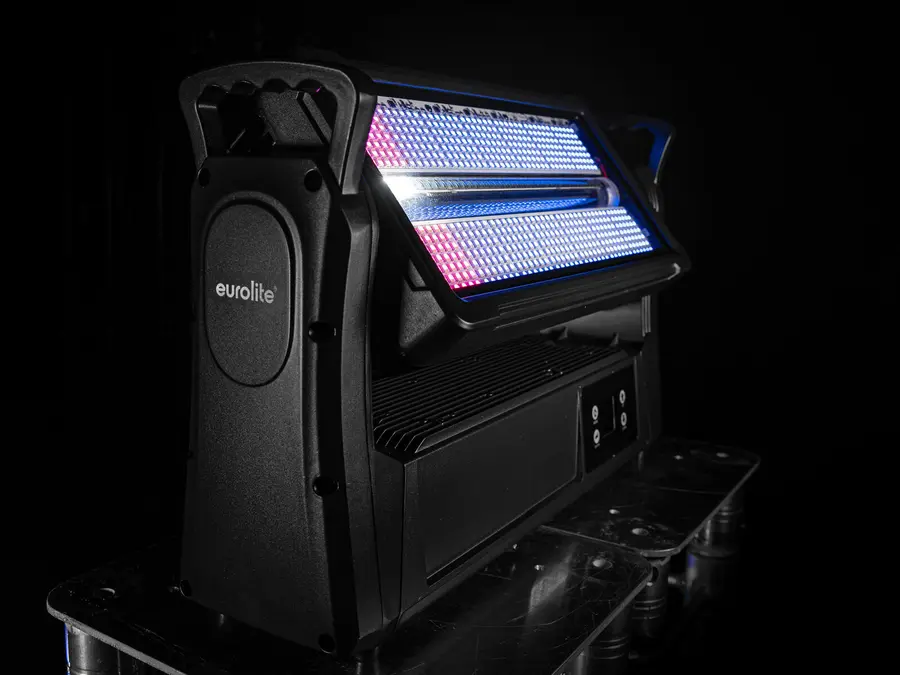

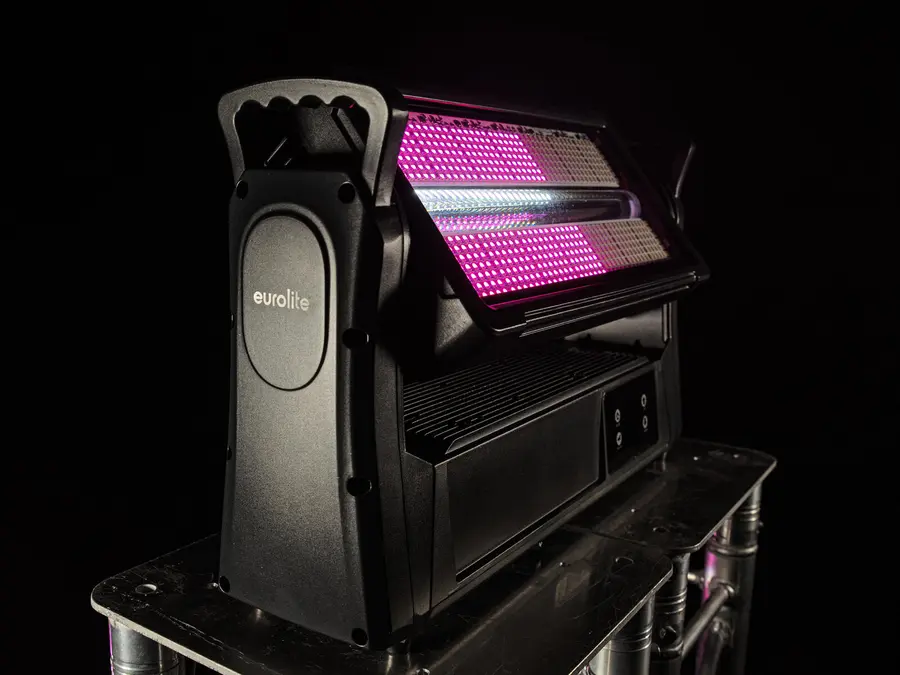

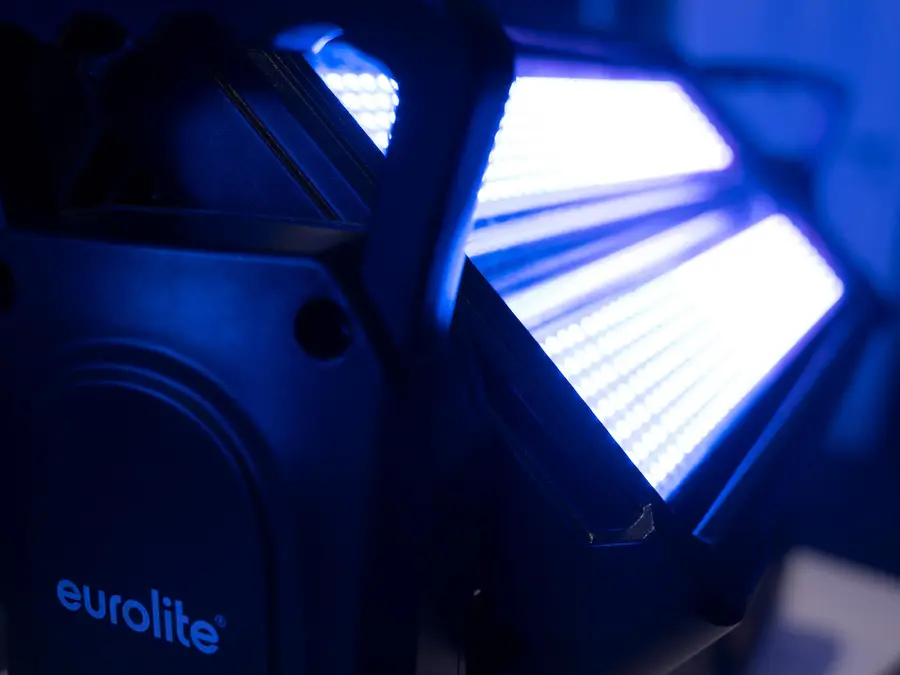

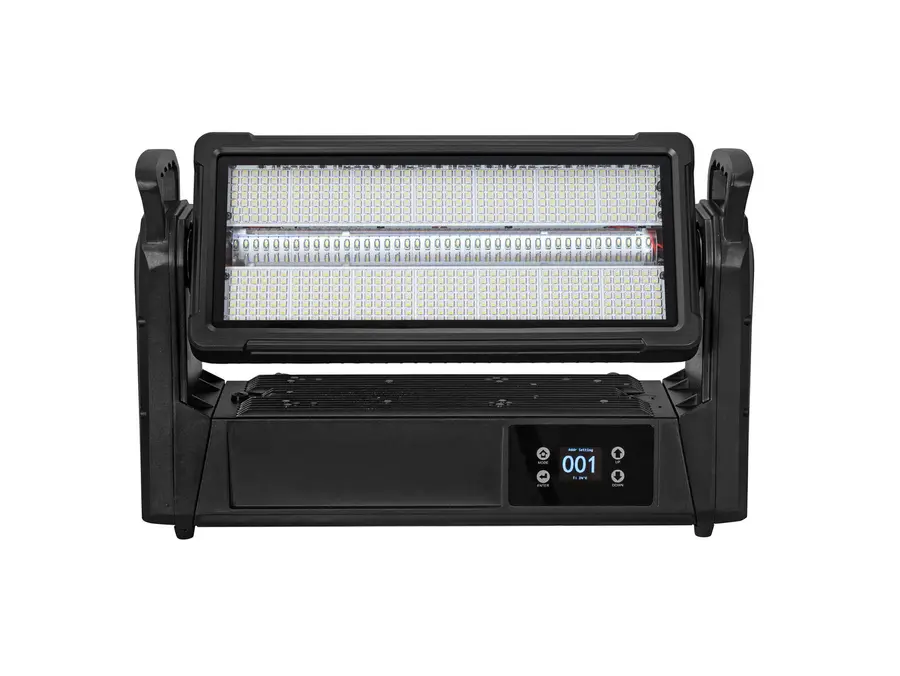

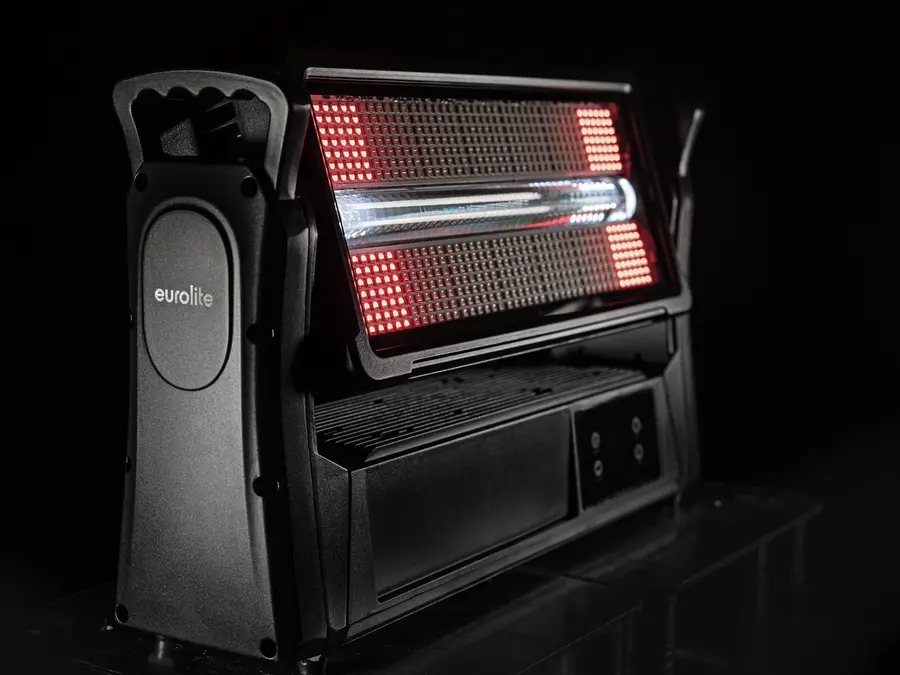

The EUROLITE LED IP Mega PIX Strobe 714 SWING is an IP65-rated outdoor LED fixture with a motorized 200° tilt movement for strobe, blinder and matrix effects. It combines 126 3 W cold-white SMD 3535 LEDs with 588 0.25 W SMD 5050 4-in-1 RGBW LEDs, arranged in separately controllable segments for dynamic stage, event and rental applications.

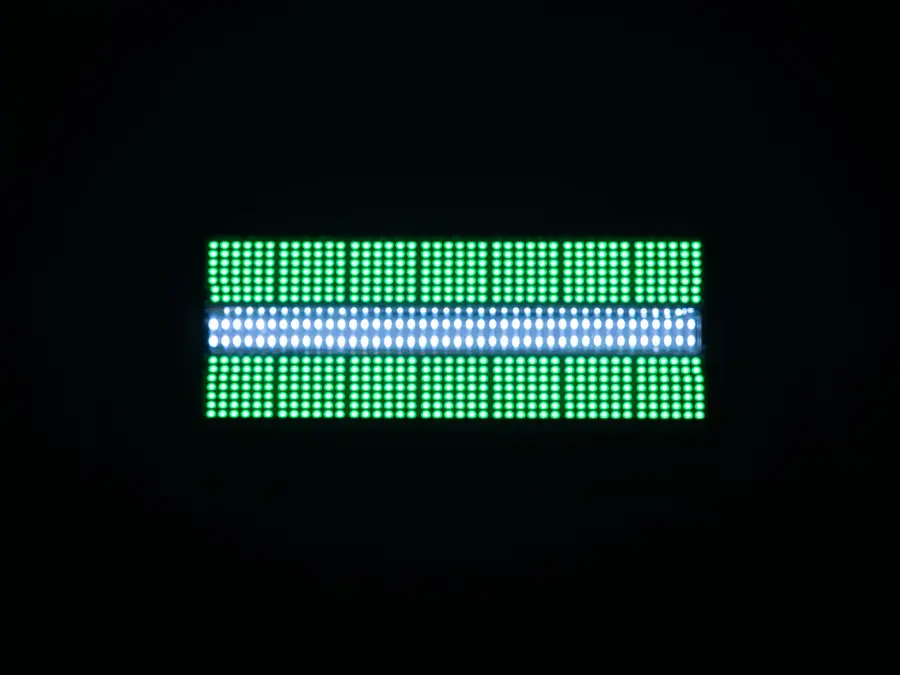

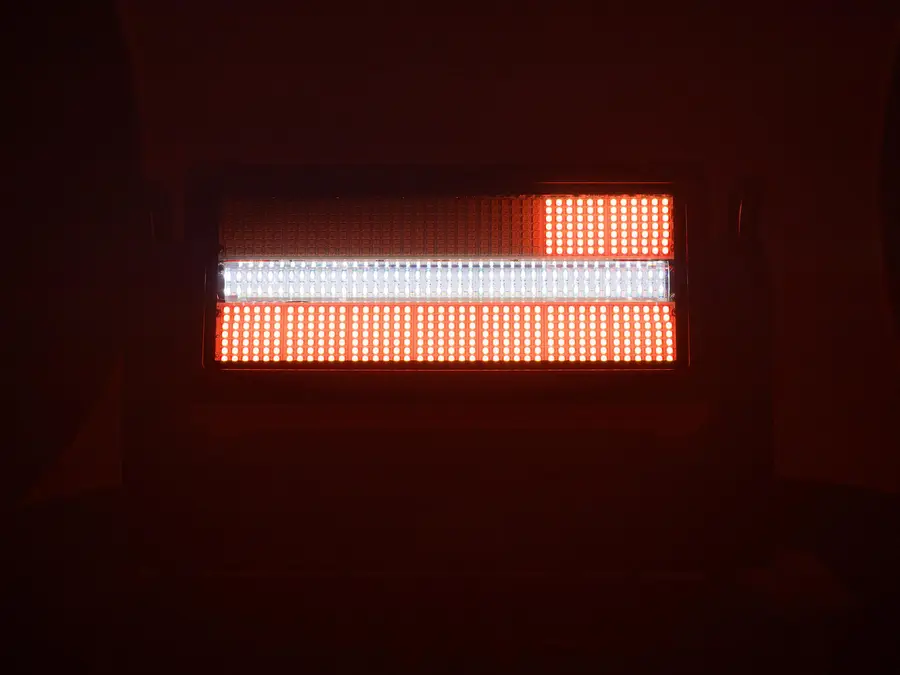

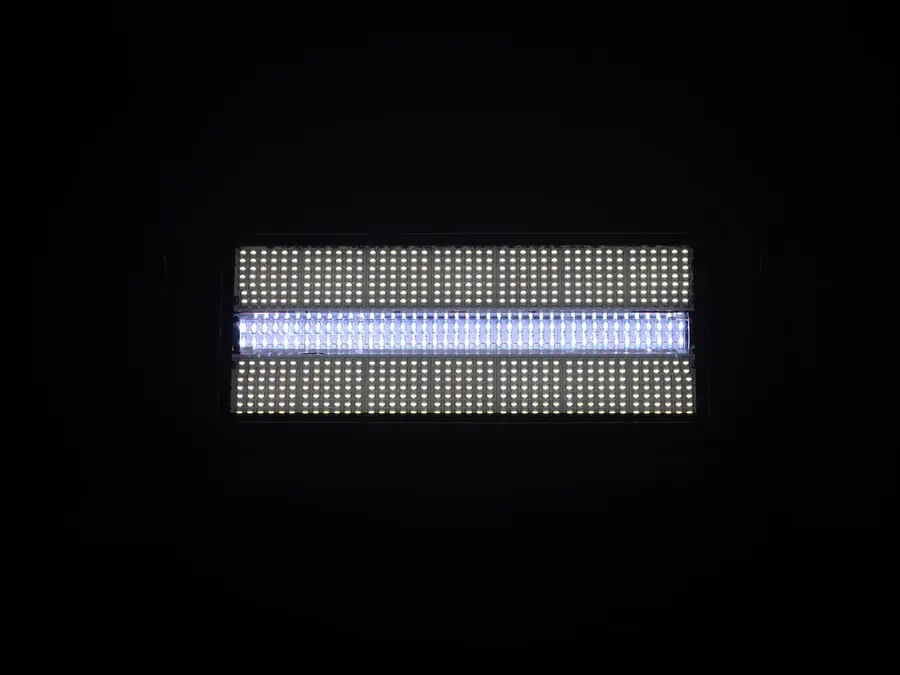

- 126 x 3 W cold-white SMD 3535 LEDs in 7 separately controllable segments
- 588 x 0.25 W SMD 5050 4-in-1 RGBW LEDs in 14 separately controllable segments with homogeneous color mixing
- Motorized 200° tilt movement with automatic position correction
- Electronic dimmer, stepless color mixing, adjustable color macros, program speed and program selection
- Color animations with two adjustable colors, plus ambient, strobe and blinder effects
- 46 integrated show programs
- DMX operation in 8, 9, 11, 12, 17, 18 or 71-channel mode, with RDM, stand-alone and master/slave operation
- Flicker-free operation and a 120° matrix effect beam angle
- Flash rate from 0.5 to 17 Hz

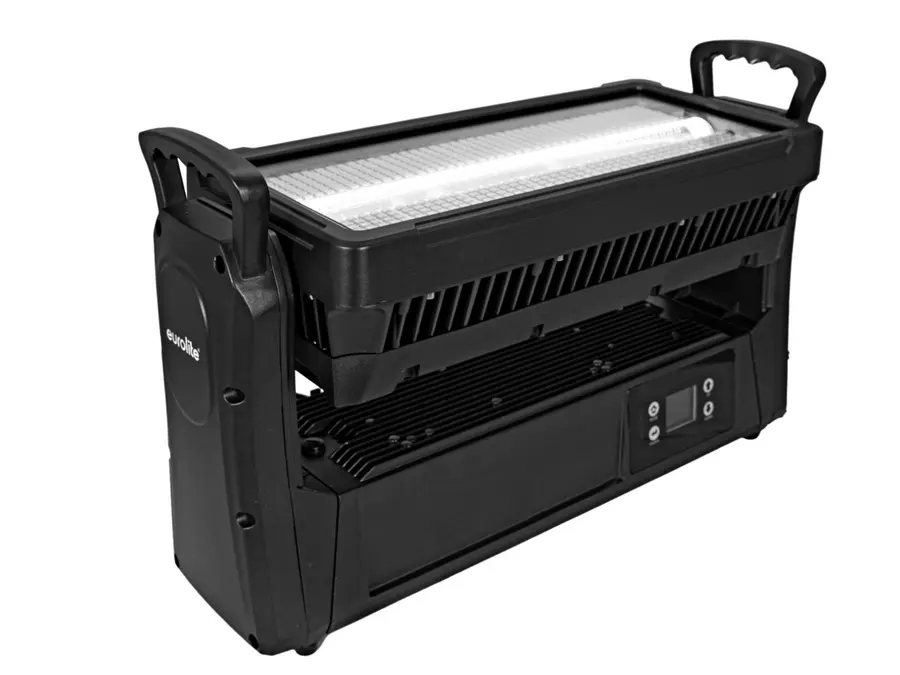

- Multicolor TFT display, two carrying handles and four rubber feet

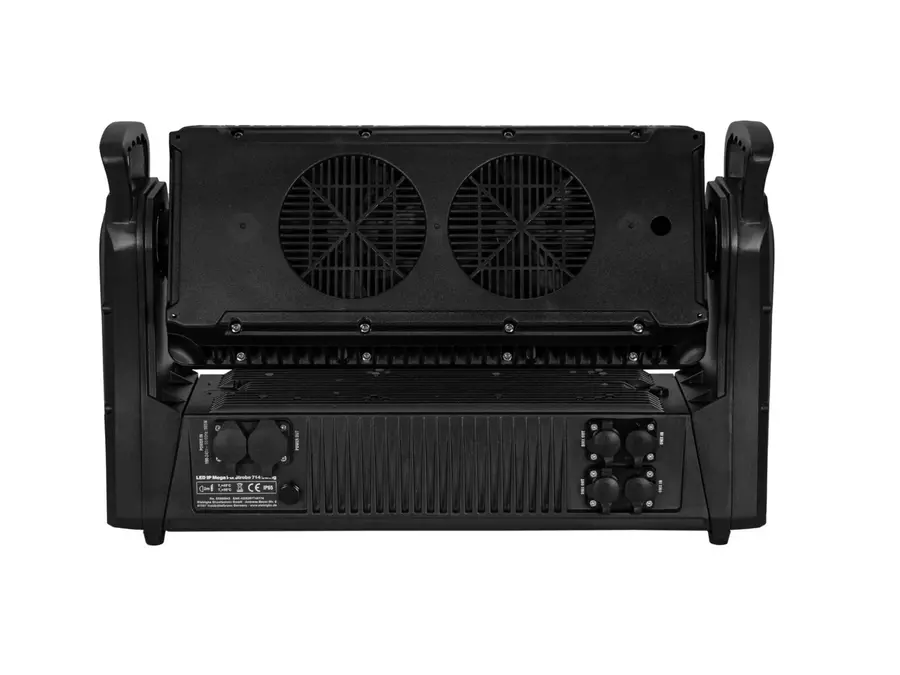

- Temperature-controlled cooling: one fan in the base and two fans in the head
- IP65-rated housing with pressure compensation membrane and SEETRONIC connectors
- Mains input and output for linking up to 8 units

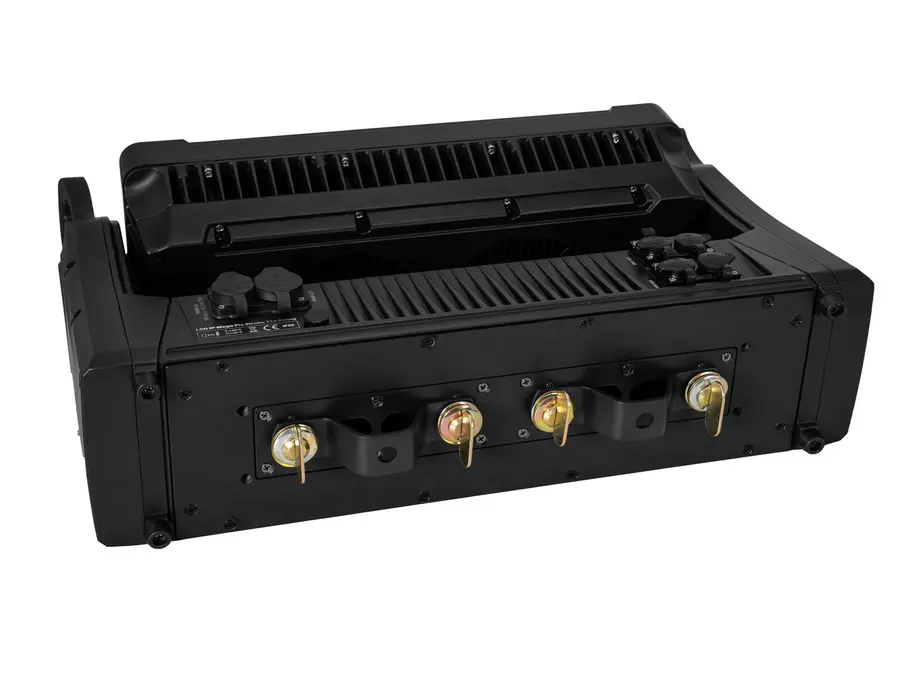

- Suitable for standing or suspended installation; supplied with two omega brackets
Technical specifications
- Power supply: 100–240 V AC, 50/60 Hz
- Power consumption: 365 W
- DMX connections: 3-pin and 5-pin XLR input and output
- Beam angle: 120° at half peak; 170° at one-tenth peak
- Illuminance: 9289 lx at 1 m, 1238 lx at 3 m and 346 lx at 6 m, all LEDs
- PWM frequency: 4100 Hz
- Housing: black aluminum casting
- Dimensions: 52.5 x 14.0 x 33.5 cm
- Weight: 12.85 kg
- Electrical protection class: I
Included
- Power cord

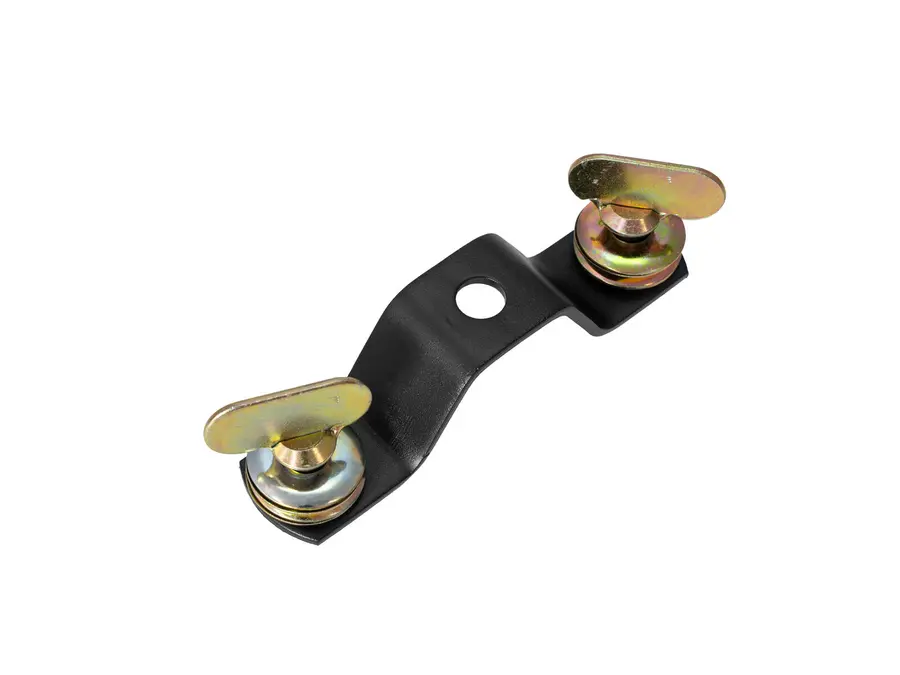

- 2 omega brackets
- User manual
