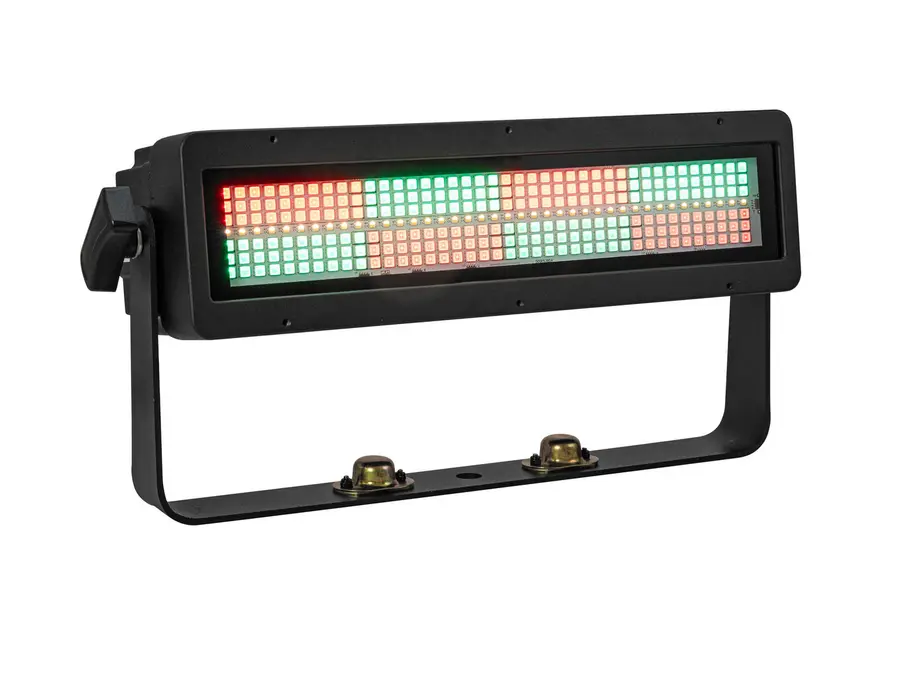

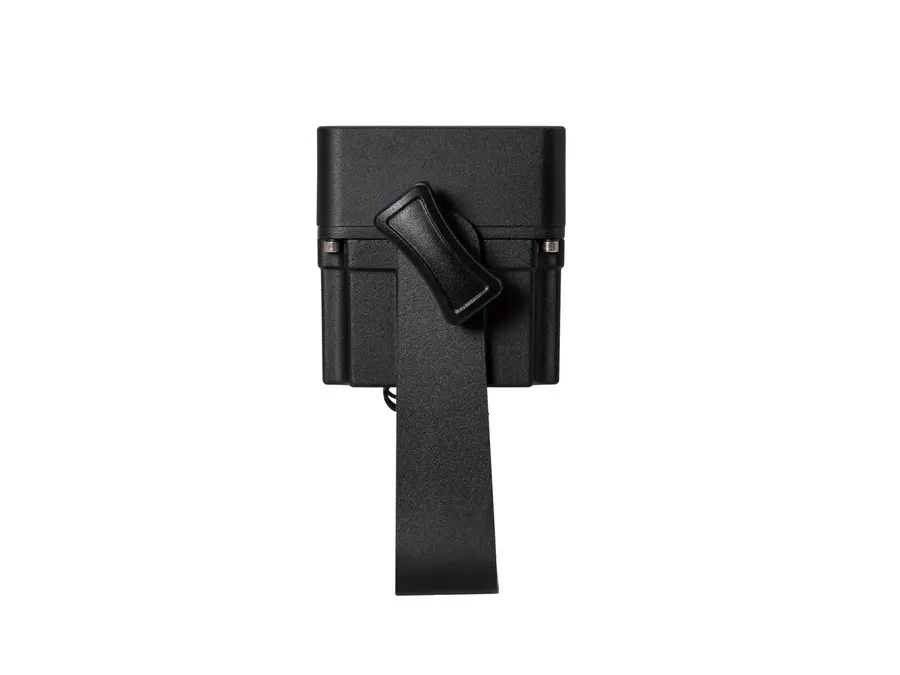

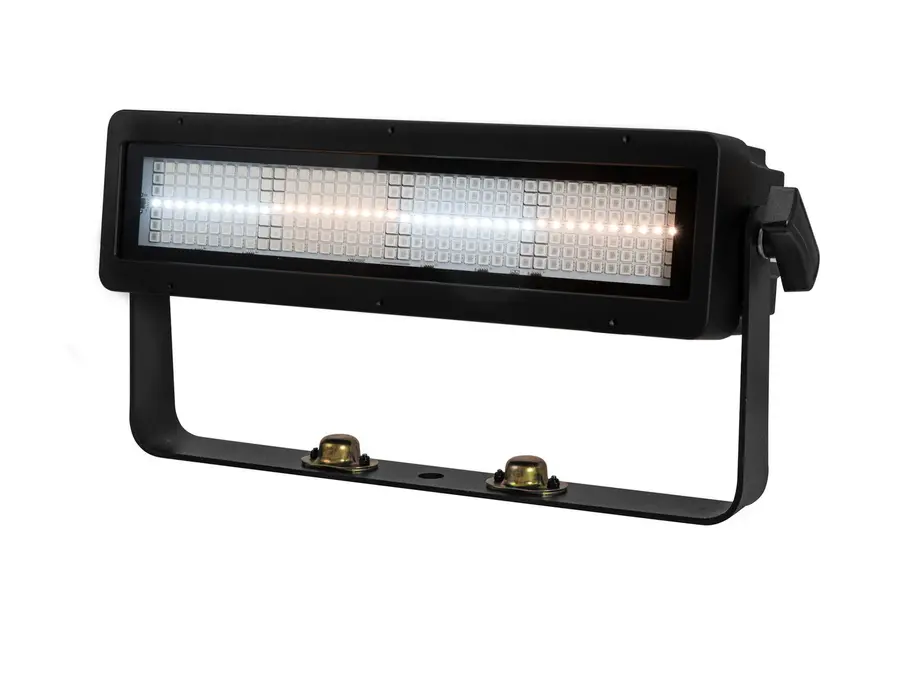

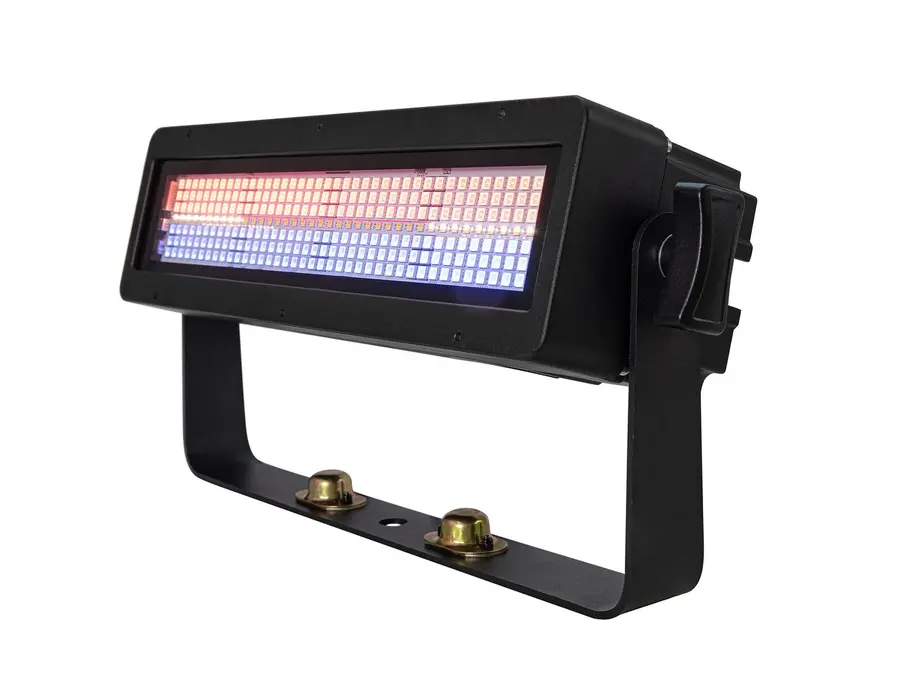

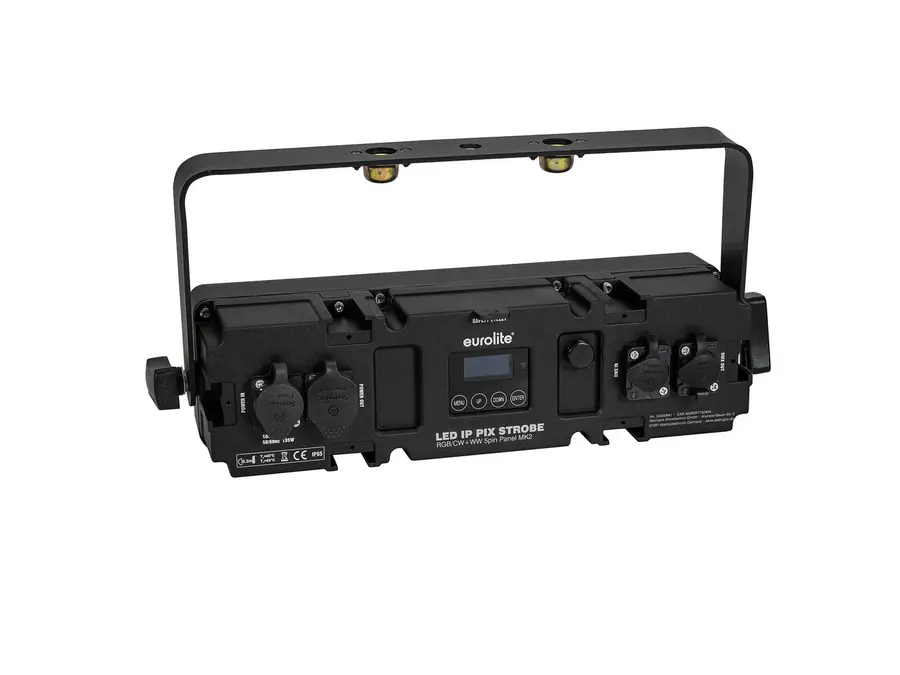

The EUROLITE LED IP PIX Strobe RGB CW+WW 5pin MK2 is an IP65-rated outdoor spotlight for strobe, blinder, wash, ambient and animation effects. Its RGB LEDs are divided into eight separately controllable segments, while the warm-white/cool-white LEDs are arranged in four separately controllable segments. The MK2 version features an extended mounting bracket for improved cable management, an omega-bracket mount with quick-release fasteners, and 5-pin DMX connections.

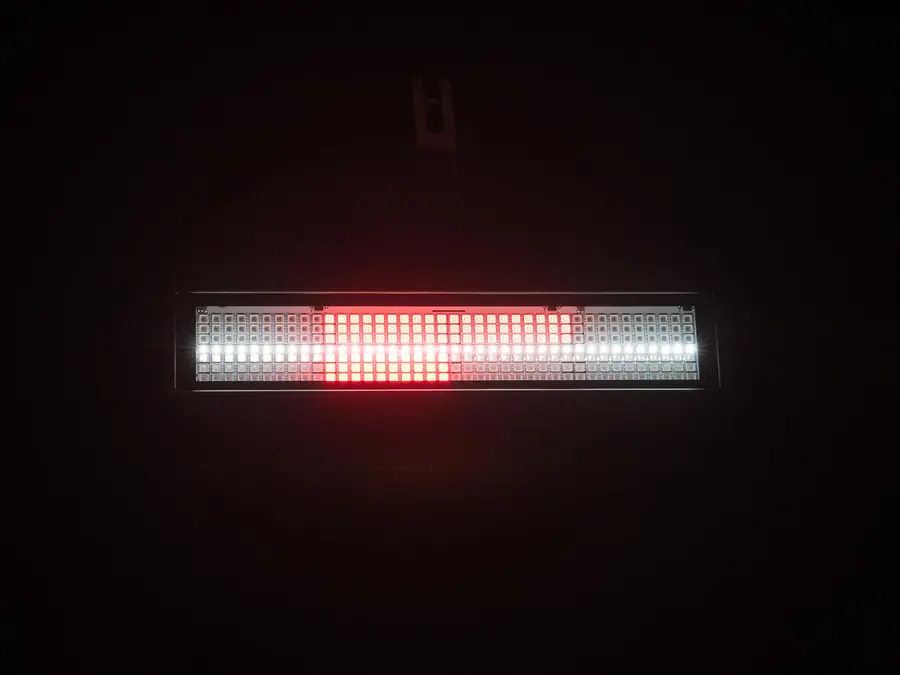

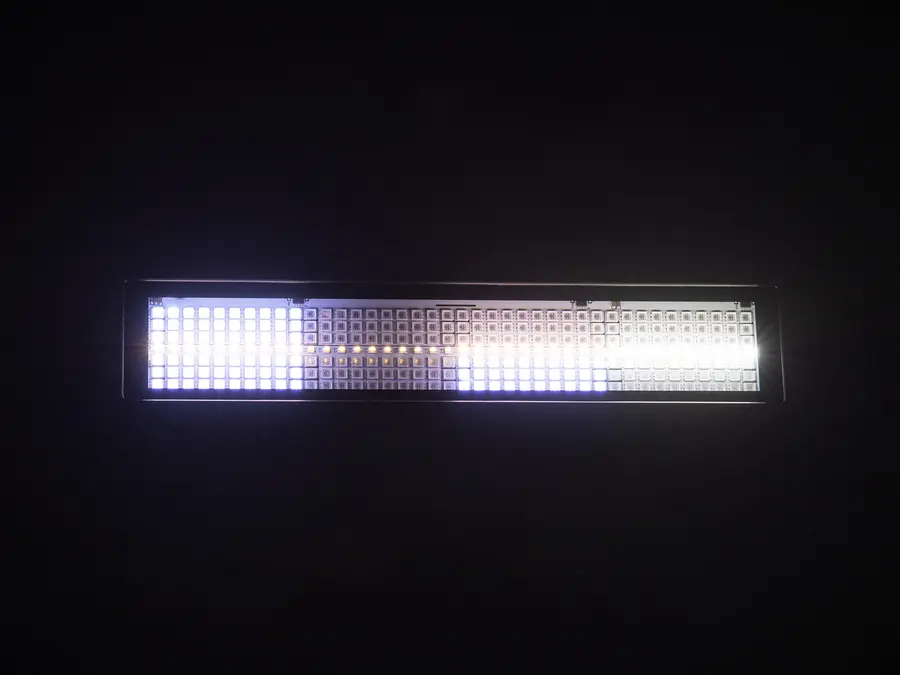

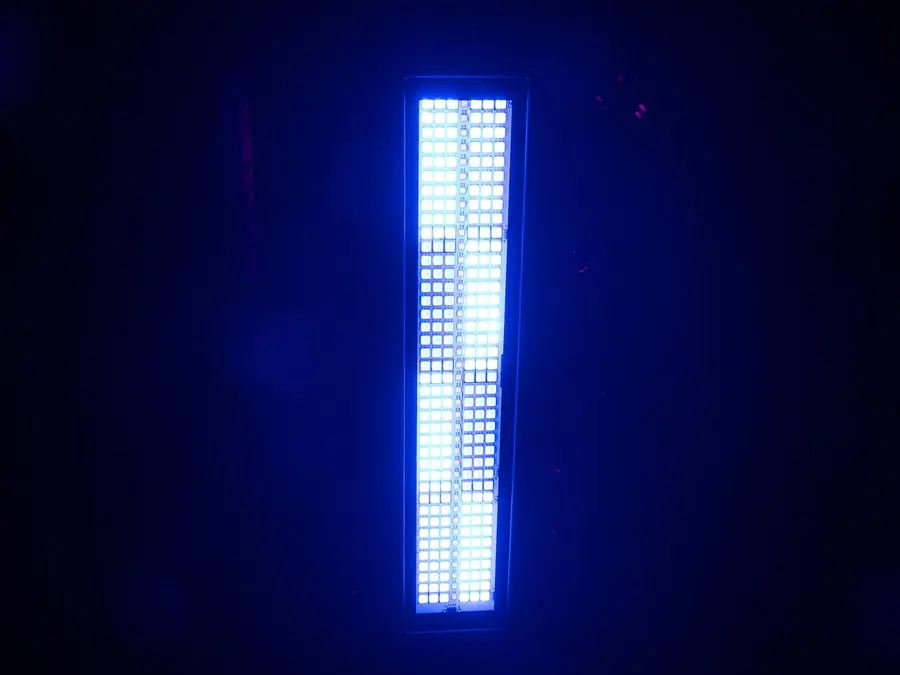

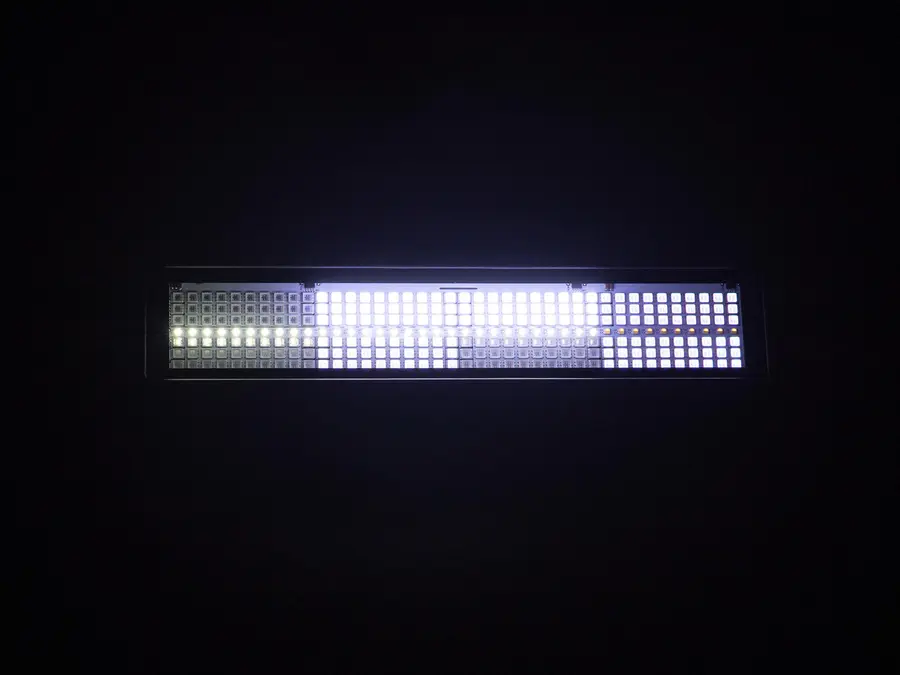

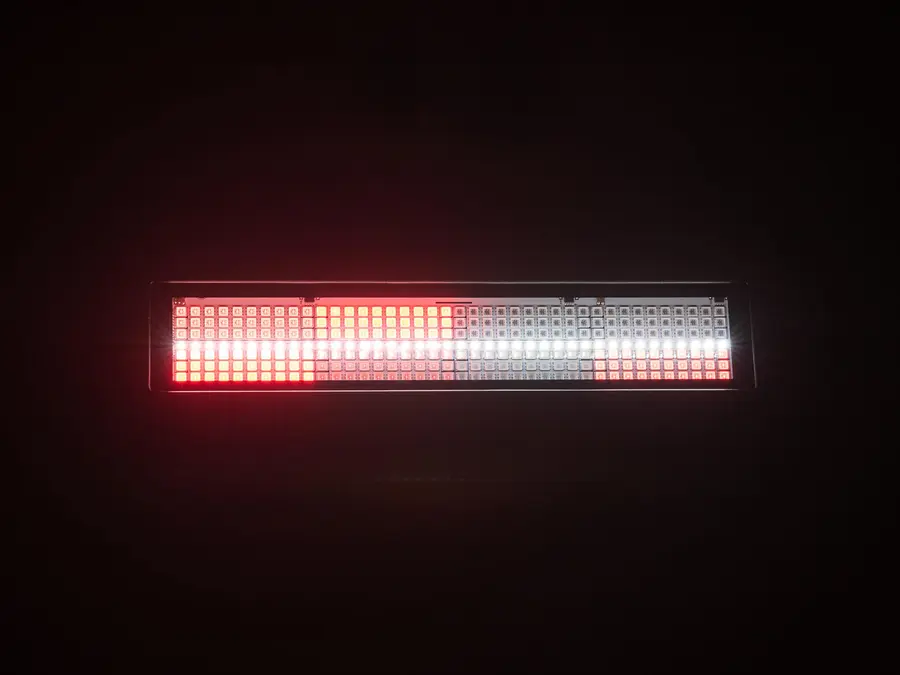

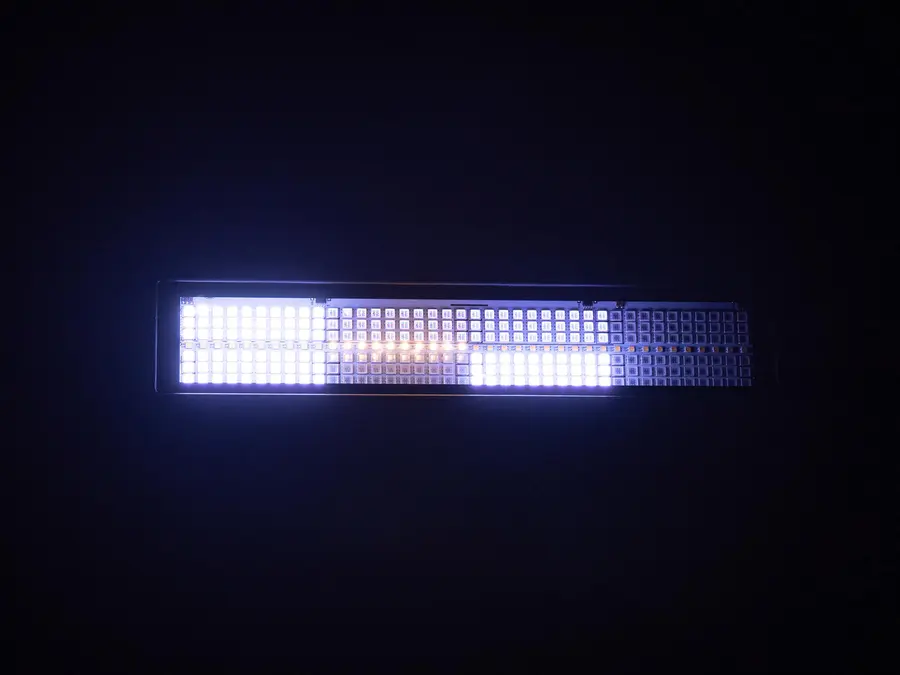

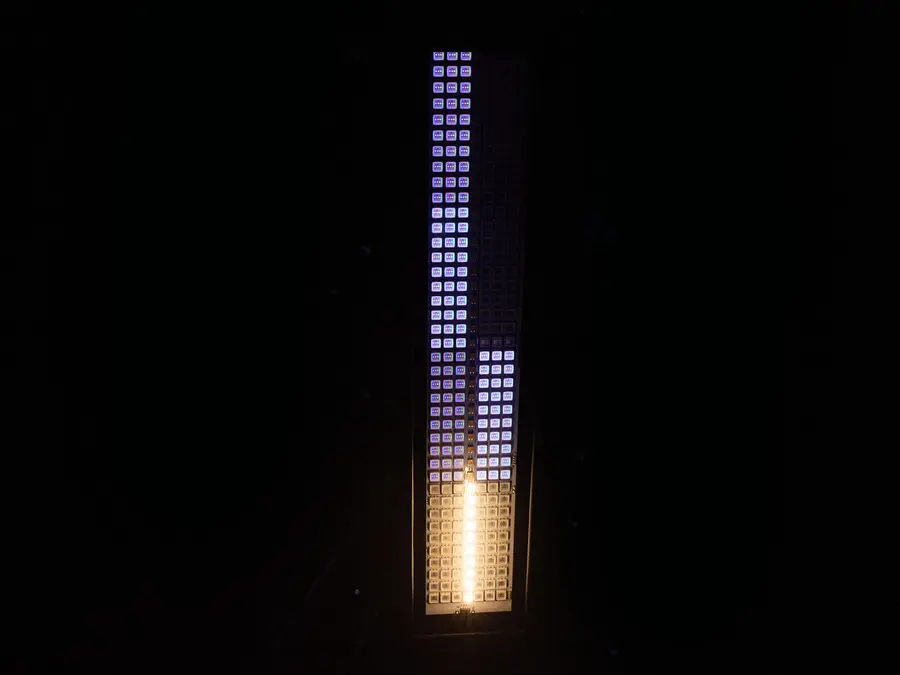

- 240 x 0.5 W SMD 5050 3-in-1 RGB LEDs in 8 separately controllable segments

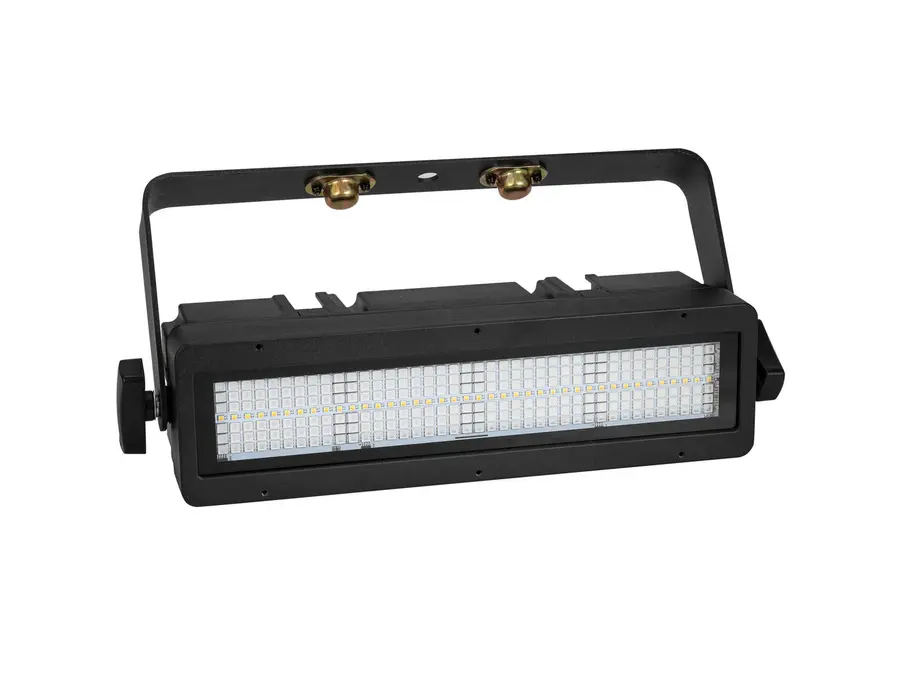

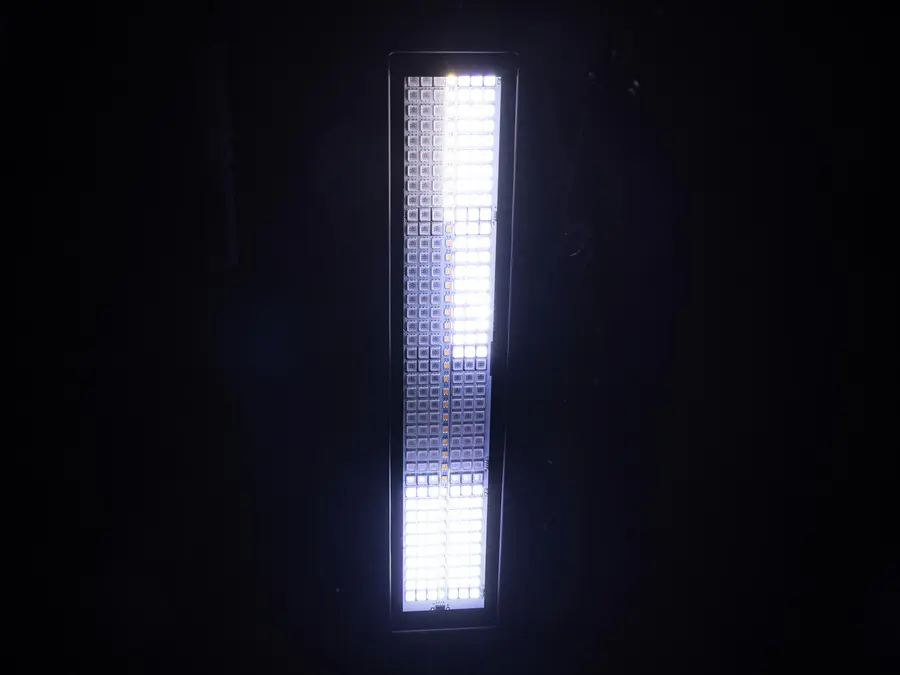

- 40 x 1 W SMD 3030 2-in-1 CW/WW LEDs in 4 separately controllable segments
- 120° beam angle with excellent side visibility
- Adjustable color temperature from 3200 K to 6600 K

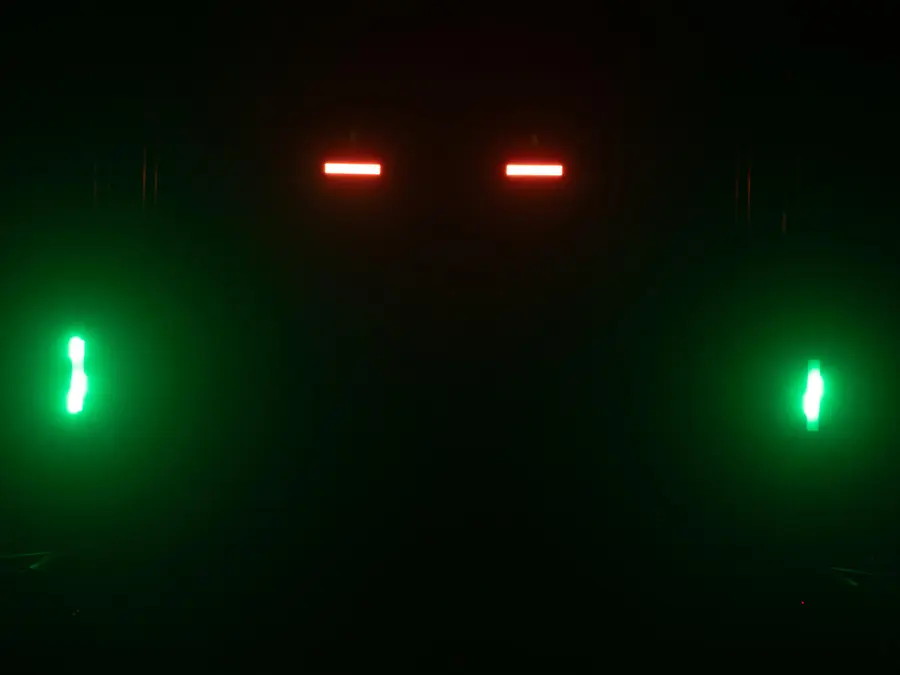

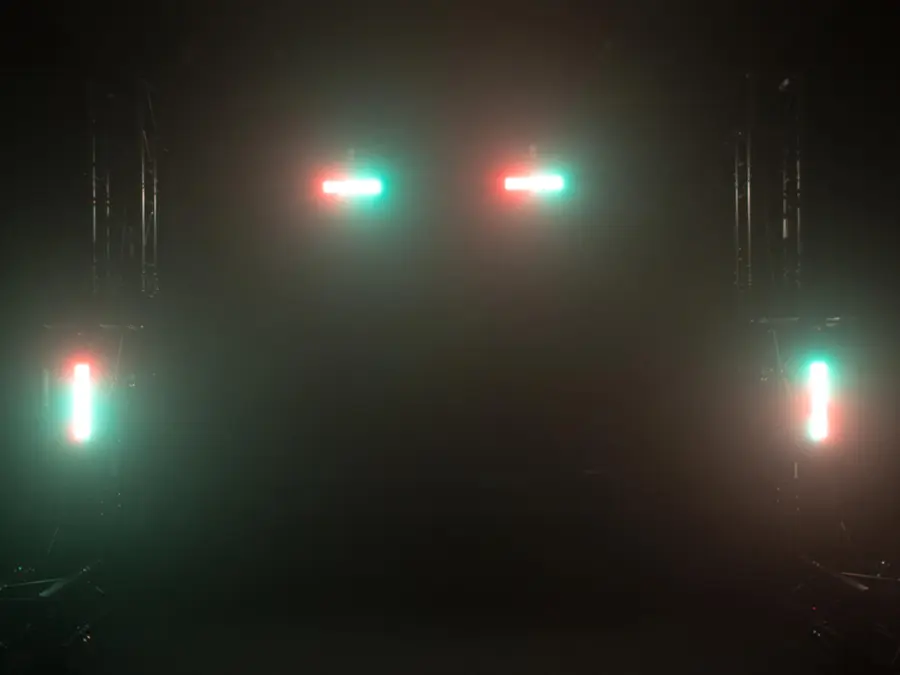

- Strobe, wash and ambient effects, with 20 integrated show programs
- Electronic dimmer, stepless color mixing, adjustable program speed and selection, plus two-color animations
- Flash rate adjustable from 1 to 25 Hz
- Stand-alone, sound-to-light via microphone, master/slave and DMX control
- DMX modes with 6, 10, 18, 24, 25 or 32 channels
- Flicker-free light output and 4000 Hz PWM frequency
- Passive convection cooling for completely silent operation
- IP65-rated housing with pressure compensation membrane for indoor and outdoor use

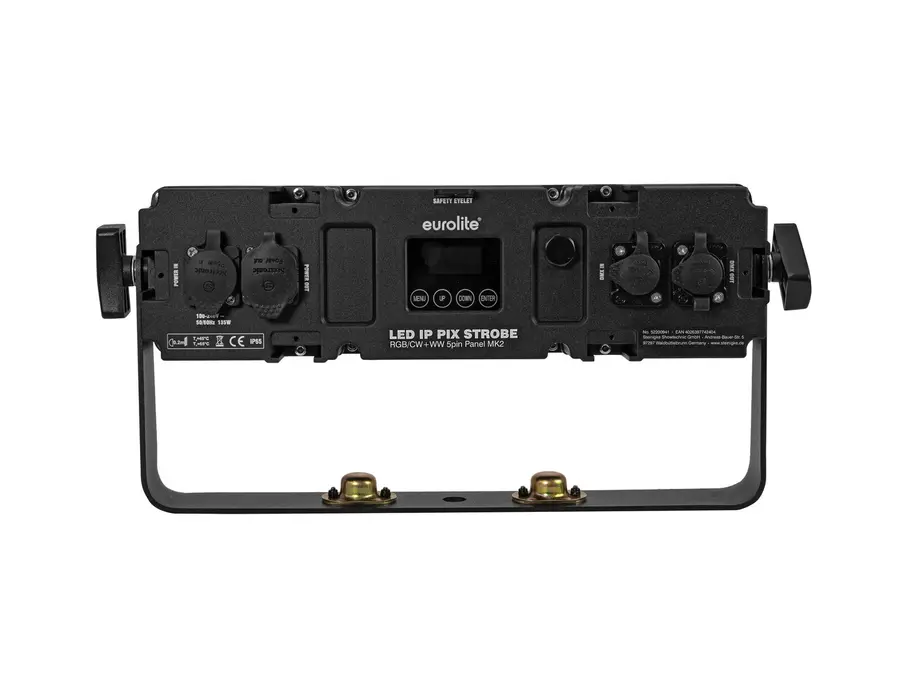

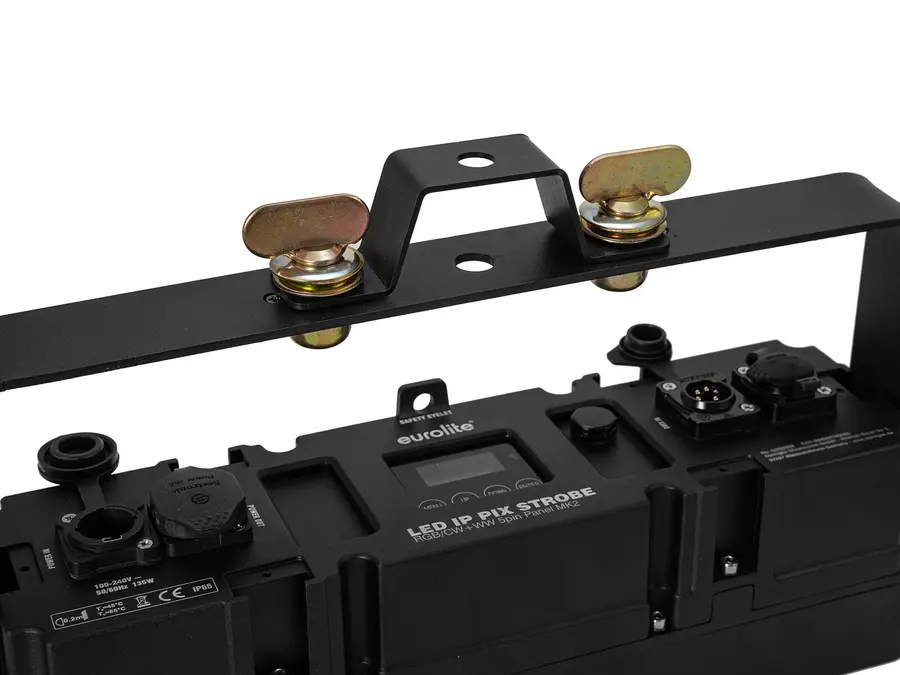

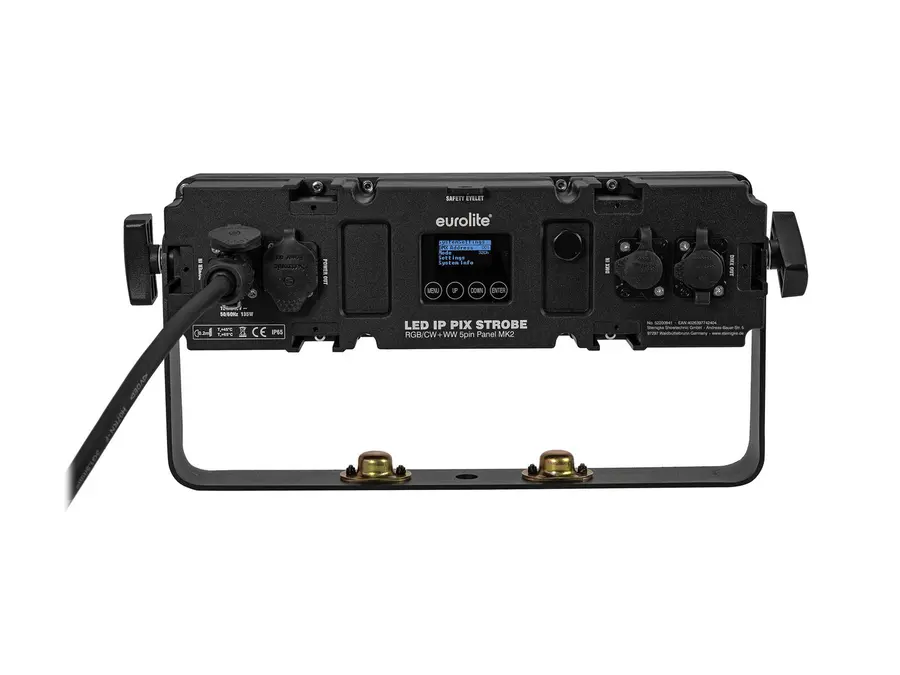

- OLED display, mounting bracket and omega bracket
- IP T-Con mains input and output for power linking up to 8 units
- 5-pin IP-rated XLR DMX input and output
- Compatible fixture profiles available for Light Captain, Light´J and GDTF (GrandMA3)
Technical specifications
- Power supply: 100–240 V AC, 50/60 Hz
- Power consumption: 135 W
- Protection class: I
- Dimensions: 38 x 11 x 17.6 cm
- Weight: 3.80 kg
- Housing color: Black
- Noise classification: Class 0

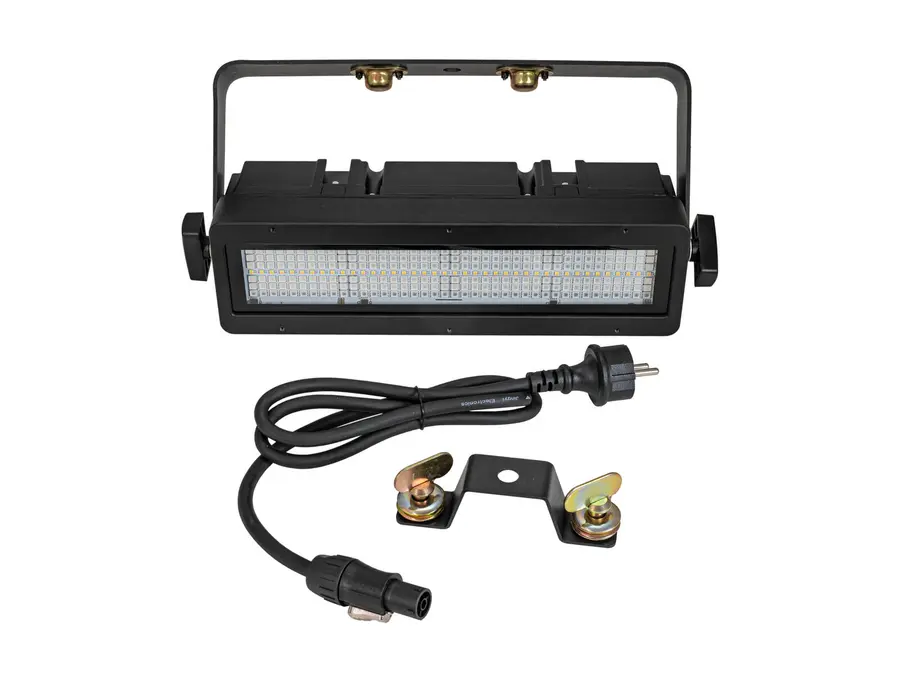

Included
- Power cord, approx. 1.2 m, H07RN-F 3 x 1.5 mm²
- Omega bracket
- User manual
