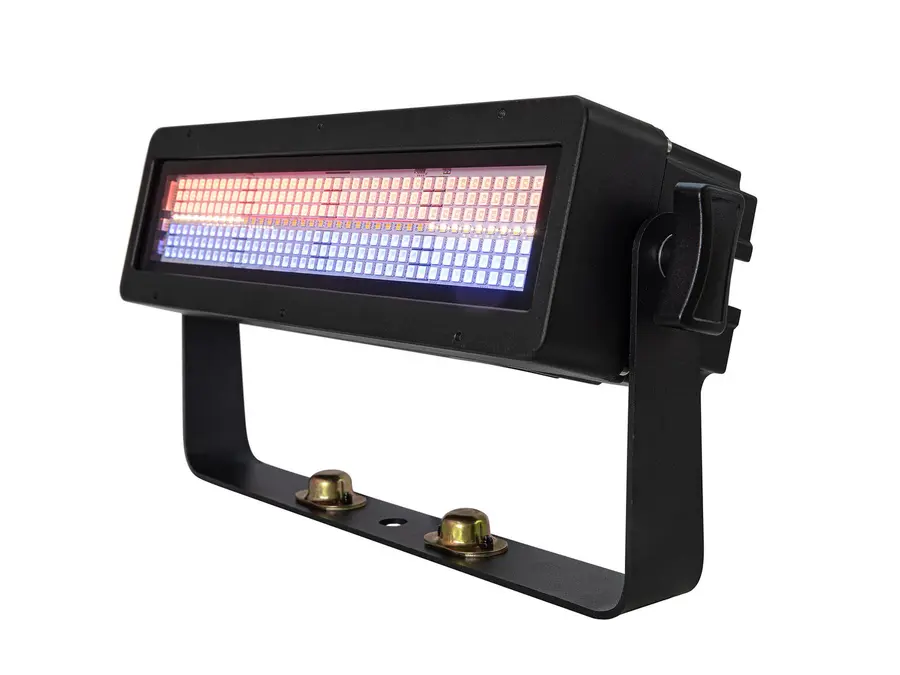

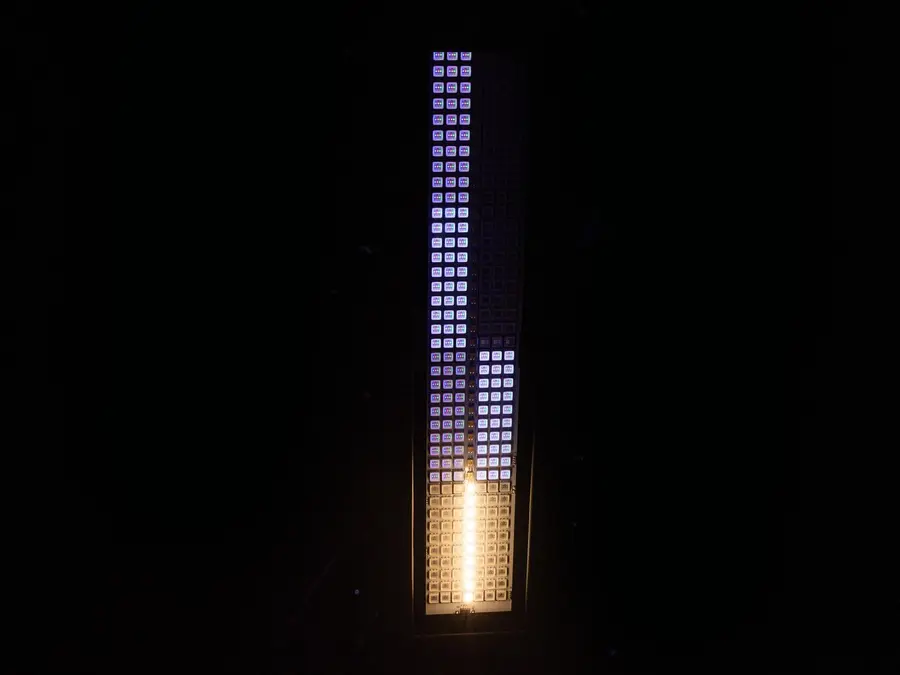

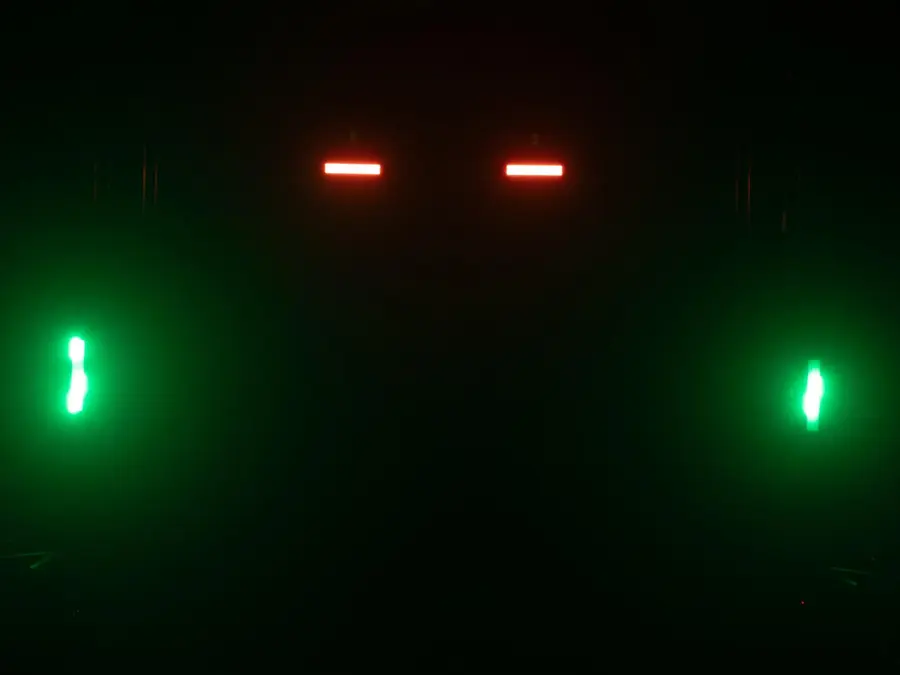

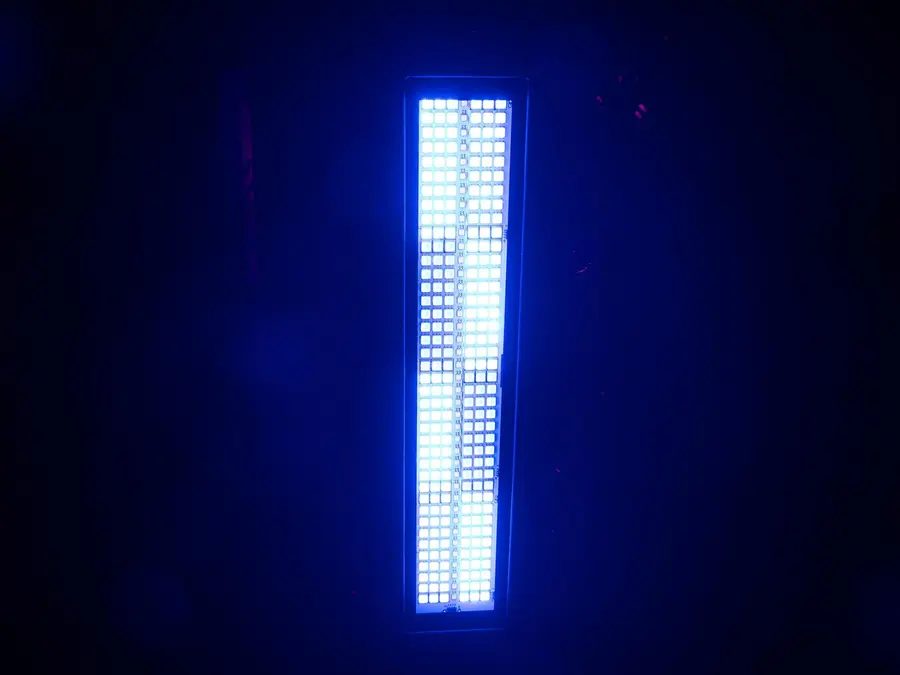

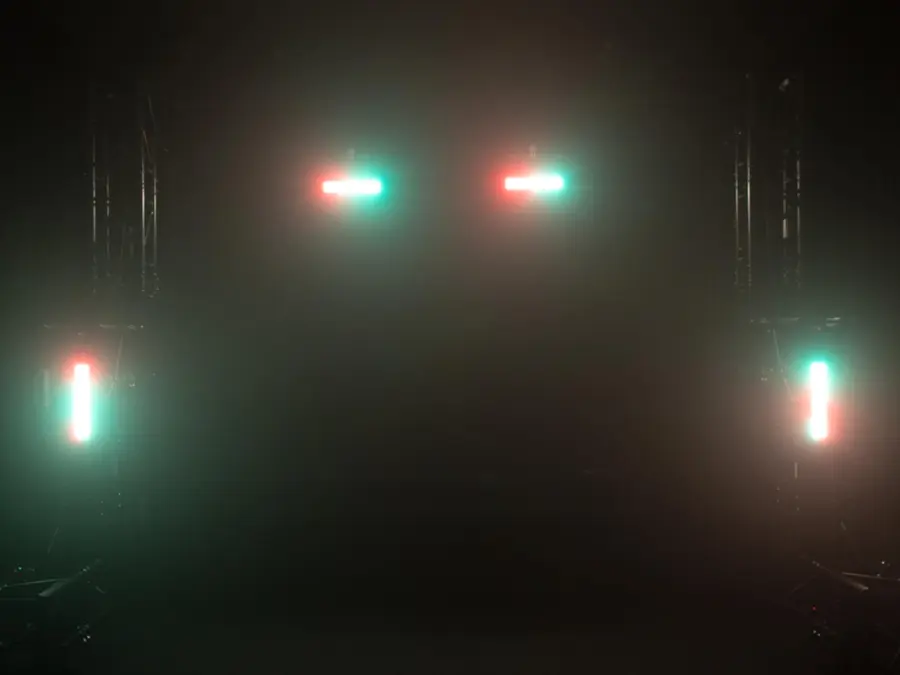

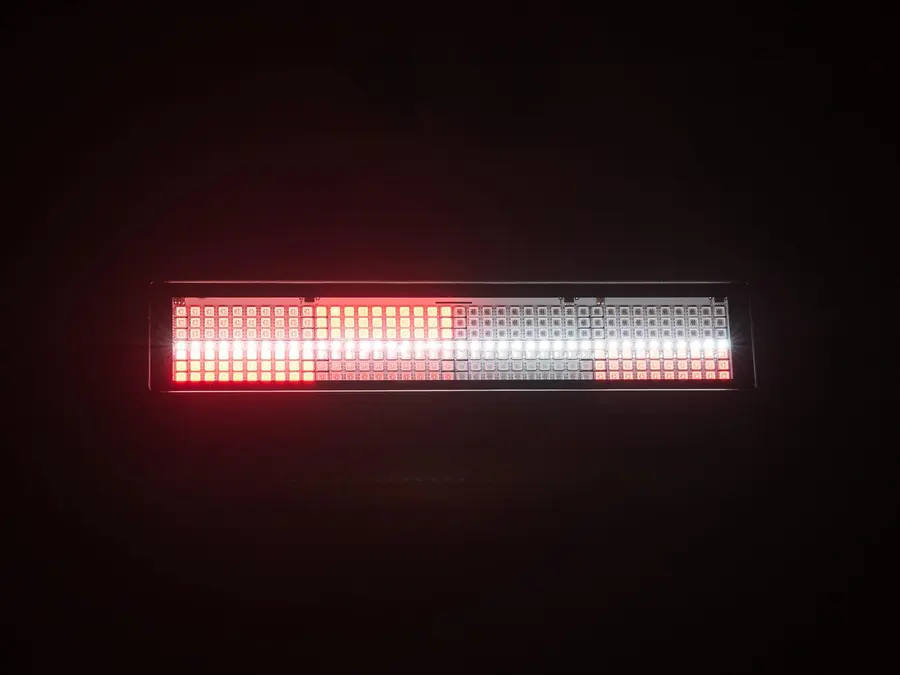

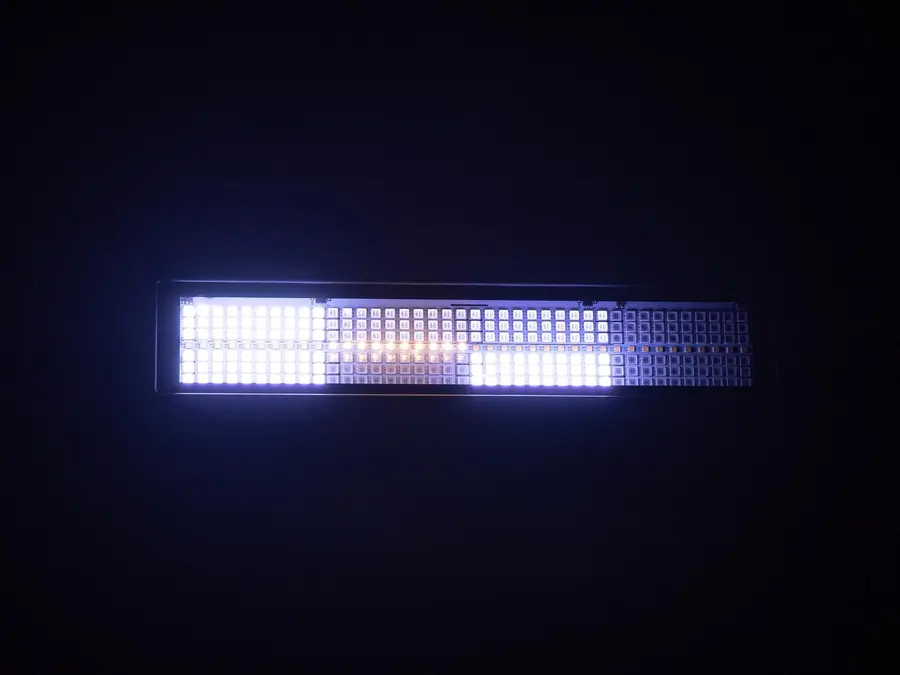

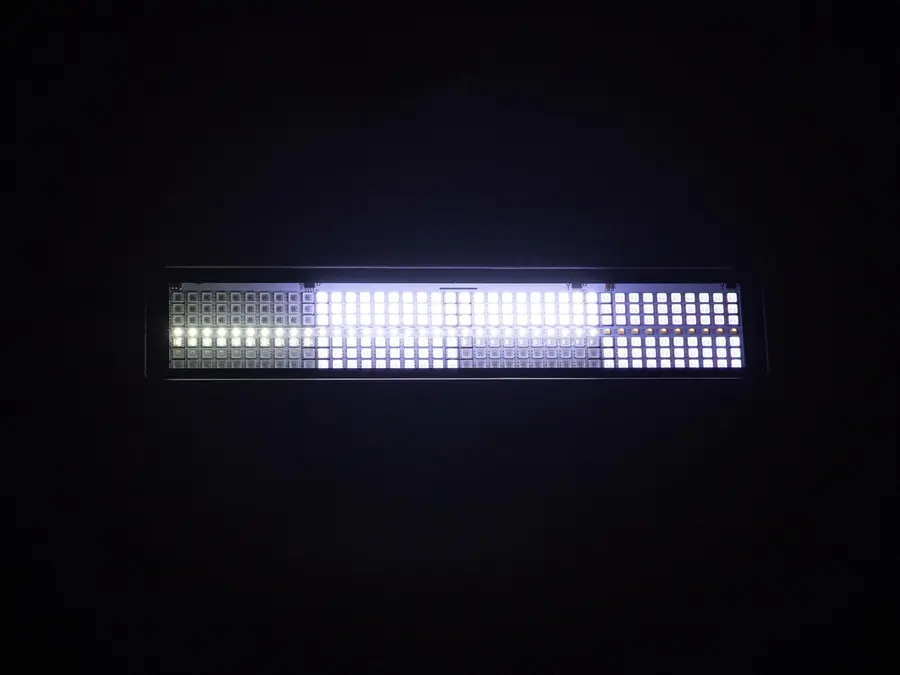

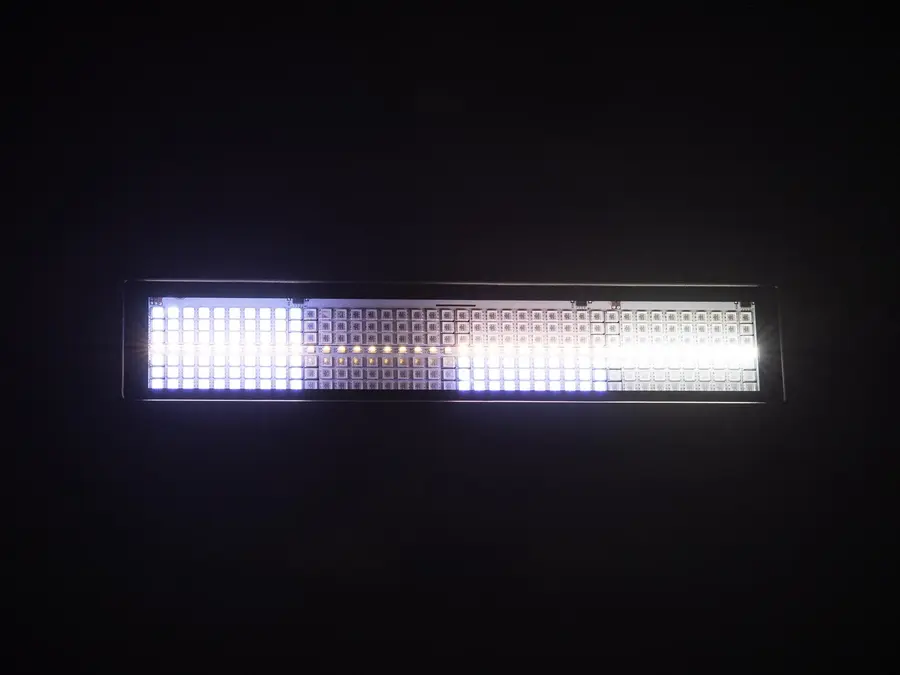

The EUROLITE LED IP PIX Strobe RGB CW+WW MK2 is an IP65-rated outdoor spotlight for strobe, wash, blinder and ambient lighting effects. Its lighting system combines 240 RGB LEDs arranged in eight separately controllable segments with 40 cool-white/warm-white LEDs arranged in four separately controllable segments. The white LED segments offer an adjustable color temperature from 3200 K to 6600 K, while the 120° beam angle provides wide coverage.

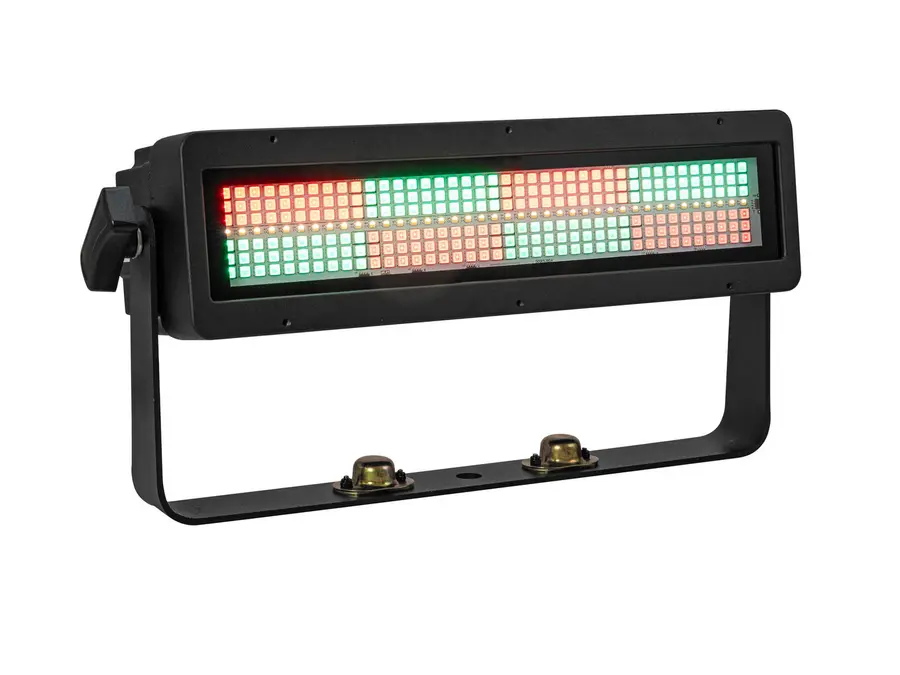

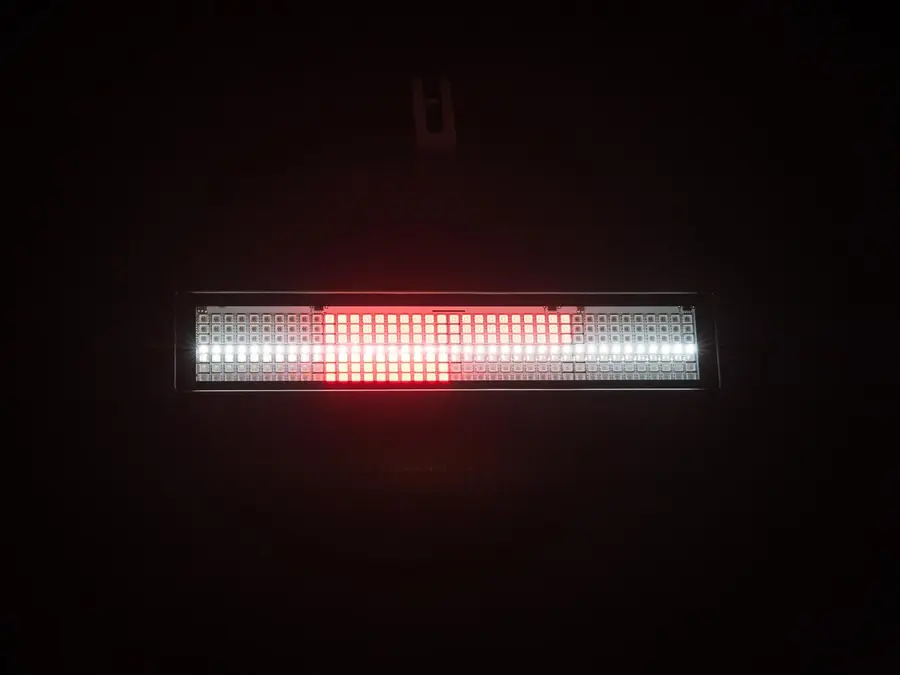

- 240 x 0.5 W SMD 5050 3-in-1 RGB LEDs in 8 separately controllable segments

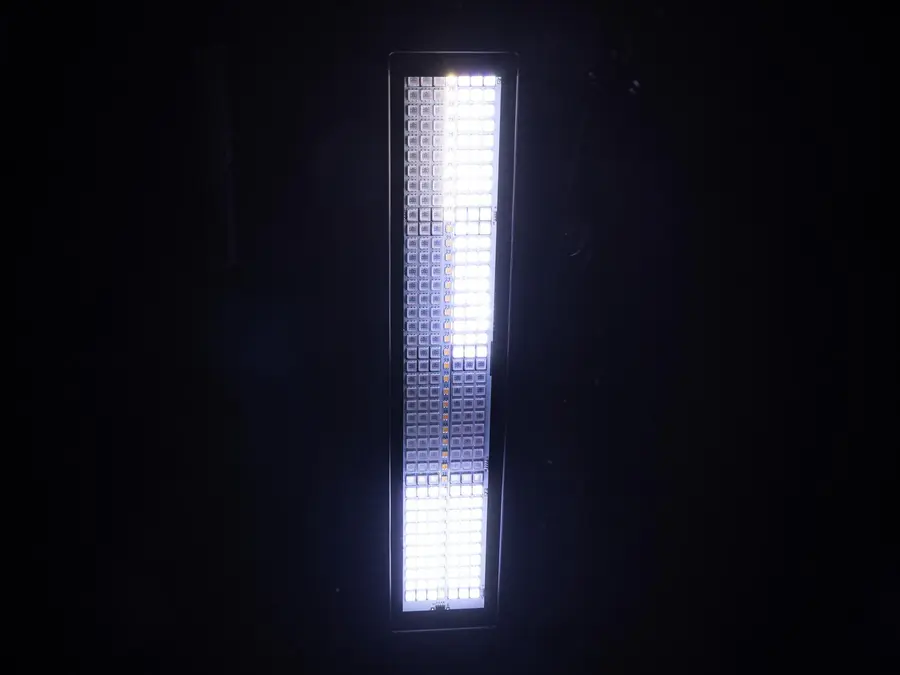

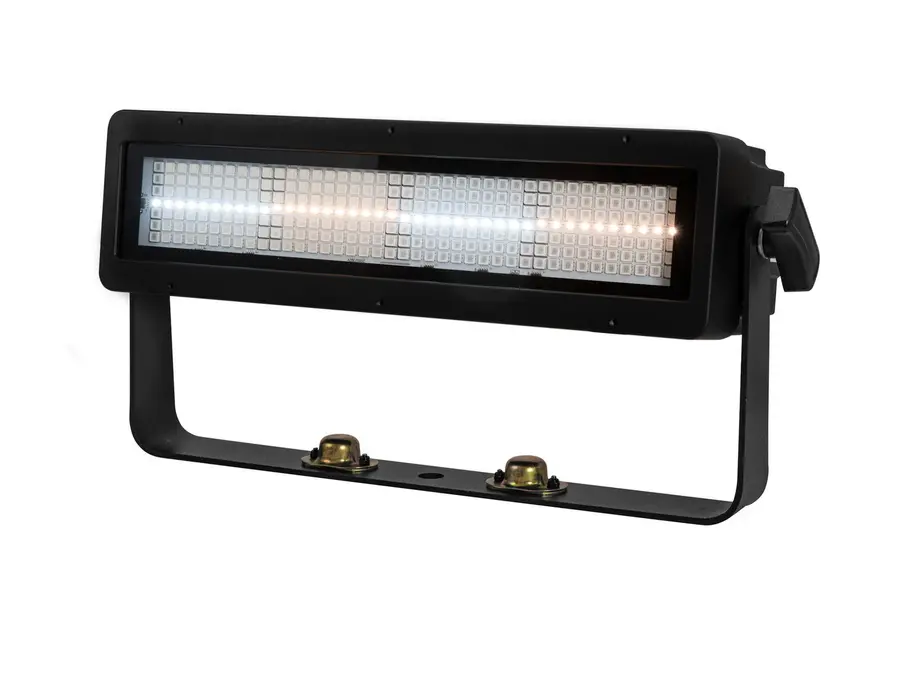

- 40 x 1 W SMD 3030 2-in-1 CW/WW LEDs in 4 separately controllable segments
- Strobe, wash and ambient effects with a flash rate of 1–25 Hz
- Electronic dimmer, stepless color mixing and adjustable program speed and selection
- Color animations with two adjustable colors and 20 integrated show programs
- 35 preset color-temperature values with direct selection
- Stand-alone, sound-to-light via microphone, DMX, RDM and master/slave control
- DMX operation in 6, 10, 18, 24, 25, 32, 33 or 34-channel mode
- Separate DMX channels for the white and colored LEDs
- Flicker-free operation
- Fanless passive convection cooling for silent operation
- IP65-rated housing with pressure-compensation membrane for indoor and outdoor use
- 120° beam angle

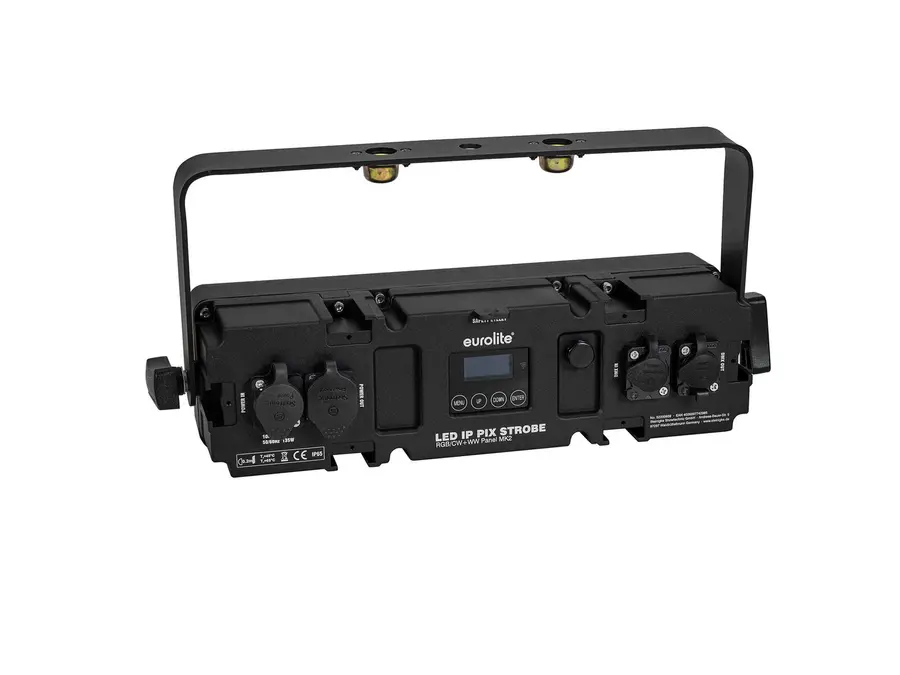

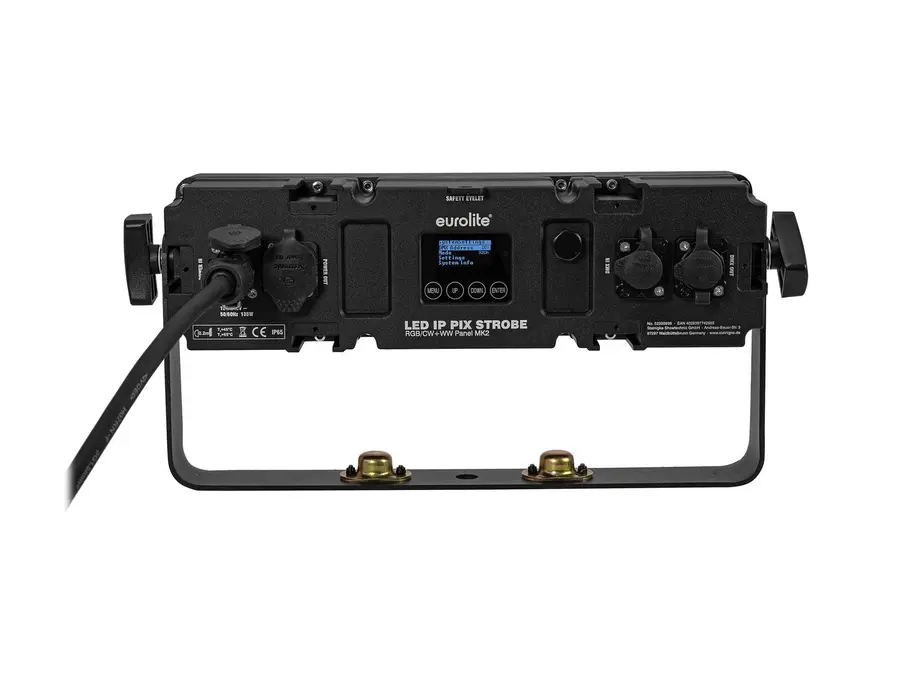

- OLED display
- Power input and output for linking up to 8 units

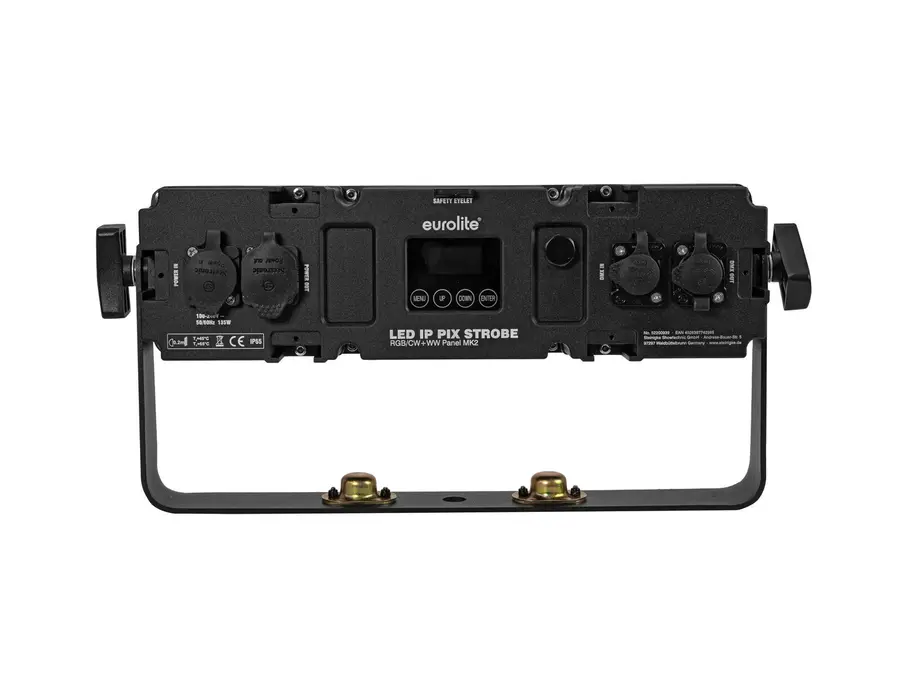

- 3-pin IP-rated DMX input and output with SEETRONIC connectors

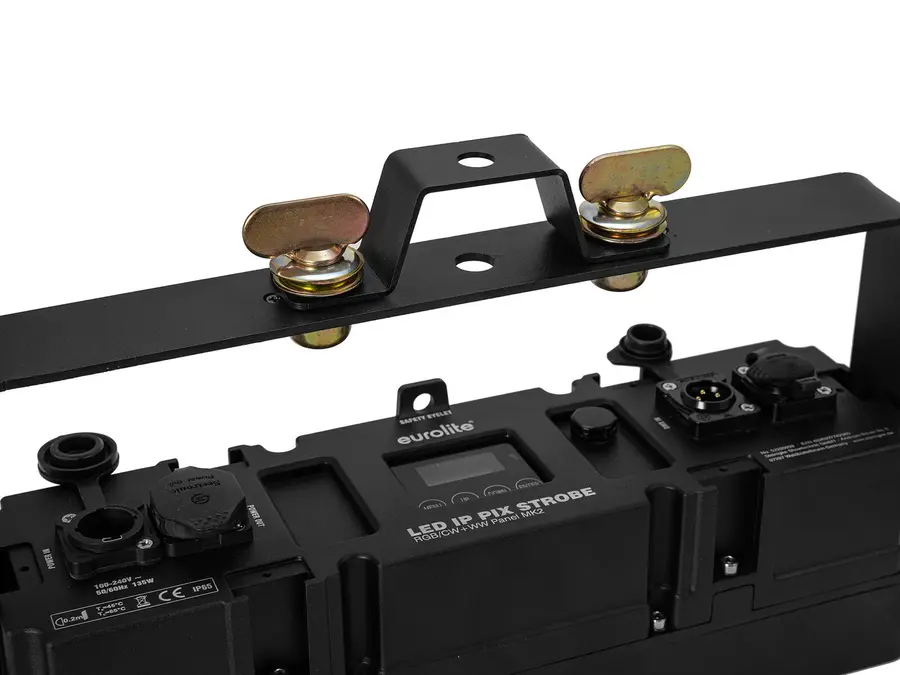

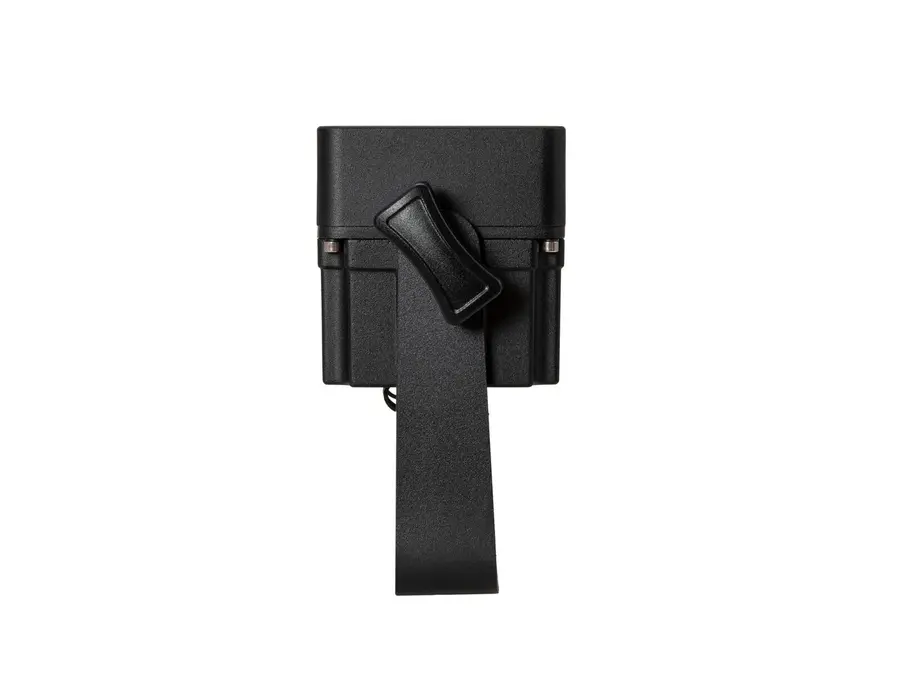

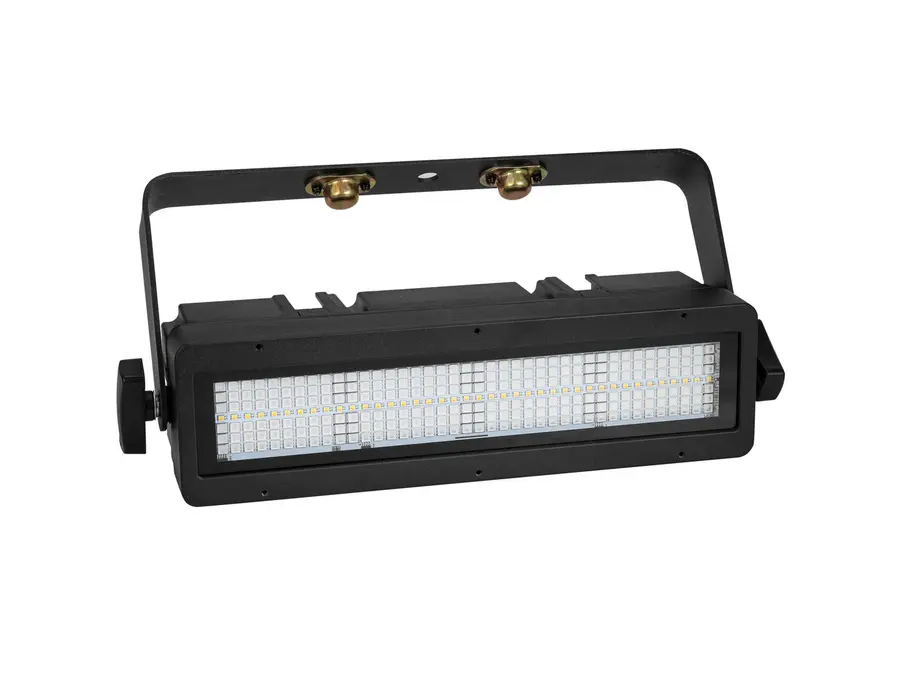

- Mounting bracket and omega bracket
Technical specifications
- Power supply: 100–240 V AC, 50/60 Hz
- Power consumption: 135 W
- Housing: black aluminum casting
- Dimensions: 38 x 11 x 17.6 cm
- Weight: 3.78 kg

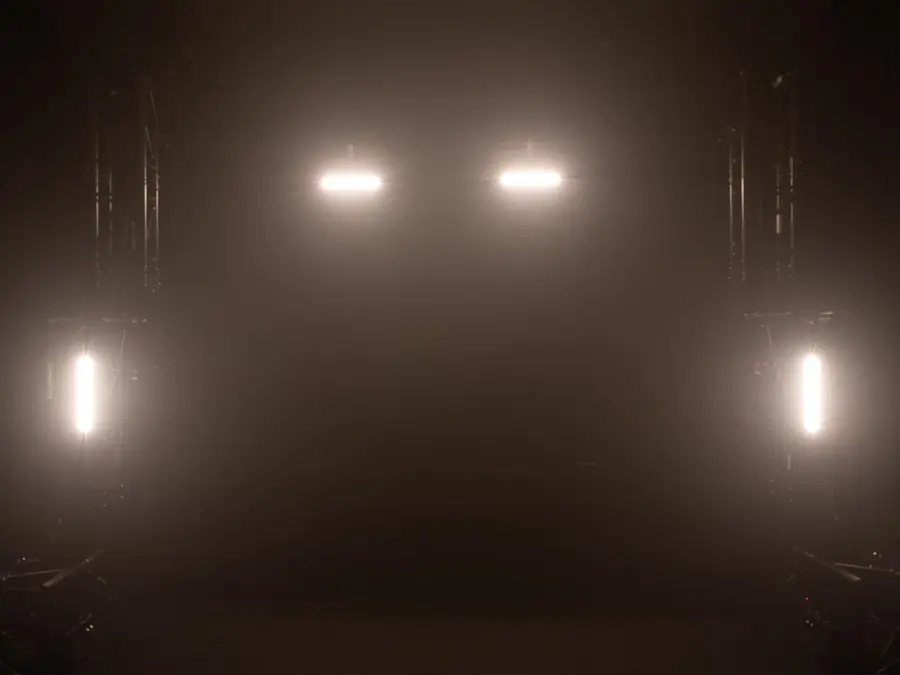

- Mounting options: standing or suspended
- Compatible fixtures available for Light Captain, Light´J and GDTF (GrandMA3)

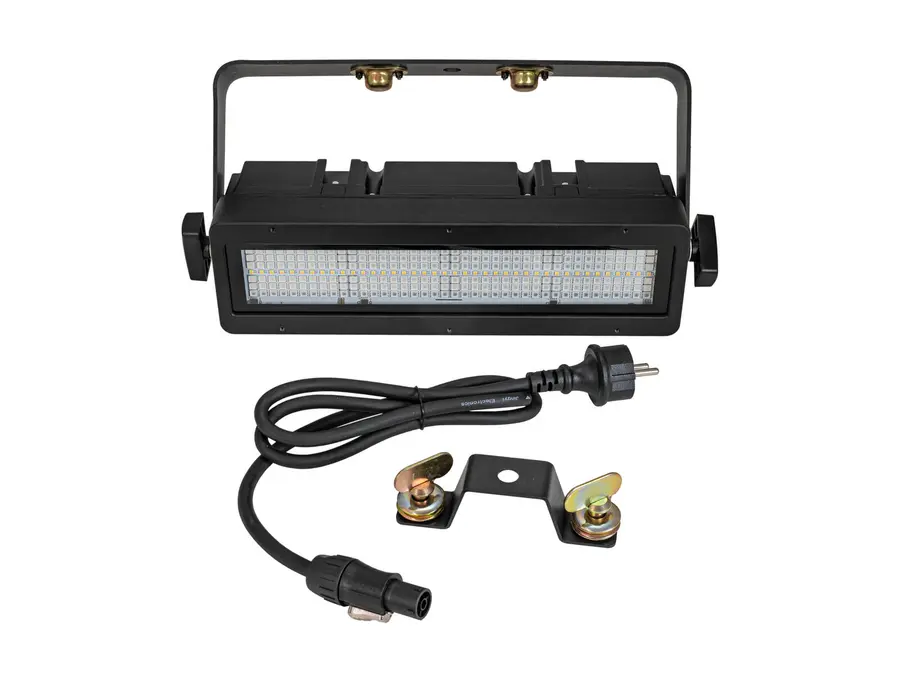

Included
- Power cord
- Omega bracket
- User manual
