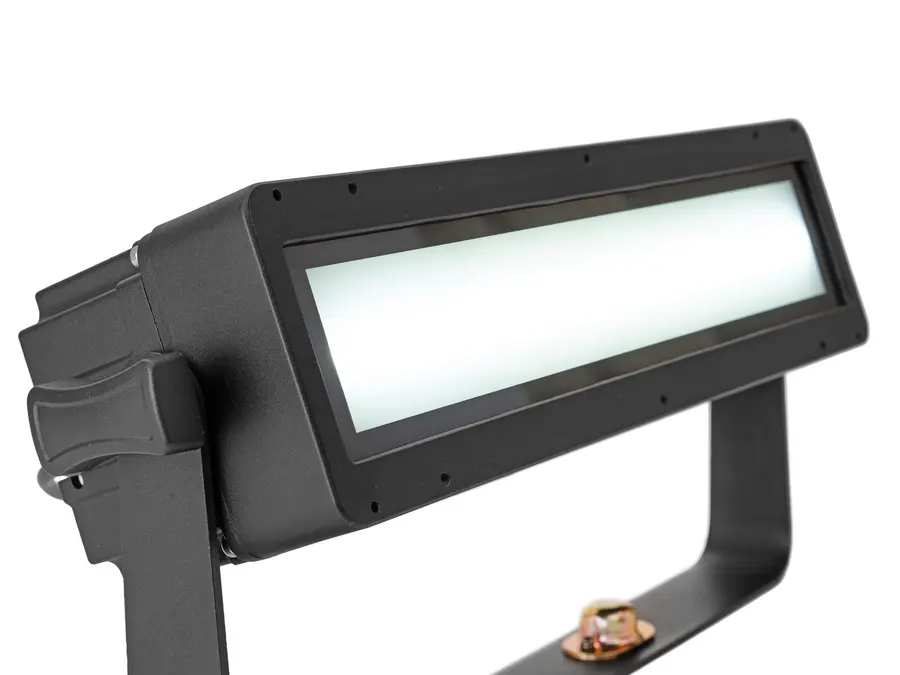

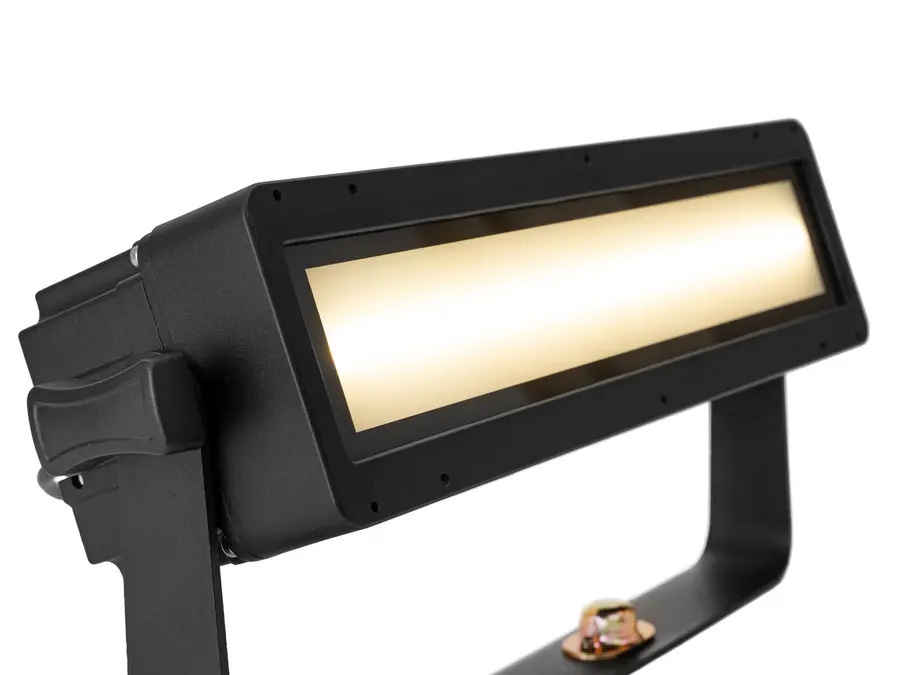

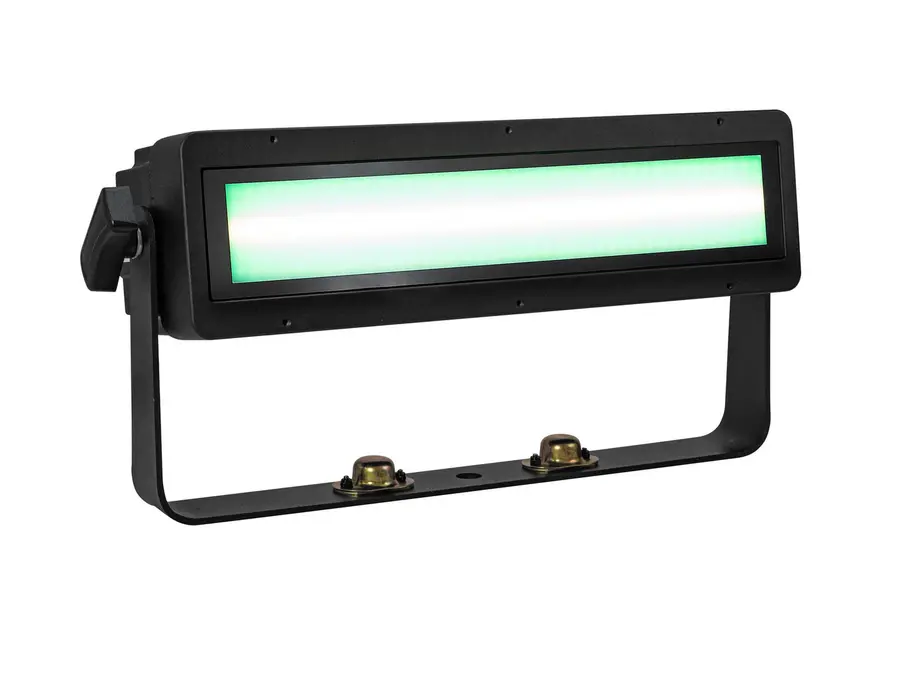

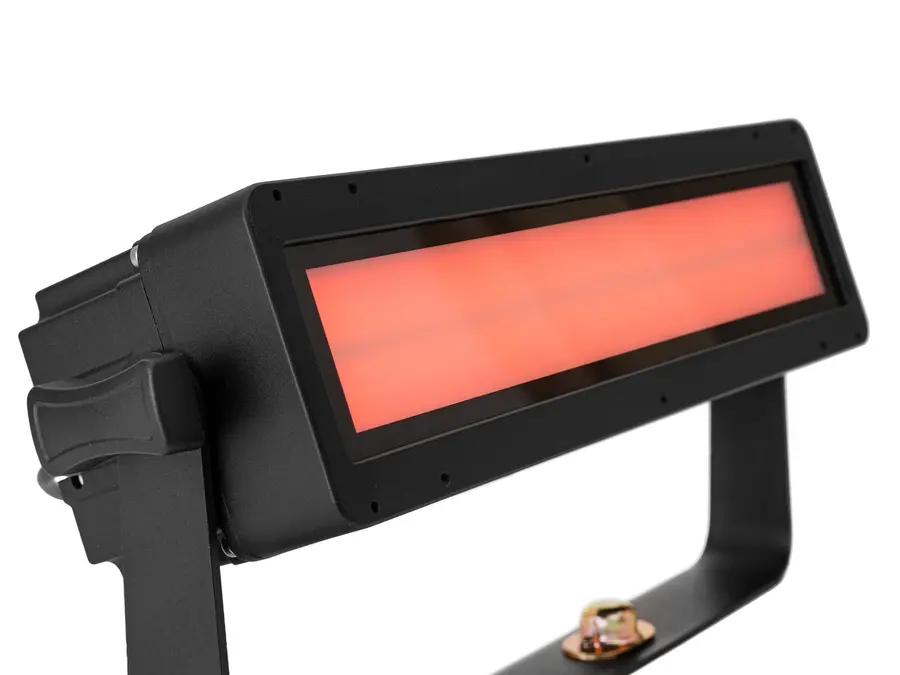

The EUROLITE LED IP PIX Strobe FROST 5pin is an IP65-rated, linkable LED fixture for strobe, wash, blinder, ambient and animation effects. Its electronic frost filter can be adjusted continuously via DMX, allowing the beam to be widened dynamically. The fanless design uses passive convection cooling for silent operation, while the housing is suitable for indoor and outdoor use.

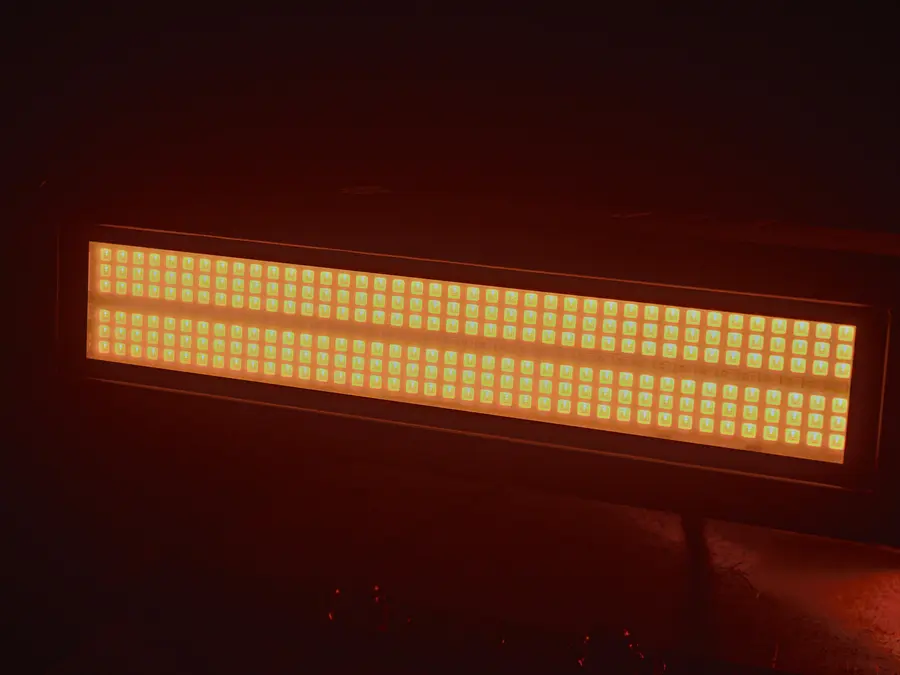

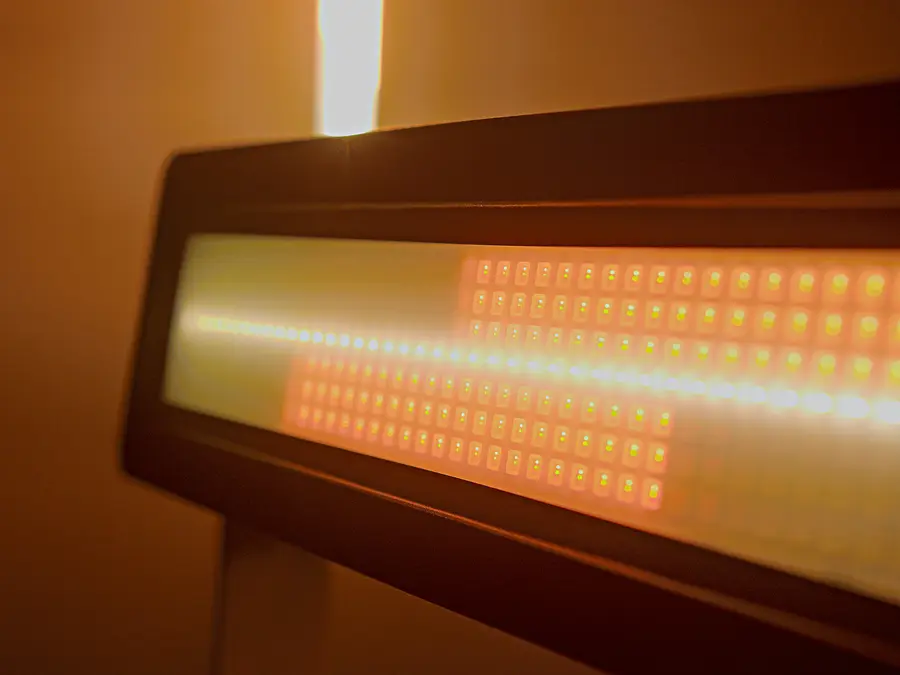

- 240 x 0.5 W SMD 5050 3-in-1 RGB LEDs in 8 separately controllable segments
- 40 x 1 W SMD 3030 2-in-1 CW/WW LEDs in 4 separately controllable segments

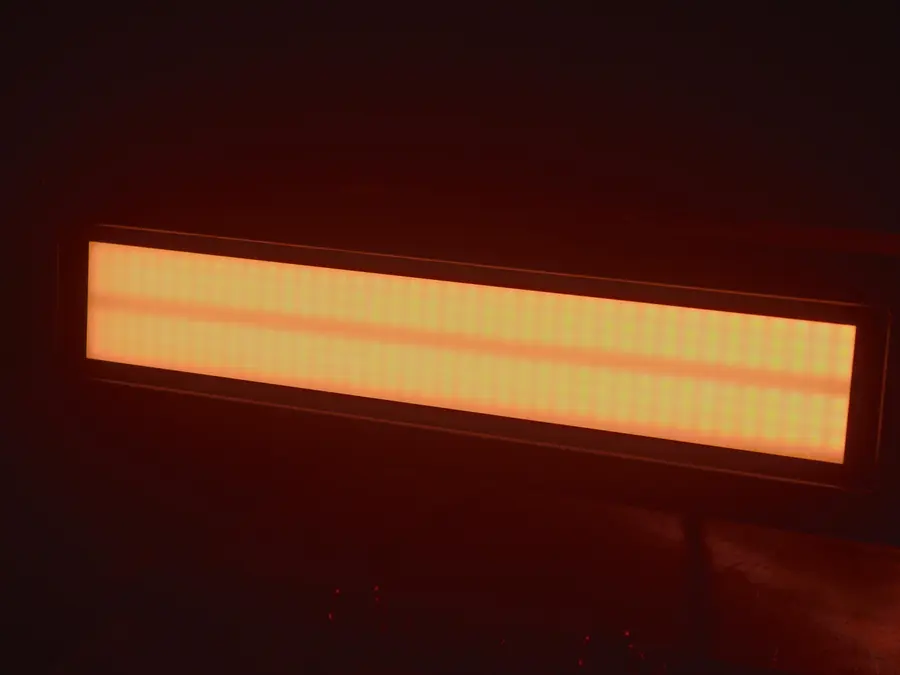

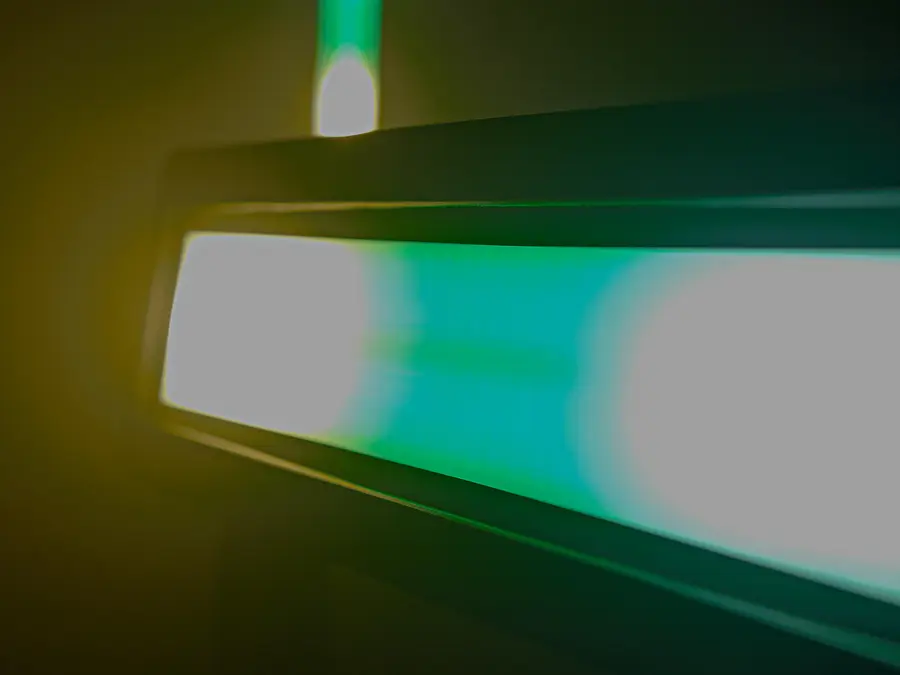

- Continuously adjustable electronic frost filter, electronic dimmer and stepless color mixing

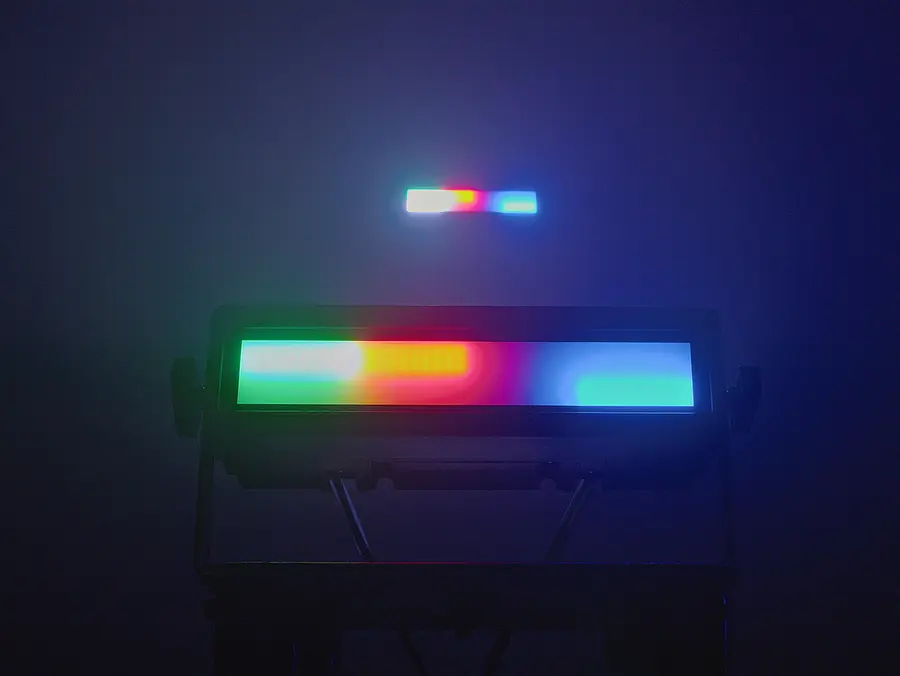

- Adjustable program speed, program selection and running light, plus color animations with two adjustable colors
- 20 integrated show programs
- Adjustable color temperature from 3200 K to 6600 K, with direct selection of 35 preset values
- 120° beam angle and CRI 80 Ra
- Flash rate from 1 to 25 Hz
- Control via stand-alone, sound-to-light through the built-in microphone, master/slave or DMX
- DMX modes with 7, 11, 19, 25, 26, 32, 33, 34 or 35 channels
- DMX fail modes: blackout, hold, auto and manual

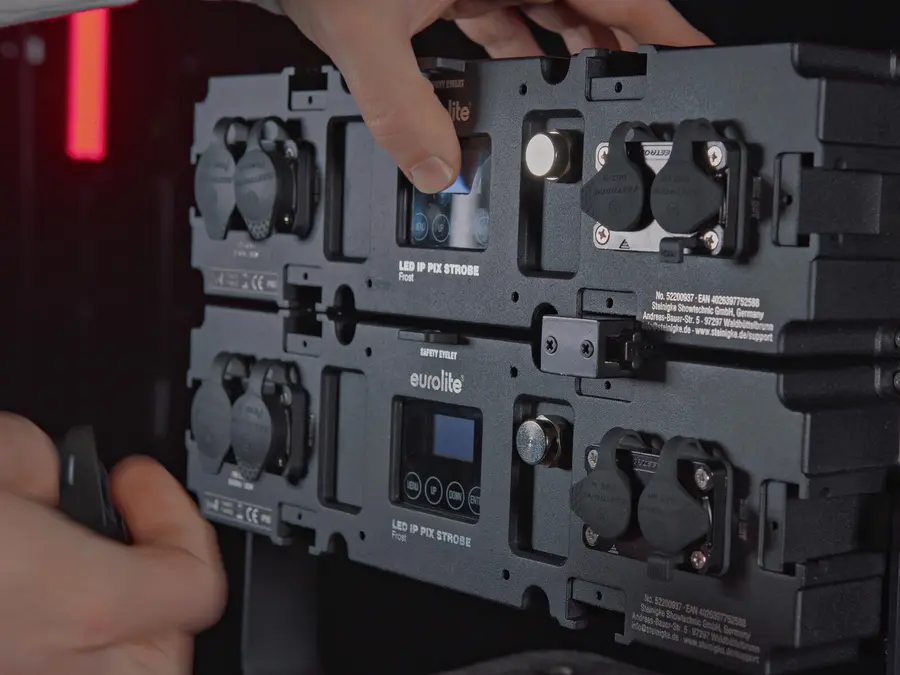

- Integrated mounting system for seamless, tool-free cluster setups

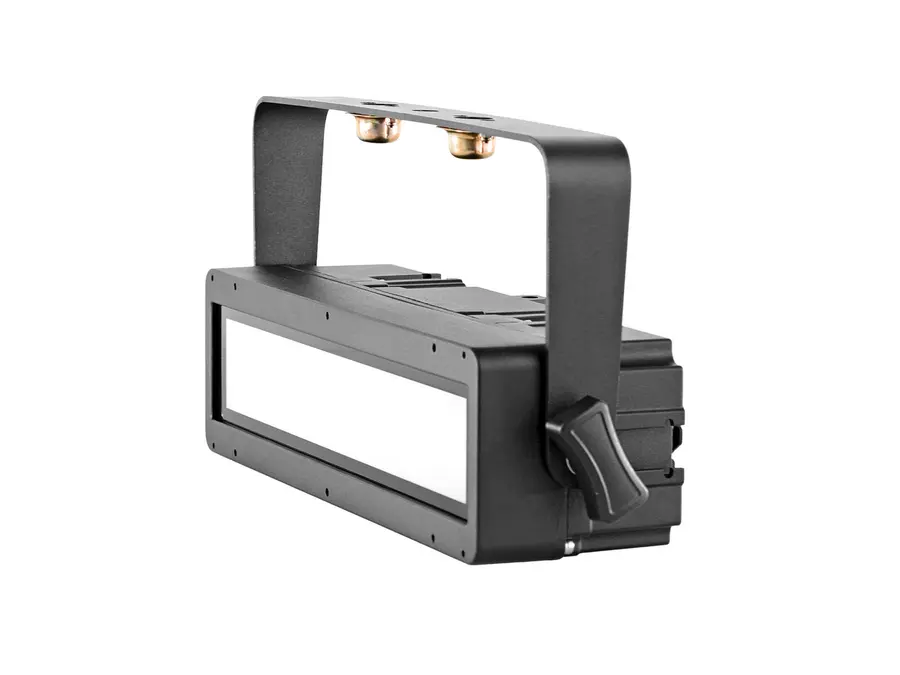

- Mounting bracket and omega bracket included; suitable for suspended mounting or use on a stand
- Power input and output for linking up to 8 units

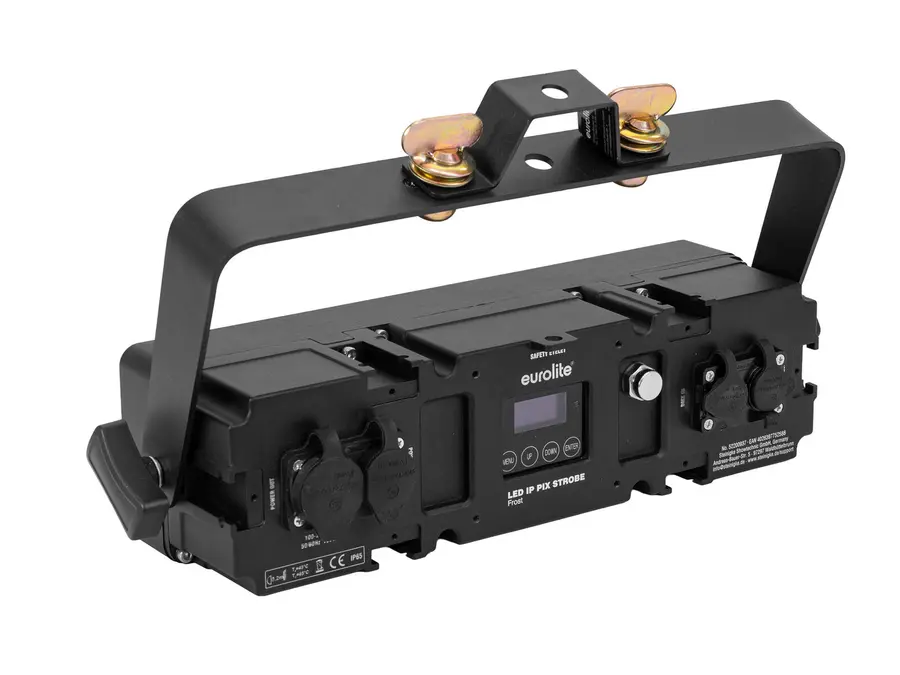

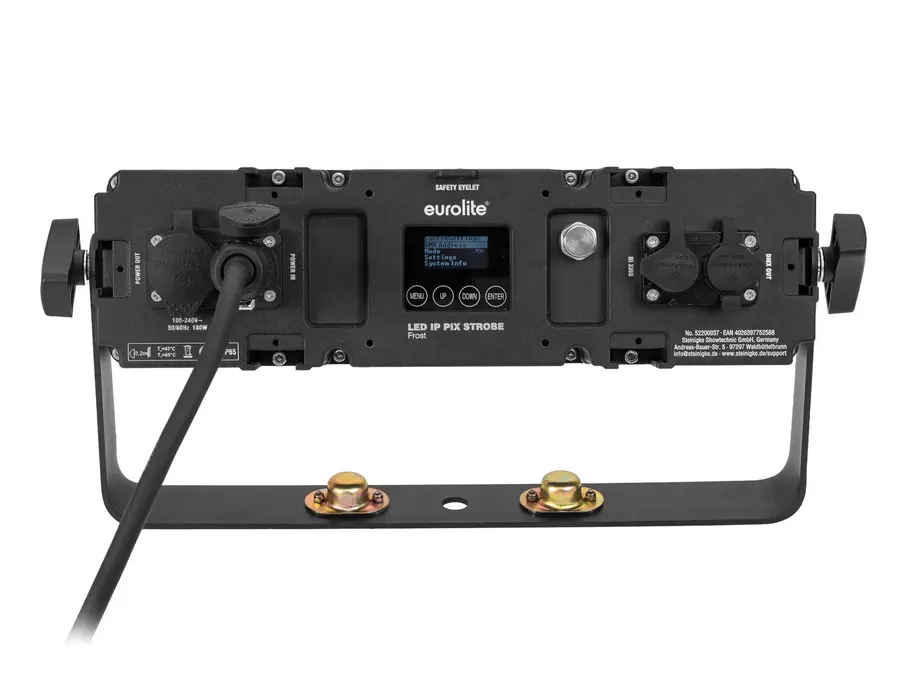

- Monochrome OLED display and SEETRONIC connectors
- IP65-rated housing with pressure-compensation membrane
Technical specifications
- Power supply: 100–240 V AC, 50/60 Hz
- Power consumption: 180 W
- Dimensions: 38 x 10.8 x 17.65 cm
- Weight: 3.73 kg
- Housing: Matte black painted metal
- LED lifetime: 50,000 hours
- PWM frequency: 4000 Hz
- DMX: 5-pin XLR input and output
Included
- Fixture
- User manual
- Power cord
- Omega bracket
