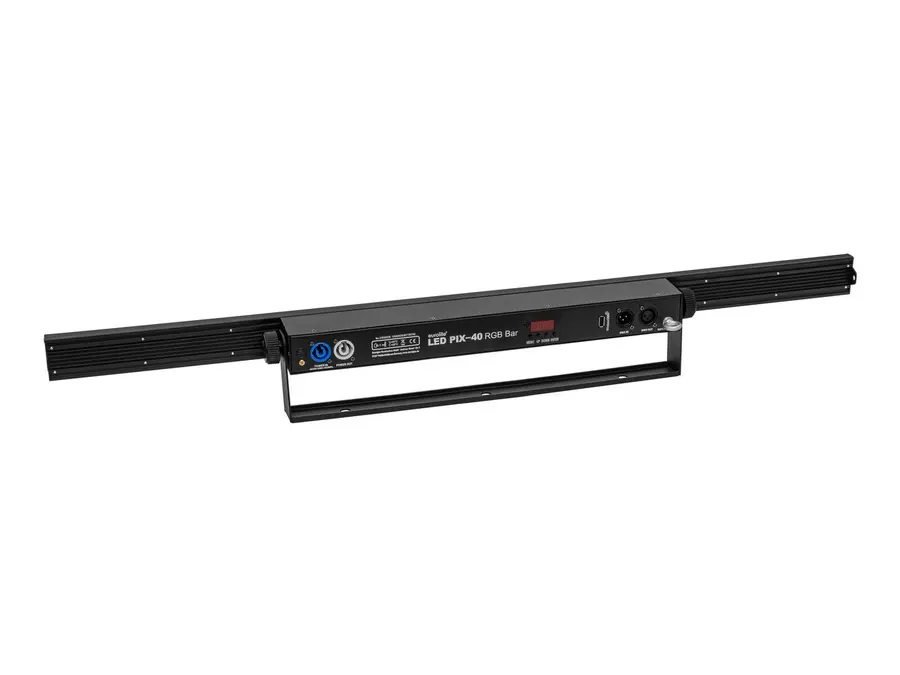

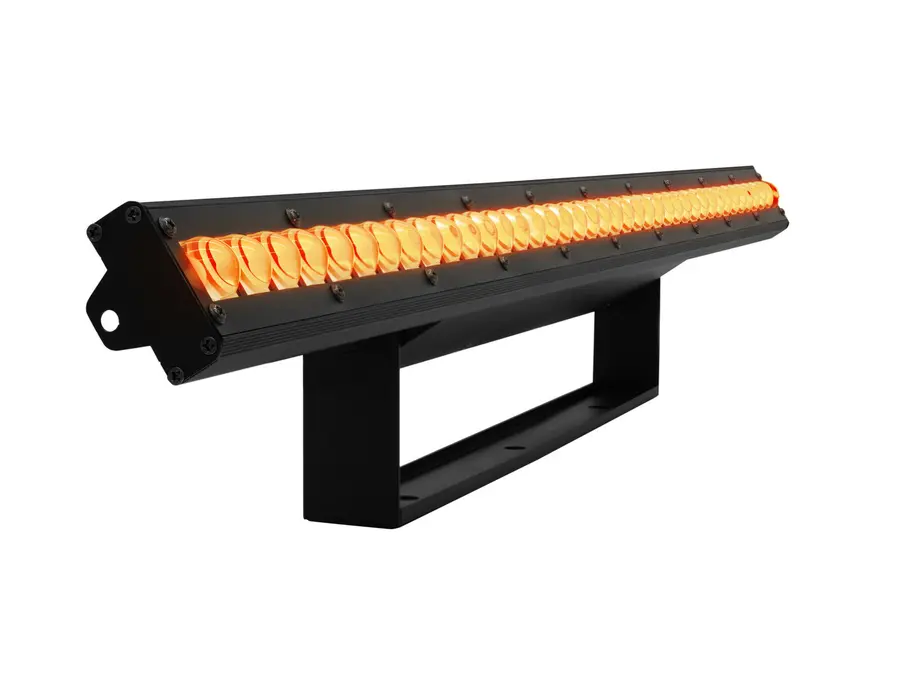

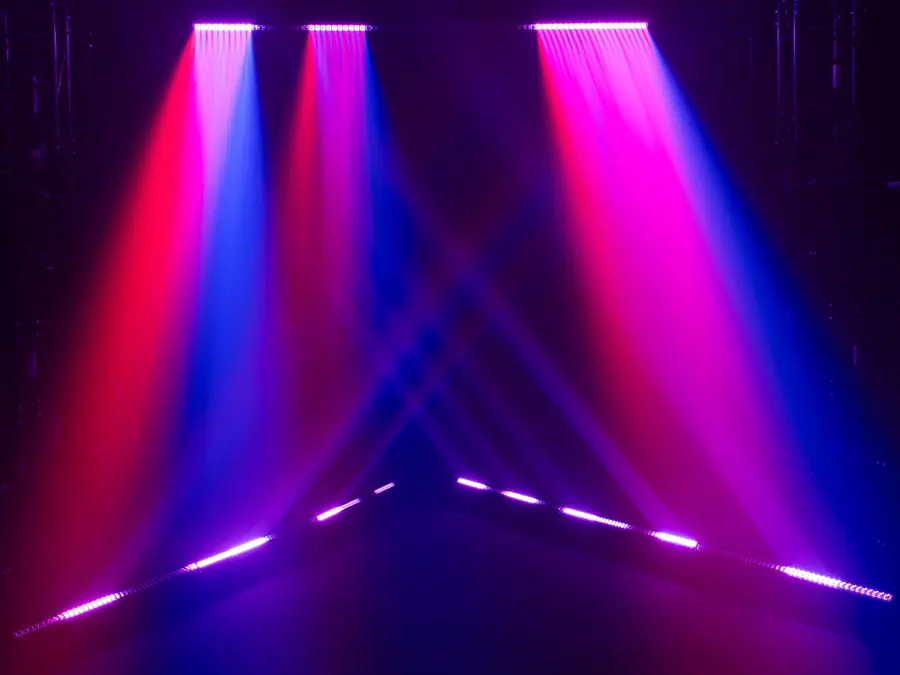

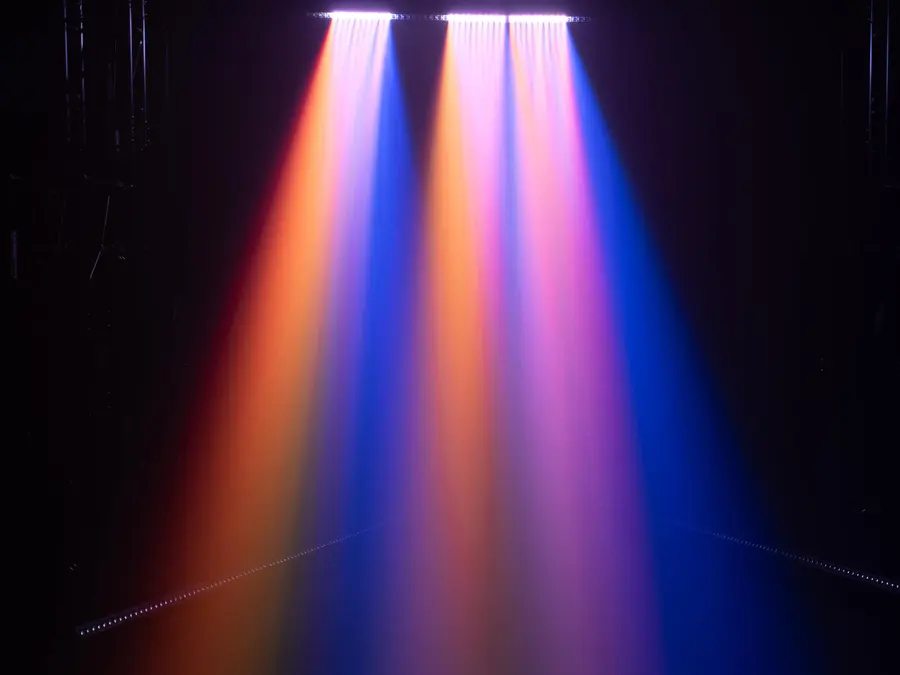

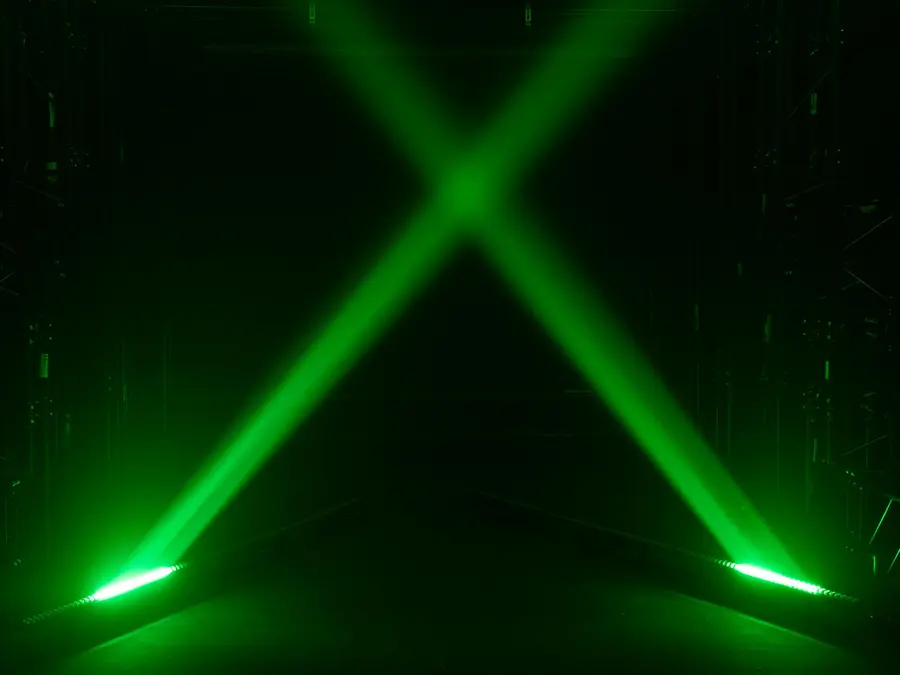

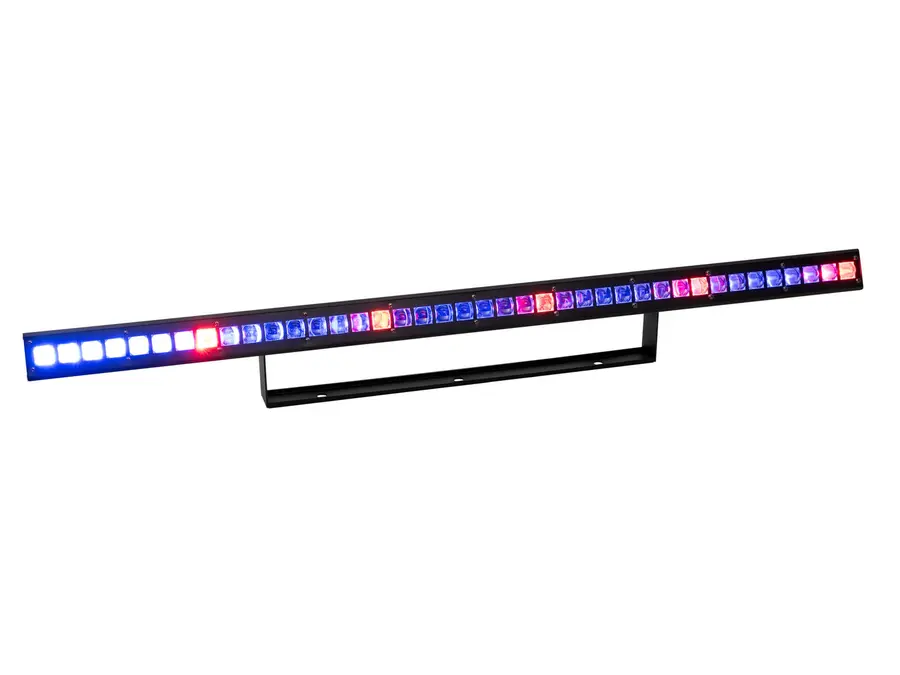

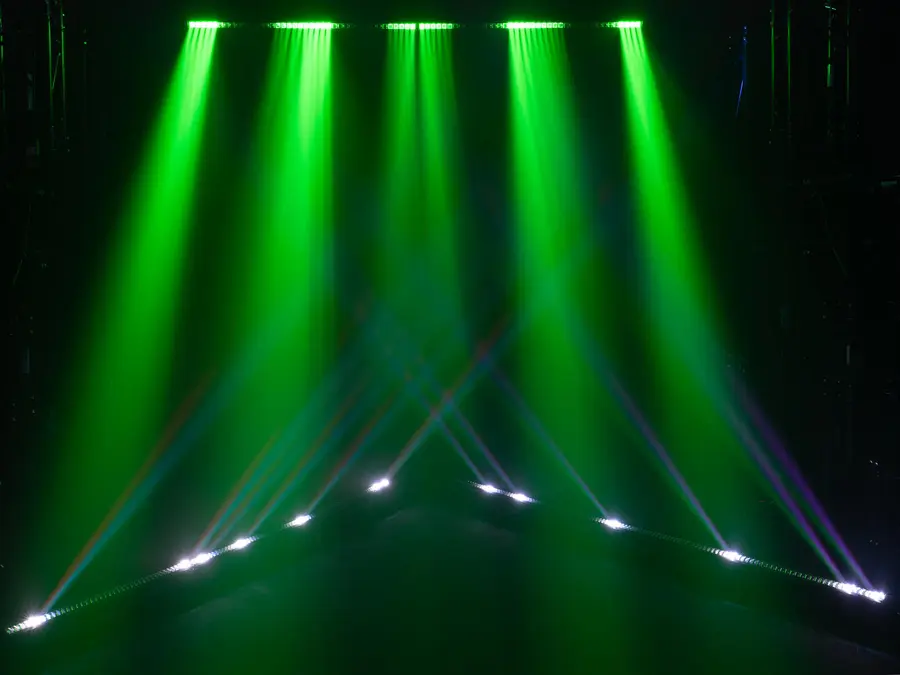

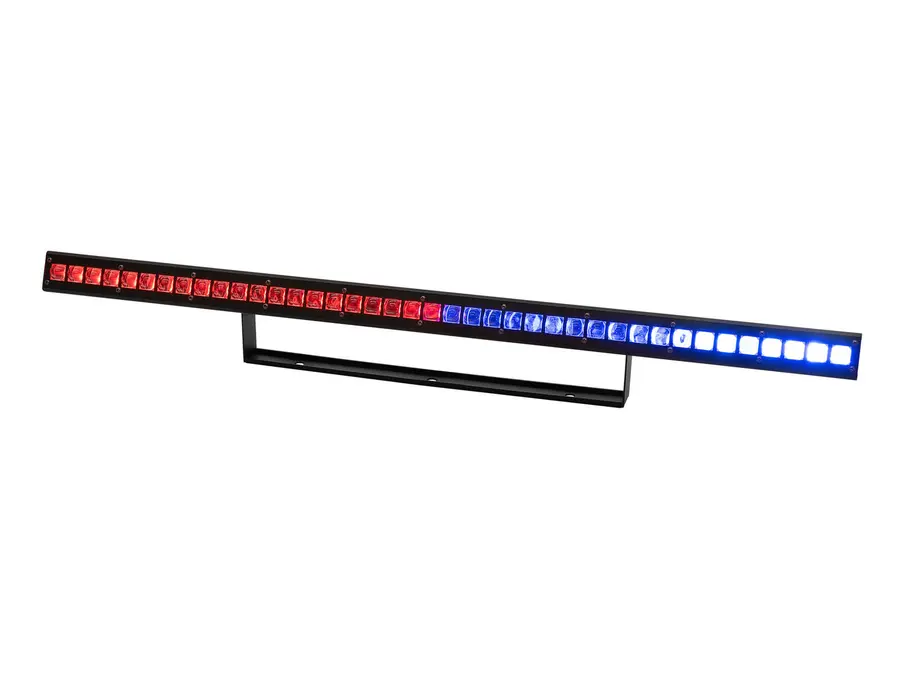

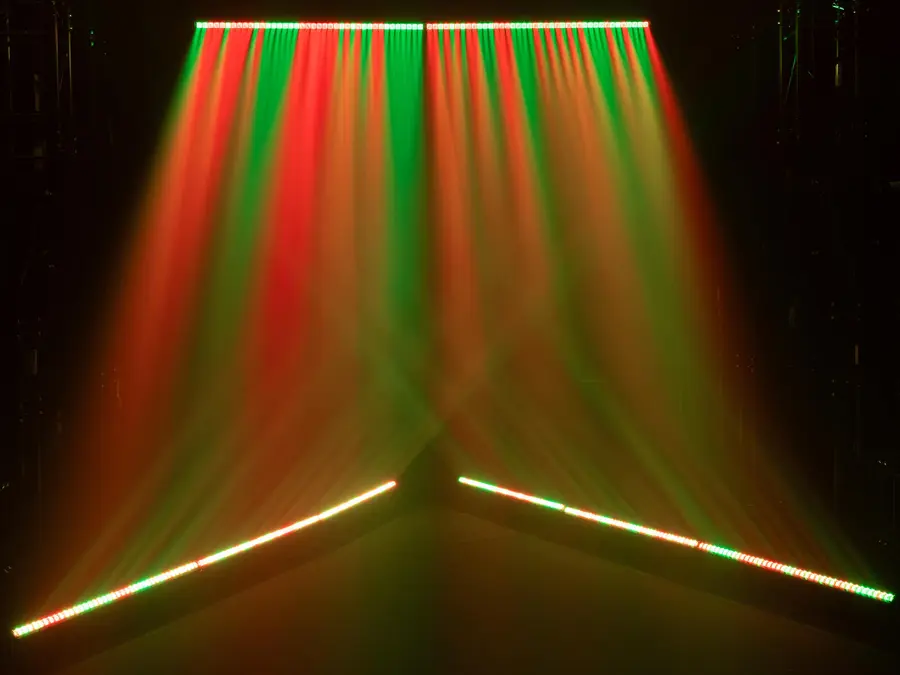

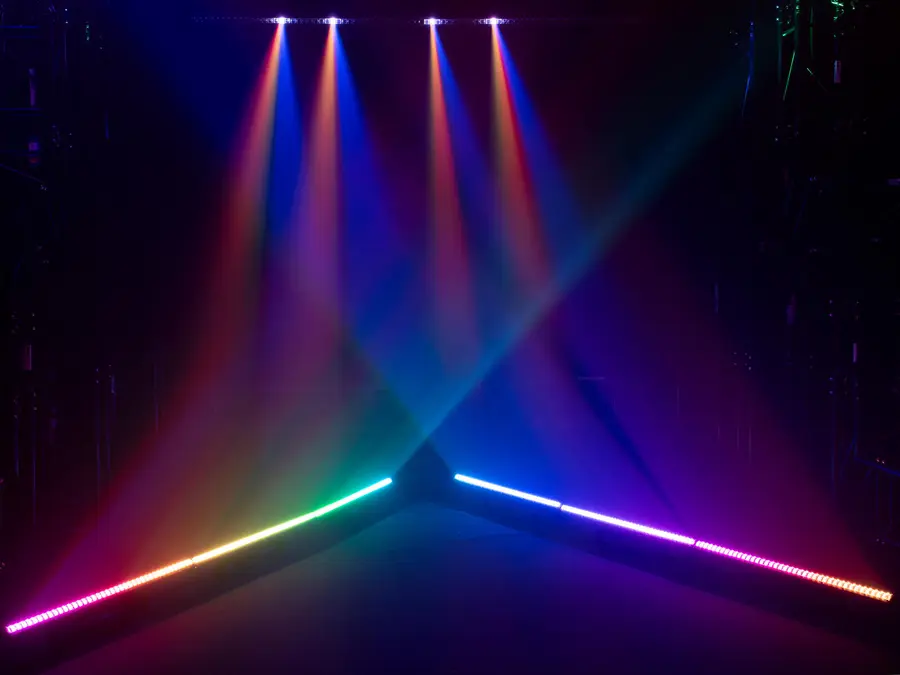

The EUROLITE LED PIX-40 RGB Bar is an LED beam bar with 40 individually controllable 3 W SMD 3535 3-in-1 RGB LEDs and pixel control. Its 2° beam angle produces a narrow beam effect, while the fixture offers standalone, sound-to-light, master/slave and DMX control. It is suitable for stages, clubs, dance schools, weddings, galas, events, mobile DJs, entertainers and theatres, and can be suspended using the included mounting bracket.

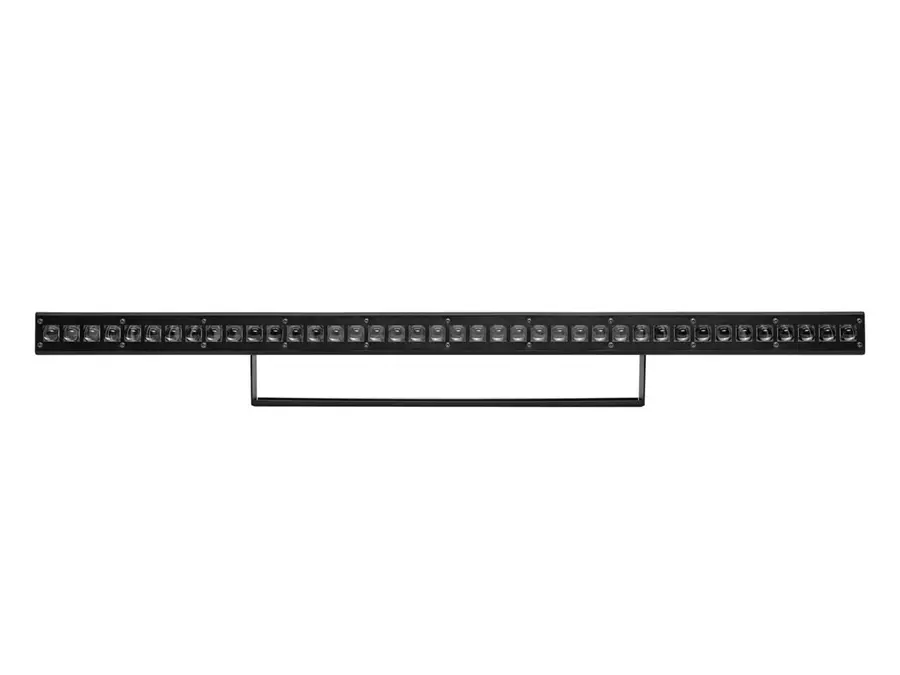

- 40 individually controllable 3 W SMD 3535 3-in-1 RGB LEDs
- Electronic dimmer, stepless colour mixing and colour animations with two adjustable colours
- Adjustable programme speed, direct colour selection and 30 integrated show programmes
- 3-, 11- or 120-channel DMX modes
- Standalone, sound-to-light, master/slave and DMX control
- Optional QuickDMX, W-DMX and CRMX by LumenRadio via USB

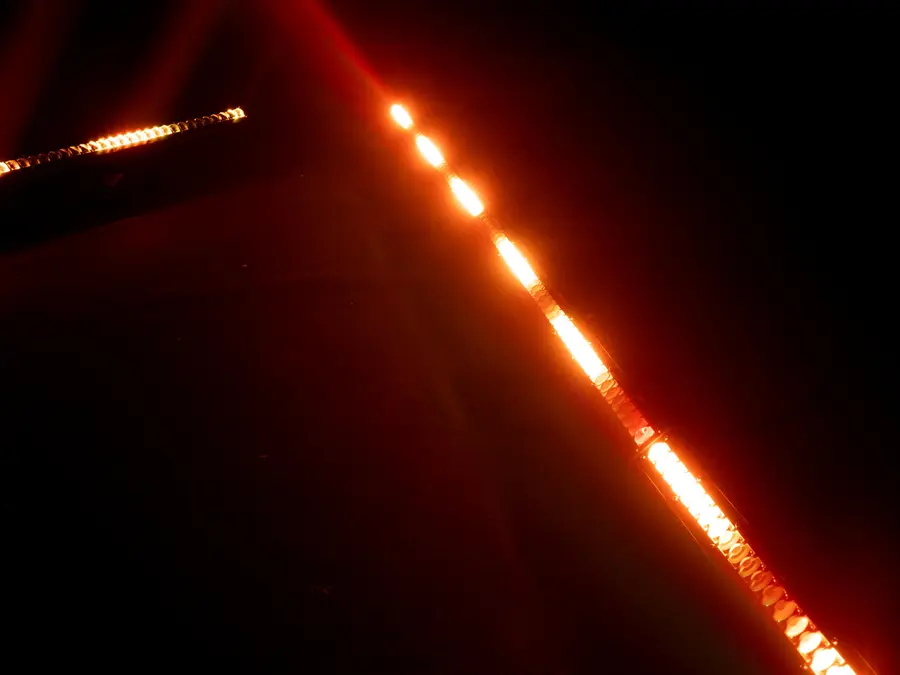

- Flicker-free output and a 2° beam angle
- Passive convection cooling and silent operation

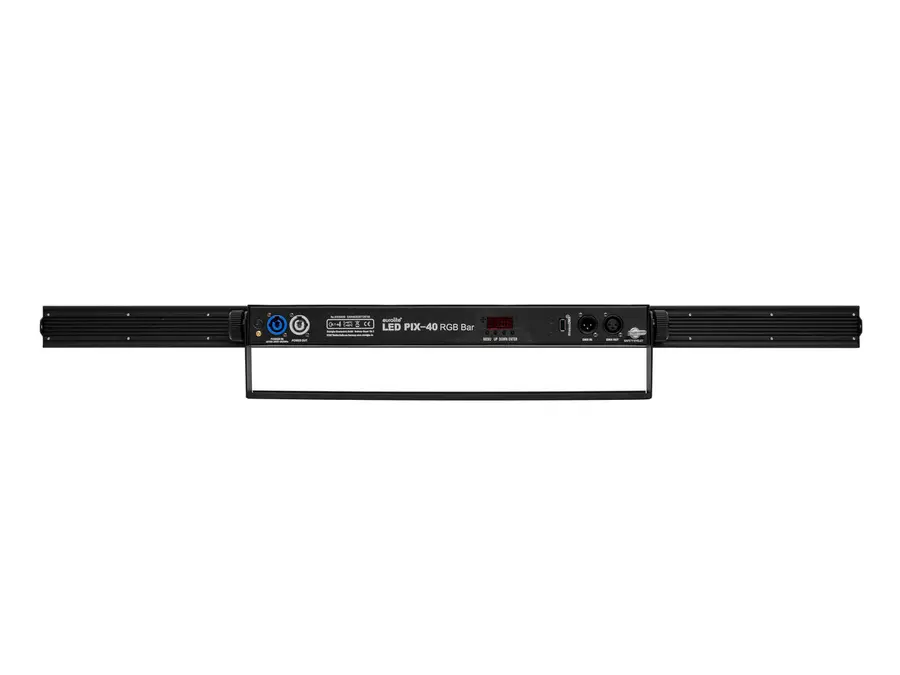

- P-Con mains input and output for linking up to eight units
- 4-digit 7-segment LED display
Technical specifications
- Power supply: 100–240 V AC, 50/60 Hz
- Power consumption: 65 W
- DMX connections: 3-pin XLR input and output
- Flash rate: 0.7–22 Hz
- PWM frequency: 12,300 Hz
- Protection class: I
- Housing colour: black
- Dimensions: 100.5 × 8.0 × 11.5 cm
- Weight: 3.25 kg
Included
- Mounting bracket
- Power cord
- User manual
