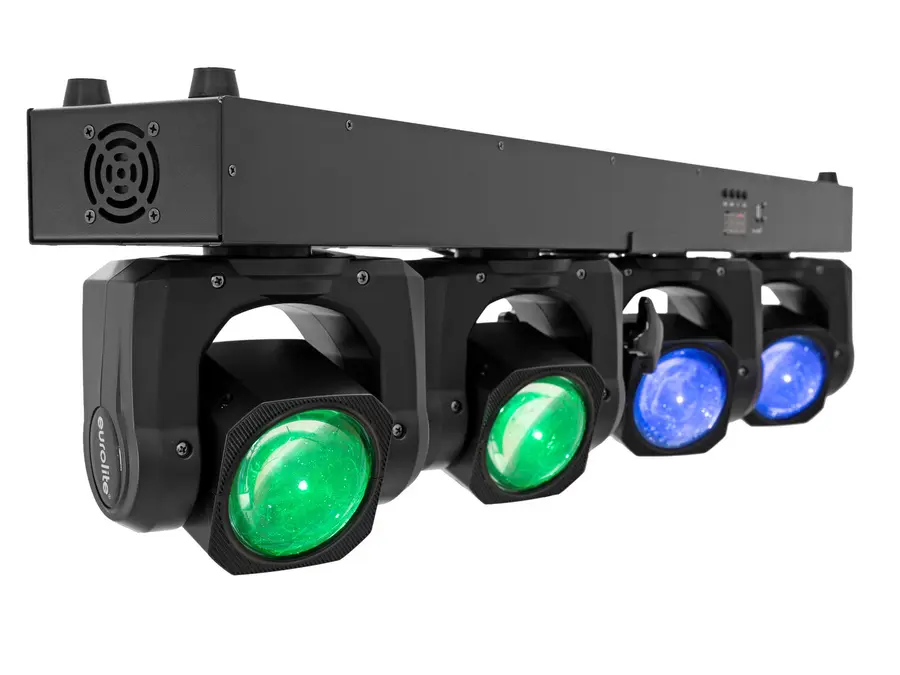

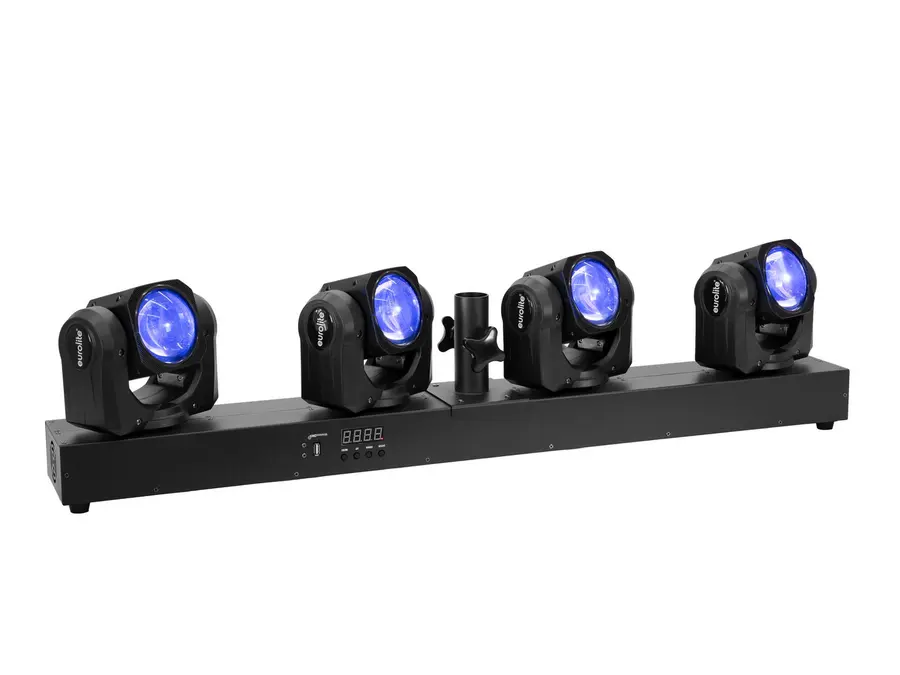

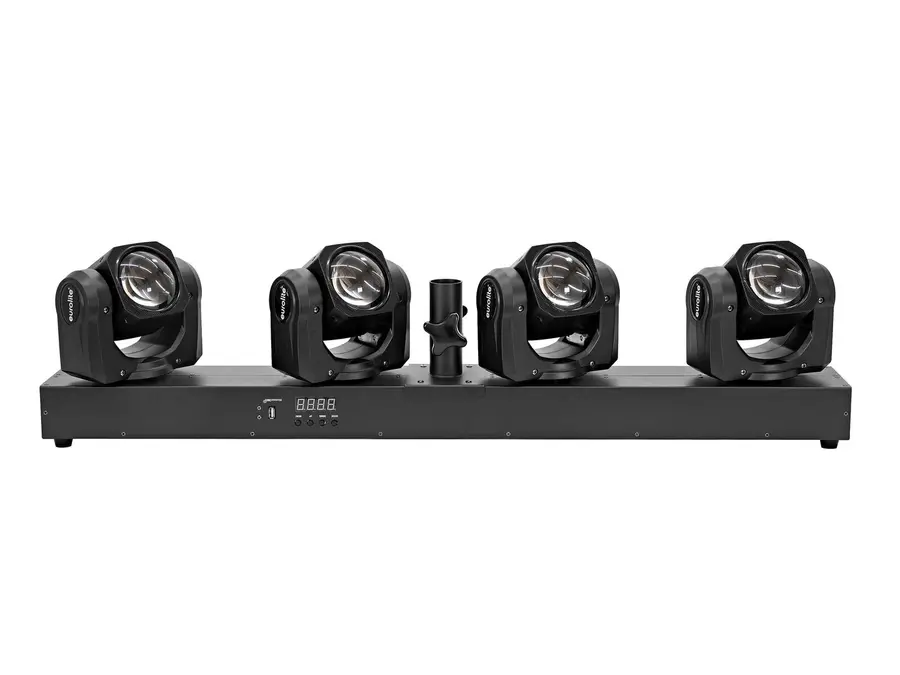

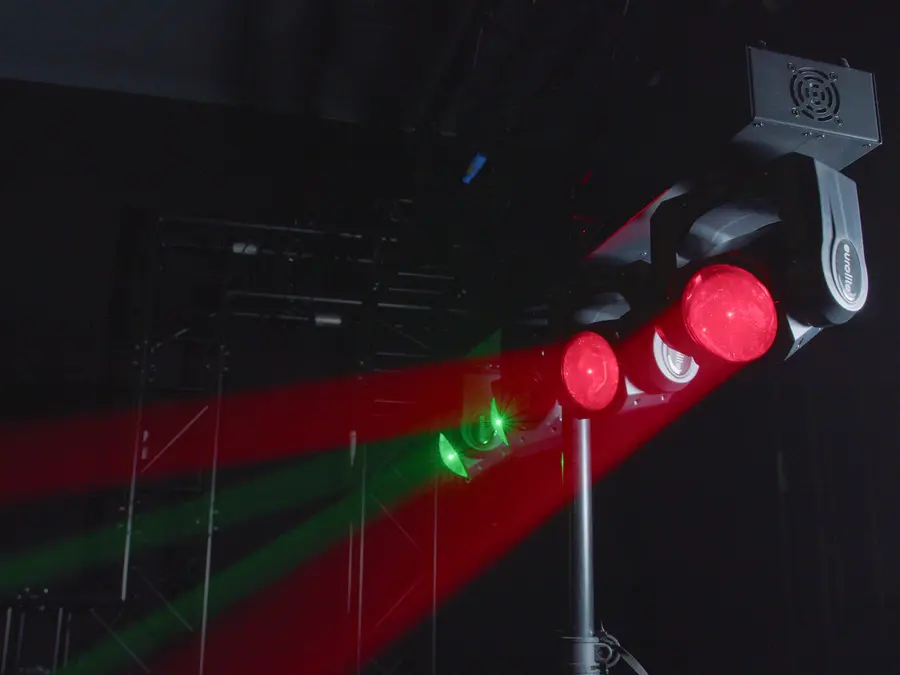

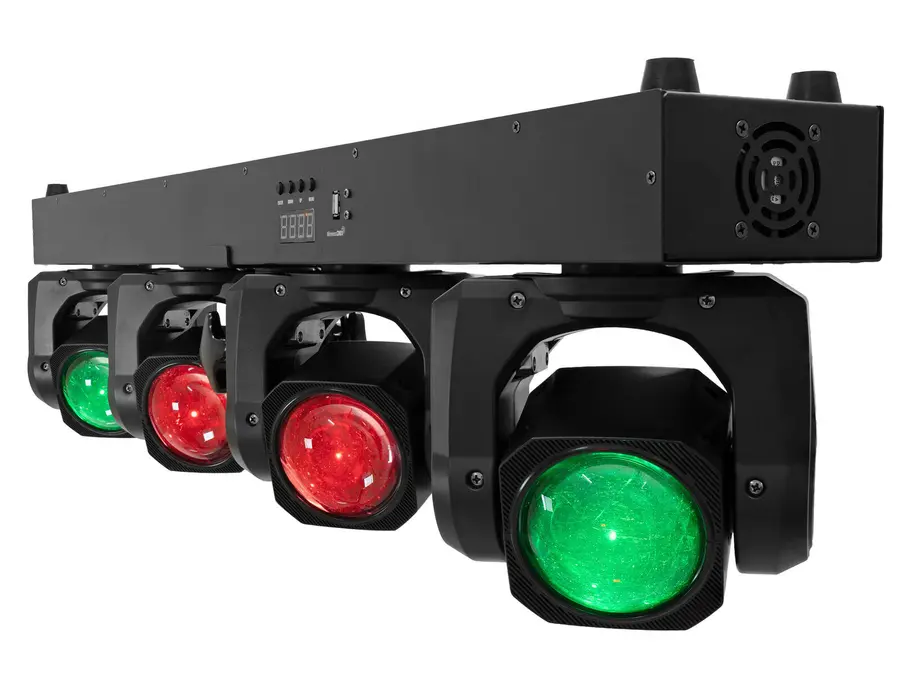

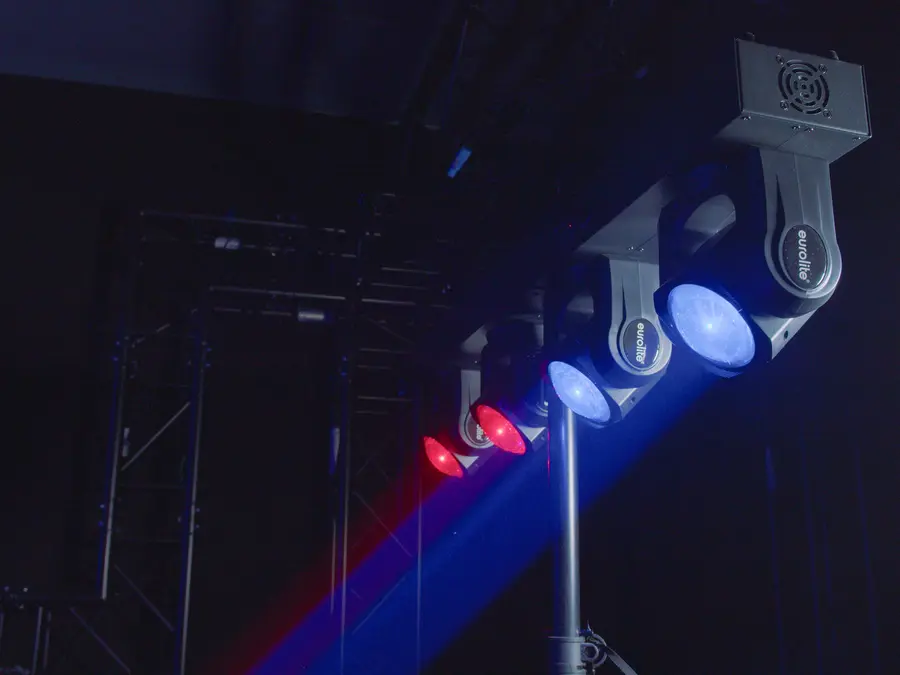

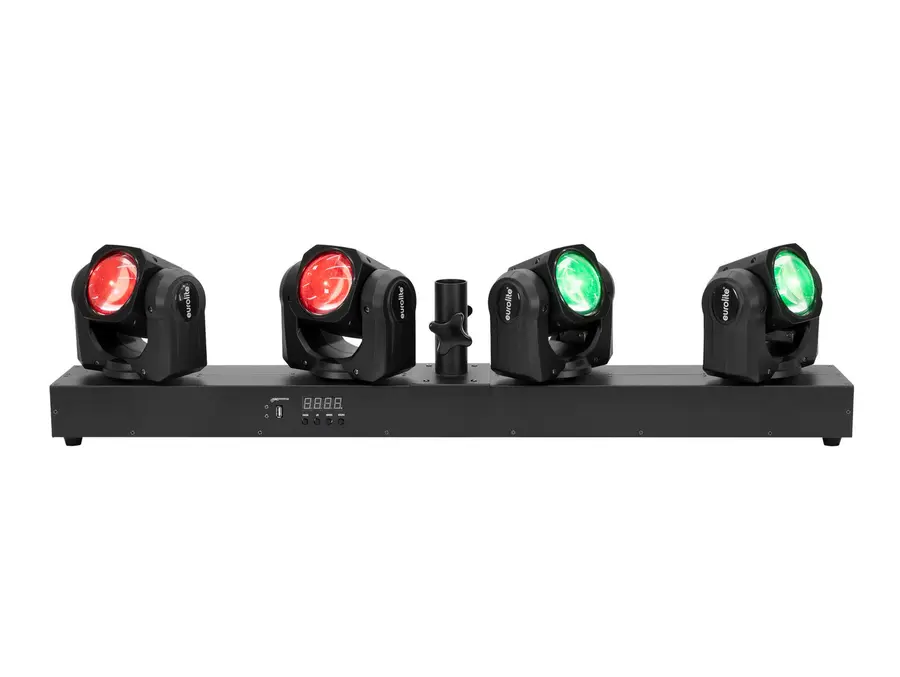

The EUROLITE LED TMH Bar B240 is a moving head bar with four individually controllable 60 W beam moving heads. Each head uses a 4-in-1 RGBW SMD 6065 LED to produce a narrow 2° beam, with 540° pan, 180° tilt and 16-bit positioning. The bar can be used freestanding, suspended or on a stand.

• 4 individually controllable 60 W RGBW moving heads
• Electronic dimmer, color selection, adjustable motion macros and color macros
• Beam effect and 22 integrated show programs
• Operating modes with 4, 8, 13, 15, 23, 27, 40 or 48 DMX channels
• Stand-alone, sound-to-light via microphone, DMX and master/slave operation
• Optional QuickDMX, W-DMX and CRMX by LumenRadio via USB
• Flicker-free projection with a 2° beam angle

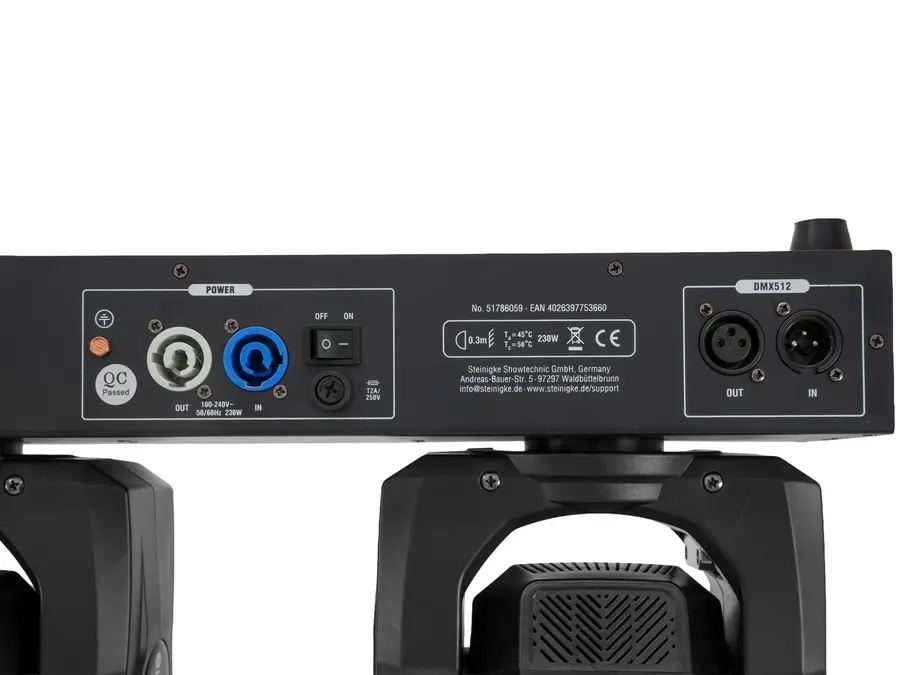

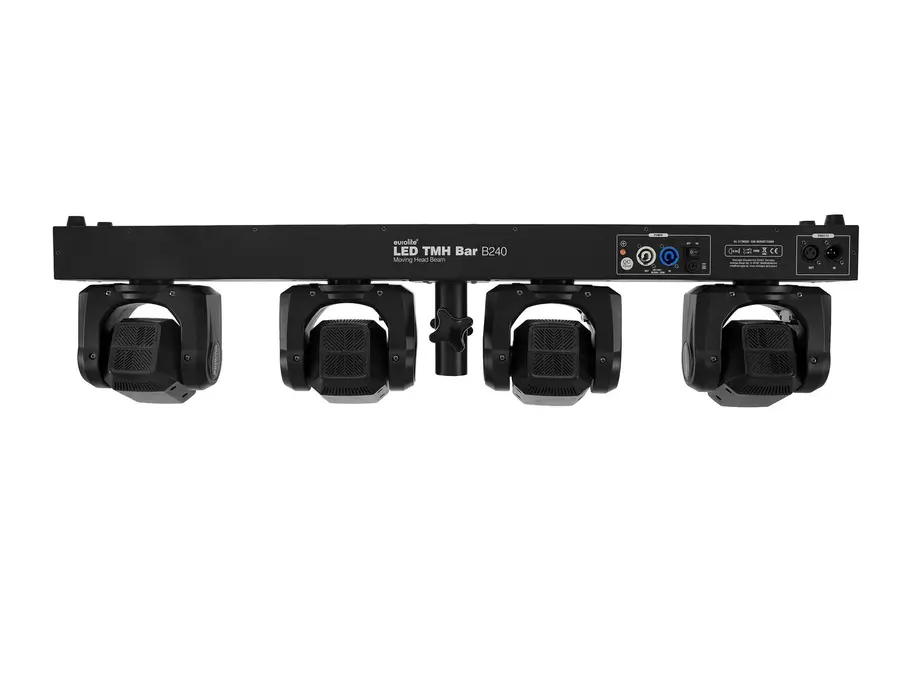

• 3-pin XLR DMX input and output
• Power linking for up to 8 units via P-Con input and output

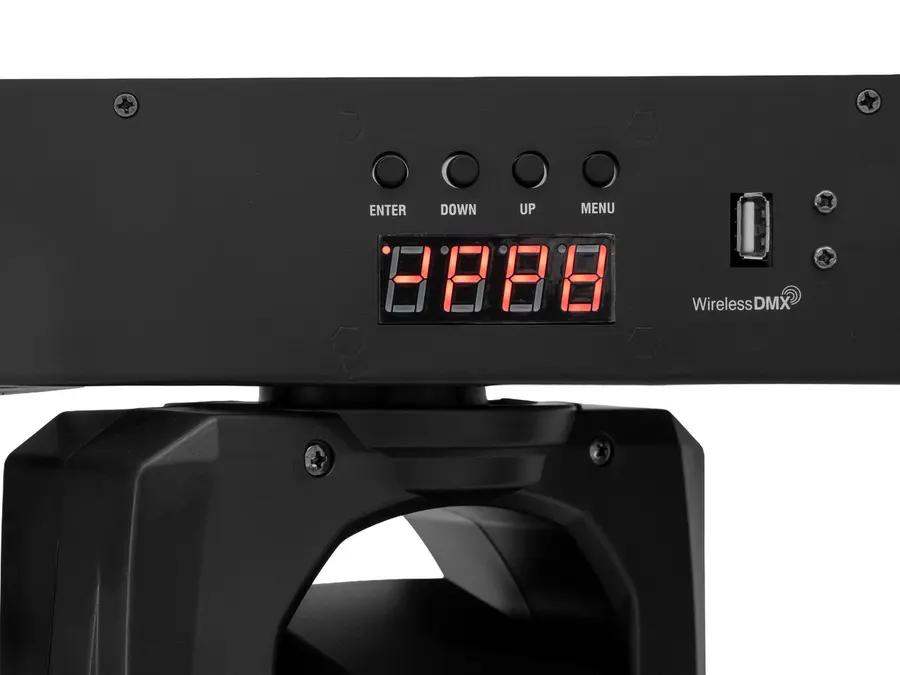

• 4-digit 7-segment LED display and four rubber feet
• Compatible fixtures are available for Light´J, Light Captain and Colorchief

Technical specifications

• Power supply: 100–240 V AC, 50/60 Hz
• Power consumption: 230 W
• Protection class: I
• Flash rate: 2–15 Hz
• LED lifetime: 20,000 hours
• PWM frequency: 11,000 Hz
• Housing: steel, black
• Dimensions: 100 × 17.5 × 25.5 cm
• Weight: 12.55 kg
• Noise classification: Class 2, slight noise

Included

• Power cord

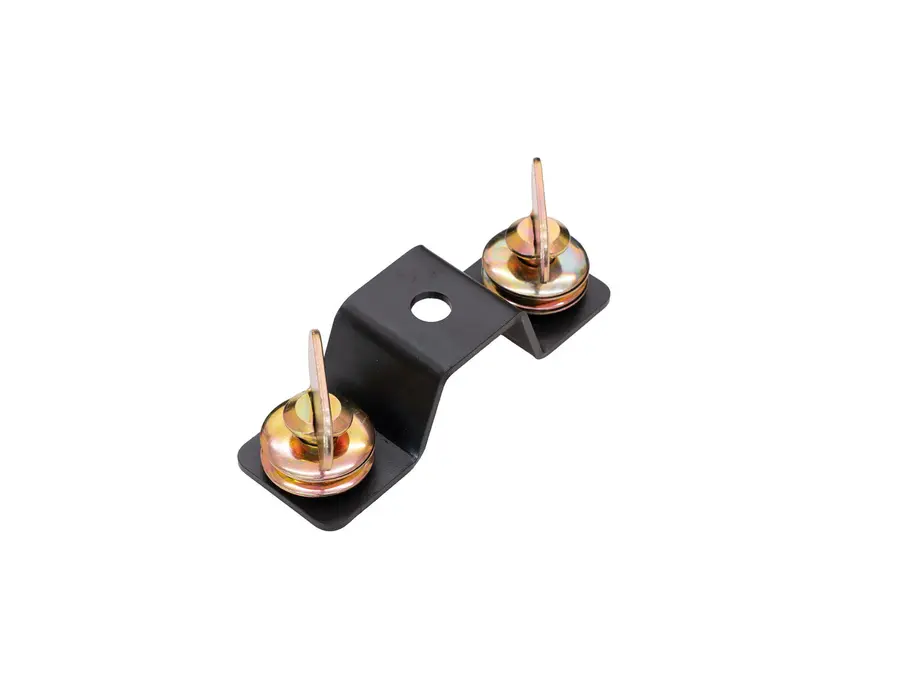

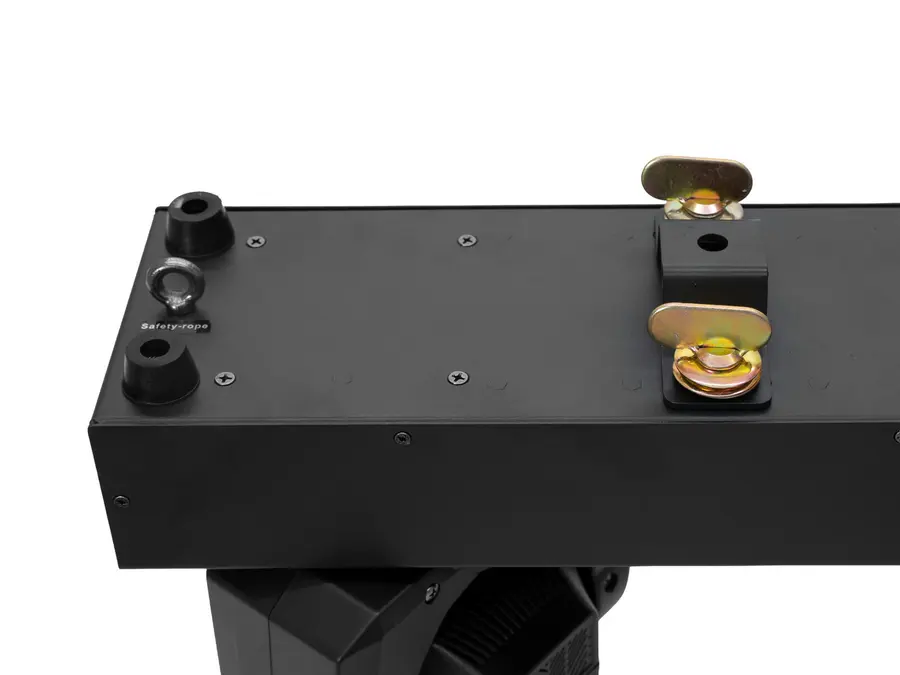

• 2 omega brackets
• 2 safety eyelets
• User manual
