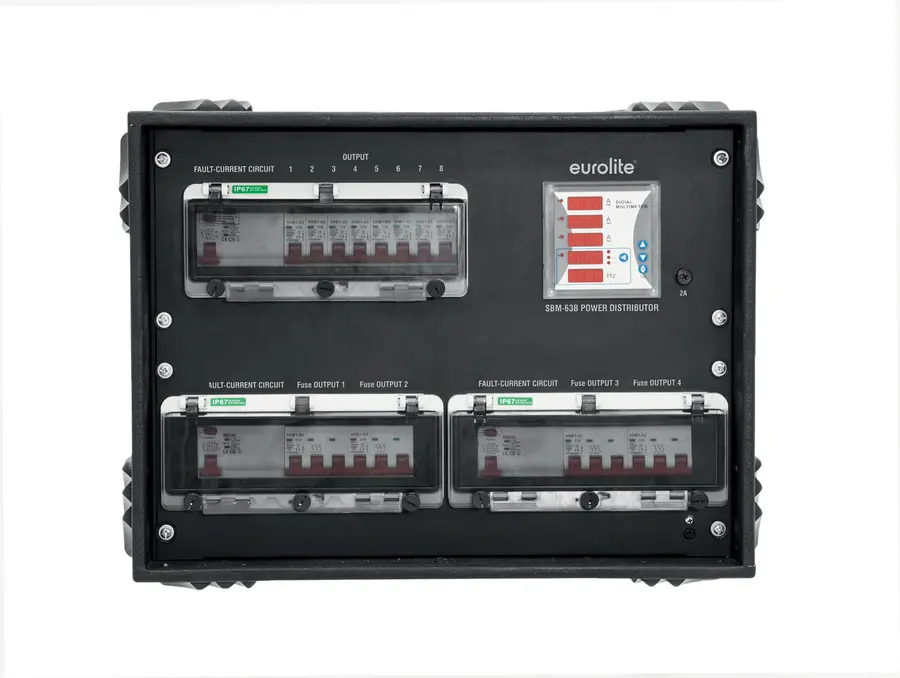

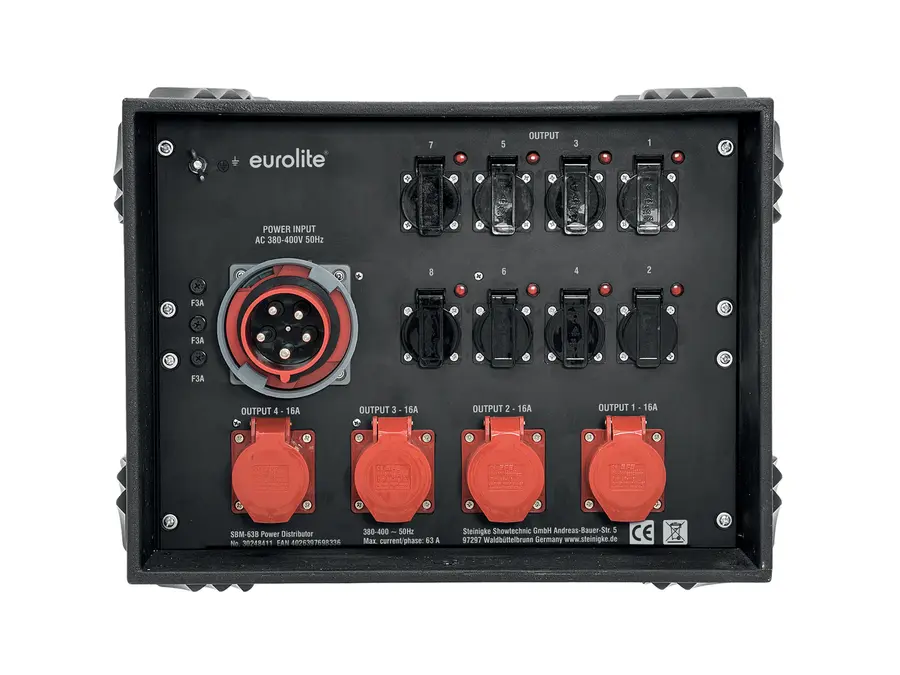

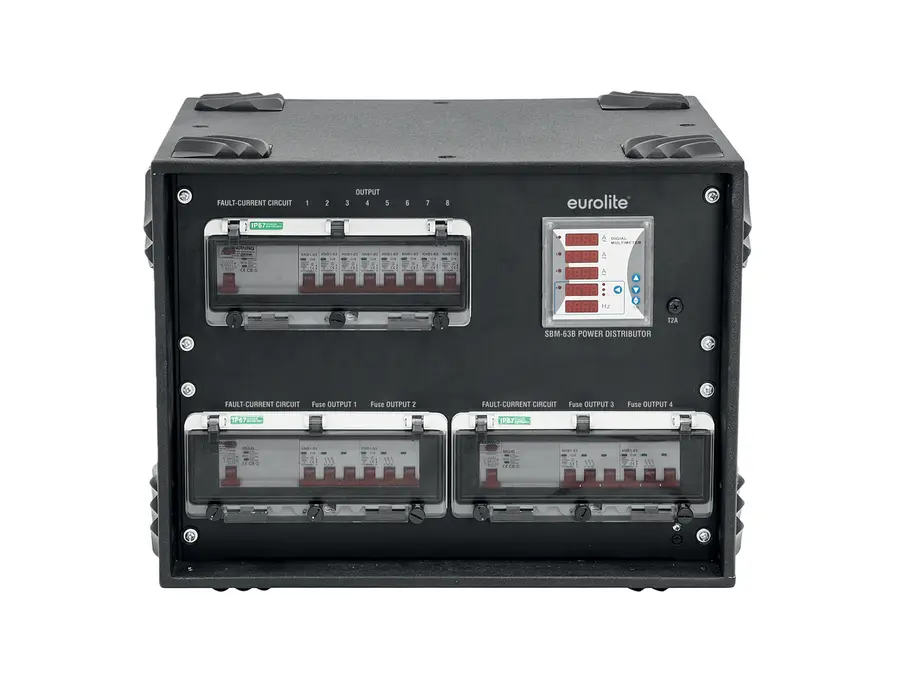

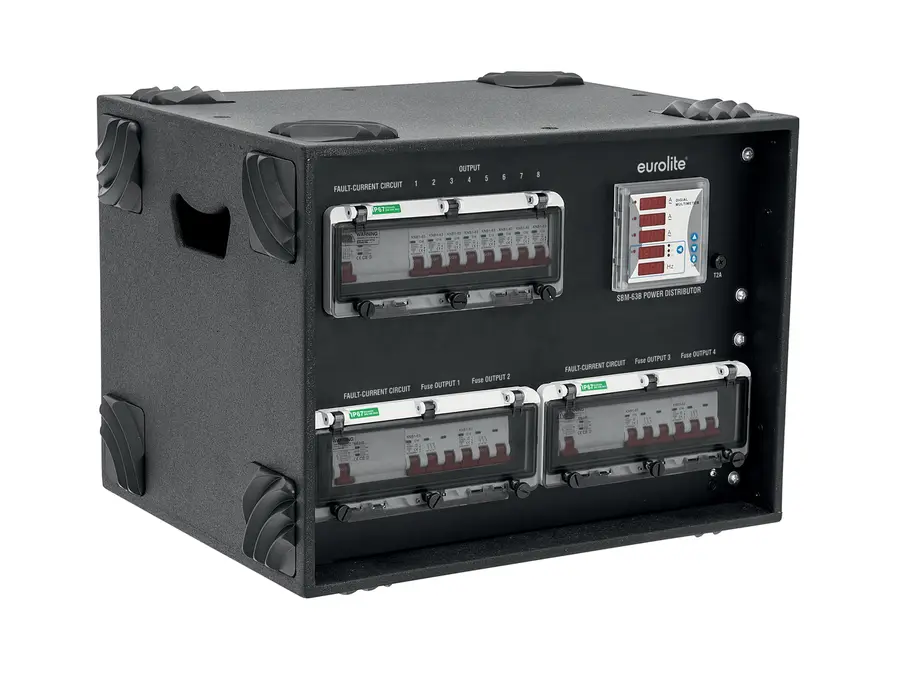

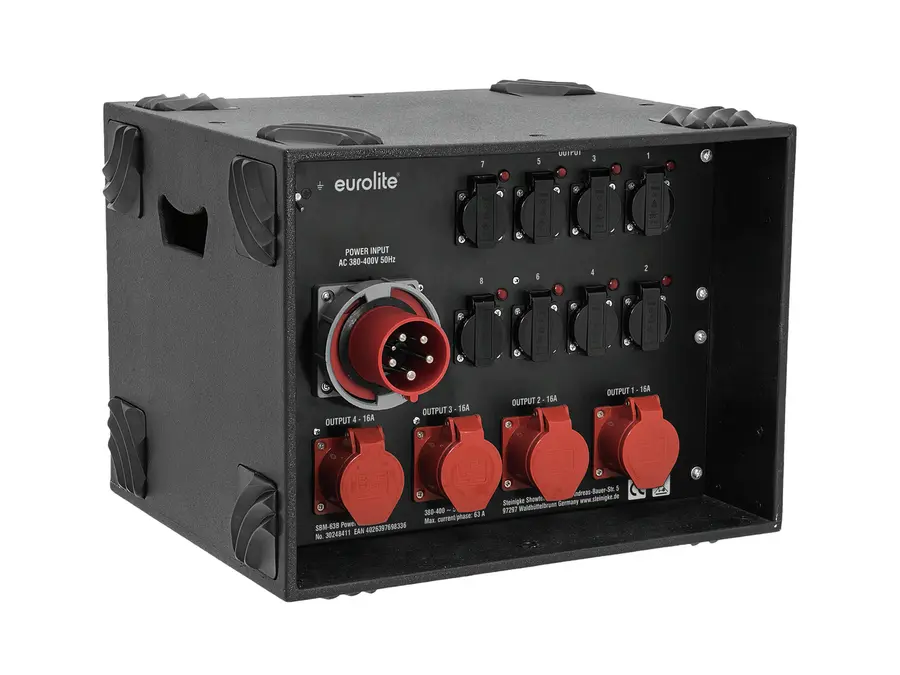

The EUROLITE SBM-63B is a 63 A power distributor with an integrated multimeter for three-phase voltage measurement from 100 to 380 V AC. It displays voltage, current and frequency on five monochrome, four-digit, seven-segment LED displays.

• 380–400 V AC, 50 Hz power supply
• CEE 63 A, 5-pole male recessed mains input
• 8 fused safety-contact outlets with hinged lids
• 4 fused CEE 16 A, 5-pole female recessed outputs
• Three-phase voltage measurement from 100 to 380 V AC
• Display readings for volts, amps and frequency
• Protection via 8 single-pole C 16 A circuit breakers, 4 three-pole C 16 A circuit breakers and 3 four-pole Type B residual-current circuit breakers rated at 63 A/0.03 A
• Replaceable 5 × 20 mm T 2 A and F 3 A fuses
• Passive convection cooling
• Rugged, stackable hard-plastic housing in dark grey
• Protection class I
• Measurement tolerance: ±0.5%

Specifications

• Dimensions: 53.5 × 42 × 40.5 cm (W × D × H)
• Weight: 19.90 kg

Included

• Power distributor
• User manual
