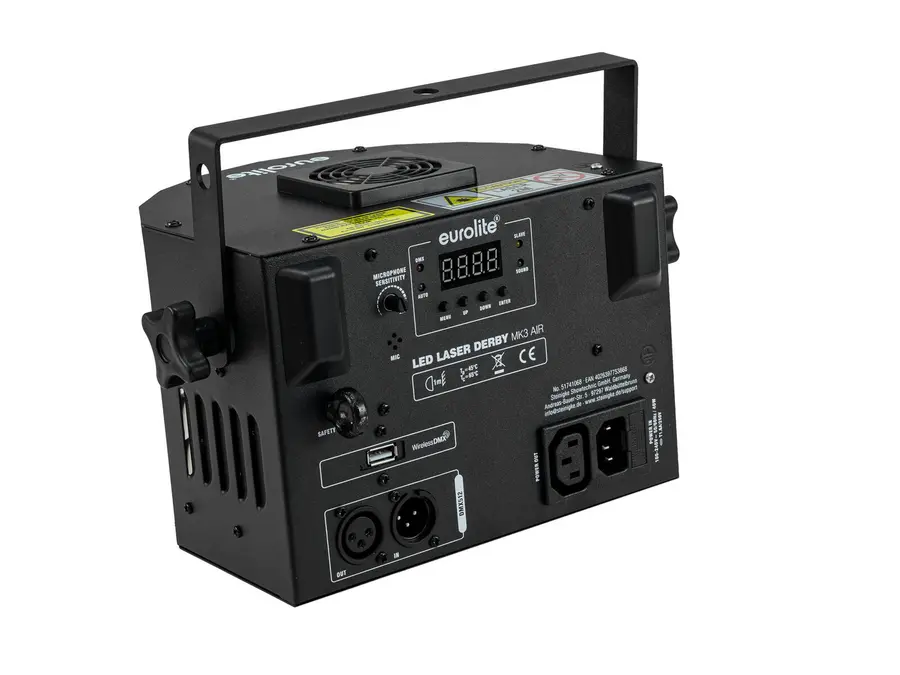

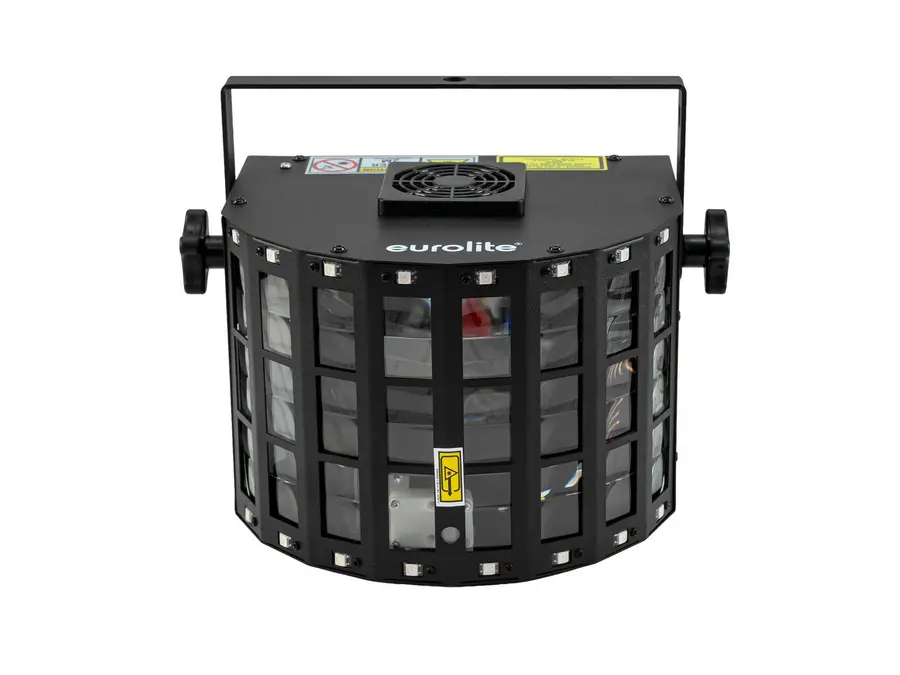

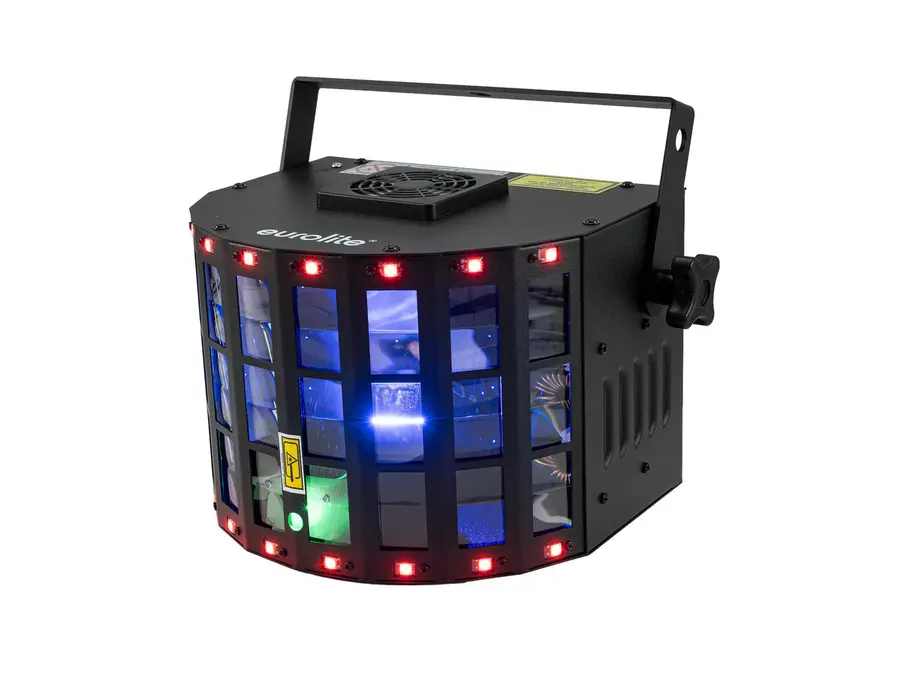

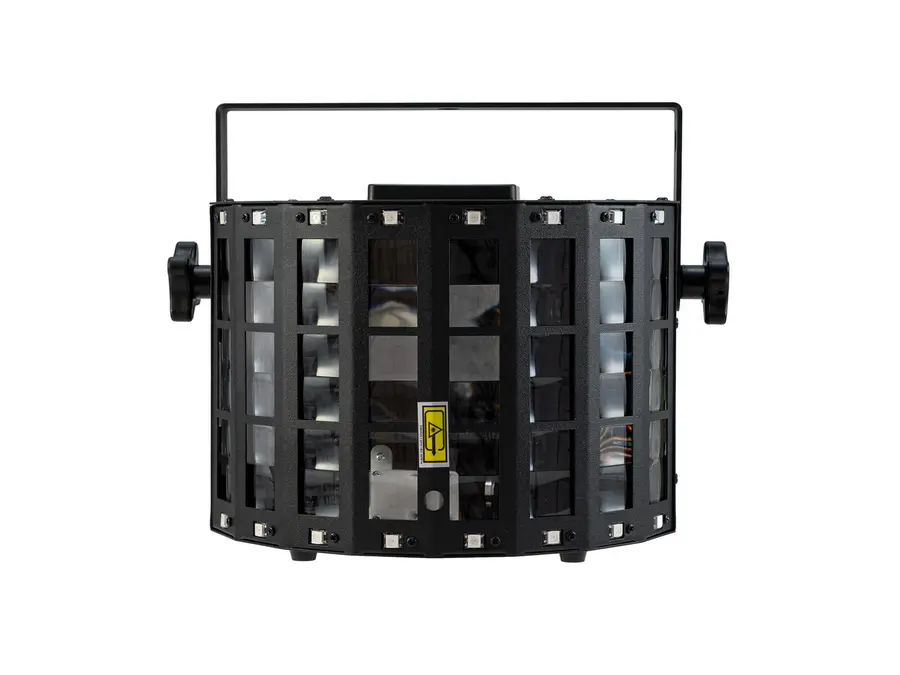

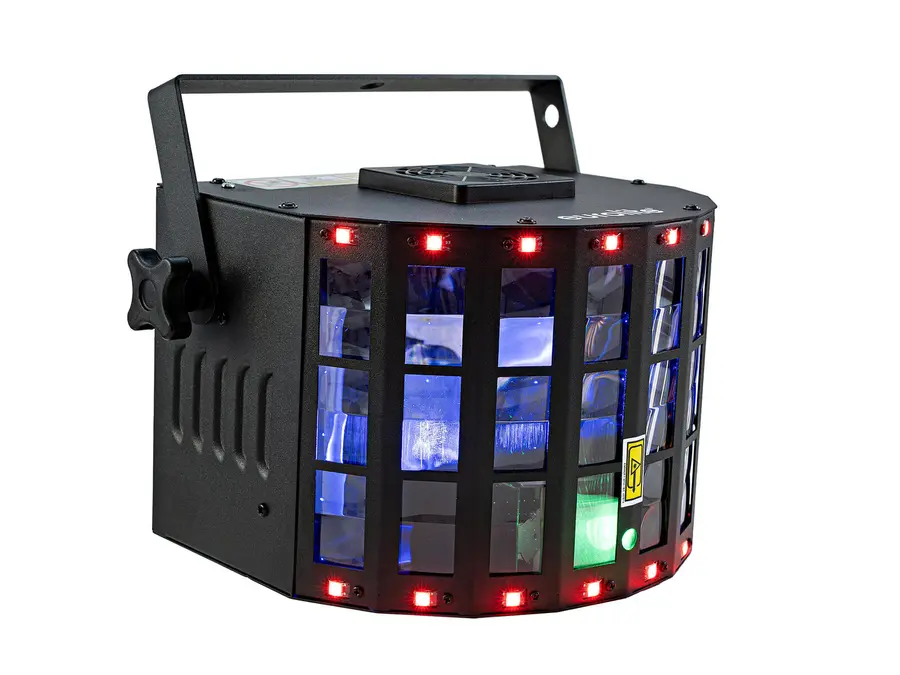

The EUROLITE LED Laser Derby MK3 AIR combines a rotating RGBW LED derby effect, colorful twinkle effects and an integrated red/green class 2M laser in one compact fixture. It can be controlled via DMX, stand-alone, sound-to-light, master/slave, the included RF remote control or the integrated AirW wireless system.
- Four separately controlled 10 W SMD 5050 LEDs in red, green, blue and white for the derby effect

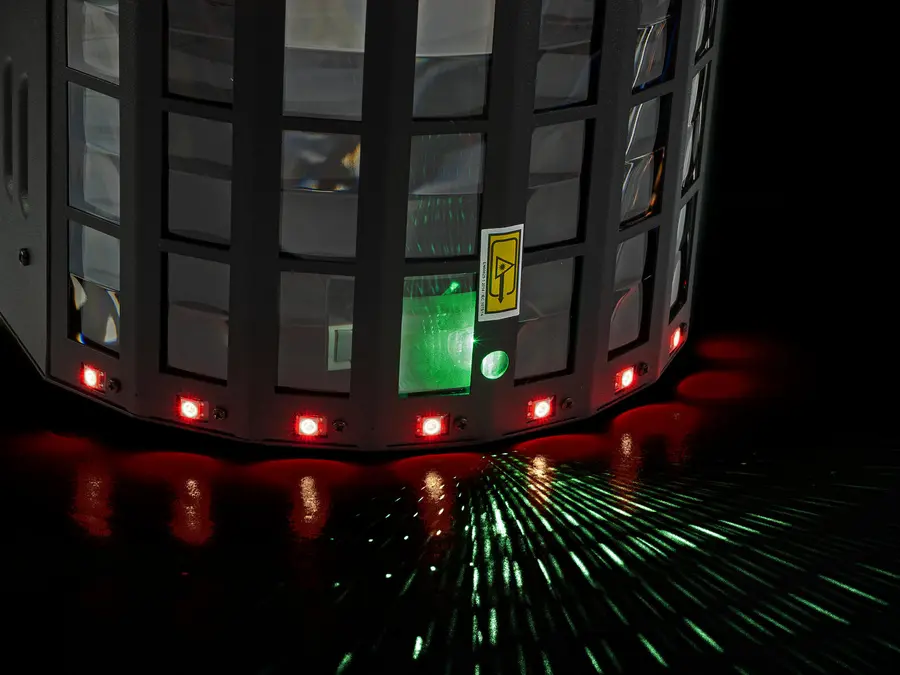

- Sixteen 0.5 W SMD 5050 3-in-1 RGB LEDs for twinkle and strobe effects, with colorful chases and sparkling effects
- Two laser diodes project hundreds of red and green laser beams; laser class 2M
- Seven integrated show programs and direct selection of 20 preset colors
- Electronic dimmer, adjustable color fade, color change, stepless color blend, color macros, program speed, effect speed, rotation direction and rotation speed

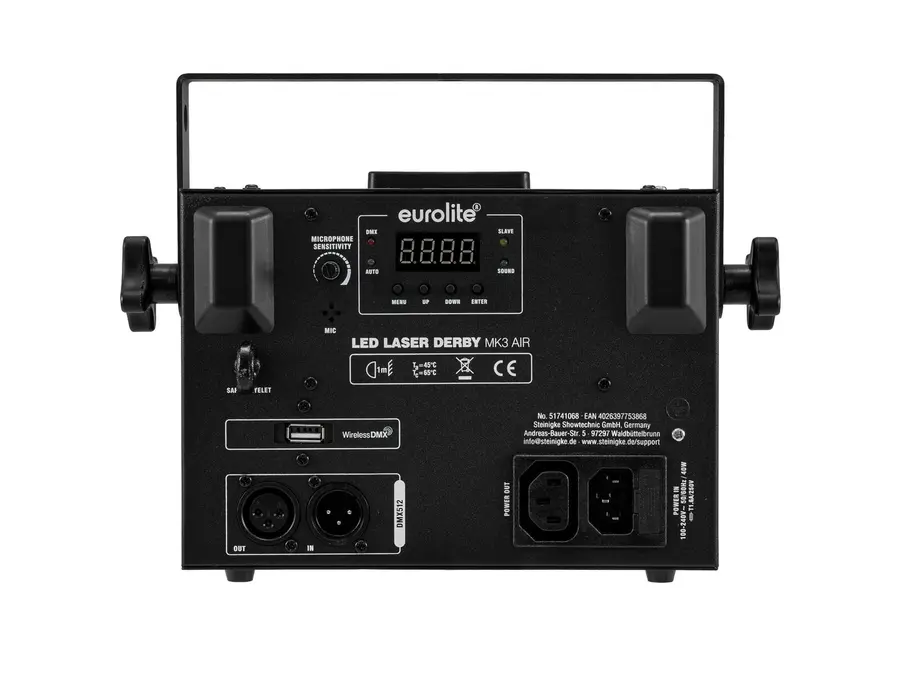

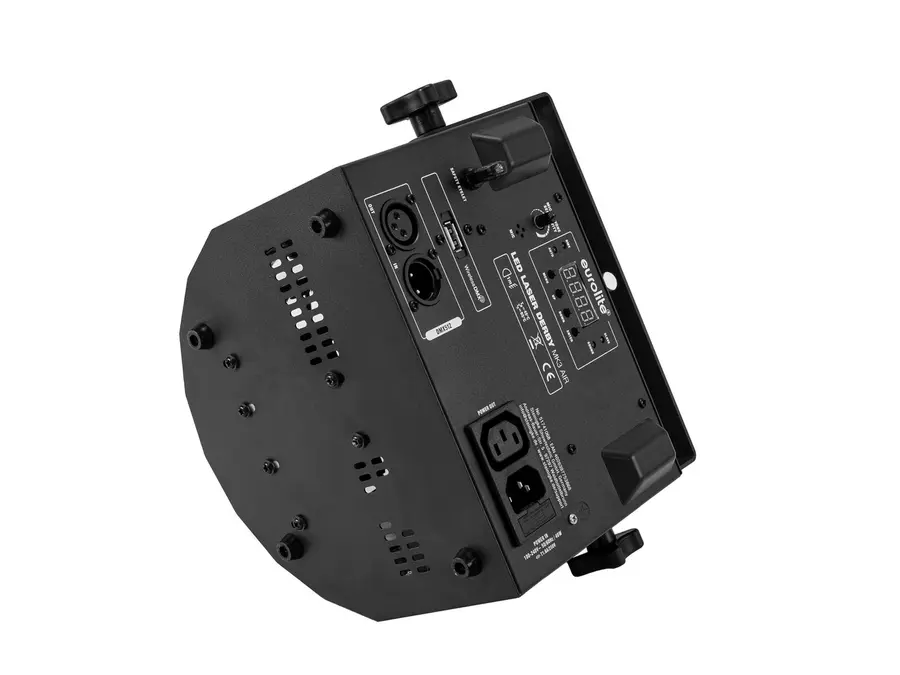

- DMX operation with 2, 4, 5, 6, 8, 9, 10 or 14 channels; 3-pin XLR DMX input and output
- AirW wireless system with adaptive frequency hopping in the 2.4 GHz band and a range of up to 70 m with line of sight
- Wireless master/slave operation via the integrated AirW transceiver

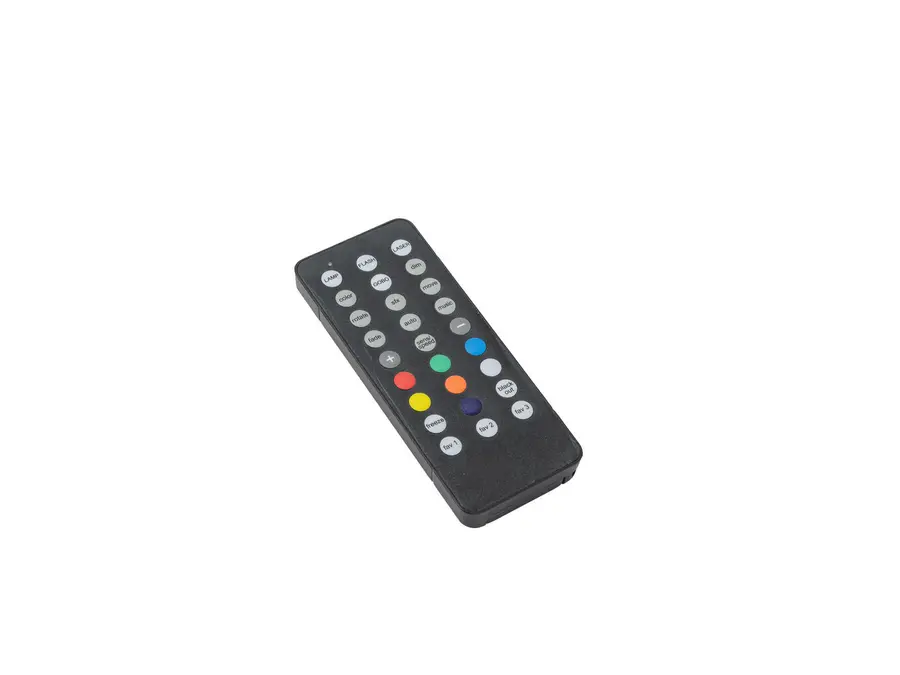

- RF remote control with a range of up to 30 m with line of sight and three buttons for saving personal settings
- Sound-to-light mode via the integrated microphone, with rotary microphone-sensitivity control
- Optional USB-based control via QuickDMX, W-DMX or CRMX by LumenRadio

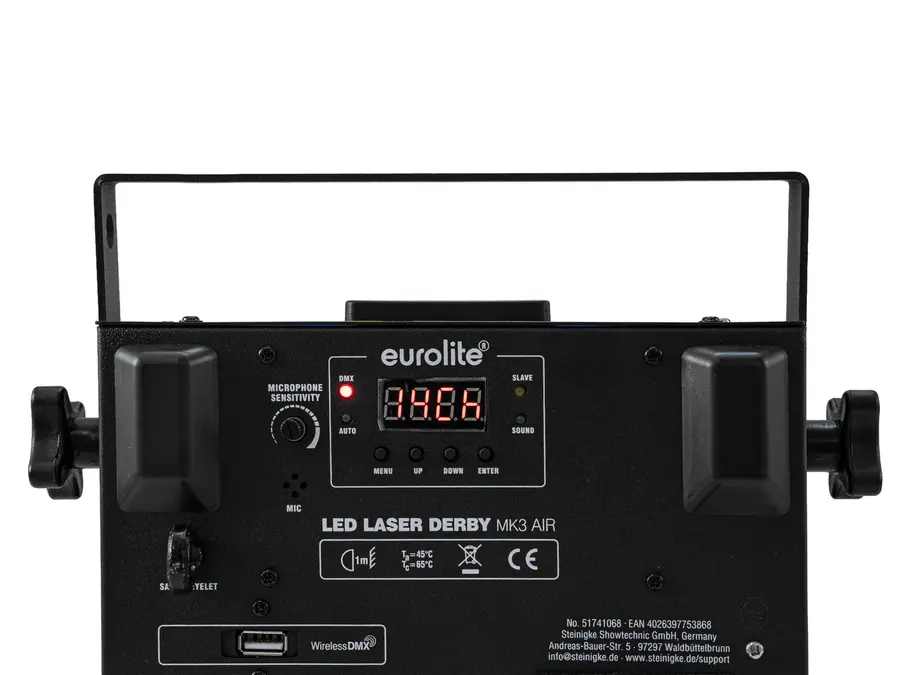

- Flicker-free light output, monochrome four-digit 7-segment LED display and fan cooling
- Mains input and output for power linking up to eight units
- Suitable for suspended installation or use on a stand; supplied with a mounting bracket
Technical specifications
- Power supply: 100–240 V AC, 50/60 Hz
- Power consumption: 40 W
- Dimensions (W × D × H): 26 × 19 × 19 cm
- Weight: 2.22 kg
- Housing: Matt black painted metal
- PWM frequency: 4000 Hz
- Laser modules: green, 35 mW, 520 nm; red, 80 mW, 650 nm
- Light-effect flash rate: 0.7–20 Hz
Included

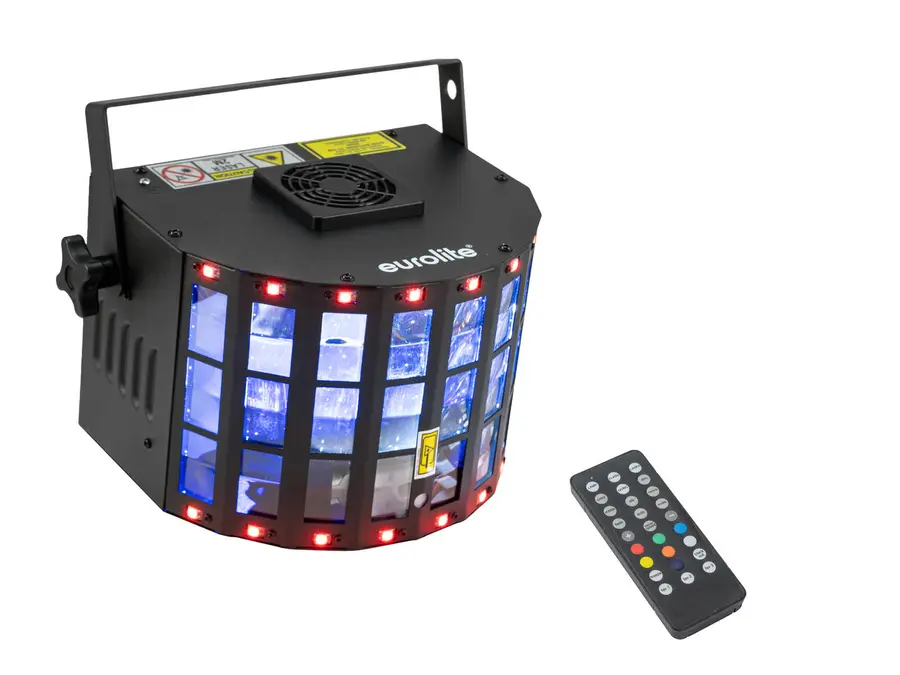

- Remote control with 12 V 23AE battery
- Power cord
- Mounting bracket with mounting hardware
- User manual
