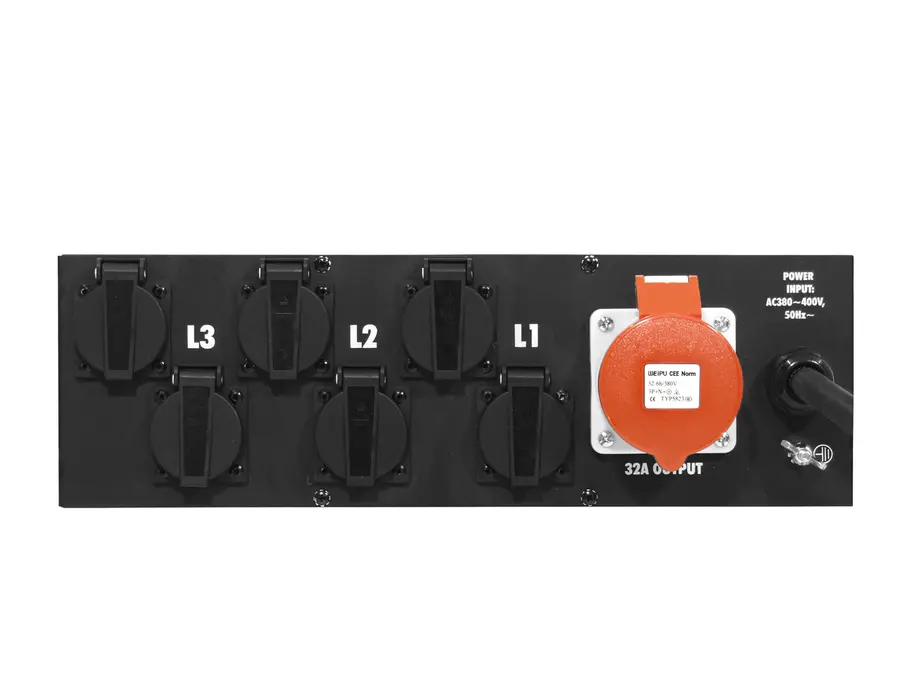

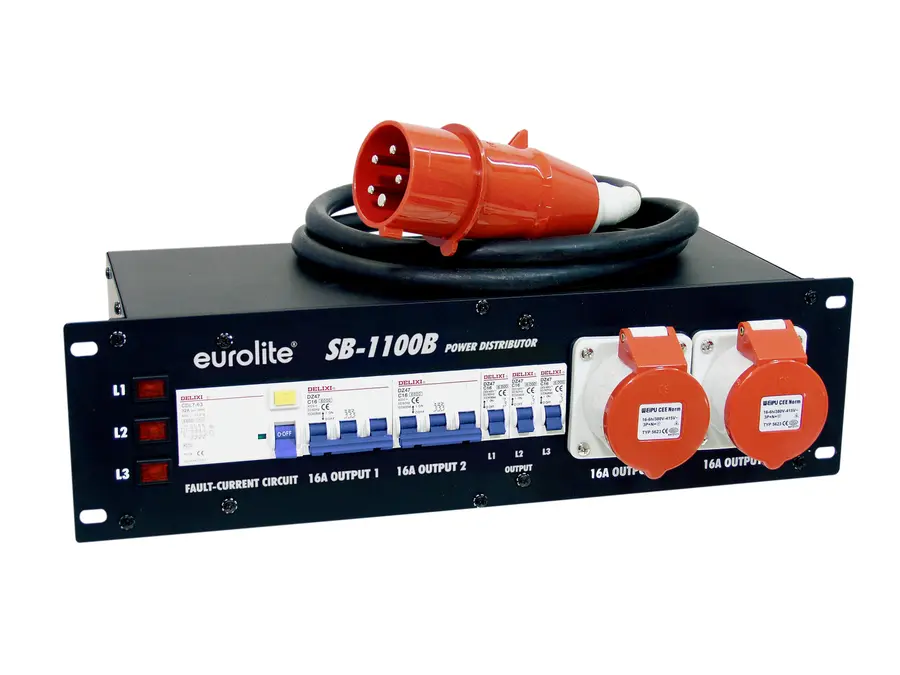

The EUROLITE SB-1100B is a 32 A power distributor in a 19-inch, 3 U rack housing, designed for larger power distribution requirements. It features an M6 earthing screw for grounding a rig when required, three phase-status indicators and a fixed power cord with a 5-pin CEE 32 A connector.
- 1 x 5-pin CEE 32 A female recessed-mount output with bypass
- 6 x safety-contact female outlets with hinged-lid mounting and individual fusing
- 2 x 5-pin CEE 16 A female recessed-mount outputs with fusing
- Fault-current circuit breaker: Type B, 40 A/0.03 A, 4-pole
- 2 x C 16 A 3-pole circuit breakers and 3 x C 16 A 1-pole circuit breakers
- 3 phase-status indicators
- M6 earthing screw
Technical specifications
- Power supply: 380–400 V AC, 50 Hz
- Rack format: 19 inches, 3 U
- Dimensions: 48.3 x 29.5 x 13.35 cm (W x D x H)
- Weight: 6.45 kg
Included
- Power distributor
- User manual
