The DXR15mkII achieves class-leading maximum SPL of 134dB and full bandwidth performance by combining a powerful Class-D amplifier with a high-power woofer and Yamaha's cutting edge technologies. Throw in some D-CONTOUR and you'll feel like you're using a subwoofer.
General specifications
- Speaker type: 15" 2-way, Bi-amp powered speaker, Bass-reflex type
- Frequency range (-10dB): 49Hz - 20kHz
- Nominal coverage: H 90°, V 60°
- LF: Diameter:15" cone, Voice Coil:2.5", Magnet:Ferrite
- HF: Diaphragm:1.75", Type: 1" throat compression driver, Magnet:Neodymium
- Crossover: FIR-X tuning™ (linear phase FIR filter)
- Output power: Dynamic:1100W (LF: 950W HF: 150W) / Continuous: 700W (LF: 600W HF: 100W)
- Maximum output level (1m; on axis): 134dB SPL
- I/O connectors: INPUT: XLR-3-31 x1 , INPUT2: Phone x2, INPUT3: RCA PIN x 2, THRU: XLR3-32 x 1 ( Parallel with INPUT 1 ), LINK OUT: XLR x 1
- Processors: D-CONTOUR: FOH/MAIN, MONITOR, OFF
- Power requirements: 100V - 240V, 50Hz/60Hz
- Power consumption: 110W
- Flying and mounting hardware: Top x2, Rear x1 (Fits for M10 x 18mm eyebolts)
- Pole socket: 35mm with 2-way features (0 or 7 degrees)
- Dimensions: W 445mm (17 4/8") H 700mm (27 4/8") D 380mm (15")

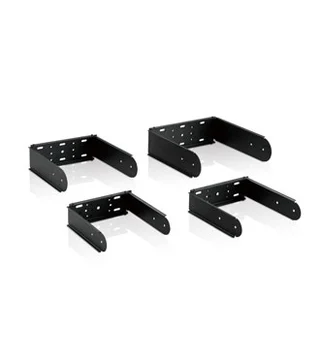

- Accessories: UB-DXR15 (U-bracket)
- Material: ABS (Matte Finish, Black)
