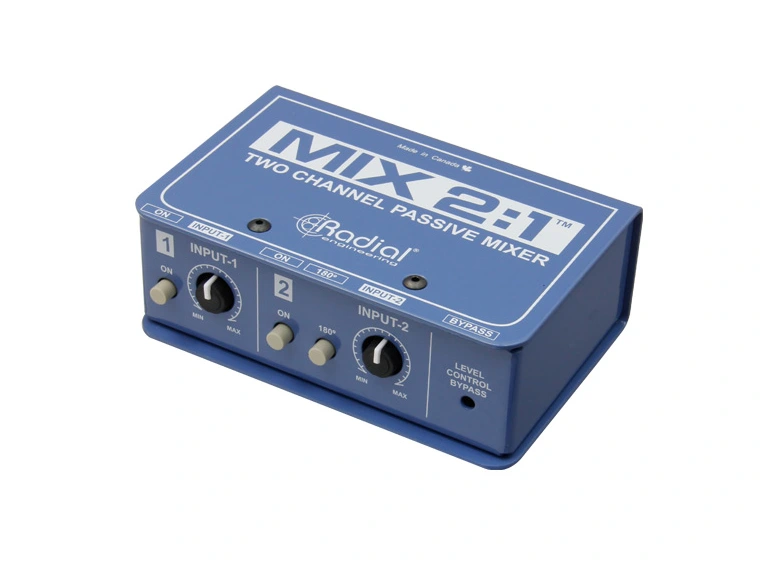

Radial MIX 2:1

Passive balanced mixer 2 in 1 out

Product nr: 1099471
2 165,-
-+
Must be ordered. Product in stock at our supplier
Can be sent from our warehouse by
5/29/2025
Notify me

View this product description in Norwegian.



The MIX2:1 is a simple yet highly useful mixer that passively sums two audio channels down to one. This enables you to easily sum the stereo outputs of a console, recording interface, or portable playback device down to mono. You can also combine two separate signals, matching the input levels between them. Inputs can be accessed via XLR or ¼" connectors, allowing you to use balanced or unbalanced sources. Each input features an on/off switch, variable level control, and a ground lift to prevent buzz and hum, should the inputs come from two separately powered sources. Input-2 also has a polarity reverse switch to eliminate cancellation if the two signals are out of phase. Should level adjustments be unnecessary or unwanted, a level control bypass switch is available to defeat both level controls. The MIX2:1 maintains the integrity of your audio quality, with minimal insertion loss, no phase shift, and completely passive summing.

Product information

Mixer - Bluetooth connection No
Mixer - Built in USB interface No
Mixer - Built-in reverb/effects No
Mixer - Number of channels 2
Mixer - Number of mic pres 0
