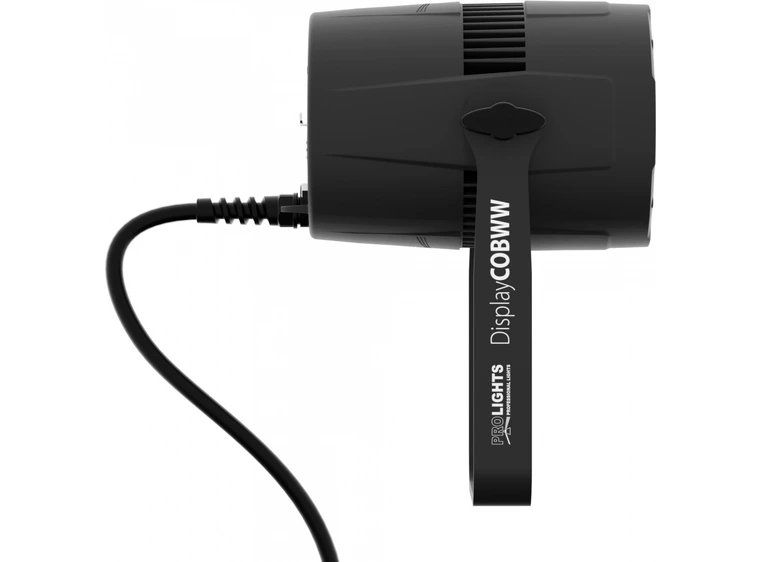

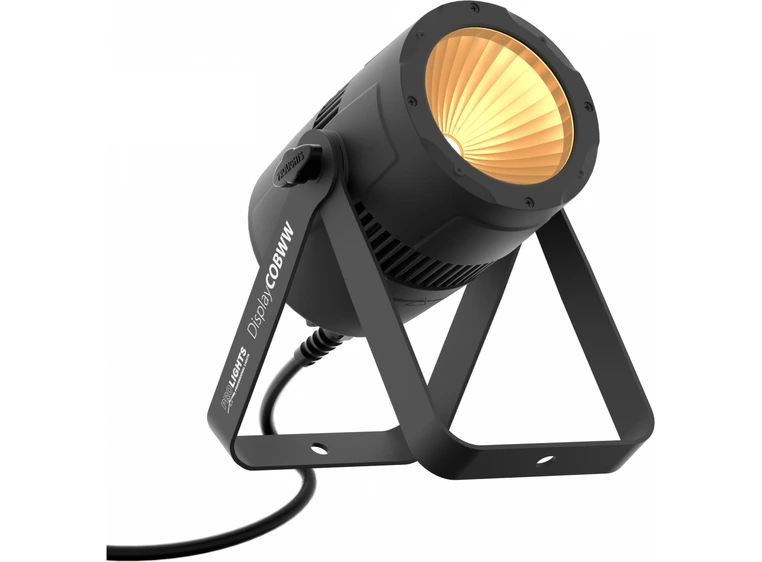

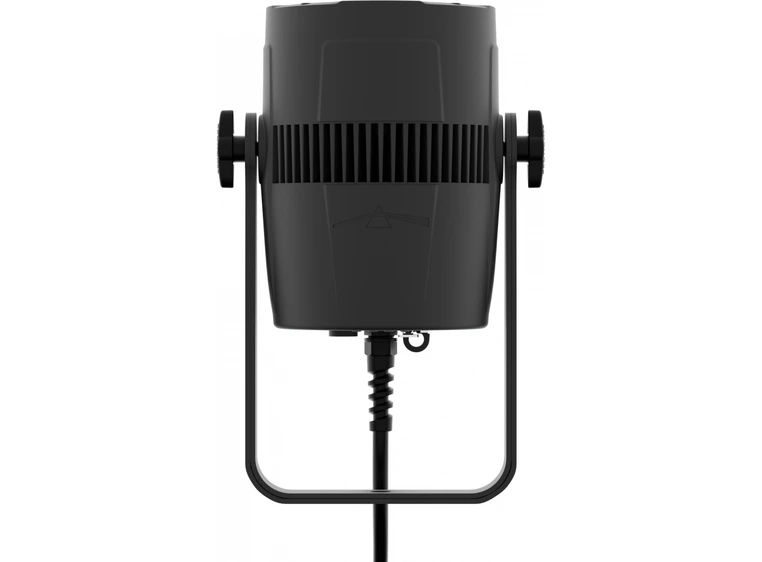

DisplayCob WW is the compact version of the popular StudioCob WW - perfect for an installation or indoor venues. DisplayCob WW employs a 45 W COB LED source tungsten white 3.200 K, combined with a special parabolic reflector built in aluminium which develops an extremely bright and homogeneous output of 97 CRI and interchangeable lens systems to switch from 60° (incl.) to 30° (incl.) and 15° (opt.).

Features:
Compact LED PAR with high CRI 45 W Warm White COB source
HD dimming and an extensive and even colour palette
Flexible lens options of 15° - 30° - 60° and functional barn doors

LIGHT SOURCE
Source: 45W White COB LED
CCT: 3.200K
CRI: > 97
Luminous flux: 1'682lm
Lux: (60°) 244,7lx @3 m
Lux: (30°) 659,4lx @3 m
Source life expectancy: > 30.000 h

OPTICS
Beam angle: 60°
Field angle: 80°
Lens type: parabolic reflector in combination with HD fresnel lens
Additional optics: 30° (inc) - 15° (opt)
DYNAMIC EFFECTS
Static colour mode: selection of static colour
Manual colour mode: manual adjustment of dimmer and strobe
Auto mode: built-in programs with execution speed adjustment

BODY
Body: sturdy die-cast aluminium body conceived for long-time durability
Body colour: black
CONTROL
Protocols: DMX512
DMX channels: 1 / 2 / 5channel
Display: black OLED high resolution display
Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included
Master/Slave: for synchronized operation of more units linked in a chain

ELECTRONICS
Dimmer: linear 0 ~ 100% electronic dimmer
Dimmer curves: 4 different dimming curves available
Strobe / shutter: 1 - 28 Hz, electronic
Operating temperature: -10° ~ +45°
Flicker: flicker free operation
Selectable PWM: 600 ~ 25.000 Hz

ELECTRICAL
Power supply: 100-240 V – 50/60 Hz
Power consumption (at 230 V): 62W
Power consumption (at 120 V): 57W
Output (at 230 V): 24 units on a single power line

PHYSICAL
Cooling: passive cooling and fan-free
Sospension and fixing: double hanging bracket suitable for safe hanging and for floor positioning

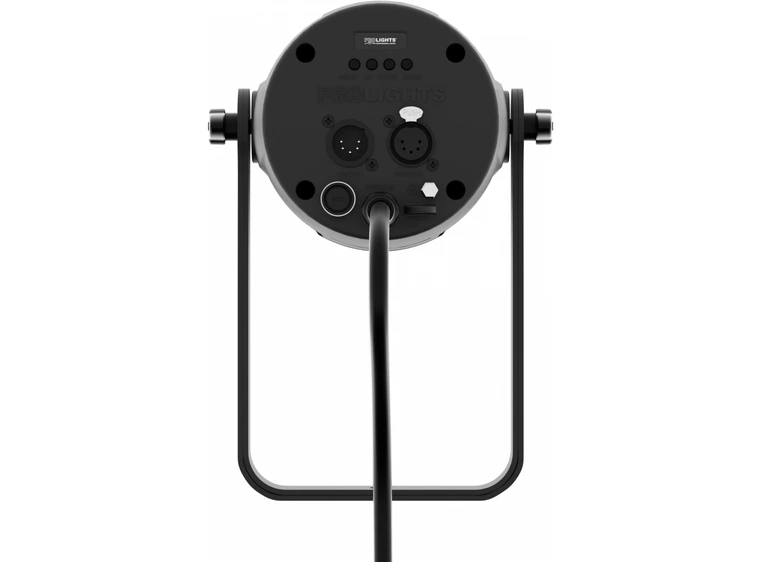

Signal connection: XLR 5p IN/OUT connectors
Power connection: moulded IP power IN connector
IP rating: 20
Dimensions (WxHxD): 166x118x250mm
Weight: 1,85kg
