DIGIDRIVERIP is a driver which provides power and processing to the DIGISTRIPIP. It has\u00a02 outputs and can control up to\u00a020 DIGISTRIPIP100 and 40 DIGISTRIPIP50 each offering the control of up to 3600 pixels\u00a0in a one rack unit, offering 20 DMX universes and 546 W of power in out. DIGIDRIVERIP can not control DIGISTRIP, DIGITUBE and DIGITILE. DIGIDRIVERIP is compatible with Art-Net, Kling-Net and sACN protocols and runs signal and power over a 4 pole XLR cable that allow wiring of units in a chain. The user interface consists in a black OLED display for settings, protocol selection, Network address and test patterns. The IP rate is 65 to allow the usage in outdoor events so the user don't need to take care about humidity and rain.
Features:ArtArtnet, KlingNet and sACN control protocol supported
Power and signal output up to 20 DIGISTRIPIP100 and 40 DIGISTRIPIP50
IP 65 for outdoor events
BODY
- Hardware On-board: Included Rack-mount hardware
- Body: Sturdy die-cast aluminium body conceived for long-time durability
- Body Color: Black
- Other: 2U rack
CONTROL
- Control units: 20 x DIGISTRIPIP100 or 40 x DIGISTRIPIP50
- Art-Net Channels: 20x512ch
- Protocols: Art-Net, Kling-Net, sACN
- Pixel Control: Pixel2Pixel control

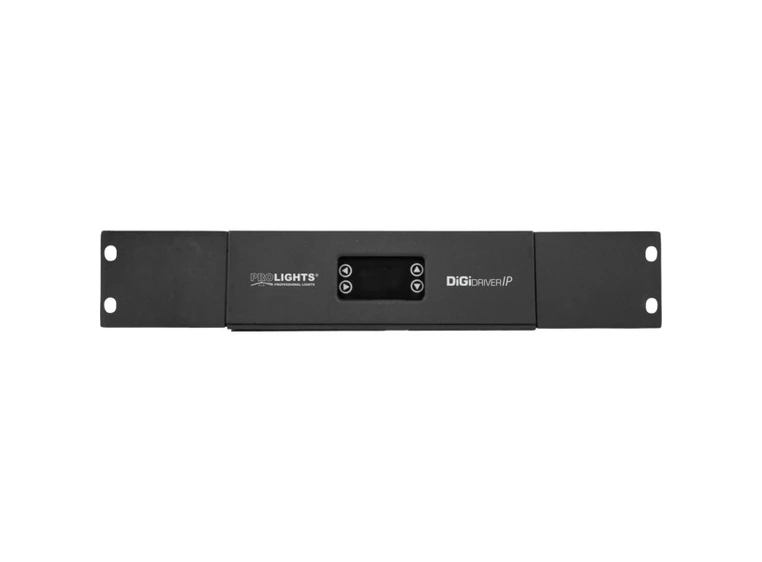

- Display: Black OLED high resolution display
ELECTRONICS
- Operating Temperature: -20° ~ +45°
ELECTRICAL
- Power Supply: 100-240V \u2013 50/60Hz
- Power Consumption (at 230V): 546W
- Power Consumption (at 120V): 570W
- Output (at 230V): 5 units on a single power line
- Output (at 120V): 2 units on a single power line
PHYSICAL

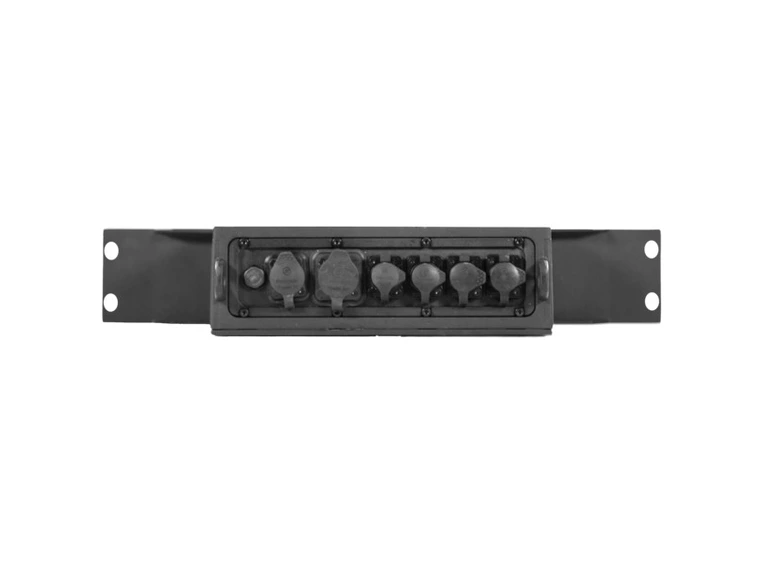

- Signal Connection: 2xRJ45 and 4p out
- Power Connection: PowerCON TRUE1 in/out
- IP: 65 for outdoor events

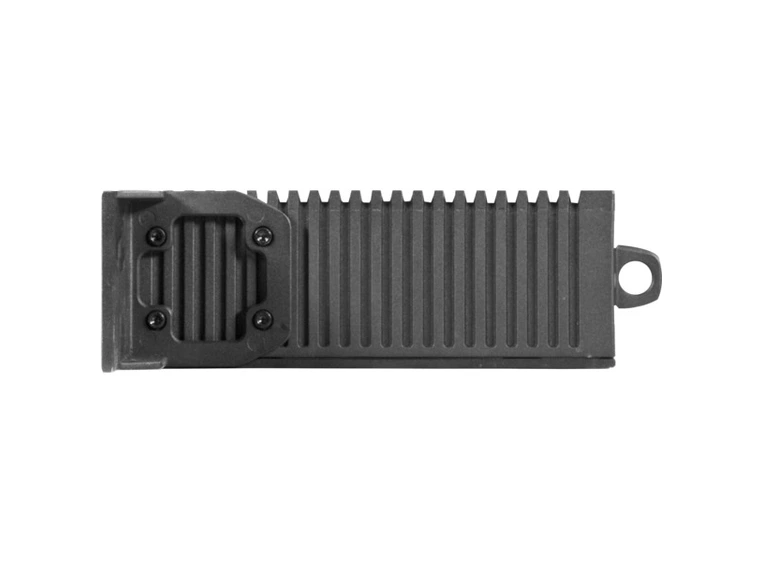

- Cooling: Natural cooling of the peculiar chassis and to absence of fans
- Suspension And Fixing: Any position with "quick-lock" omega brackets

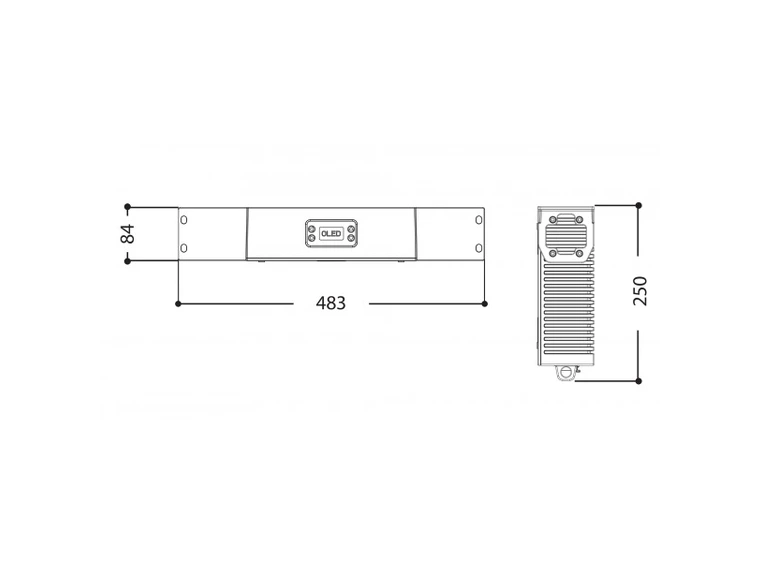

- Dimensions (WxHxD): 483x263x84mm
- Weight: 4,47kg
