SUNBAR2500MAX is an exceptionally powerful LED graphic strobe batten, featuring also as static blinder and flood. SUNBAR2500MAX offers a flexible control of beam coverage through an interchangeable lens system, passing from 110° wide to 30° beam increasing the light intensity up to 4 time.
Available in White or Full Colour versions, and designed to deliver simply staggering light levels, this versatile fixture can provide an unbelievable punch over a huge area.
Features:Staggering 160'000 lumen output (strobe) with 110° beam angle.
Artnet, Kling-Net and DMX control
Graphic effects from 16 individually controllable groups of 7000K White LEDs.
LIGHT SOURCE- Source: 1728x1,3W High Power White LED
- CT: CW: 7000K
- CRI: 87Ra
- Luminous Flux: Strobe without lens (peak) 160'000lm; Static ON without lens 45'000; Strobe with lens (peak) 112'000; Static ON with lens 40'000lm
- Lux: (120°) 2093 lux, (40°) 5640lux @3m
- Source Life Expectancy: >30.000 h
OPTICS- Beam Angle: without lens 110°, with lens 30°
- Field Angle: without lens 150°, with lens 80°

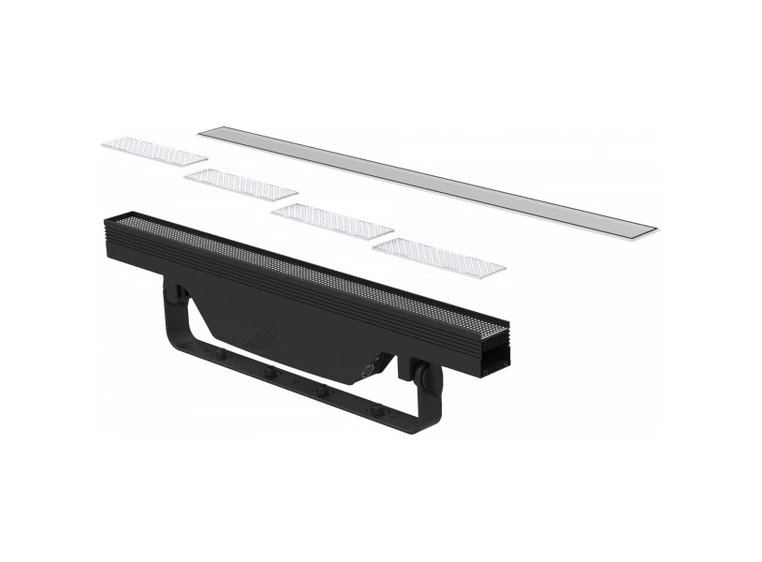

- Additional Optics: Mountable 40° lens reflector plate (included)
DYNAMIC EFFECTS- Rotating Gobos: Dynamic Patterns with speed and rotation control
- Pixel Patterns: Preprogrammed dynamic and static patterns
- FX Generator: Adjustable foreground/background index, speed, direction
- Static Color Mode: Selection of static color
- Manual Color Mode: Manual adjustment of color
- Auto Mode: Built-in programs with execution speed adjustment
- Special Features: Multi-layer pixel FX control
BODY- Hardware On-board: Omega sockets for quick rigging (clamp not included)
- Body: Sturdy die-cast aluminium body conceived for long-time durability
- Body Color: Black
CONTROL- Protocols: DMX512, RDM, Art-Net, Kling-Net
- DMX Channels: from 1 ch to 71ch
- Pixel Control: 1/2/4/8/16 selectionable and controllable sections
- RDM: RDM ready for fixture remote monitor and settings
- Display: Black TFT touch display
- Firmware Upgrade: Yes, via USB-DMX interface (UPBOX1) not included
ELECTRONICS- Dimmer: Linear 0~100% electronic dimmer
- Dimmer Curves: 4 Different dimming curves available
- Strobe/Shutter: 1 - 30 Hz, electronic
- Operating Temperature: -10° ~ +45°
- Selectable PWM: 600~25K Hz
ELECTRICAL- Power Supply: 100-240V \u2013 50/60Hz
- Power Consumption (at 230V): Full Static: 596 W Strobing 1060W
- Power Consumption (at 120V): Full Static: 621 W Strobing 1166W
- Output (at 230V): 3 units on a single power line
PHYSICAL- Cooling: Forced air with low noise fan
- Suspension And Fixing: Hanging bracket for floor positioning with "Quick-Lock" system
- Signal Connection: 3p+5p in/out, RJ45 in/out
- Power Connection: PowerCON TRUE1 in/out
- IP: 20

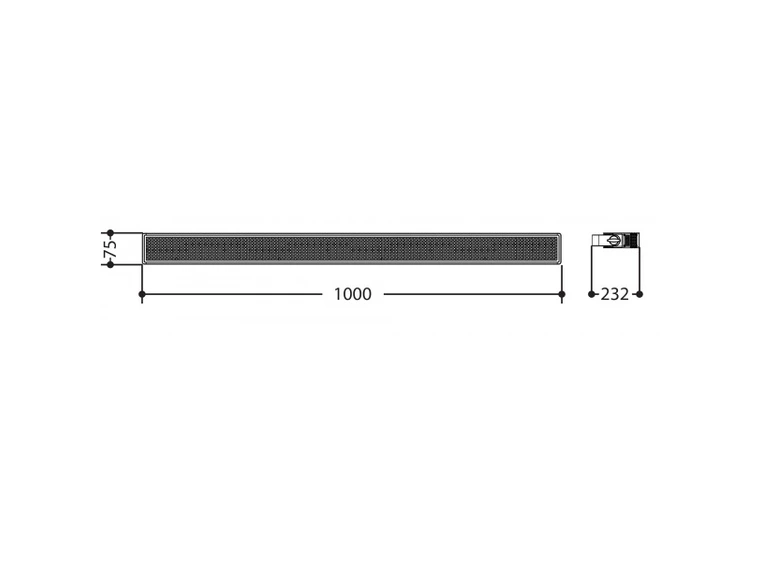

- Dimensions (WxHxD): 1000x75x231mm
- Weight: 9,55kg
