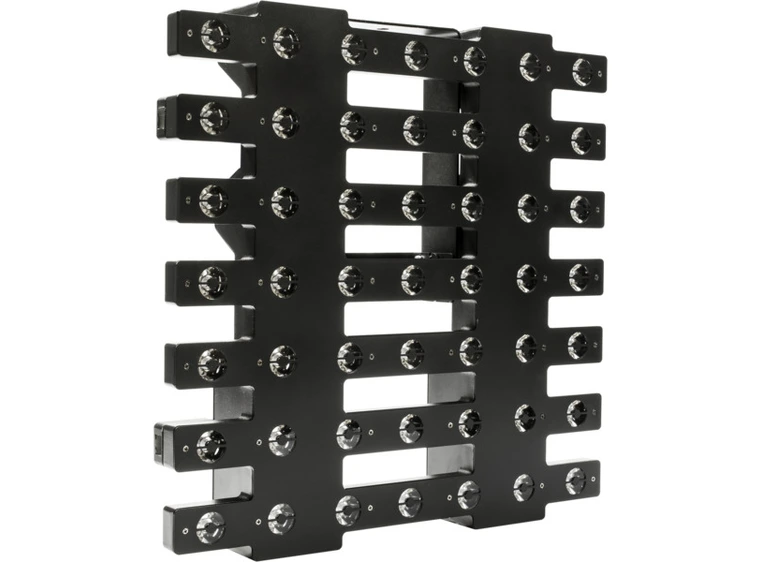

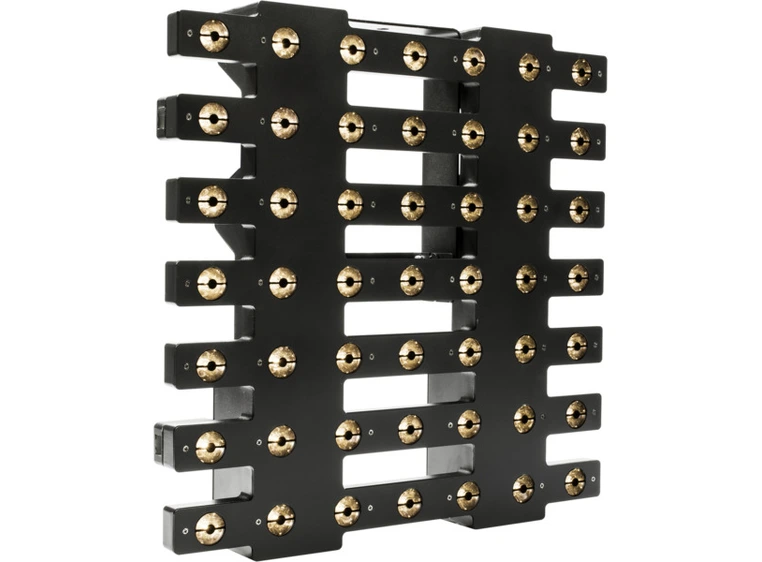

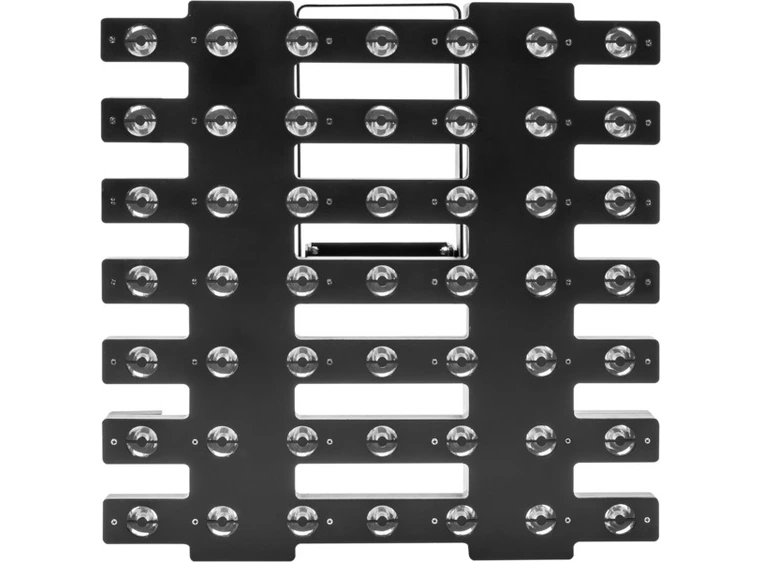

HALUPIX is a LED matrix module capable of projecting volumetric graphics, simulating a 3D effect. The cutting-edge optic design combines warm white 2800K° LED source with special optic reflectors which allow a unique reproduction of 8° tight light beams. The generated effect is a wall of LEDs, performing a long through projection of sharp beams in the air which are brighter than conventional LED screens. HALUPIX is a matrix composed by 7x7 high efficiency CREE LEDs with dimensions of 50x50 cm and on-board modular rigging system to build wall or matrix in every sizes.The innovative electric design and the quality of components and drivers applied offer a stepless and linear dimmer, useful to perform same dimming curve of halogen fixtures, allowing its fitness for theatrical application or wherever is required high performance dimming capabilities.HALUPIX is an ideal tool for rental companies: superslim design, lightweight, user friendly, power supply and control electronics are on board and it doesn't need any external driver. The user interface comes through a graphic LCD display for user settings, diagnostic and addressing through both supported DMX and Art-Net protocols.



Light source and optics
49 (7x7) x 3W 2800K° high-efficiency WarmWhite LEDs
Pixel pitch: 72mm
Beam angle: 8°
LEDs average life span: >50'000h



 Electronics and features

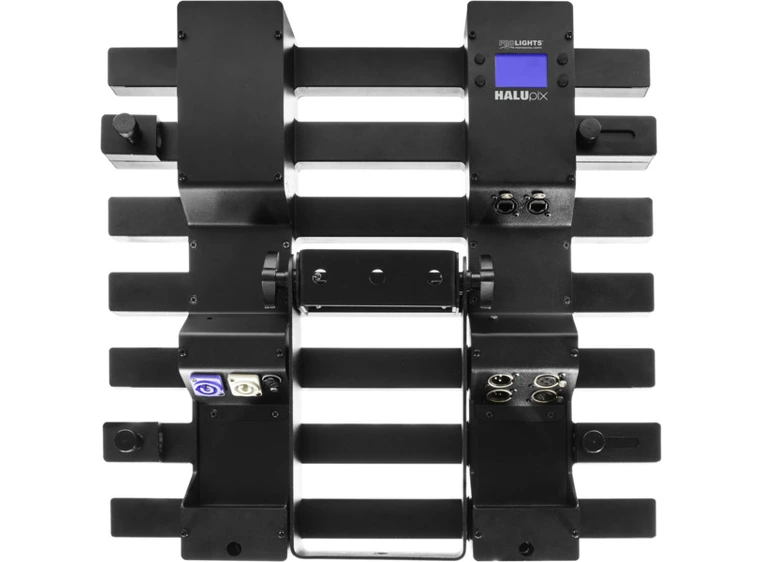

LCD Display control panel
Several DMX selectable configurations (5, 49 ,54 channels) for pixel2pixel or basic controlling:
5 channels: Dimmer, strobe, auto, auto speed, dimmer curve
49 channels: Dimmer (x49 pixels)
54 channels: Dimmer (x49 pixels), auto, auto speed, master dimmer, strobe, dimmer curve
Both DMX and Art-Net control protocol supported
Auto mode: built-in programs with execution speed adjustment
Master/Slave mode: for synchronized operation of more units linked in a chain
Linear and “stepless” transition between DMX values
Flicker free operations (400Hz)



 Structure and Power supply
Sturdy die-cast aluminum
Internal Protection: IP20
Natural air convection
Bracket for truss rigging and hardware for connection of more units
Power unit: 100-240V 50/60Hz
IN/OUT power wiring and signal through connections XLR3p/Powercon
Average power consumption: 175W (power output up to 12 fixtures)
Weight: 7,5 kg

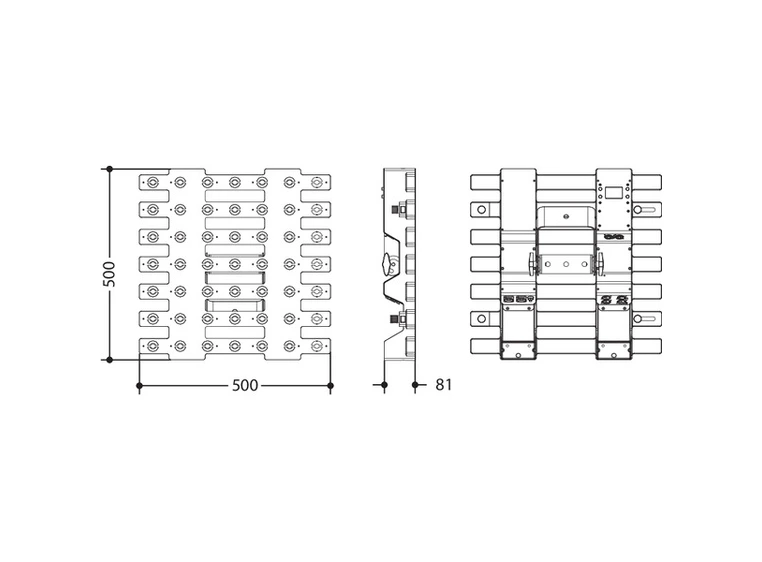

Dimensions (WxHxD): 500x500x81mm
