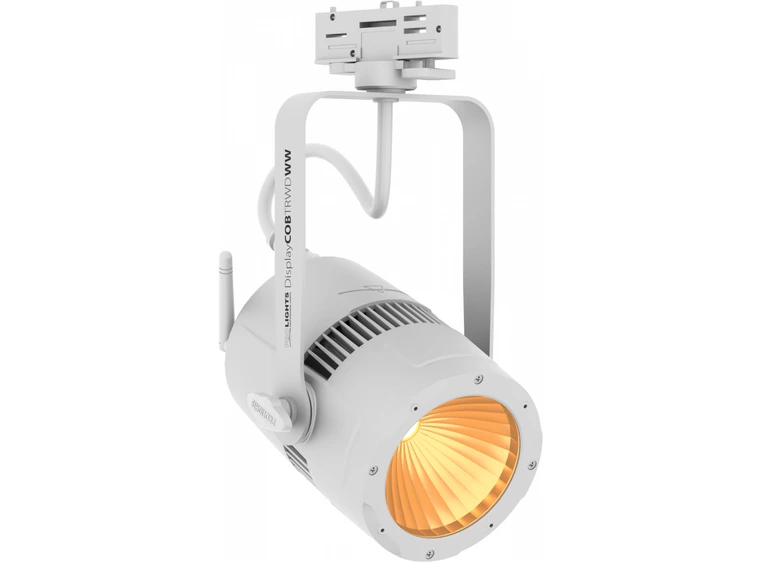

DisplayCob TRWDWW is a track mounted 45 W Warm White LED COB spotlight, designed with electronic and user interface on board being able to be implemented with any existing lighting track easily. The on board Wireless DMX receiver allow users to control this luminaire without any cable, so it doesn't need a specific track with data wirings, or it can be hanged without its track adaptor, anywhere using the on board bracket and controlling via wired DMX protocol. DisplayCob TRWDWW optical systems is composed by a powerful COB LED source and a parabolic reflector, with swappable lenses allowing a beam angle from 15° up to 60° for a perfect focusing. DisplayCob features are an ideal solution to add dynamics and creativity in any installations such as commercials, hotels, restaurants and art galleries.
Features:
45 W Warm White LED COB spotlight with swappable optical group (15° ~ 60°)
Electronics on board and not on track for easy implementation
W-DMX and DMX512 control
LIGHT SOURCE
Source: 45W White COB LED
CCT: 3.200K
CRI: up to 97 Ra
Luminous flux: 1'680lm
Lux: (60°) 245lx @3 m
Lux: (30°) 659lx @3 m
Source life expectancy: > 30.000 h
OPTICS
Beam angle: 60°
Field angle: 80°
Lens type: parabolic reflector in combination with HD fresnel lens
Additional optics: 30° (inc) - 15° (opt)
DYNAMIC EFFECTS
Static colour mode: selection of static colour
Manual colour mode: manual adjustment of dimmer and strobe
Auto mode: built-in programs with execution speed adjustment
BODY
Body: sturdy die-cast aluminium body conceived for long-time durability
Body colour: white
CONTROL
Protocols: DMX512, W-DMX
DMX channels: 1 / 2 / 5channel
W-DMX: included, wireless solution receiver
Display: black OLED high resolution display
Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included
Master/Slave: for synchronized operation of more units linked in a chain
ELECTRONICS
Dimmer: linear 0 ~ 100% electronic dimmer
Dimmer curves: 4 different dimming curves available
Strobe / shutter: 1 ~ 25 Hz, electronic
Operating temperature: -10° ~ +45°
Flicker: flicker free operation
Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
Power supply: 100-240 V – 50/60 Hz
Power consumption (at 230 V): 62W
Power consumption (at 120 V): 57W
Output (at 230 V): 24 units on a single power line
PHYSICAL
Cooling: passive cooling and fan-free
Sospension and fixing: track-adapter included for suspension and fixing
Signal connection: XLR 5p IN/OUT connectors
Power connection: track adaptor (EUTRAC, STAFF, GLOBAL, IVELA compatible)
IP rating: 20
Dimensions (WxHxD): 167x290x163mm
Weight: 1,85kg
