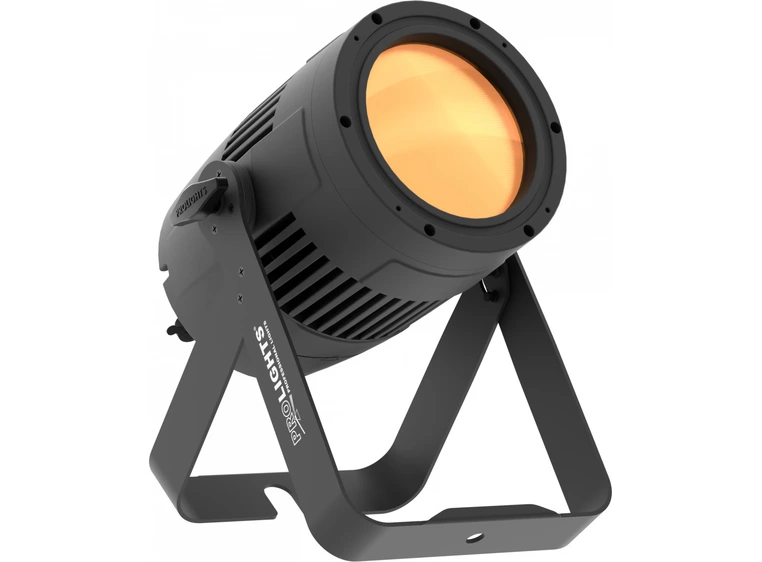

StudioCob PlusTU is a powerful, incredibly versatile and IP65 rated LED PAR. Fusing the old and the new, it pairs a COB LED source with a traditional parabolic reflector to deliver a proper Par replacement with a homogenised output, single shadow and flexible lens options.
Features:
IP65 rated connectors for easy use both indoor and outdoor
165 W 3.000 K Warm White COB LED source with HD dimming and high CRI
Flexible lens options of 18° - 38° - 60°
LIGHT SOURCE
Source: 150W Tungsten White LED
CCT: 3.000K
CRI: > 90
Luminous flux: (18°) 8'419 - (38°) 7'837lm

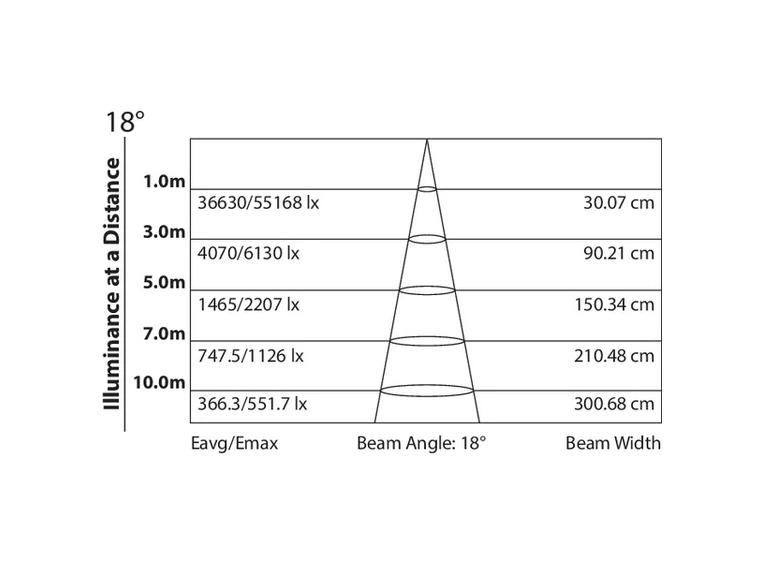

Lux: (18°) 5'873lx @3 m
Lux: (38°) 1'483lx @3 m
Source life expectancy: > 30.000 h
OPTICS
Beam angle: (on-board) 18° - (inc) 38° - (opt) 60°
Field angle: (on-board) 36° - (inc) 63°
Lens type: parabolic reflector in combination with HD fresnel lens
Additional optics: flood (without lens) - 38° (inc)
DYNAMIC EFFECTS
Static colour mode: selection of static colour
Manual colour mode: manual adjustment of dimmer and strobe
Auto mode: built-in programs with execution speed adjustment
BODY
Body: sturdy die-cast aluminium body conceived for long-time durability
Body colour: black, white finishing available
CONTROL
Protocols: DMX512, RDM
DMX channels: 1 / 2 / 5channel
RDM: RDM ready for fixture remote monitor and settings
Display: black OLED touch display
Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included
Master/Slave: for synchronized operation of more units linked in a chain
ELECTRONICS
Dimmer: linear 0 ~ 100% electronic dimmer
Dimmer curves: 4 different dimming curves available
Strobe / shutter: 1 - 28 Hz, electronic
Battery backup: battery backup for user operation without connecting to the main power
Operating temperature: -20° ~ +45°
Flicker: flicker free frequency with adjustable PWM
Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
Power supply: 100-240 V – 50/60 Hz
Power consumption (at 230 V): 141W
Power consumption (at 120 V): 147W
Output (at 230 V): 12 units on a single power line
PHYSICAL
Cooling: forced air with low noise fan
Sospension and fixing: double hanging bracket suitable for safe hanging and for floor positioning
Signal connection: Seetronic XLR 5p IN/OUT connectors
Power connection: Seetronic powerCON waterproof IN/OUT connectors
IP rating: 65 for temporary outdoor application, not for fixed installation

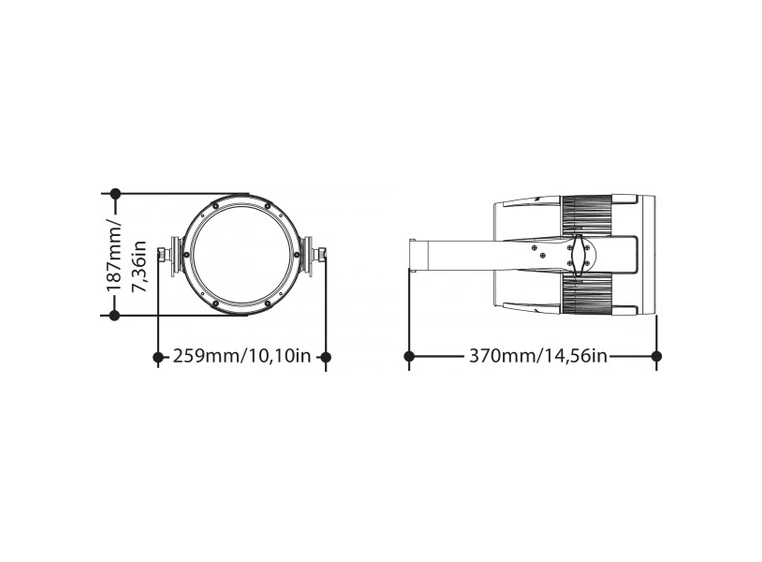

Dimensions (WxHxD): 259x187x370mm
Weight: 4,95kg
