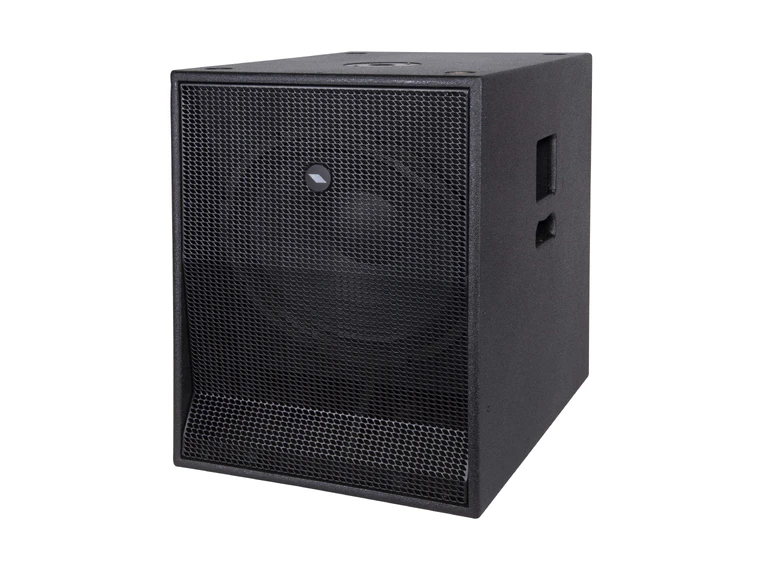

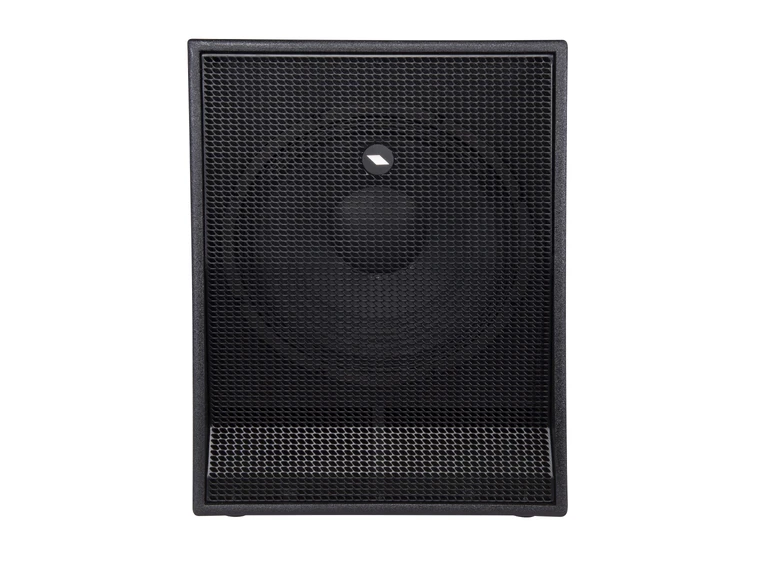

Passive sub-woofer
PROEL introduces the S Series, a new range of compact and powerful sub-woofers designed to complement PROEL full-range speakers. The variety of size, power and SPL offered by the three passive S models provides, at an unbeatable price point, the perfect low extension solution for any speaker model available in the PROEL range.
All the S models feature high-excursion woofers in a Hybrid Band Pass configuration (HBP). This innovative design provides a higher efficiency compared to direct radiation sub-woofers and, in addition, guarantees a much better coupling of the tuning ducts with the external air, reducing the distortion and the air turbulence, for a more defined sound and deep and punchy lows.
The cabinets are built with 15/18mm plywood and finished with extra-durable polyurethane paint. They feature two flush handles and four sturdy 75mm wheels for an easy transport (S15 and S18 only).
- Compact passive HBP sub-woofer
- 15” woofer with 3” VC for a deep and extended response
- 400 W AES power
- SPL 1 W / 1 m 97 dB
- Frequency response 40 Hz - 160 Hz
| System type | Hybrid Band Pass subwoofer |
| Loudspeaker | 15" woofer with 3" VC |
| Nominal Impedance | 8 O |
| Power Continuous (AES) | 400 W |
| Power Program | 800 W |
| Power Peak | 1600 W |
| Frequency Response | 40 Hz - 160 Hz |
| Sensitivity | 97 dB @ 1 W/1 m |
| Connectors | 2 x NEUTRIK SPEAKON (IN/LINK) |
| Cabinet | 15/18 mm plywood |
| Black anti-scratch paint |
| 1.5 mm metal grille |
| 2 handles |
| 1 x pole socket |
| 4 x 75 mm wheels |
| Dimensions (W x H x D) | 435x570x560 (660 with wheels) mm |
| Weight | 24.5 kg (54 lb) |
