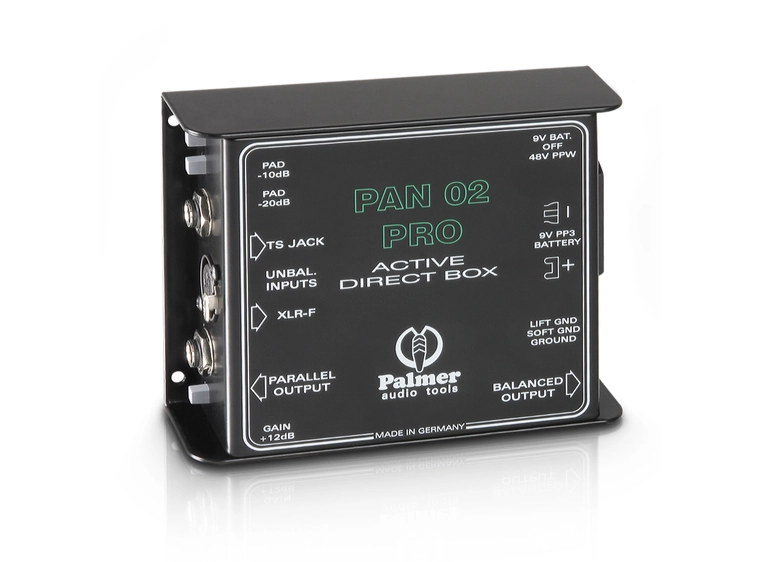

The Palmer PAN02 PRO is an active DI-box with outstanding additional functions. These include an unbalanced XLR input, in addition to the 3-way attenuator -10, -20, -30 dB and a switchable gain of 12 dB, connected with a maximum output voltage of +20 dBu. The Groundlift switch has a "lift" position allowing adjustments between a "soft and hard grounding" . The balanced output is achieved with a high quality transformer in the Mumetall housingthat was specially developed for this purpose. The PAN02 Pro can be powered either with a 9 V battery or 48 V phantom power. A two-colour LED indicates which source supplies the power.
- Type: active
- Number of Channels: 1
- Number of Inputs: 2

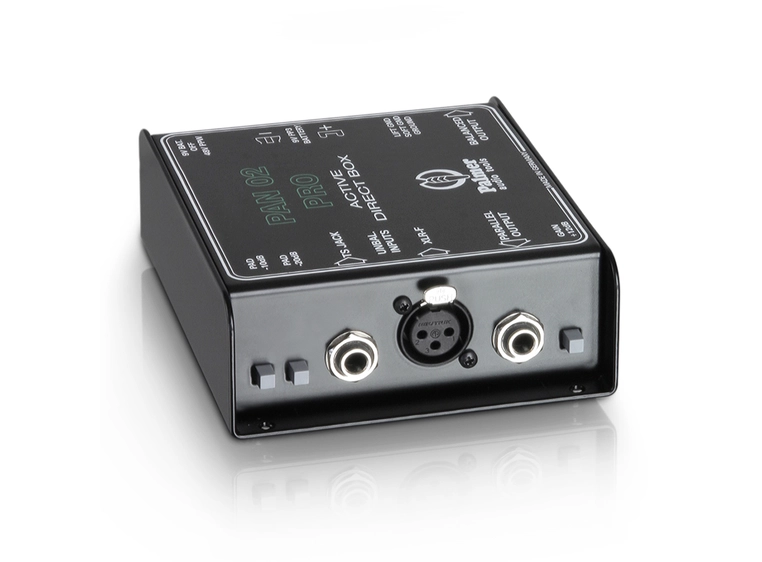

- Input Connections: 6.3 mm jack, XLR/f unbalanced
- Max. Input Level: 45 dBu
- Input Impedance: 0 dB & 12 dB: 1 MOhm -10 & -20 dB: 70 kOhm -30 dB: 40 kOhm
- Input Attenuation: 0 dB, -10 dB, -20 dB, -30 dB
- Signal Gain: +12 dB
- Number of Outputs: 1
- Number of THRU Outputs per Channel: 1

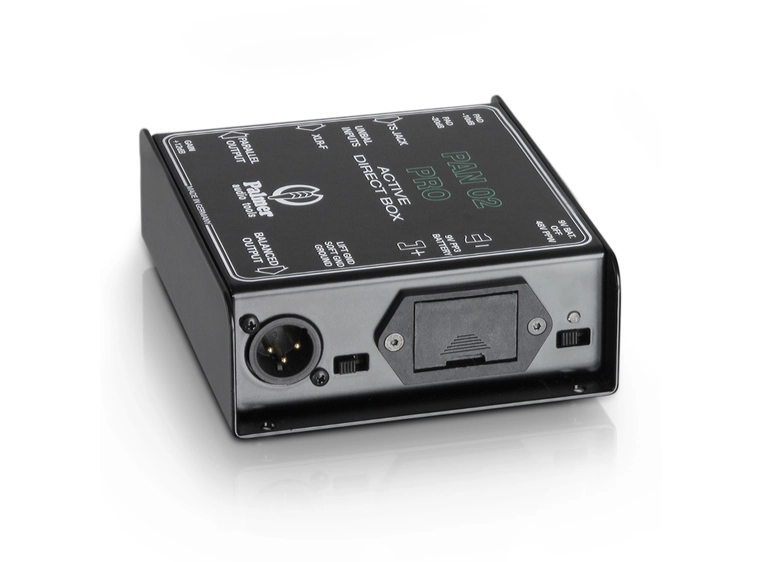

- Output Connections: XLR, 6.3 mm jack
- Max Output Level: 20 dBu
- Output Impedance: 600 ohms
- Frequency Response: 20Hz - 20,000 Hz
- Transformer-balanced: yes
- Translation Ratio (Ratio): 3.16:1, 10:1, 31.6:1, 1:4
- Controls: Ground-Lift, Attenuator, Boost, Battery/+ 48 V Power
- Power Supply: 9 V block battery, + 48 V phantom power
- Housing Material: sheet steel
- Housing Surface: powder coated
- Width: 116 mm
- Depth: 140 mm
- Height: 43.5 mm
