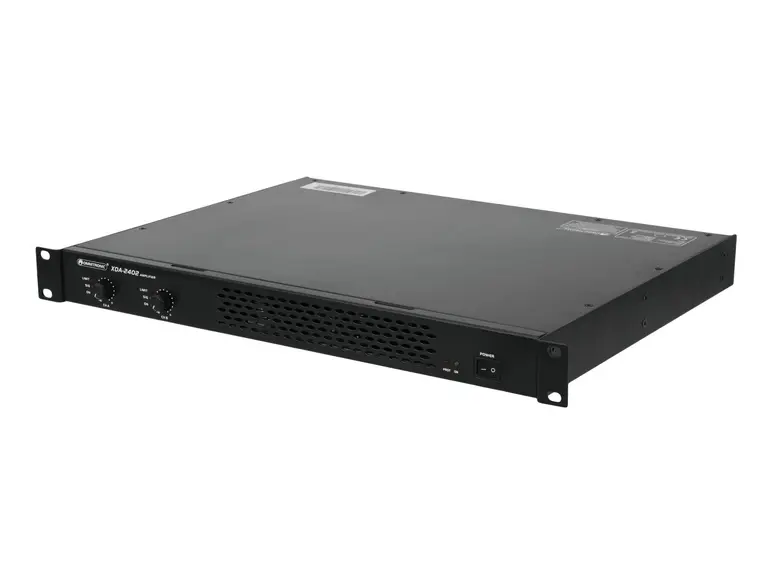

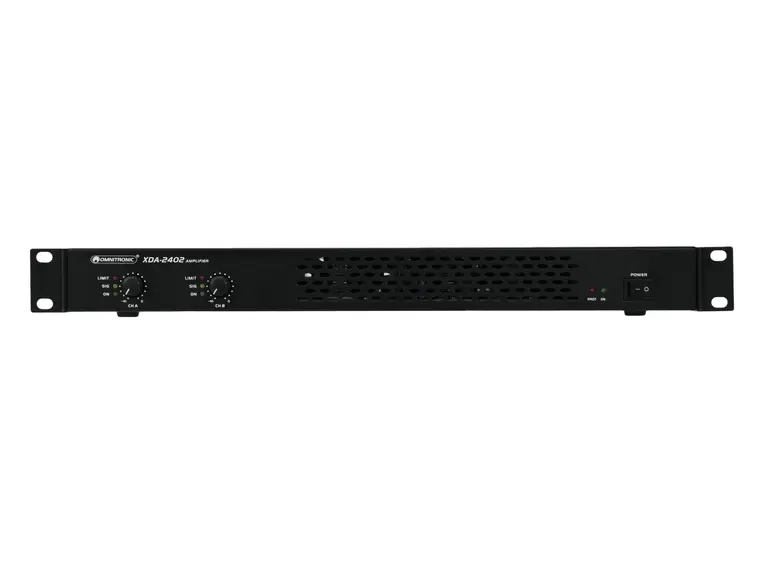

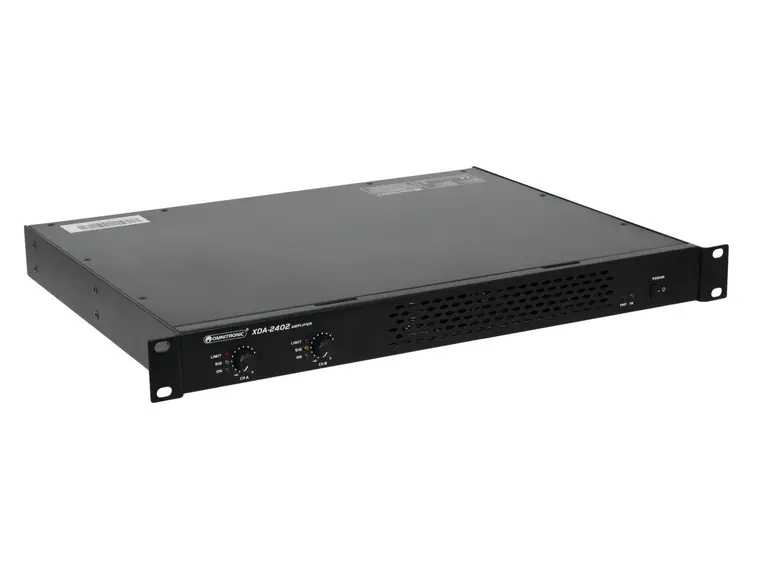

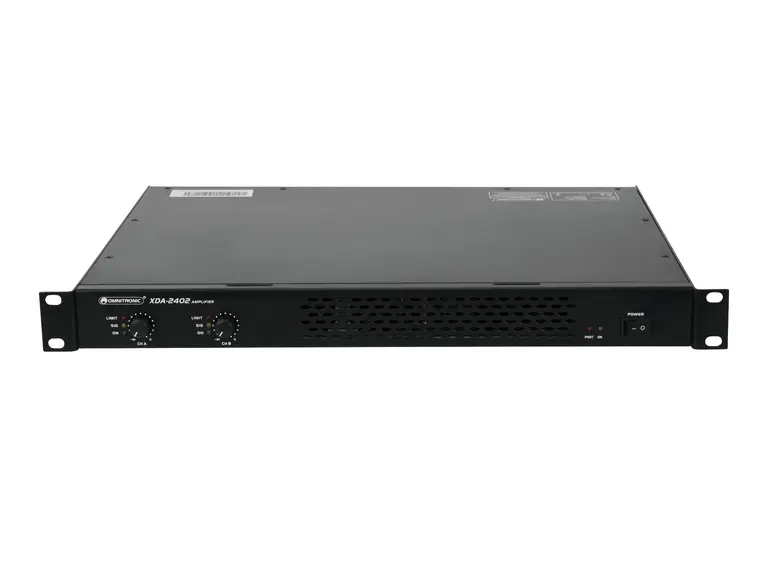

Stereo PA amplifier with SMPS, 2 x 1200 W / 4 ohms, 2 x 880 W / 8 ohms
- Stereo PA amplifier with class D circuitry
- Low weight and height due to integrated switch mode power supply
- Speaker switch-on delay and auto limiters
- 2 level controls
- LEDs for activated protective circuit, limiter, signal, and power
- Complete protection set against short-circuit, overheat, DC voltage, power on/off transients
- Ground lift switch against humming
- Electronically balanced inputs via XLR mounting jacks with feed-through output
- Speaker outputs via lockable speaker jacks
- The device is cooled by cooling fan
- (19") 48.3 cm rack installation 1 U
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 465 W 1/8 power |
| Output power: | 2 x 880 W RMS (8 ohms)
2 x 1200 W RMS (4 ohms) |
| Power connection: | Mains input P-Con (blue), mounting version power supply cord with safety plug (provided) |
| Frequency range: | 30 - 20000 Hz |
| S/N ratio: | >100 dB |
| THD: | <0,02 % at 1 kHz |
| Cooling: | Cooling fan |
| Impedance: | Input 20 kOhm , bal.
Input 10 kOhm , unbal. |
| Circuitry: | Class D |
| Control elements: | Power switch, level control per channel, groundlift selector |
| Controls: | Short-circuit; overheat; DC voltage; power on/off transients; softstart; power on/off transient; limiter |
| Status LED: | Power, signal, limit, protect |

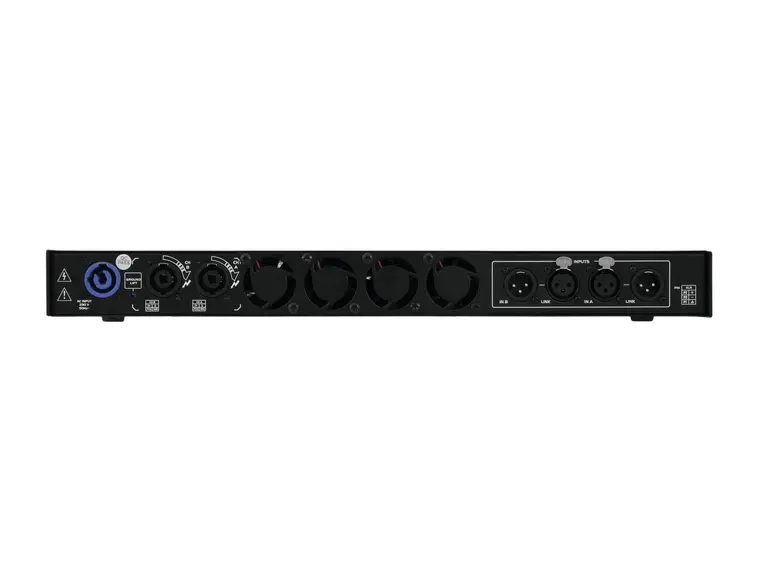

| Connections: | Input: line via 2 x 3-pin XLR
Link: line via 2 x 3-pin XLR
Output: speakers via 2 x speaker built-in socket (F) |
| Input sensitivity: | 1,25 V |
| Housing design: | (19") 48.3 cm rack installation 1 U |
| Dimensions: | Width: 48,3 cm
Depth: 35,5 cm
Height: 4,45 cm |
| Weight: | 6,40 kg |
