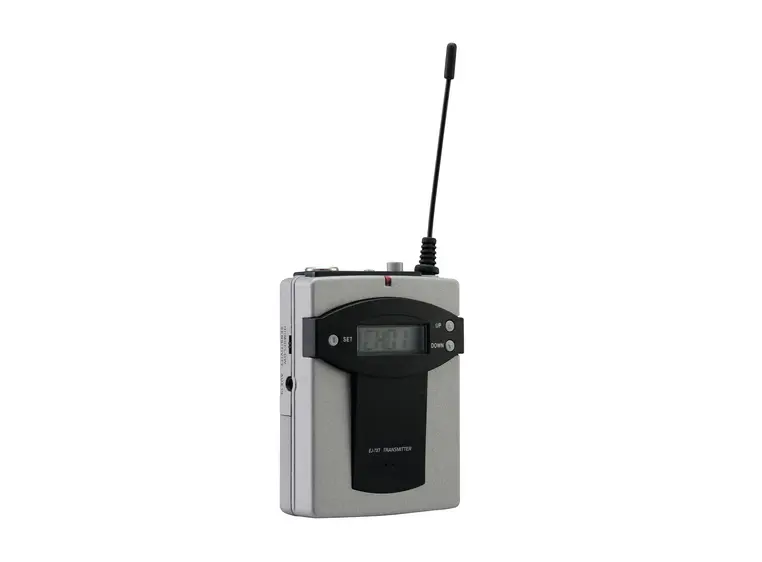

Multifrequency transmitter for the WAMS-05

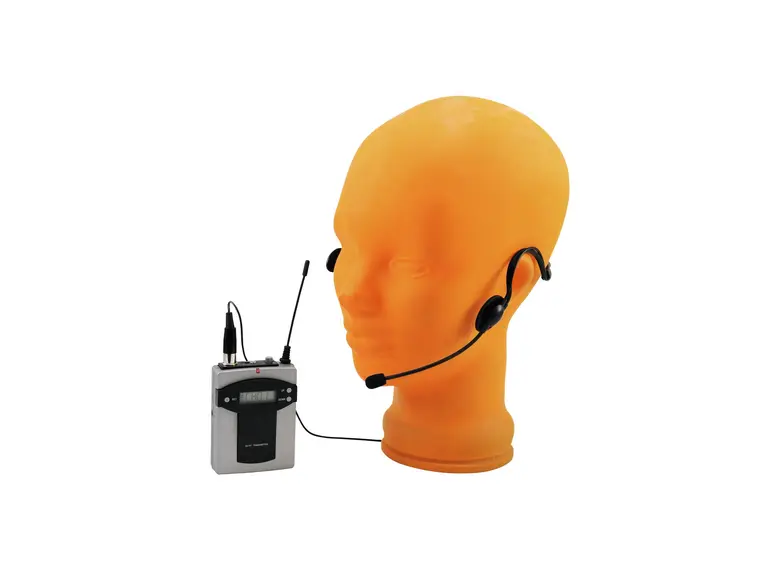

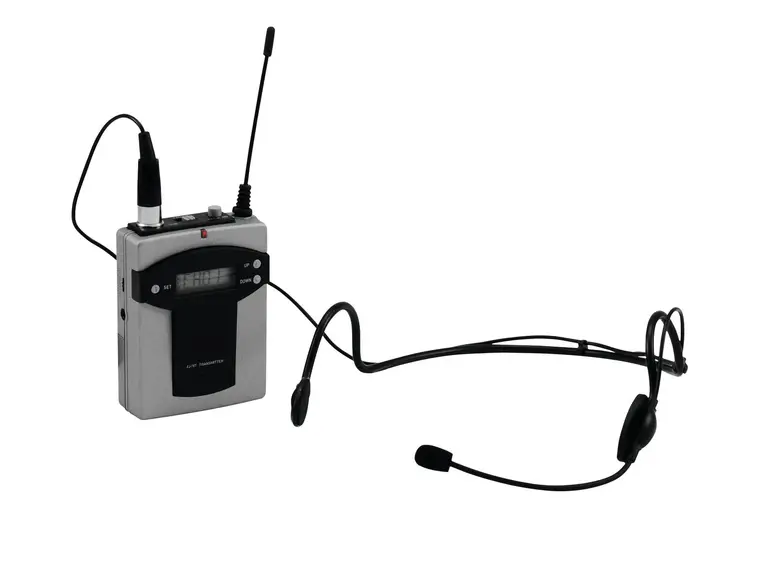

- Set includes pocket transmitter and headset microphone
- Transmitter as UHF PLL system, suitable for WAMS-05 system
- Suitable for optional lavalier microphone LS-105
- Operation in the low-interference UHF band (863-865 MHz) with 16 frequencies selectable
- LCD for channel, frequency and battery capacity
- Sensitivity adjustable in 3 steps
- Transmitting power 10 mW
- With charging contacts, suitable for optional charging station TM-105

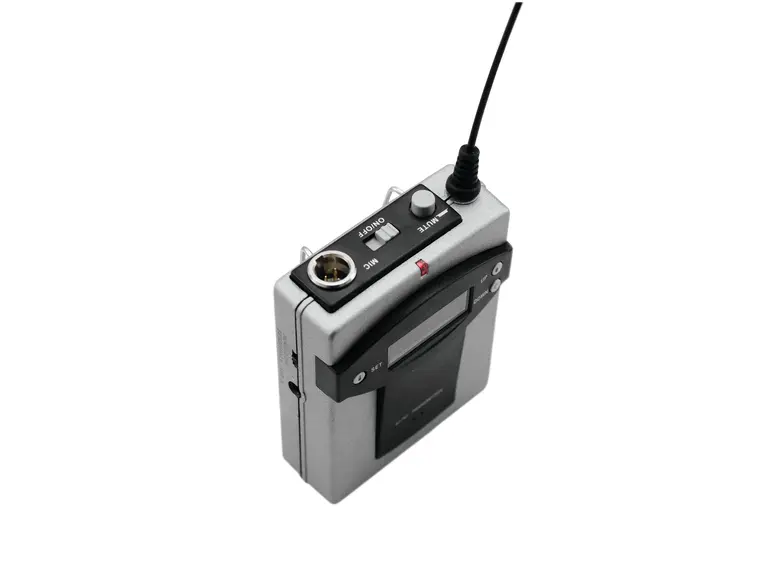

- Connection via XLR mini plug
- License-free and approved in the EU
- Polar pattern: Omnidirectional
- Use a operating range up to 70m with line of sight
| Type: | Bodypack with microphone |
| Power connection: | Battery/battery pack |
| Capsule type: | Condenser |
| Polar pattern: | Omnidirectional |
| Battery: | 2 x Mignon (AA) (not included) |
| Frequency range: | 50 - 18000 Hz |
| Connections: | Input: Microphone via 1 x Mini XLR (M) 3-pin mounting version |
| Frequency band: | UHF 863 - 865 MHz |
| Modulation: | FM |
| RF power output: | 10 mW |
| Frequency stability: | ± 0,005 % |
| Range: | 70 m with line of sight |
| Dimensions: | Width: 6,4 cm
Depth: 2,6 cm
Height: 8,8 cm |
| Weight: | 186 g |
