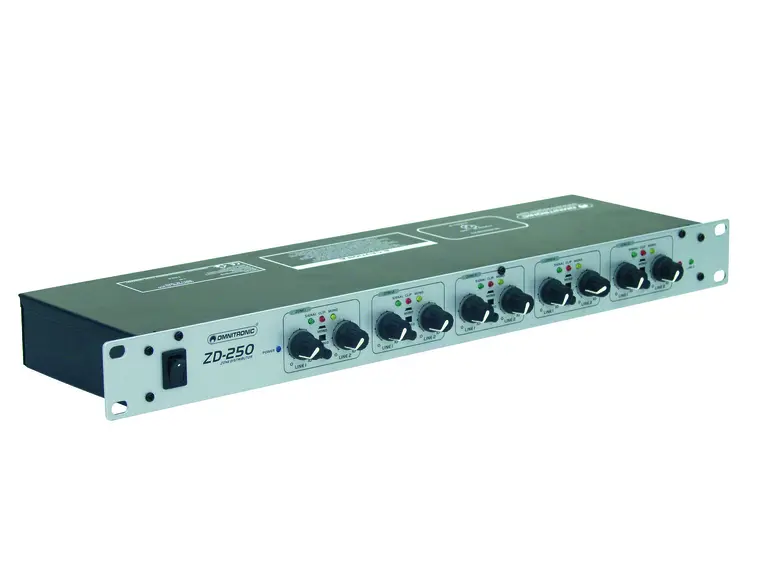

Practical distributor with 2 inputs and 5 outputs
- Extends every mixer with additional outputs
- 2 stereo XLR inputs

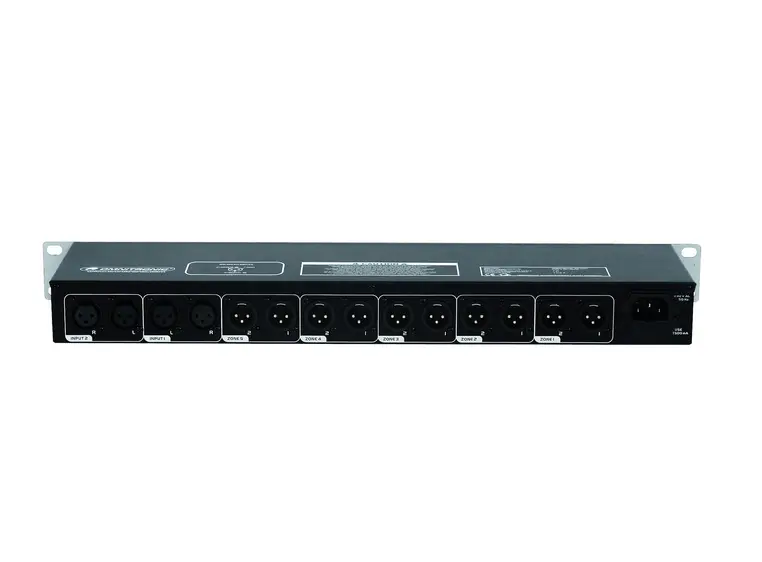

- 5 stereo zone XLR outputs

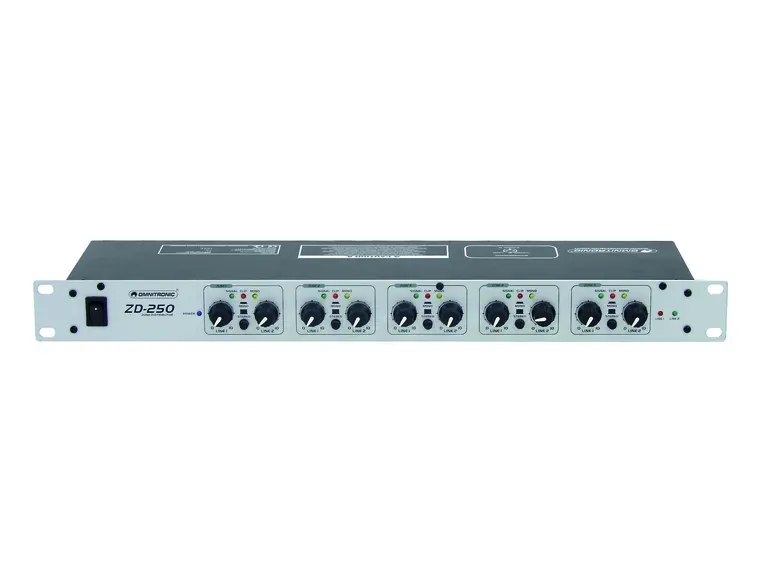

- Each zone with level controls for both inputs and mono switch
- LED display of signal input, distortion and mono/stereo mode
- Rack installation, 1 U
- (19") 48.3 cm rack installation 1 U
| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | 7,00 W |
| Power connection: | Mains input IEC connector (M) mounting version power supply cord with safety plug (provided) |
| S/N ratio: | >69 dB |
| THD: | <0,2 % at 1 kHz |
| Impedance: | Input 45,1 kOhm
Output 125 Ohm |
| Gain: | 15 dB |
| Max. level: | Input: +9 dB
Output: +22 dB |
| Housing design: | (19") 48.3 cm rack installation 1 U |
| Dimensions: | Width: 48,3 cm
Depth: 12,6 cm
Height: 4,45 cm |
| Weight: | 2,35 kg |
