OMNITRONIC PM-222 2-channel DJ mixer
Product nr:
1067284
1 289,-
-
+
Buy
Must be ordered. Product in stock at our supplier
Can be sent from our warehouse by
5/23/2024
Description
View this product description in Norwegian.
2-channel DJ mixer
2 input channels with gain control, 2-way equalizer and phono/line switching
DJ microphone input with separate level control
Pre-fader listening (CUE) to the input channels via adjustable headphones output, with cue mix control
Replaceable crossfader for crossfading between both channels
6-digit stereo LED level meter and master level control
Inputs: 4 x line and 2 x phono (stereo RCA), DJ microphone and headphones (6.3 mm jack)
Outputs: master and record (stereo RCA)
Desktop console housing
Power supply:
100-240 V AC, 50/60 Hz
Power consumption:
30,00 W
Protection class:
Class II
Power connection:
Mains input C8 "figure 8" mounting version power supply cord with Euro plug (provided)
Frequency range:
20 - 20000 Hz
S/N ratio:
>70 dB
THD:
<0,025 % at 1 kHz
Impedance:
Input Microphone: 47 kOhm
Input line: 47 kOhm
Input phono: 47 kOhm
Gain:
Input: variable
Control elements:
Power switch, source selector, Crossfader
Status LED:
Master level meter, power

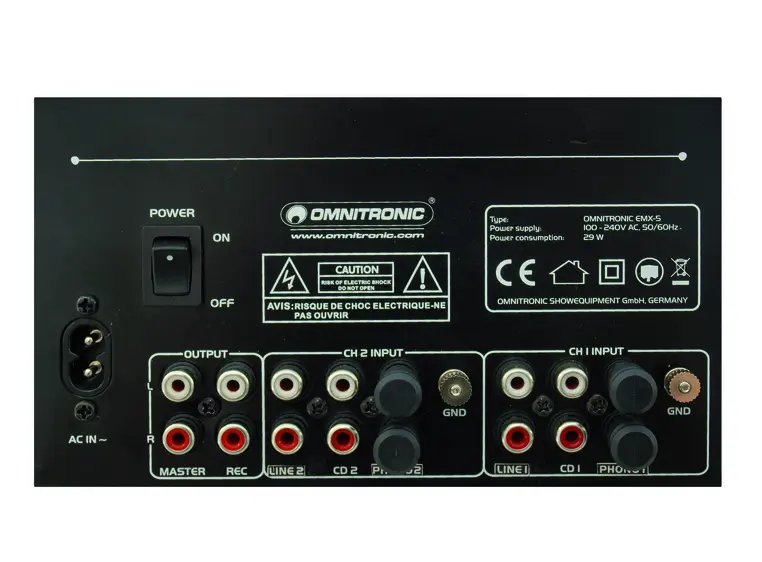

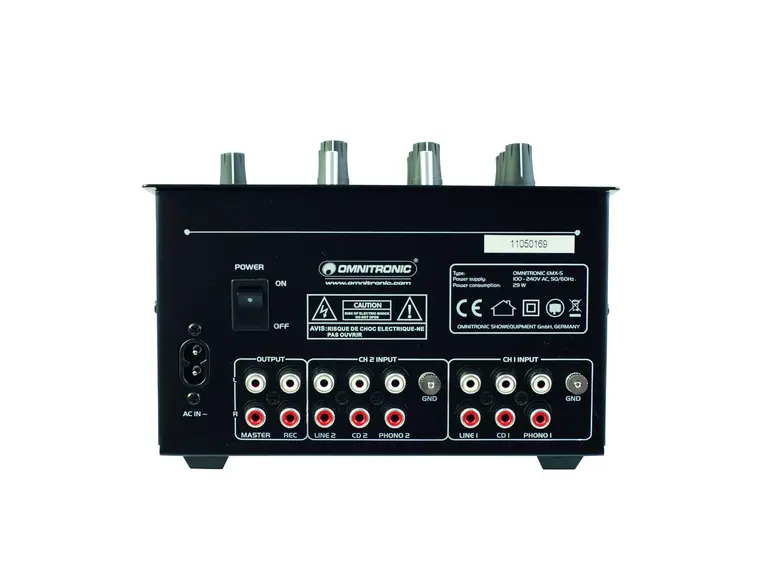

Connections:
Input: Microphone via 1 x 6.3 mm jack socket (mono) mounting version
Input: line via 4 x stereo RCA
Input: phono via 2 x stereo RCA
Output: master via 1 x stereo RCA
Output: rec. via 1 x stereo RCA
Output: headphones via 1 x 6.3 mm jack socket (stereo) mounting version
Channels:
Input chanel: 2 x stereo with Line-Line-Phono switch via RCA, channel control via fader, 2-band tone control EQ, gain control,
Microphon chanal: 1 x mono via Plug 6,3mm/3,5mm (Jack), channel control via Rotary dial, Cue-mix-function,
Master output: 1 x stereo via RCA, channel control via Rotary dial
Headphones output: 1 x stereo via Plug 6,3mm/3,5mm (Jack), channel control via Rotary dial
Max. level:
Output: master +19 dBu
Housing design:
Desktop console housing
Dimensions:
Width: 19 cm
Depth: 26 cm
Height: 13,7 cm
Weight:
2,00 kg
