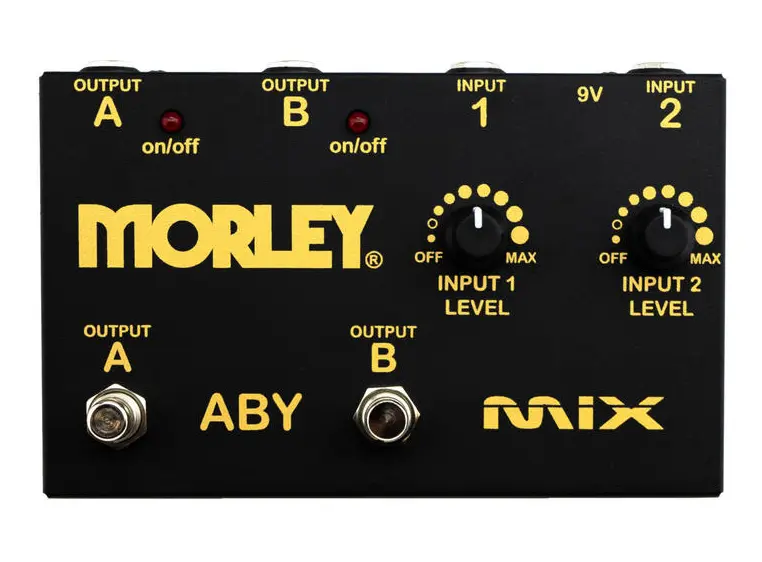

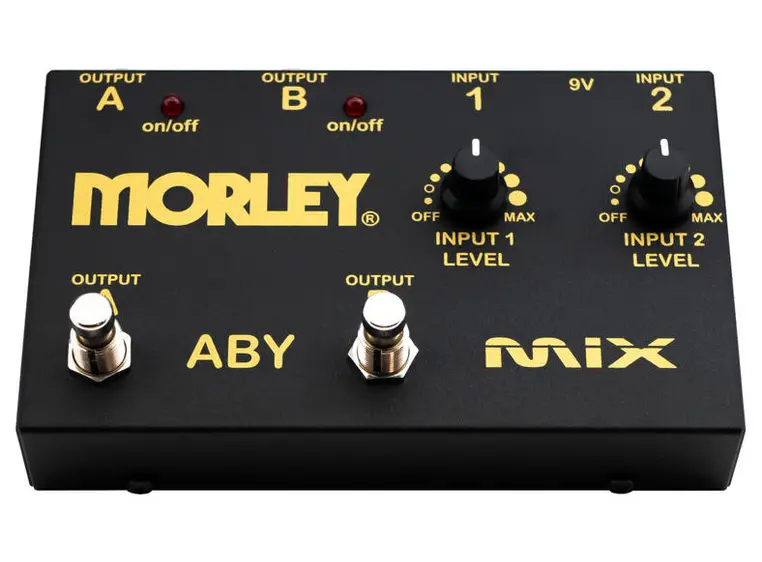

The Morley Gold Series switchers continue the legacy of the classic Morley switcher pedals that first have been introduced in the 90's. The Gold Series versions retain the same layout with improved operation as well as an upgraded and quieter circuitry and a new classy look. The Morley ABY-MIX-G is essentially a two-channel mixer in a robust pedal enclosure. You can route two inputs to two outputs and control the level of each input, which is ideal for routing two guitars into one amp. It is also equipped with Morley's premium 20/20 buffer circuit, which protects the tone from any mischief in the signal chain.
- A/B/Y switch and two-channel mixer for flexible signal routing
- designed to route two input signals to two output sources
- each input has its own level control to balance different input levels
- choose output between A or B (separate) or A and B (combined)
- built-in 20/20 buffer circuit that prevents signal loss and maintains tone
- true bypass
- A, B footswitches
- status LEDs
- quick-clip battery door
- cold-rolled steel housing

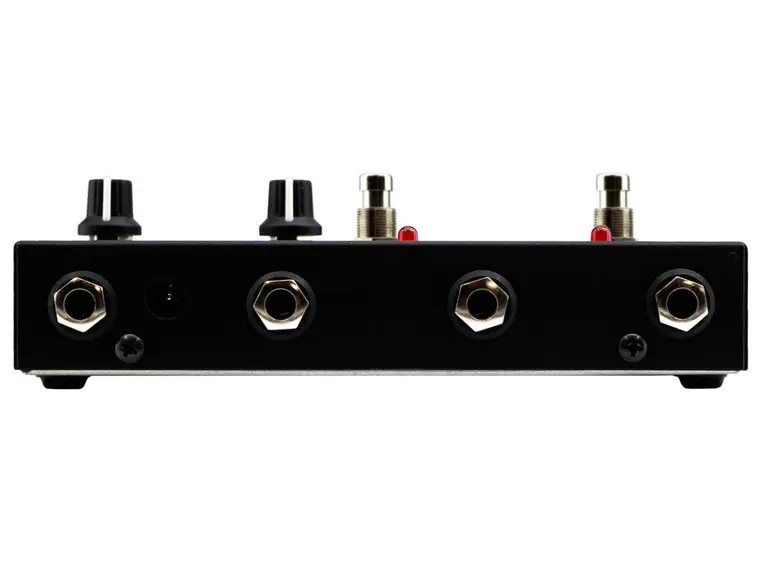

- 4x 6.3 mm mono input / output jack
- power supply via 9V battery or optional 9V DC adapter, 2.1 x 5.5 mm barrel plug, polarity (-) center
- current draw 12 mA
- dimensions (L x W x H) 168 x 111 x 51 mm / 6.63 x 4.38 x 2
- weight 640 g / 1.4 lbs
