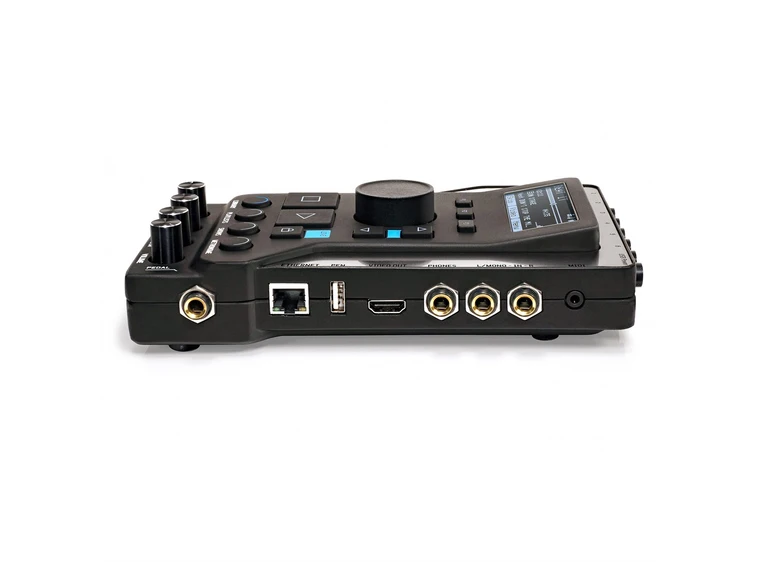

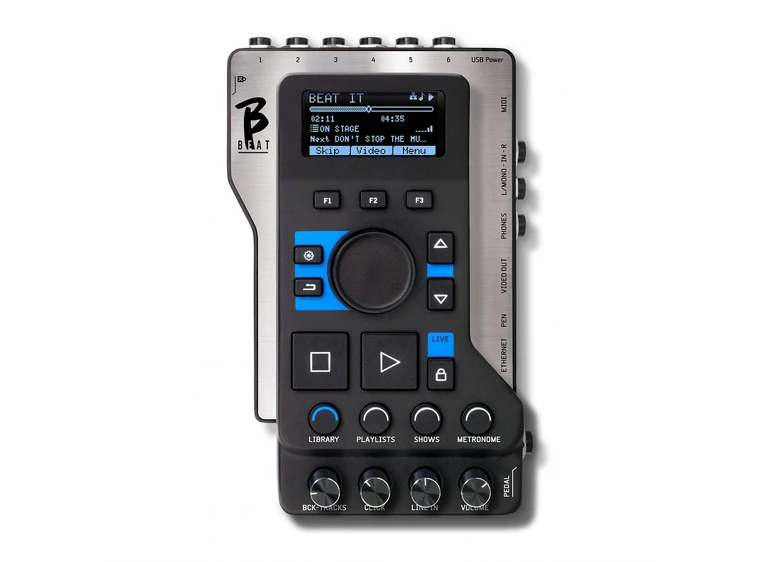

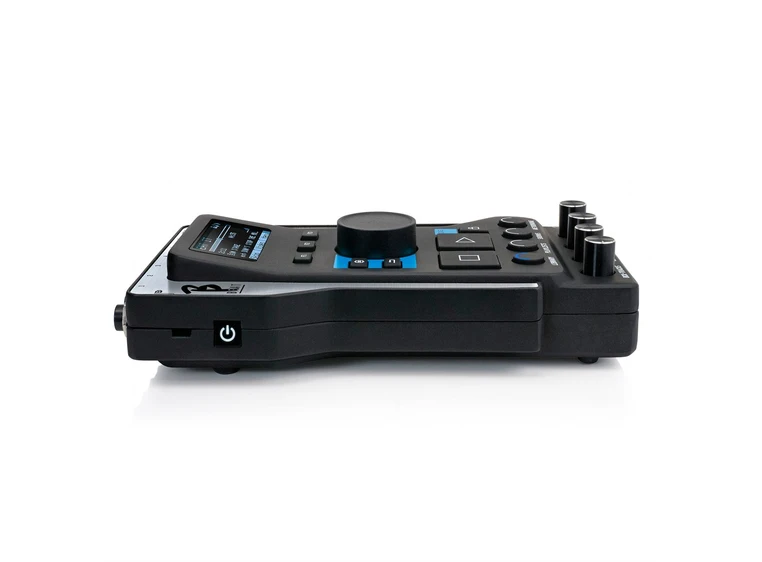

The perfect device to optimize and simplify live performances of bands that use stereo or multitrack sequences, even with video and images. With B.Beat on stage you no longer need computers, tablets, audio/video cards, cables, mixers: B.Beat manages the sequences and leaves the pleasure of playing, without worries.

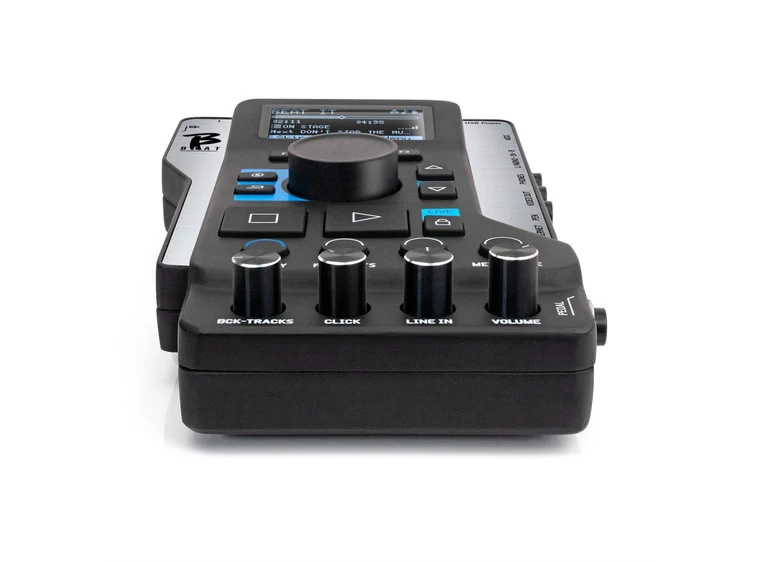

B.Beat supports Mp3, Wav, Stems, MTA1 and audio projects with up to 16 mono or 8 stereo tracks. It also reads videos and JPGs in sync with the music. It comes with a digital mixer with 6 outputs for separate tracks. It has two inputs to receive, for example, a return from the mixer, and with 4 potentiometers the musician can independently balance the headphone listening. B.Beat detects the Click track and plays it both on the dedicated output and on the headphones.
The Backing Tracks repertoire, Playlists and Shows are created with the included App that runs on PC Windows or MacOS. With the same App you can setup Audio outputs, you can get a Click track and much more. Projects can include Music, Video/images, Midi tracks (especially for control change, program change and Sys Ex), Sheet music, Lyrics and chords (for Tablet or Smartphone with Prompter App).
B.Beat connects via Wireless to Smart devices to read lyrics, music scores and other useful information during a live performance. B.Beat reads memory sticks for fast transfer of Mp3 Stereo Backing Tracks, with or without Click. It has an internal memory from 32Gb to 128 Gb. B.Beat has a power supply but can work for several hours with a power bank with these features: 10000mAh/2.4A about 6 hours.
DATA SHEET
Compatible audio formats during import
(they will be converted in internal format)
? WAV 44.1 kHz, 48 kHz, 96 kHz 16/24 bit
? MP3 fixed bit rate [64 - 320] kbps
? MP3 VBR
? OGG fixed bit rate [64 - 320] kbps
? AAC
? STEMS
? MTA M-Live
Internal Video format
H-264 HD / Full HD (1280 x 720 / 1920 x 1080)
Compatible Video format during import
(the only video part will be converted)
? MP4
? MOV
? AVI
Compatible image formats
?JPG
?PNG
Internal audio digital processing
?8 channels D/A 24 Bit Sigma/Delta 48 kHz.
?Typical S/N = 112 dB
Display
?2.4” OLED, 128x64, Monochrome
Output Audio

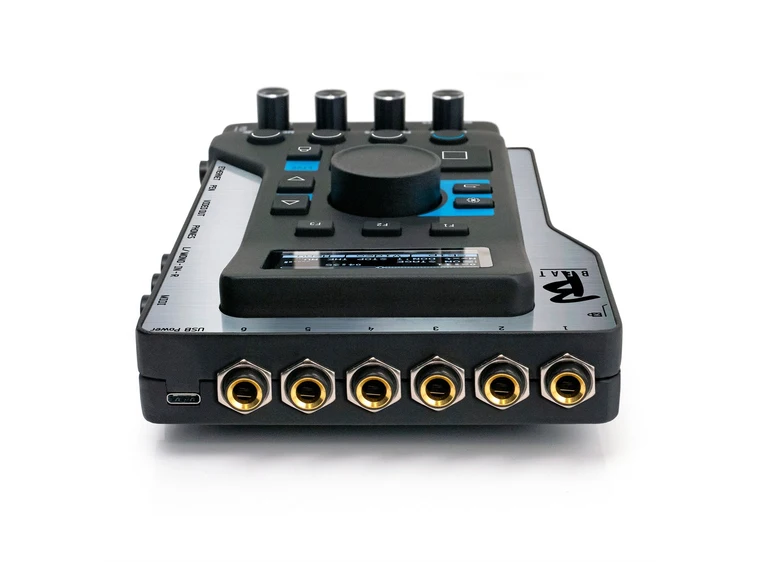

?6 Audio output Jack 6.5 mm mono, balanced
Headphone out
?1 Stereo output Jack 6.5 mm
Input Audio
?2 input Line mono L/R, Only-Left/Stereo
Internal Storage
? 32 GB to 128 GB Internal storage
Network interface
?Ethernet RJ45 10/100/1000 Mbps
MIDI Port
?Mini Jack 3.5 mm Cable Type-B Pedal
?Switch Pedal N/O o N/C
Power supply
?USB-C 5.1VDC, 3A, consumption 1700mA.
?Autonomy with a PowerBank 10000mAh / 2.4A battery about 6 hours
