• Diversity UHF wireless system with FM technology
• 12 selectable channels
• 100 m transmission range in ideal conditions
• Simultaneous operation of up to 6 systems
• ASC infrared transmitter and receiver syncing
• Pilot tone squelch
• 10 h transmitter operation on two AA batteries
• Metal housing
• Optional rackmount kit available as accessory

Developed in Germany, the UHF Diversity wireless systems from the U300 series deliver excellent audio performance. They achieve a range of 100 metres in ideal conditions and are available in three frequency bands: 584–608 MHz, 655–679 MHz or 823–832 MHz & 863–865 MHz. Six U300 systems can be used simultaneously for each frequency band. Convenient one-touch synchronisation via infrared ensures fast, problem-free wireless connection between the transmitter and receiver, while a squelch with pilot tone ensures disruption-free operation.

U300 transmitters have a 10 mW output and an operating time of 10 hours on two AA batteries. The handheld microphone’s frequency response ranges from 55 Hz to 16 kHz. With a lower cut-off frequency of 25 Hz, the bodypack is also suitable for transmitting 5-string bass guitars with a deep H string. The bodypack’s input level can be adjusted to both active and passive guitars and basses over three levels. The power switch features a handy standby mode for temporary muting. The U300 receiver is fitted with a bright LCD channel display, an LED chain for displaying audio signal strength and both a balanced XLR and an unbalanced 6.35 mm audio output. The audio output can also be switched to instrument level for directly connecting to guitar and bass amplifiers.

U300 series wireless systems feature a fresh, modern design and are available as vocal sets with receiver and dynamic handheld microphone with cardioid characteristic, bodypack and headset or bodypack and lavalier microphone. The microphone characteristic can be changed using U500 series replaceable heads. U300 instrument sets are available with bodypack and clip-on microphone for wind instruments or a double-shielded low-capacitance cable for guitars and basses.

• Product type Wireless Microphone Systems
• Type Set
• Transmission frequency range 584 - 608 MHz
• Weight 0,94 kg

• Product type Wireless Microphone System Accessories
• Type Receivers
• Modulation Type FM
• Frequency response 25 - 16,000 Hz
• Channels 12
• Groups 1
• Antenna inputs 2 x fixed
• Noise reduction Squelch
• Transmission optimization Pilot tone
• THD < 0.3 %
• Signal-to-noise ratio 104 dB
• Controls volume
• Indicators LC display
• Audio output, balanced XLR
• Operating voltage 12 V DC - 18 V DC (500 mA), external power supply
• Audio output, unbalanced 6.3 mm jack, switchable unbalanced output level
• Width 211 mm
• Accessories (included) Power supply
• Weight 0,7 kg
• Max. output level +10 dBu (Bal), +7 dBV (Unbal, Line), +2,5 dBV (Unbal, Instr) dBu
• Height 43 mm
• Depth 120 mm
• Other features IR frequency synchronisation

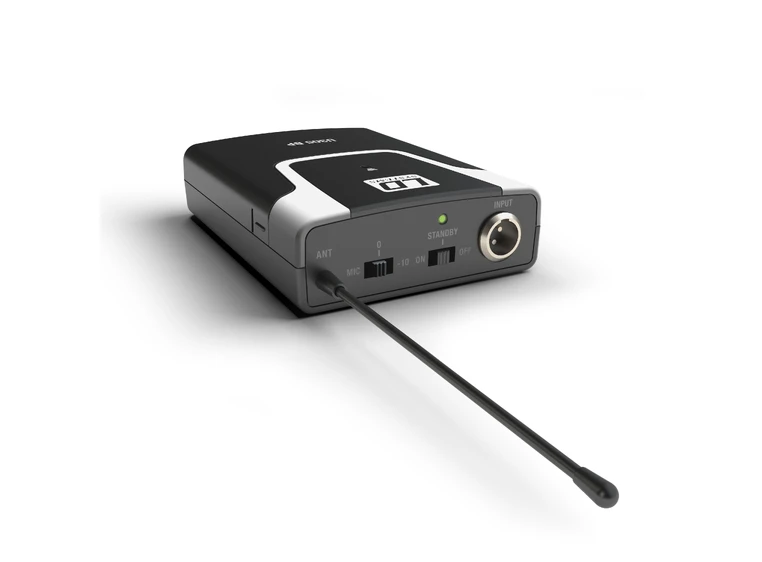

• Type Bodypack
• Inputs Mini-XLR (Phantom Powered Low-Z / High-Z Instrument)
• Rated HF output power 10 mW
• Controls Power On/Off
• Indicators Power LED (Power ON: green)
• Operating voltage 2 x AA battery
• Operating time > 10 hrs.
• Width 65 mm
• Weight 0,085 kg
• Height 91 mm
• Depth 25 mm
• Other features Pilot tone

• Type Guitar Cables
• Connector 1 Mini-XLR (3-pin, female)
• Connector 2 6.3 mm jack
• Length 0.8 m
• Weight 0,045 kg
