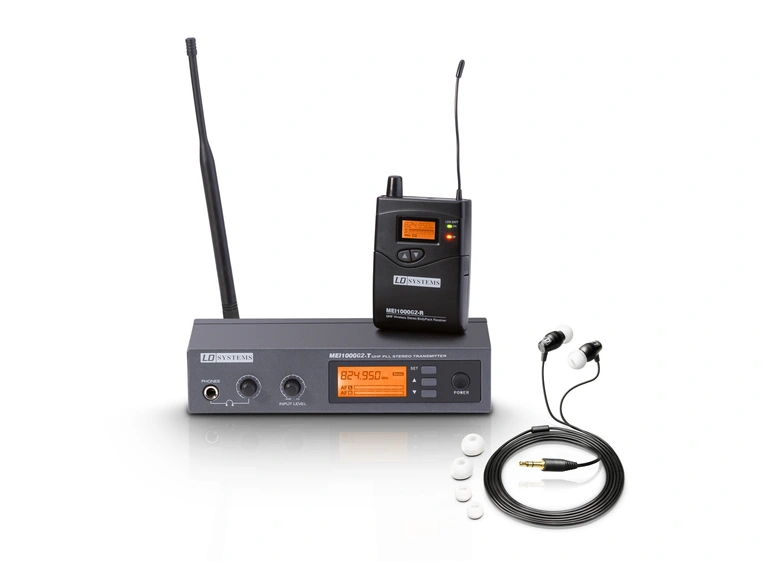

The LD Systems MEI 1000 G2 is an advanced LICENSE FREE* 96 channel UHF in-ear monitoring system delivering natural sound with extended dynamics and low crosstalk in both the 823 - 832 and 863 - 865 MHz bands.

Switchable mono, stereo and focus modes select the perfect monitoring applications while adjustable EQ and limiter functions have been integrated for consistent sound reproduction from 60Hz - 16 kHz with a high S/N ratio and low THD. The LD MEI 1000 G2 allows the use of up to 5 systems simultaneously.

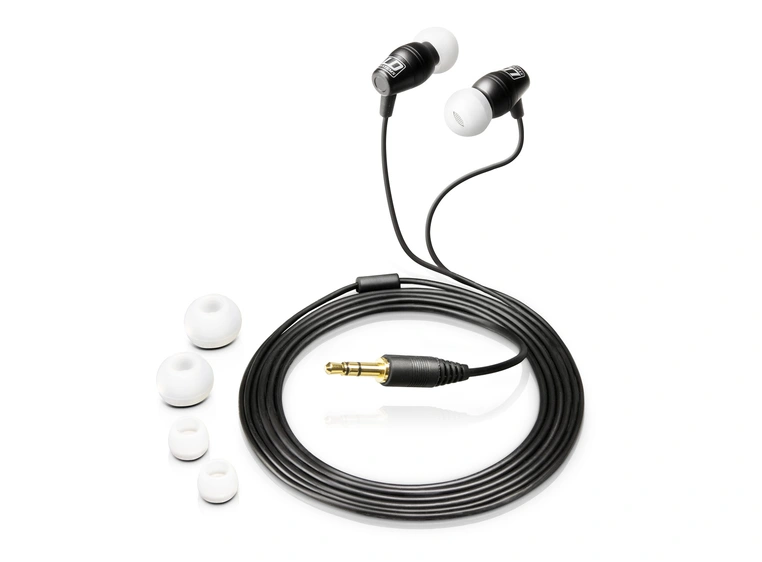

The earphones have been designed for a high wearing comfort, and a multifunction display provides all the relevant system information. Operation time exceeds 12h with high quality batteries. A 19" rackmount kit and a rugged ABS plastic carrying case complete the MEI 1000 G2 package.

* license free: ISM-Band license free in Europe, please check duplex gap on a country-by-country basis

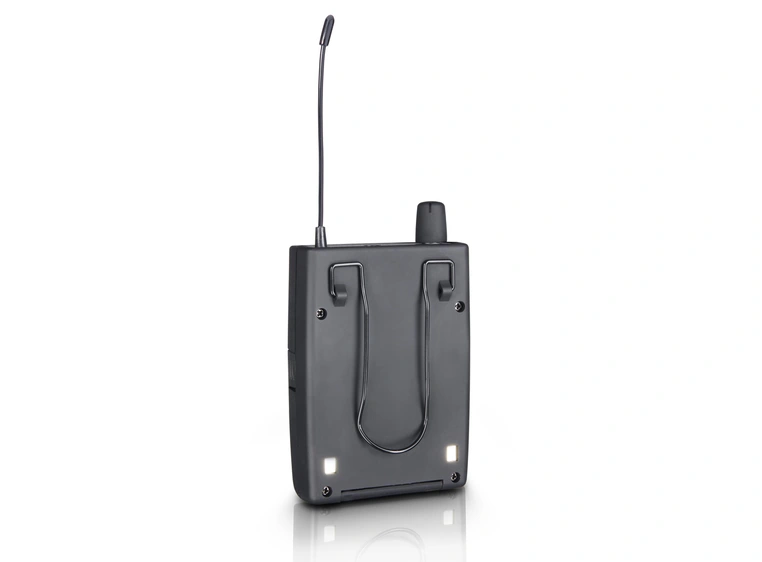

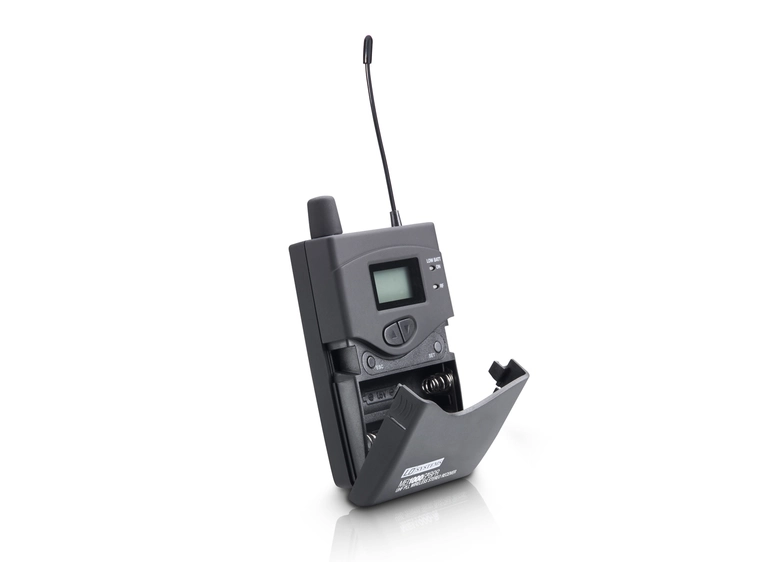

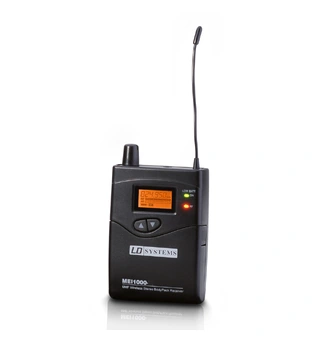

• Model name: LDMEI1000G2BPR
• Product type: Belt pack receiver
• Radio frequency range: 823 - 832 and 863 - 865 MHz
• Channels: 96 (8 groups of 12 channels)
• Transmission method: FM, stereo
• Frequency response: 60 Hz - 16 kHz
• S/N ratio: 80 dB
• THD:< 1 %
• Audio outputs: 3.5 mm jack
• Max. audio output level: 100 mW
• Controls: Up, Down, Escape, Set, Volume
• Indicators: LC Display, Low Battery, Power
• Power supply: 2 x 1.5 V AA
• Operating time:>13 hrs., battery-dependent
• Width: 65 mm
• Height: 90 mm
• Depth: 24 mm

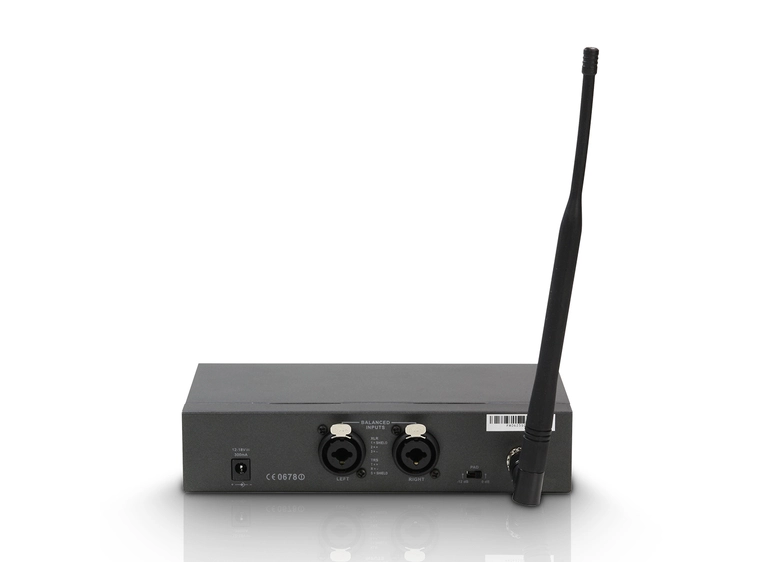

• Model name: LDMEI1000G2T
• Product type: Transmitter
• Radio frequency range: 823 - 832 and 863 - 865 MHz
• Channels: 96 (8 groups of 12 channels)
• Transmission method: FM, stereo
• RF output: 10 mW
• Frequency response: 60 Hz - 16 kHz
• S/N ratio: 85 dB
• Inputs: 2
• Input connections: XLR/ 6.3 mm jack (combo)
• Input impedance: 14 kOhm
• Antenna connector: TNC
• Controls: up, down, set, power, volume headphone, input level, pad
• Indicators: LC display
• Power supply: 12 - 18 V DC
• Width: 200 mm
• Height: 44 mm
• Depth: 96 mm
• Accessories (included): Antenna, power supply, headphones
