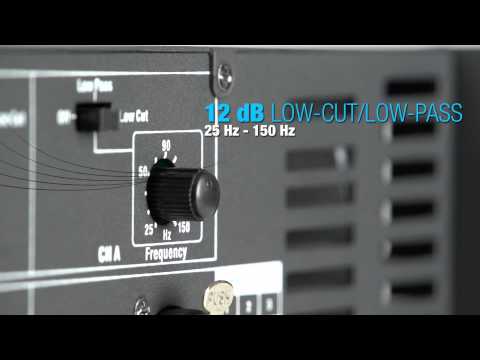

In response to requests by many customers, we expanded this series with a new, powerful amplifier that is also compatible with 2-ohm systems. The key specifications are 2 x 1200 W at 2 ohms, 2 x 950 W at 4 ohms and 2 x 600 W at 8 ohms RMS power. Like the other power amplifiers in the DEEP2 series, the DP2400X uses class H circuitry powered by a conventional power supply. The protective circuitry is also identical with that used in the DEEP2 series. It also follows the DEEP2 design in its integration of two temperature-dependent two step cooling fans. One special feature is a switchable 12 dB low-cut and/or 12 dB low-pass filter adjustable from 25 Hz to 150 Hz on both channels. This makes it possible to use the DP2400X as a bass amp or even realize a powerful bi-amping system. With the filters switched off, it becomes a conventional 2 channel power amp.

Specifications:

• Model Name: DP2400X
• Output Power @ 1 kHz:
  • 2 Ohm: 2 x 1200W
  • 4 Ohm: 2 x 950W
  • 8 Ohm: 2 x 600W
  • Bridge 4 Ohm: 2200W
  • Bridge 8 Ohm: 1800W
• Output Circuity: Class H
• Frequency Range: 20 Hz - 20 kHz
• THD:< 0.1 %
• S/N Ratio: 106dB
• Damping Factor:>450 at 8 Ohms
• Crosstalk:>76 dB
• Voltage Gain: 39 dB
• Input Sensitivity: 0.775 V
• Input Impedance:>20 kOhm
• Protection: DC, Temp, Short Circuit, Over Current
• Controls: On/Off, 2xVolume, Ground lift, 4x Bridge/Stereo
• Indicators: Power, Signal, Level, Limit, Protect

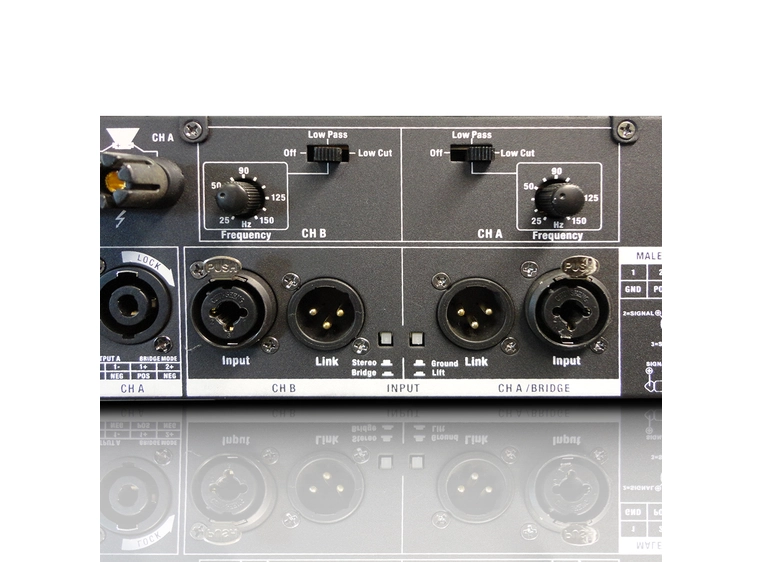

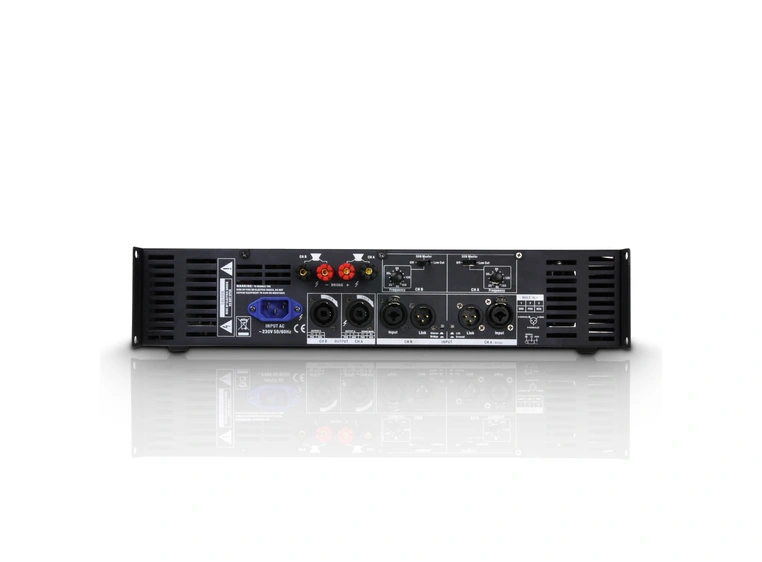

• Connectors:
  • Input: XLR/6,3mm Jack (Combo)
  • Link Output: XLR
  • Output: Speakon compatible / Binding post
  • AC Input: Volex Power Plug
• Cooling System: High efficienty, two speed auto controlled fan
• Cooling tunnel: from front to back
• Power Supply: AC ~ 230V / 50-60 Hz
• Dimensions (W x H x D): 483 x 88 x 350 mm
