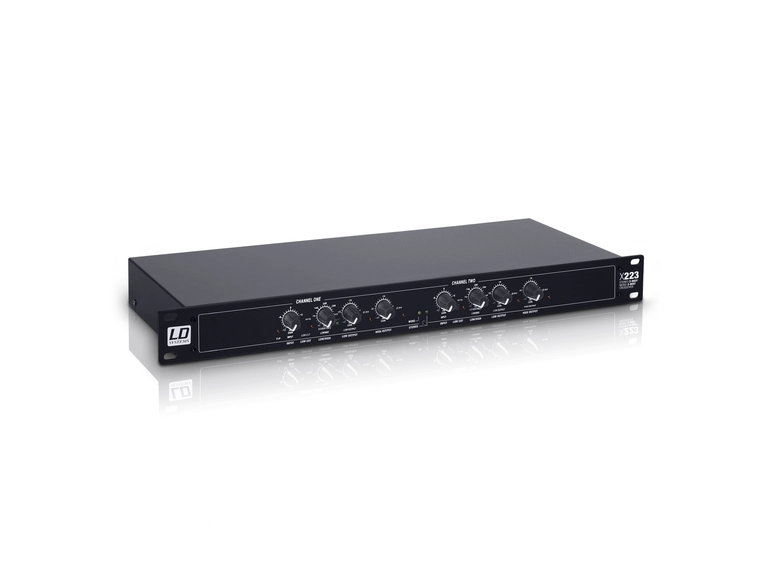

The LD Systems X223 is a stereo 2 way / mono 3 way crossover in standard 19"/1U rack format. Its rugged construction, high quality and robust knobs as well as the integrated power unit are rarities in this price range. It provides a mono sub output, an adjustable crossover frequency for each channel, adjustable LF/HF and input gains, phase reverse controls, switchable 40 Hz High-Pass filters and symmetrical XLR In- and Outputs. With the LD Systems X223 you get a crossover fulfilling the professional standards and offering great quality and sound characteristics.
Specifications:
Model name: LDX223
Bandwidth: 20Hz to 20kHz, +0.5 dB
Frequency response: <3 Hz to > 90kHz, +0/- 3dB
Filtertype: Linkwitz-Riley, 24 dB/octave
Dynamic Range: 106dB
THD+Noise: <0.004% at 4dBu, 1kHz
Interchannel crosstalk: <- 80dB, 20Hz to 20kHz
Inputs: Female XLR
Max. Input Level: +22dBu typical, balanced or unbalanced
Outputs: Male XLR
Max. Output Level: >+21dBu balanced or unbalanced
Dimensions (W x H x D): 482 x 44.5 x 153 mm
Weight: 2,6 kg
