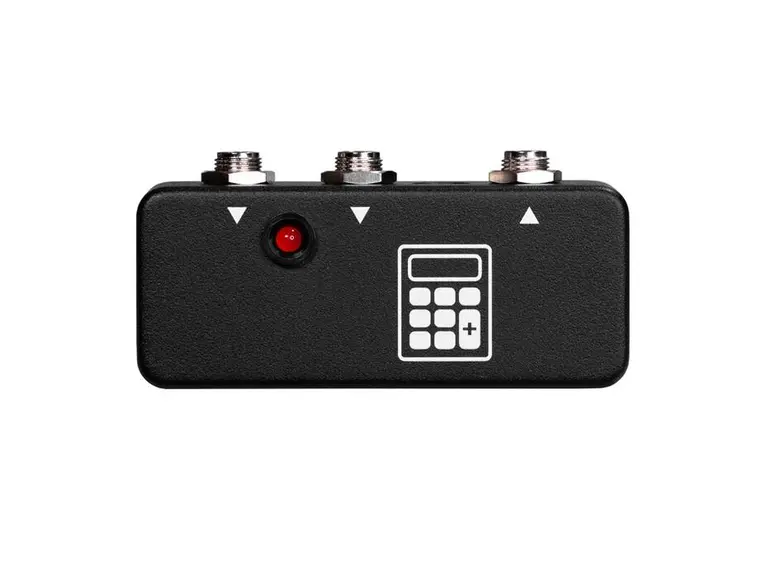

The JHS Pedals Summing Amp gives you the ability to take two inputs and blend them into one output. This is perfect for putting effects in parallel so that they are not affected by one another. The Edge used this technique in the 80s with his delays. When you have a quarter note delay and a dotted eighth delay and you place them in parallel then sum them back together, the effect is that both delays come through more clearly and are not delaying the delays. This can also be used with overdrives so that they are not pushing each other as in series, but sit atop one another in parallel. Another use is combining fuzz and compression in parallel so the fuzz isn't getting choked by the compression. The Summing Amp gives you the ability to use effects together in completely new ways that you may never have imagined and can open up new and inspiring sounds with your old effects.
- effects mixer
- blends two mono input signals into one mono output signal
- status LED
- metal housing
- 2 x 6.3 mm mono input jack
- 6.3 mm mono output jack
- power supply via optional 9V DC adapter, 2.1 mm x 5.5 mm barrel plug, polarity negative (-) center
- battery operation not supported
- current draw less than 100 mA
- dimensions (W x D x H) 95 x 47 x 35 mm
- weight 120 g
- made in USA
