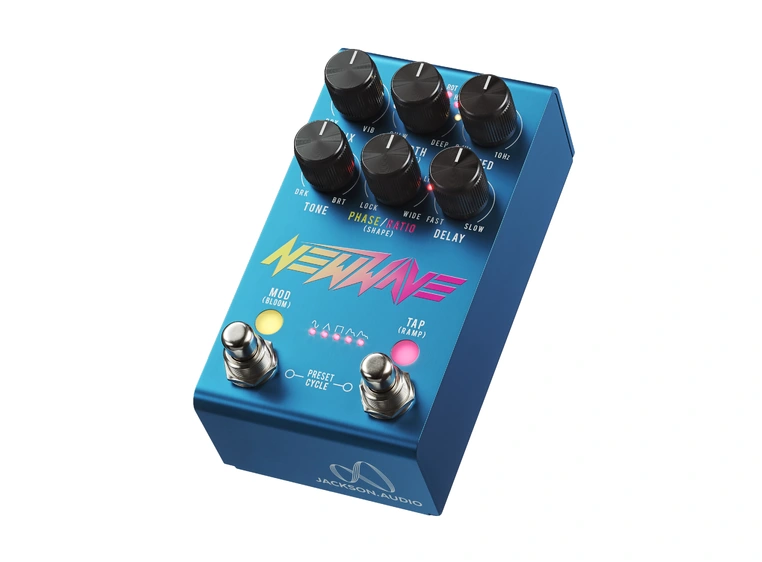

For the NEW WAVE, Jackson Audio set out to make the best sounding and versatile 100% analog and stereo chorus/vibrato pedal. Offering a ton of flexibility with programmable presets and many industry firsts, the brand had the pleasure of working with Mark Lettieri from Snarky Puppy to create the ultimate chorus pedal.
To achieve this, they knew they could not go digital for the core circuit, yet Jackson Audio still needed to add the features that only digital products provide. Using authentic analog MN3007 BBD chips, operating at 15 V internally exactly like the best 80s units did, this pedal delivers all the classic sounds with added modern precision, as well as all-new modulation sounds.
For the control section, a digital microprocessor gives unparalleled control over the analog circuit for unmatched waveform accuracy. Add in programmable presets, features and MIDI, with an easy to operate interface, New Wave is designed for guitar, bass, synths and keys and will add a touch of quality modulation to any set up.
Main Features:
- Stereo Analog Chorus/Vibrato effects pedal
- Analog modulation section based on real MN3007 bucket-brigade chips paired with a digital microprocessor for precise control
- 7 presets tailored for classic and modern Chorus, Vibrato, and Rotary sounds
- 70s - Classic mono chorus using clock and LFO settings measured from an original CE-1
- 80s - A stereo chorus reminiscent of the classic CE-300
- RCK - An 80s style chorus with a built-in +/- pitch shifter for a classic rack tone
- VIB - Classic Vibrato with complete control
- ROT - A pitch and amplitude modulation effect for an accurate emulation of a Leslie speaker cabinet
- HRM - A harmonic mode that modulates each channel in a mathematical relationship for new chorus sounds
- UC - User Control, which allows for full control and the ability to create wild sounds
- 5 digitally controlled LFO wave shapes: sine, triangle, square and two custom harmonic shapes inspired by the ARP Solina keyboard
- Mix control to steplessly blend dry and effected signals (dry-chorus-vibrato).
- Depth control allows for super subtle to completely seasick modulation - Press and hold to Save Preset
- Speed range from 0.1Hz to 10Hz
- Tone control for super dark to super bright modulation tones
- Phase knob becomes a Ratio control to adjust the multiplier of right compared to left channel - very cool for Percussive and Leslie style Rotary effects
- Delay knob adjusts the center frequency of the BBD chips’ control clock - for very loose or tight and compressed chorus tones
- Tap tempo, RAMP and BLOOM functionality
- Full MIDI control and Expression control over speed via 3,5 mm TRS jacks
- Phase/Ratio control for changing phase alignment of the dry and modulation channel from 0-180 degrees out of phase
- Top-mounted jacks - for ease of pedalboard mounting
- Powered by (opt.) 18 V DC PSU (centre -, 2,1mm, 250 mA current draw)
