32x32 Pro Tools | HD I/O With Dual PSUs
RedNet HD32R is a 1U, Pro Tools | HD™ interface for any Dante™ audio-over-IP network, providing up to 32x32 channels of I/O (16x16 at 192kHz) Featuring network and power supply redundancy, RedNet HD32R is the ideal choice for integrating your Pro Tools HD system into a Dante networked I/O environment in many critical-path applications, whether in Post Production, Broadcast, Live Sound or the Recording Studio.

A pair of DigiLink mini connectors allows RedNet HD32R to connect directly to any Pro Tools | HD system whether it's Native, HDX or even a legacy TDM system. Multiple RedNet HD32R units can be on the same Pro Tools system up to the maximum I/O channel count of Pro Tools, and Loop Sync I/O allows seamless integration with other Pro Tools interfaces such as HD I/O and Sync HD I/O.

• 32x32 Pro Tools | HD I/O for Dante audio-over-IP networks at up to 96kHz (16x16 at 192kHz)
• Primary and Expansion DigiLink mini connections
• Up to 24-bit, 192kHz sampling rates
• AES67 compliant
• Dual power supplies and network connections with full power and network redundancy including locking connectors for maximum reliability
• Word Clock and Loop Sync I/O for increased flexibility and integration with other Pro Tools | HD hardware
• Comprehensive remote control and remote signal metering through RedNet Control
• Brainworx bx_console Focusrite – exclusive plug-in that faithfully captures the sound, feel and styling of the original Focusrite ISA 110 Equaliser and ISA 130 Dynamics Modules.

DIGITAL PERFORMANCE
Supported Sample Rates: 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz (-4 / -0.1 / 0.1 / 4.167) at 24 bit
Clock Sources: Internal, Word Clock, Loop Sync (master or slave) or from Dante Network Master
External Word Clock Range: Nominal sample rate ±7.5
Channel Count: 32x32 at up to 96kHz sampling rate, 16x16 at 176.4 and 192kHz

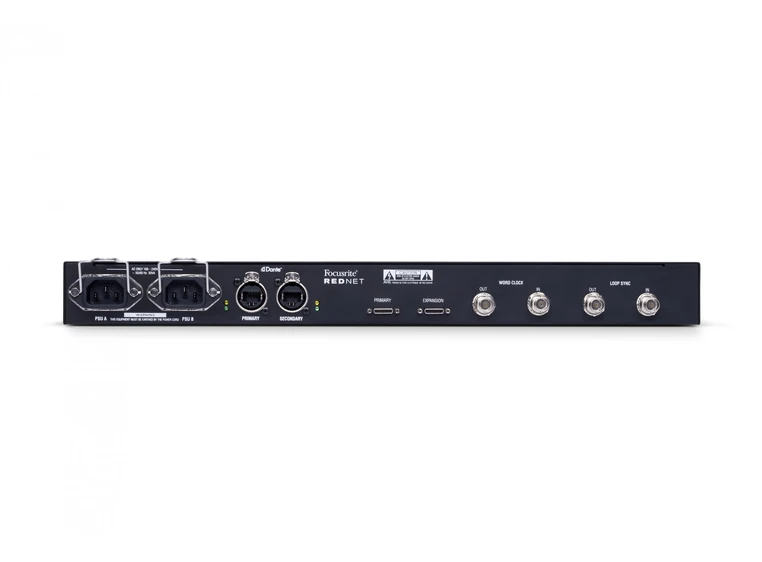

REAR PANEL CONNECTIVITY
Primary Port: 1 x Mini DigiLink
Expansion Port: 1 x Mini DigiLink
Word Clock Input: 1 x BNC 75O port (switchable termination)
Word Clock Output: 1 x BNC 75O port
PSU: 2 x IEC Inputs with retaining clips
Network: 2 x etherCON NE8FBH-S, also compatible with standard RJ45 connectors

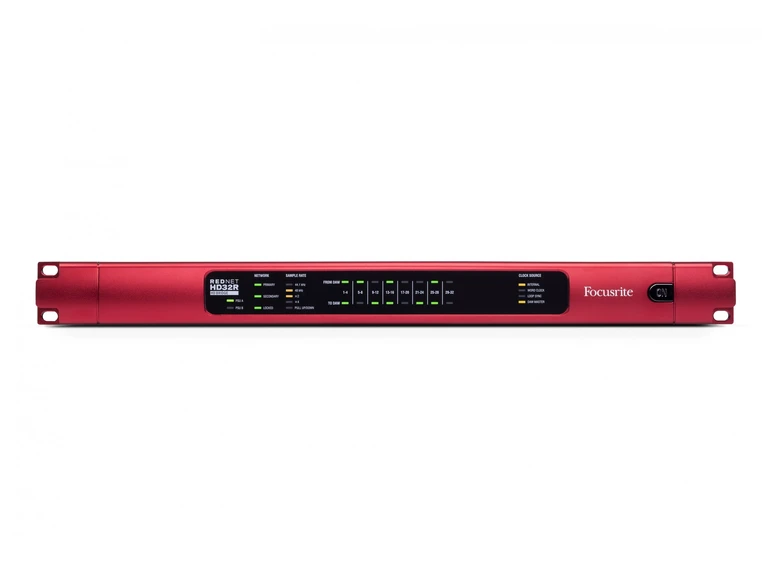

FRONT PANEL INDICATORS
Primary PSU (A): Green LED. Illuminates when an AC input is applied and all DC outputs are present
Primary PSU (B): Green LED. Illuminates when an AC input is applied and all DC outputs are present
Primary Network: Green LED. Indicates that a network connection is present on primary port when in redundant mode
Secondary Network: Green LED. Indicates that a network connection is present on secondary port when in redundant mode
Network Locked: Green LED. When unit is network slave, shows valid network lock. When unit is network master
Sample Rate: Orange LED for each: 44.1 kHz, 48 kHz, x2, x4
Pull Up/Down: Orange LED. Indicates unit is set to operate on a Dante pull up/down domain
Signal Indicators: 16 Green LEDs, 8 input/8 output indicators. Illuminate @ -126dBFS
Clock Source: Orange LED for each: Internal, Word Clock, Loop Sync and DAW Master

NETWORK MODES
Redundant: Allows unit to connect two independent networks
Switched: Connects both ports to integrated network switch allowing daisy-chaining of device

DIMENSIONS
Height: 44.5mm/ 1.75"
Width: 482.6mm/ 19"
Depth: 263mm/ 10.35"

WEIGHT
Weight: 3.9kg

POWER
Power PSU: 2 x Internal, 100-240V, 50/60Hz, consumption 30VA

HEAT PERFORMANCE
Operating Temperature: Operates at up to an ambient temperature of 50 degrees Celcius
