View this product description in Norwegian.

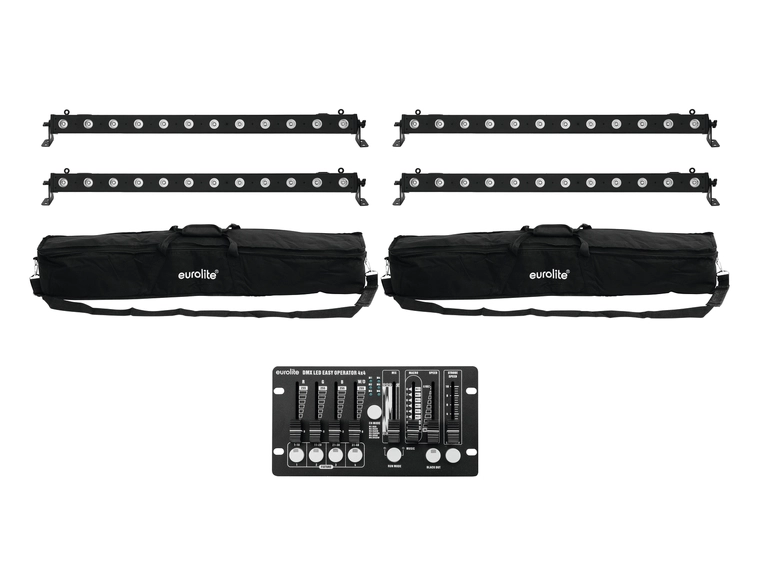

4x Spotlight bar with 12 x 4 W 4in1 LED including soft bag and compact DMX controller
EUROLITE LED BAR-12 QCL RGBW Bar
LED bar (110 cm) with 12 x 4 watt 4in1 LED (RGBW)
- Stand-alone or DMX mode
- Supports QuickDMX - the wireless DMX system from Eurolite
- Built-in phantom-powered USB port for QuickDMX, CRMX and WDMX receivers (optional)
- Control panel with LED display for easy configuration
- Stepless color blend, color change, dimmer and strobe effect
- Swivel mounting bracket
- Mains input and output for power linking up to 8 units
- LED: 12 x high-power 4 W 4in1 QCL RGBW (homogenous color mix)
- Can be operated in 2; 4; 5; 6; 9 CH mode
- The device is cooled by passive convection
- Controlling by stand-alone; DMX; Sound to light via Microphone; QuickDMX via USB (optional); W-DMX by wireless solution (optional); CRMX by LumenRadio (optional)
- Preprogrammed in LED PC-Control 512; EASY SHOW; LED EASY OPERATOR 4x4; LED EASY OPERATOR 4x6; LED EASY OPERATOR DELUXE
- Flicker-free projection
- Effect: Strobe effect
EUROLITE SB-12 Soft Bag
Practical black soft bag for LED bars (1 m length), adjustable divider
- Ideal for 1 or 2 LED bars with 1 meter length
- Large interior with removable divider
- Interior upholstery helps securing and safeguarding the fixtures during transportation
- Made of easy-care nylon
- Handle and shoulder strap
- High-quality workmanship with textile , black
EUROLITE DMX LED EASY Operator 4x4
Compact DMX controller for 4 LED spotlights with up to 4 colors each
- DMX controller for standard LED spotlights
- Easy operation
- 4 fixtures with RGBW LEDs can be controlled individually or in combination
- DMX channels for red, green, blue, white and master
- Various modes for the DMX channel sequence selectable
- Manual control via 4 faders
- 1 fader for direct RGBW mixing
- 8 automatic programs with adjustable speed
- Adjustable strobe function
- Blackout function
- Compact desktop console
- Can transmit up to 20 DMX channels
- Controlling by DMX; Sound to light via Microphone
- Desktop console housing
| Weight: |
13,56 kg |
| EUROLITE LED BAR-12 QCL RGBW Bar |
| Power supply: |
100-240 V AC, 50/60 Hz |
| Power consumption: |
24 W |
| IP classification: |
IP20 |
| Power connection: |
Mains input IEC connector (M) mounting version power supply cord with safety plug (provided) |
| Power output: |
1 x IEC connector (F) mounting version |
| Lamp type: |
LED lamp |
| LED: |
12 x high-power 4 W 4in1 QCL RGBW (homogenous color mix) |
| Flash rate: |
0 - 20 Hz |
| DMX channels: |
2; 4; 5; 6; 9 |
| DMX input: |
3-pin XLR (M) mounting version |
| DMX output: |
3-pin XLR (F) mounting version |
| Cooling: |
Passive convection |
| Control: |
Stand-alone; DMX; Sound to light via Microphone; QuickDMX via USB (optional); W-DMX by wireless solution (optional); CRMX by LumenRadio (optional); LED PC-Control 512; EASY SHOW; LED EASY OPERATOR 4x4; LED EASY OPERATOR 4x6; LED EASY OPERATOR DELUXE |
| Beam angle: |
17° |
| Beam angle (1/2 peak): |
17° |
| Beam angle (1/10 peak): |
33° |
| Housing color: |
Black |
| Display type: |
4 digits 7-segment LED display |
| Dimensions: |
Length: 1,085 m
Depth: 6,5 cm
Height: 10 cm |
| Weight: |
2,85 kg |
| Noise classification: |
Class 0 (no noise at all) |
| Legal specifications |
| Special product: |
Not designed for household room illumination |
| Intended use: |
Show effect lighting |
| EUROLITE SB-12 Soft Bag |
| Maximum load: |
20 kg |
| Material: |
Textile |
| Color: |
Black |
| Dimensions: |
Width: 1,07 m
Depth: 17 cm
Height: 18 cm |
| Weight: |
650 g |
| EUROLITE DMX LED EASY Operator 4x4 |
| Power supply: |
100-240 V AC, 50/60 Hz
9 V DC 800 mA |
| Power consumption: |
10 W |
| IP classification: |
IP20 |
| Protection class: |
Class III |
| Power connection: |
Mains input Coaxial power connector (M) power supply cord with AC adapter (provided) |
| DMX channels: |
Output 20 |
| DMX output: |
1 x 3-pin XLR (F) mounting version |
| Control: |
DMX; Sound to light via Microphone |
| Housing color: |
Black |
| Color: |
Black |
| Housing design: |
Desktop console housing |
| Dimensions: |
Width: 20 cm
Depth: 11,5 cm
Height: 5,5 cm |
| Weight: |
860 g |
