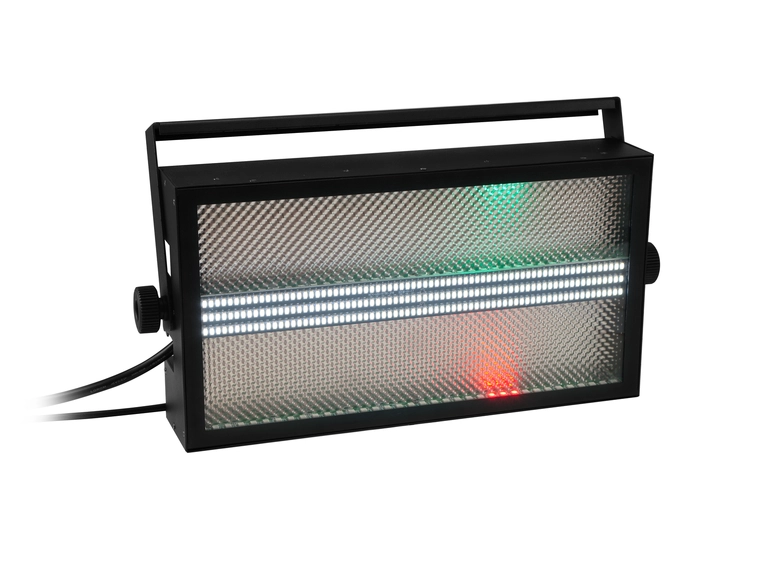

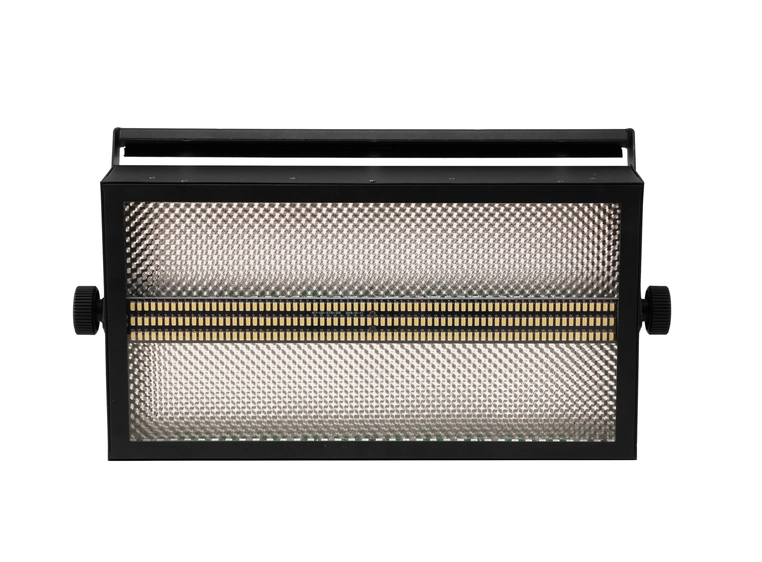

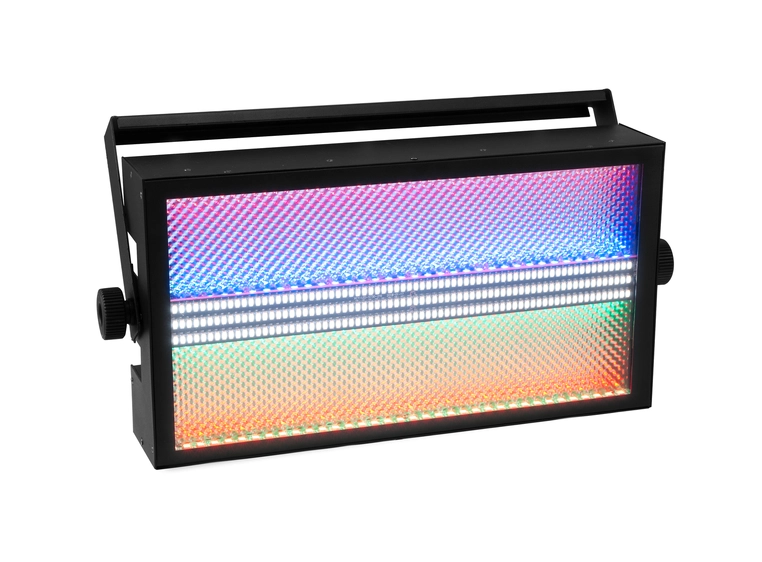

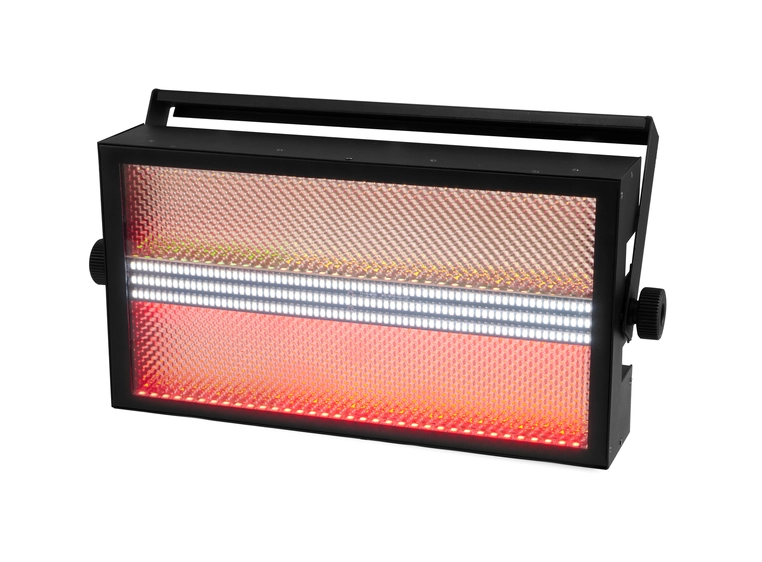

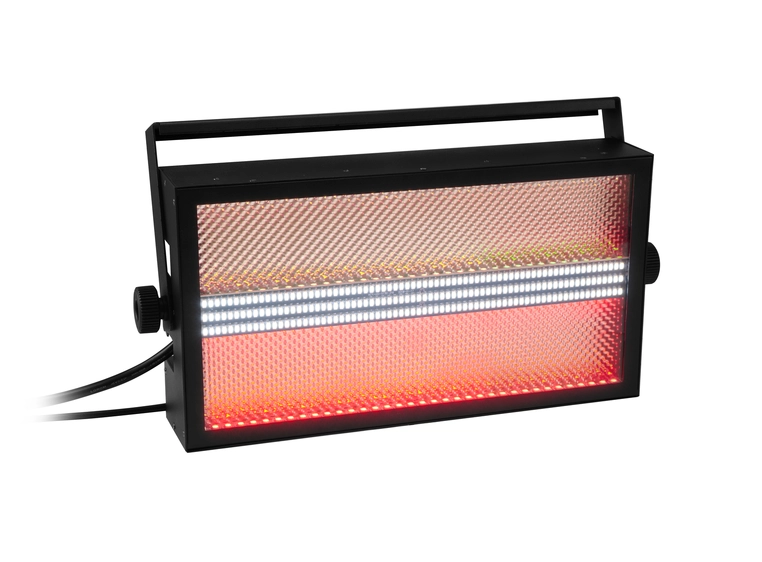

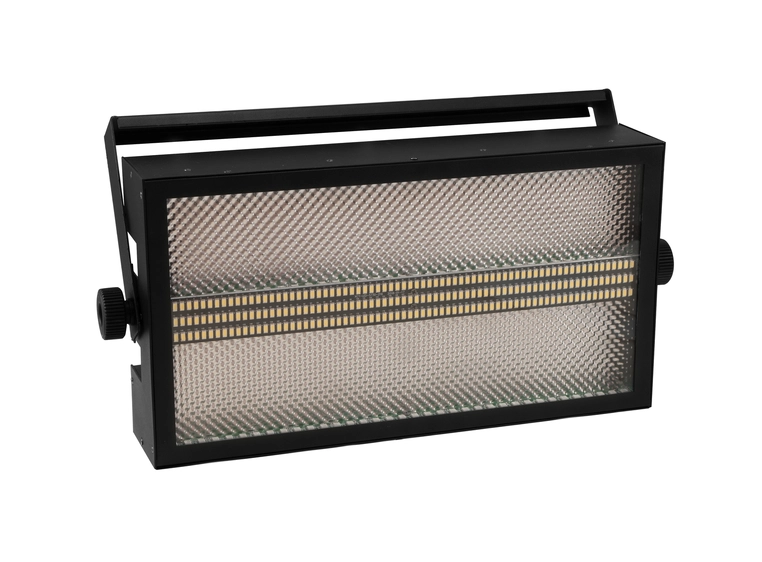

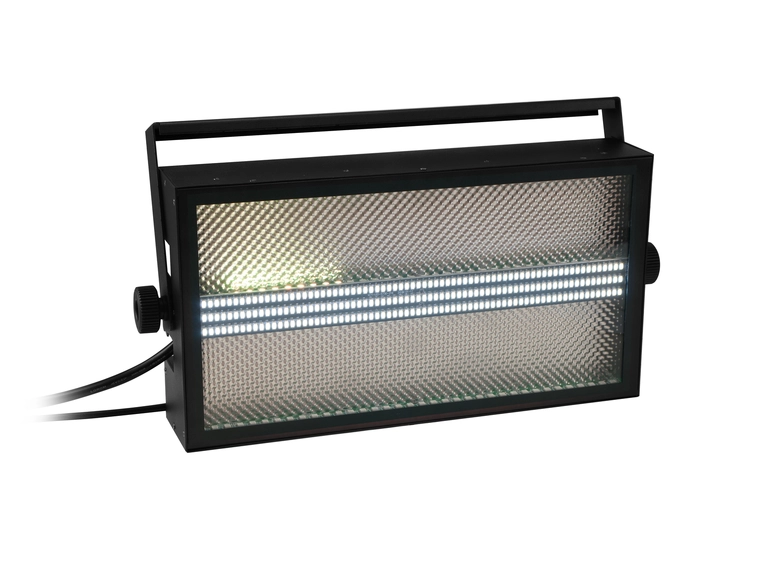

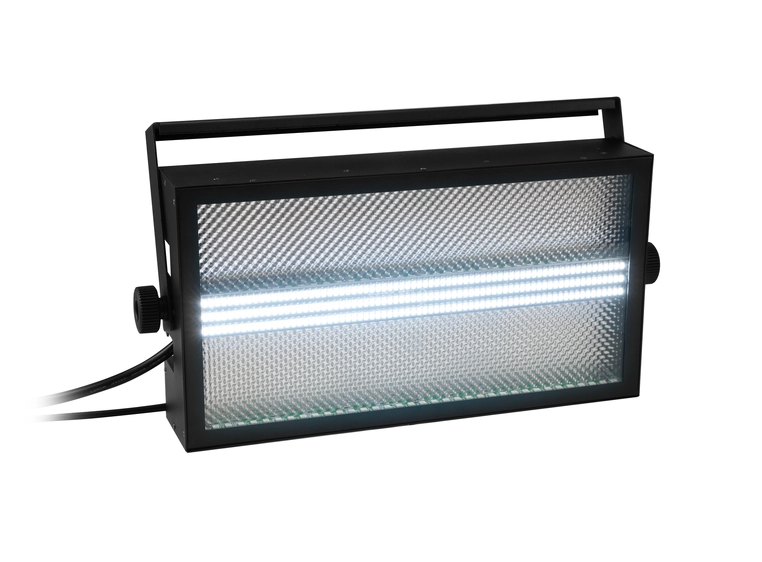

The Super Strobe ABL combines three functions in one fixture: It is equipped with 216 cold white SMD LEDs for both dynamic strobe effects and slower blinder effects. Furthermore, the reflecting surface of the stroboscope is illuminated with an extra 144 RGB LEDs creating colorful, atmospheric light effects.Depending on the selected DMX mode, the color LEDs can be split in up to 48 individual control segments which can be used to create amazing color effects within the fixture.The Super Strobe ABL has a very wide beam angle which makes both dynamic and calm light effects a great visual experience, even from a lateral view.The fixture has 3-pin DMX connectors as well as a P-Con input and output to connect it to the mains. For a structured and versatile use, you can choose from 4 different DMX modes with 7, 13, 22 and 148 DMX channels respectively.

LED lighting effect with threefold effects

• 3 effects in one device: strobe, blinder and ambient light
• 216 cold white LEDs (SMD 5730) for fast, dynamic strobe and blinder effects
• 144 additional RGB LEDs (SMD 5050) create a pleasant mood light
• Individual control of RGB and cold white LEDs in DMX mode

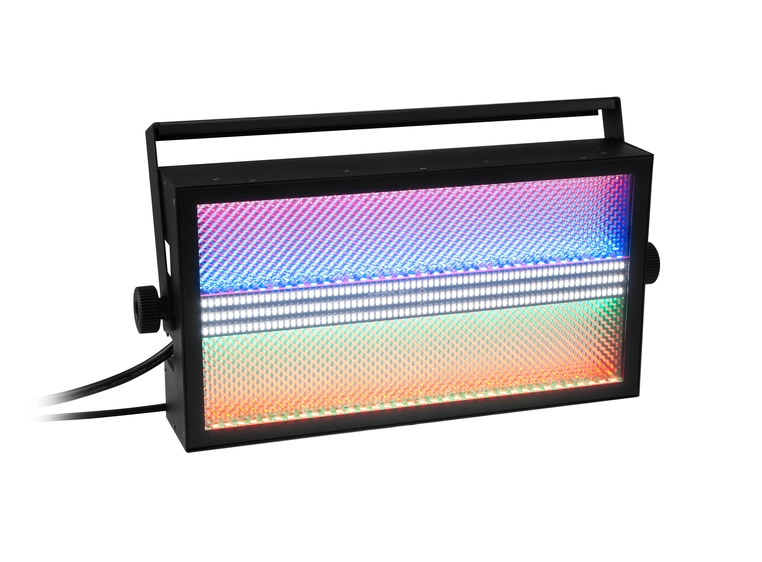

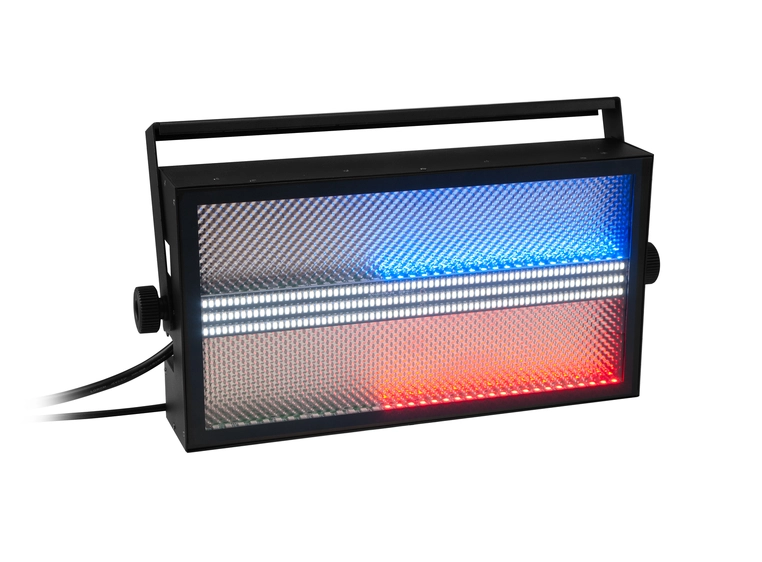

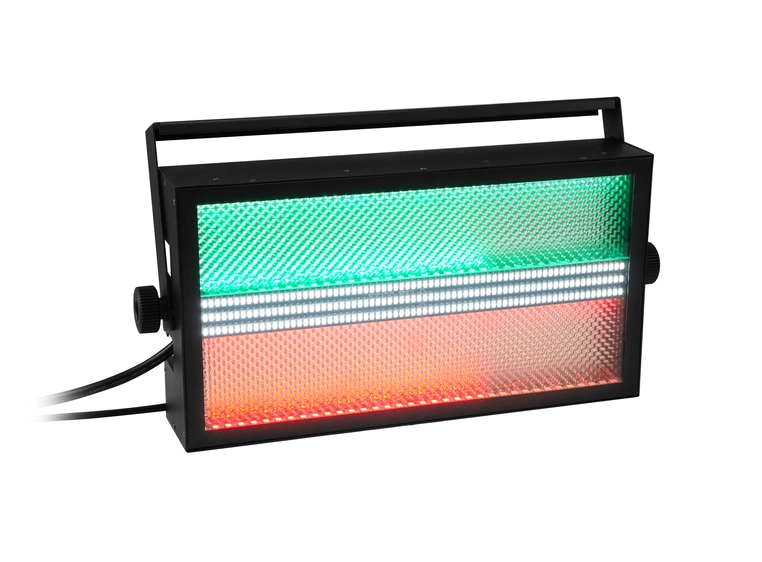

• RGB LEDs controllable in 1 or 48 segments depending on the DMX mode
• 17 built-in auto and music chase programs
• Strobe effect 0-20 Hz
• Stepless RGB color mixing
• Electronic dimmer (0-100%)

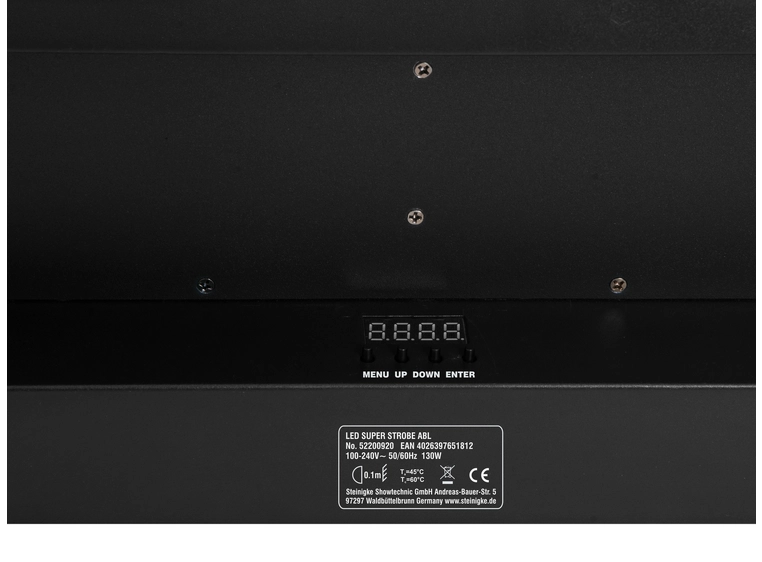

• Control panel with LED display for easy configuration
• Flat metal housing with integrated wall holders
• Swivel mounting bracket
• Mains input and output for power linking up to 8 units
• LED: 216 x SMD 5730 0,5 W cold white (CW)
• LED: 144 x SMD 5050 3in1 TCL RGB (homogenous color mix)
• Can be operated in 7; 13; 22; 148 CH mode
• Controlling by Master/slave function; DMX; stand-alone
• Preprogrammed in Light´J; LED PC-Control 512; EASY SHOW; Light Captain
• Flicker-free projection
• Effect: Strobe effect

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	130 W
Protection class:	Class I

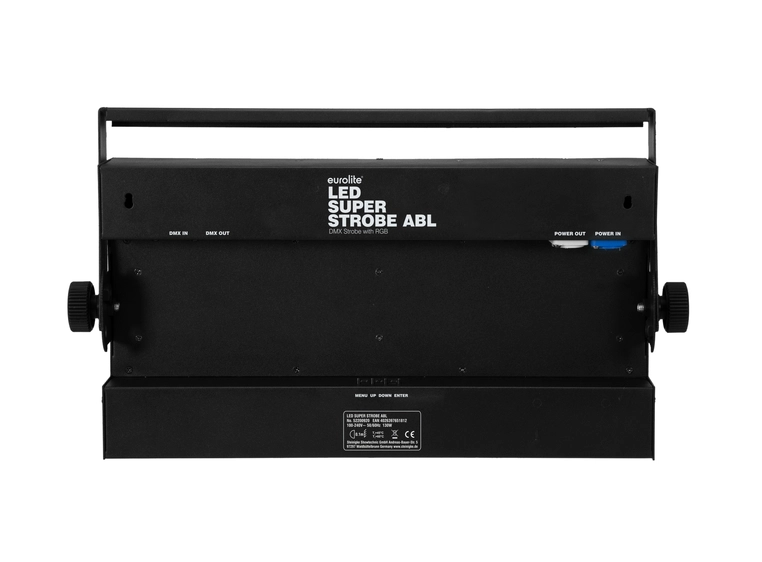

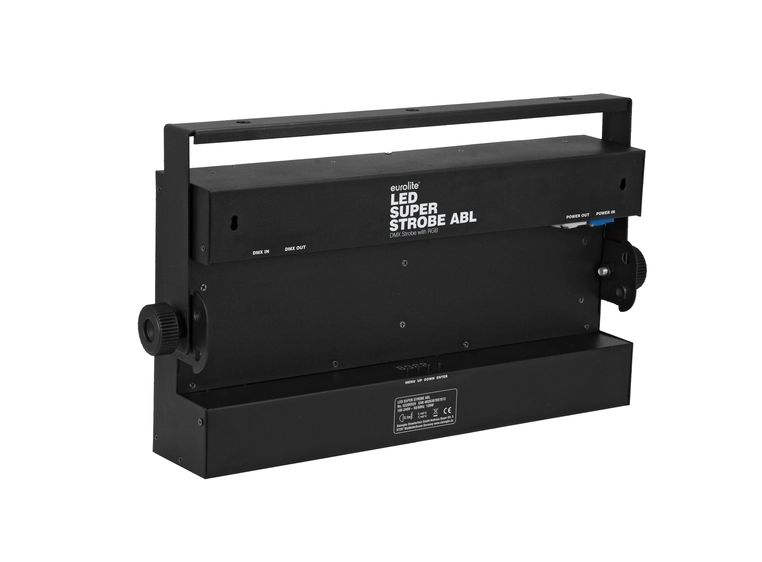

Power connection:	Mains input P-Con (blue), mounting version power supply cord with safety plug (provided)
Power output:	P-Con (gray), mounting version
LED:	216 x SMD 5730 0,5 W cold white (CW) 144 x SMD 5050 3in1 TCL RGB (homogenous color mix)
DMX channels:	7; 13; 22; 148
DMX input:	1 x 3-pin XLR (M) mounting version
DMX output:	1 x 3-pin XLR (F) mounting version
Control:	Master/slave function; DMX; stand-alone; Light´J; LED PC-Control 512; EASY SHOW; Light Captain
Beam angle (1/2 peak):	120°
Display type:	4 digits 7-segment LED display
Dimensions:	Width: 45,5 cm Depth: 8,5 cm Height: 25,5 cm
Weight:	3,94 kg
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting
