Suitable Pinspot for PAR-36 6V/30 W lampThe Pinspot T-36 is very well suited for illuminating mirror balls, for entrance or counter areas or simply as basic lighting.Its narrow beam angle makes the projection show a 30-centimetre light circle from a distance of four metres. The use of alternative light sources makes several beam angles possible. Color caps or color foils can easily be placed in front of the T-36.The body of the pinspot is available in black and optionally in silver and can be easily locked in place using the retaining clip.

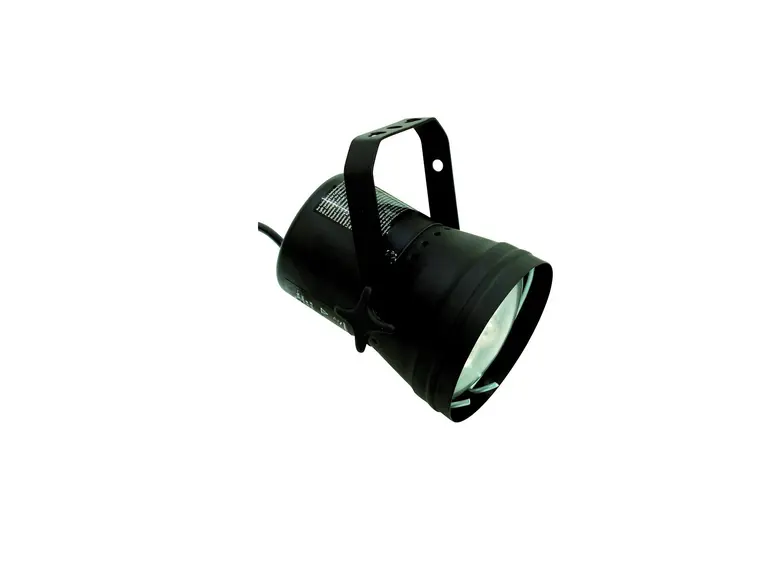

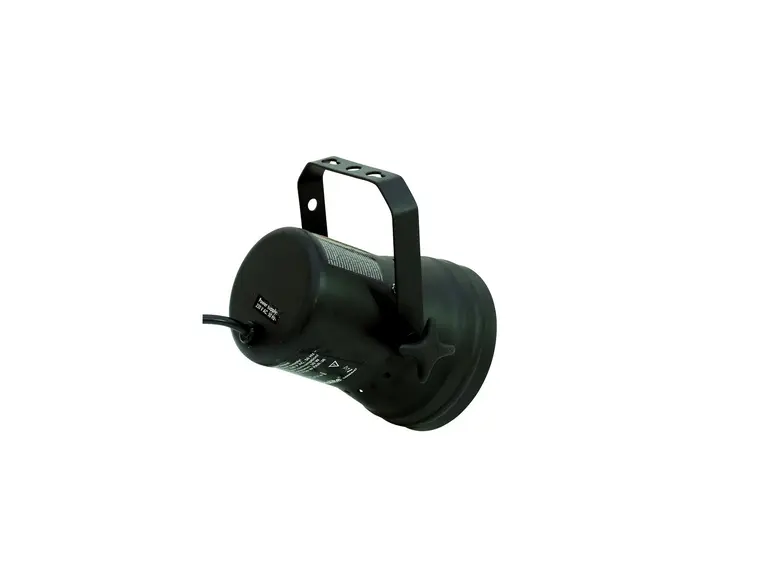

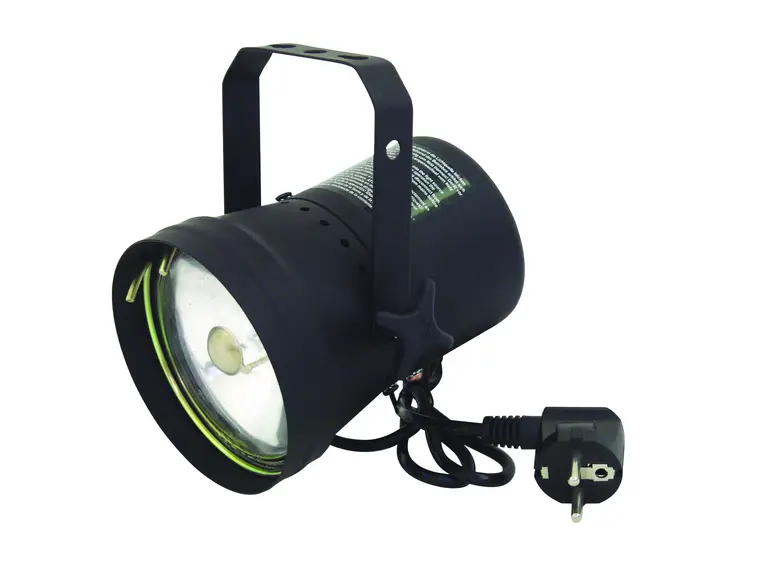

Pinspot with PAR-36 6V/30W lamp

• Narrow beam angle, at a distance of 4 m there is a projected circle of light with a diameter of 30 cm
• Color caps or color foils can be attached in front of the lens
• For illuminating e.g. mirror balls, entrance or counter areas or as basic illumination
• Low power consumption
• Diverse beam angles are possible when using alternative illuminants
• Locking possibility at the mounting bracket
• Available in silver or black
• Comes in a sales-promoting 4-color carton
• Controlling by plug and play

lamp

• Very high color rendering index (CRI)

Power supply:	230 V AC, 50 Hz
Power consumption:	Max. 30 W
IP classification:	IP20
Protection class:	Class I
Suitable lamp:	PAR-36 G53STC

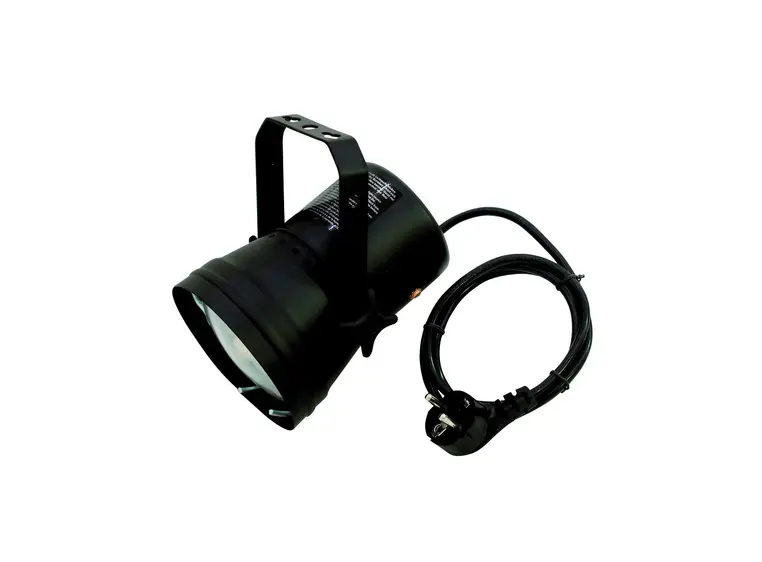

Power connection:	Fixed power supply cord with safety plug
Cable length:	Approx. 0,9 m
Base:	Wires
Control:	Plug and play
Housing color:	Black
Material:	Metal
Dimensions:	Length: 16 cm Width: 15,5 cm Height: 17 cm
Weight:	1,23 kg
Lamp
Voltage (lamps):	6,4 V
Nominal wattage:	30 W
Base:	G53STC
Lamp type:	Halogen lamp; clear lamp
Lamp specification:	Dimmable
Beam angle:	6°
Color temperature:	3000K
Color rendering index (CRI) more than:	95 Ra
Shape:	PAR-36
Mounting bracket
Diameter mounting holes:	3 x 10 mm; 1 x 8 mm
Material:	Metal, 2 mm
Lamp clamping ring
Material:	Metal
Color:	Silver
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting
