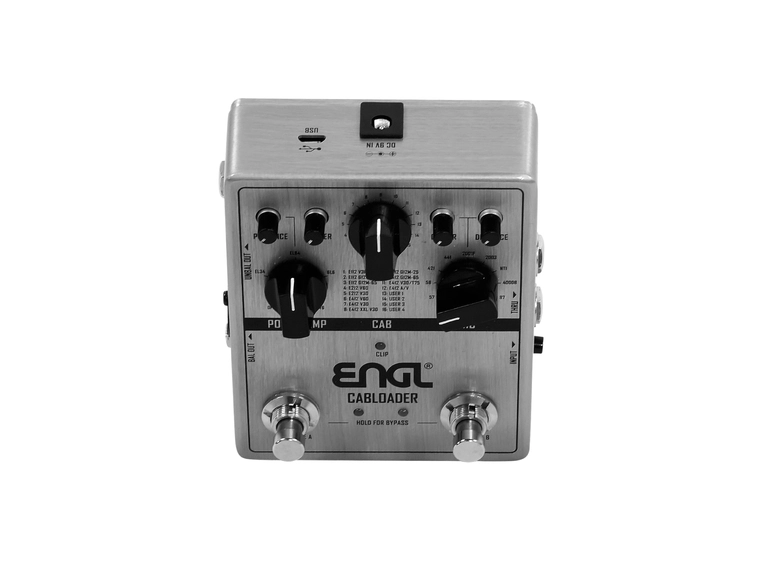

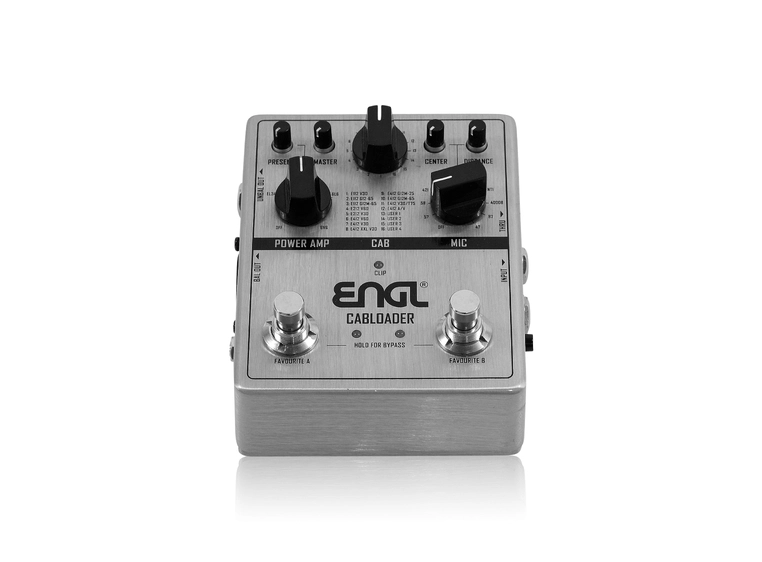

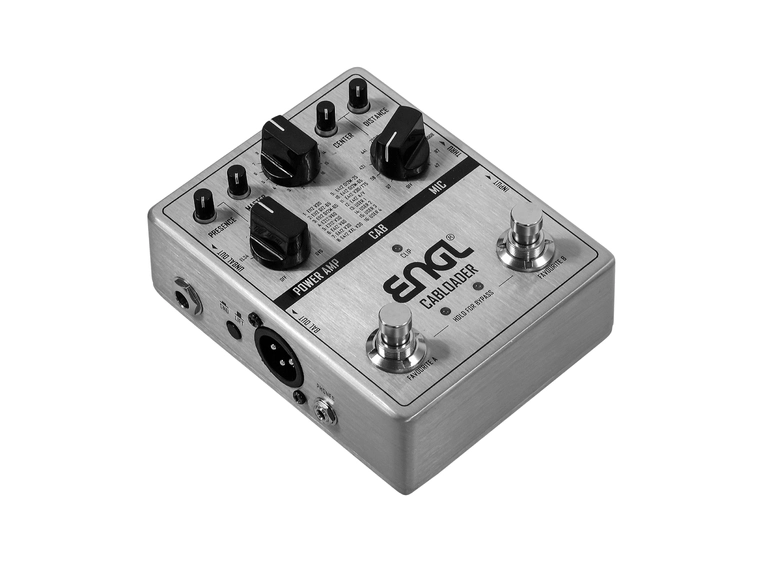

ENGL CABLOADER

The ENGL CABLOADER is a full-featured speaker cabinet simulator, IR Loader and DI-Box. This all-in-one solution can transform your pedalboard into a full DI-Rig, provides a perfect link from your amplifier to a recording interface, or even just gives you a great way to hook up your pedal sto your Headphones for practice. The CABLOADER sports a whole host of IR based digital Cabinet Simulations Models, with various Microphone and optional Power Amp emulations. These allow you to digitally recreate the sound and feel of a fully mic´d guitar speaker and experiment with Cab Models you may never be able to optain in real life. 3rd party IR-loading is supported via the proprietary software so you can load .wav IR files from any of your favourite manufacturers or studios.

As complicated as the digital wizardry is, that´s going on inside this little box. The CABLOADER has been designed with sheer simplicity and ease of use in mind. Even a complete newcomer to the world of digital cab sims and IR-Loaders can quickly set up an amazing sound with it´s intuitive controls. The quality of the simulations and the extensive connection options make this the perfect tool for anyone from beginners to professionals.

Features

• Impulse Response Cabinet Simulator
• Microphone Simulator
• Poweramp Simulator
• Input Jack
• Instrument / Line level adjustment switch
• Thru Jack
• Unbalanced Out Jack
• Balanced Out Jack (XLR)
• Ground Lift Switch
• Headphones Out
• 9V DC power supply
• Micro USB Port for IR loading (PC and MAC)
• 12 Built-in ENGL Cabinets
• 4 User / 3rd Party Slots (accessible via USB)
• 10 Microphone Models + Microphone Off
• 4 Poweramp Simulations + Poweramp Off
• Favourite A Footswitch to save and recall Preset A
• Favourite B Footswitch so save and recall Preset B
• True Bypass

Controls

• Microphone Section: MIC selector, Center and Distance control
• CAB: CAB selector
• Power Amp: POWER AMP Selector, Presence and Master Control

Sampling Rate: at least 44.1kHz
Sampling Accuracy: 24bit
Signal to noise ratio: 100dB
IR format: .wav
Sampling Length: 1024 Samples (23.22ms)
Power Requirements: 9V DC 300mA (negative center)
Dimensions: 12 x 9.5 x 5.55 cm
Weight: 0.405 kg
