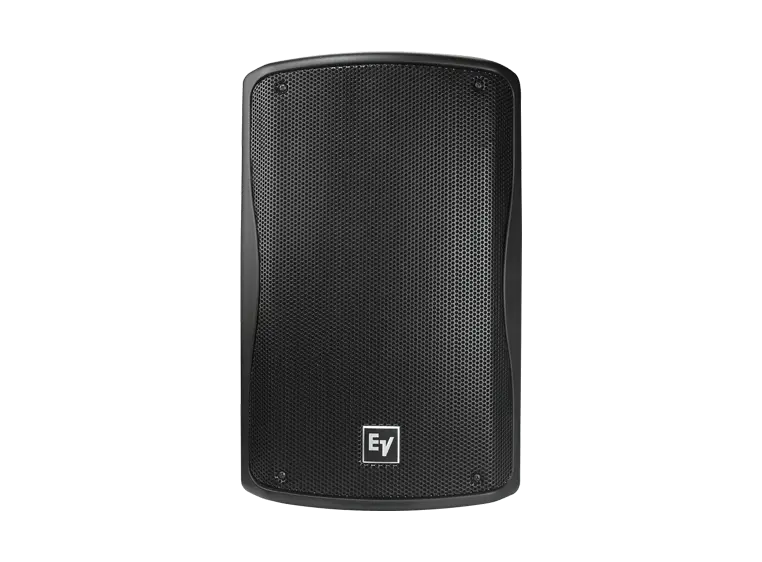

ZX1 is a high-performance, compact loudspeaker with a lightweight, durable, high-tech enclosure engineered to provide maximum rigidity and acoustic performance.
- Designed for Pro Music, and other applications.
- EV8L high performnace 8” woofer
- Exclusive port design for extended LF response
- 200W cont., 400W program power handling,
- Integrated overload protection
- DH2005 true compression driver (1,25” voice coil)
- Rotatable 90 x 50 HF horn
- Integrated monitor angle
- Integrated pole-mount adapter and handle
- 4 metric inserts for additional mounting options
- 2 Neutik NL4 connectors
- Available in black and white
- Chassis Size 203.2 mm (8")
- Color Black
- Input Connections Parallel Neutrik® NL4
- Speaker Type Fullrange
- Speaker Type Mid-High
- Speaker Type Two-Way
- Speaker Type Wedges
- Frequency Response (-3 dB) 60 - 20000 Hz
- Frequency Response (-10 dB) 48 - 20000 Hz
- Internal Crossover Yes
- Sensitivity 1 W/1 m 94 dB
- Max. SPL/1m (calc) 123 dB
- Coverage: (Nominal -6 dB) H° 90 °
- Coverage: (Nominal -6 dB) V° 50 °
- Rotatable Horn
- System Power Handling (Continuous/Program/Peak) 200 Watts
- LF Transducer EV8L
- HF Transducer DH2005
- Nominal Impedance (Passive) 8 Ohm
- Outdoor No
- Height 451 mm (17.76")
- Width 282 mm (11.1")
- Depth 263 mm (10.35")
- Weight Net 8.4 kg (18.52 lbs)
