DUAL CHANNEL PLL UHF WIRELESS HANDHELD/BELT-PACK MICROPHONE SYSTEM

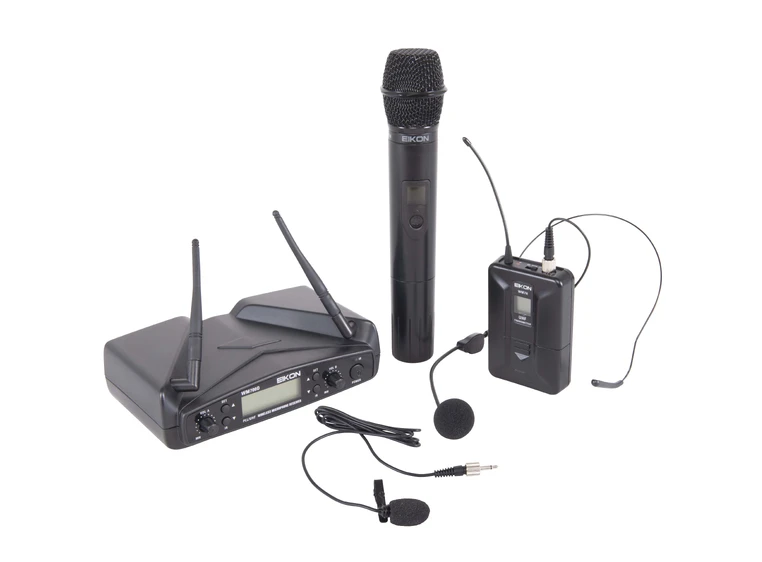

The WM700 wireless microphone system is a PLL controlled UHF variable frequency device, which provides reliable and high quality signal transmission, thanks also to the Digital Tone Pilot.The WM700 wireless microphone system offers 5 different combinations with single channel receiver, dual channel receiver, handheld transmitter and bodypack transmitter with headset microphone.The system is available in 2 different bands with groups of 16 or 32 pre-set frequencies to be used also simultaneously.Each configuration includes an ABS case.
PLL –16 CH Selectable frequency Dual Channel wireless microphone system 32 Khz Digital Tone Pilot New durable Painting Finishing Universal USB Power Adapter 823 - 832 Mhz frequency range 30 meter/ 100 feet range 50 Hz -15 KHz frequency response 105 dB signal/ noise ratio Cardioid dynamic capsule Condenser headset with cardioid capsule and Lavalier
Up to 4 frequency usable in the same location ABS carrying and storage case | RECEIVER | |

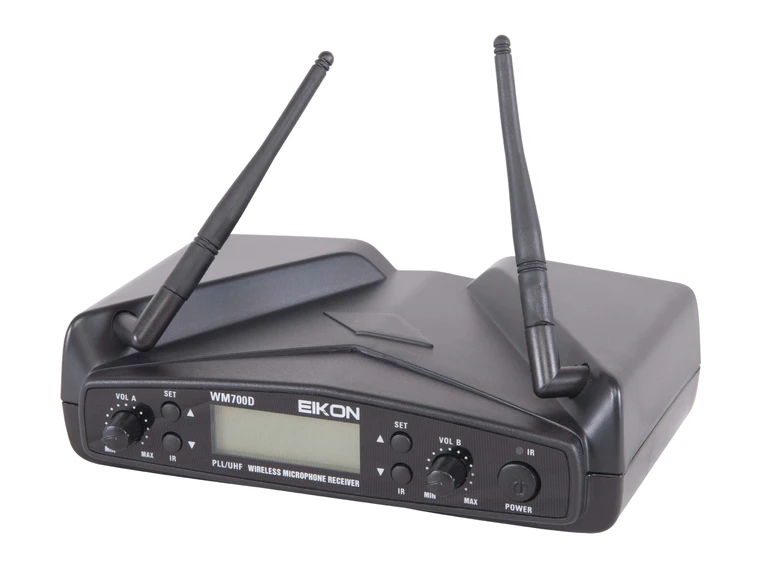

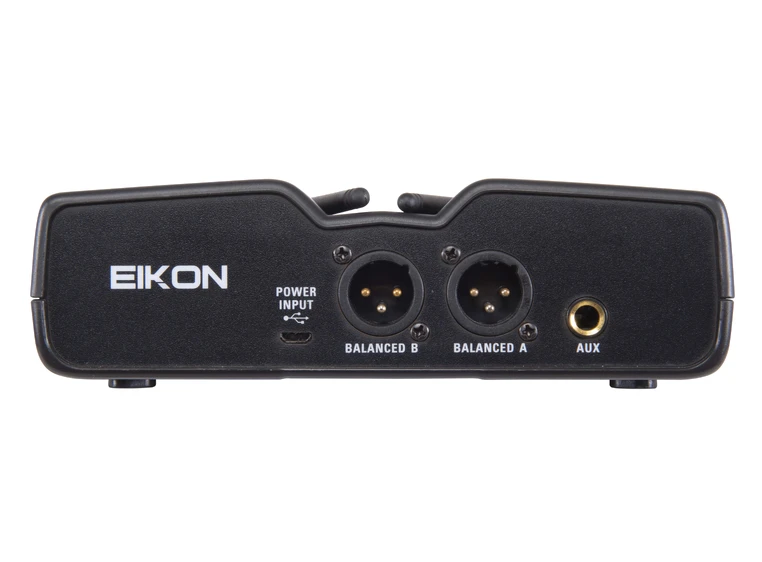

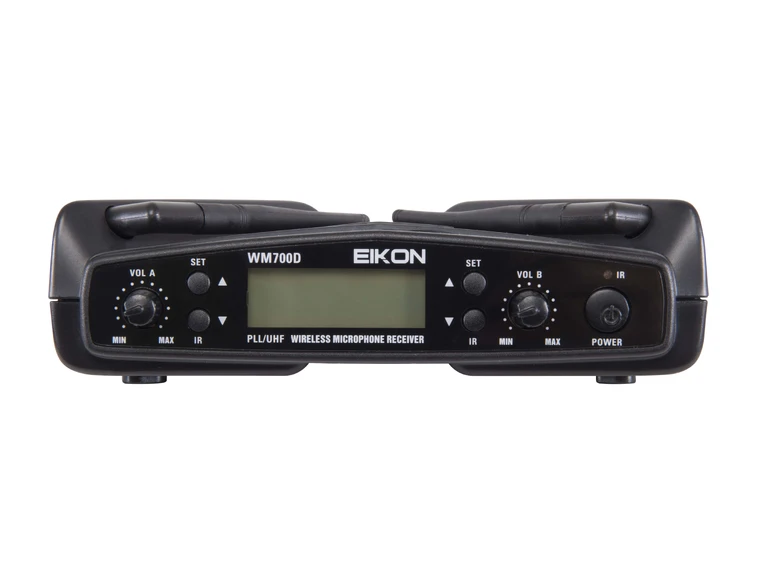

| Frequency Band | UHF: 823-832 MHz |
| RF Sensibility | -105 dBm |
| RF Image/Spurious Rej. | >70 dB |
| RF Interference Reject. | >70 dB |
| RF Frequency Stability | ±0.002% |
| THD Distortion | <1% |
| S/N Ratio | >105 dB |
| Frequency Response | 50 Hz – 15 KHz (±3 dB) |
| Power Supply | 5 V DC 500 mA |
| Dimensions (mm) | 175 x 135 x 45 |
| BELT-PACK TRANSMITTER | |
| RF Frequency Band | UHF: 823-832 MHz |
| RF Power | <10 dBm |
| Modulation method | FM (F3E) |
| RF Max deviation | ±40 KHz |
| RF Frequency Stability | ±0.002% |
| Spurious Emission | under limits EN 300422 |
| Frequency Response | 50 Hz – 15 KHz (±3 dB) |
| Included Microphones | 2 |
| HCM25 Headset Mic. | Cond. Cardiod |
| LCH100 Lavalier Mic. | Cond. Cardiod |
| Power Supply | 2x1.5V AA alkaline bat |
| Dimensions (mm) | 100 x 65 x 30 |

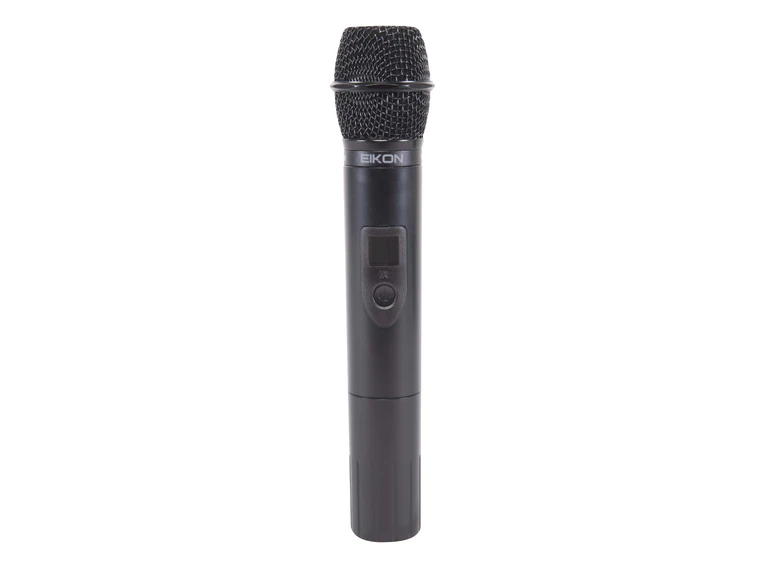

| HANDHELD TRANSMITTER | |
| RF Frequency Band | UHF: 823-832 MHz |
| RF Power | <10 dBm |
| Modulation method | FM (F3E) |
| RF Max deviation | ±40 KHz |
| RF Frequency Stability | ±0.002% |
| Spurious Emission | under limits EN 300422 |
| Frequency Response | 50 Hz – 15 KHz (±3 dB) |
| Power Supply | 2x1.5V AA alkaline bat |
| Dimensions (mm) | 235 x 50 x 50 |
