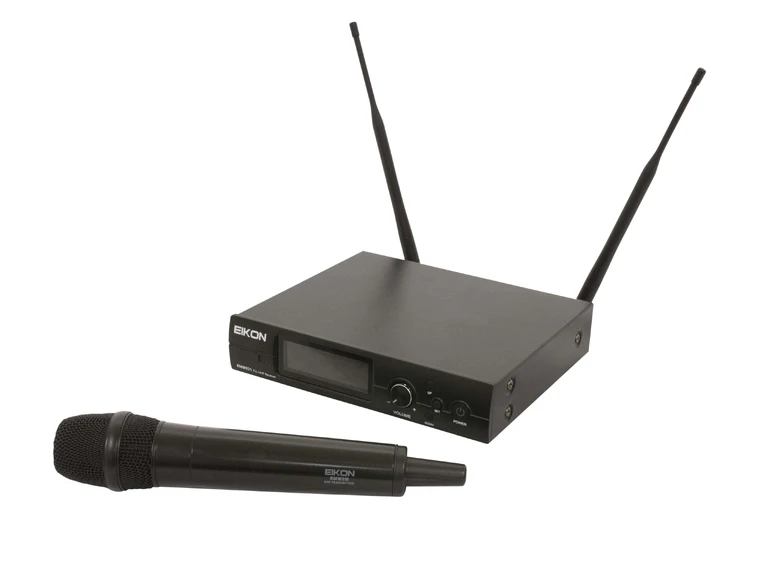

Eikon RMW921M Handheld transmitter

with cardioid capsule 823-865 Mhz

Product nr: 1188082
Eikon RMW921M Handheld transmitter with cardioid capsule 823-865 Mhz Eikon RMW921M Handheld transmitter with cardioid capsule 823-865 Mhz Eikon RMW921M Handheld transmitter with cardioid capsule 823-865 Mhz Eikon RMW921M Handheld transmitter with cardioid capsule 823-865 Mhz
3 062,-
-+
Temporarily out of stock
Send an email to post@evenstadmusikk.no for delivery time

View this product description in Norwegian.

PLL UHF WIRELESS HANDHELD MICROPHONE SYSTEM

The RMW921 Wireless Microphone is a professional UHF, PLL controlled, true diversity system providing reliable and high quality signal transmission.

The system is equipped with automatic channel scan and IR sync.

99 channel frequencies are available for simultaneous use of 6 devices.

The system is available in two different configurations with Handheld or belt-pack transmitter.

  • Dual band - TRUE DIVERSITY
  • 821-832 & 863 -865 Mhz or 551 -581 Mhz (RMW921MA) frequency range
  • PLL transmission
  • 50 meter / 100 feet range
  • 50 Hz -15 KHz frequency response
  • Condenser headset with cardioid capsule
  • 99 selectable channels
  • Up to 6 frequency usable in the same location
  • ABS carrying and storage case
  • Auto scan channels
  • BNC Antennas

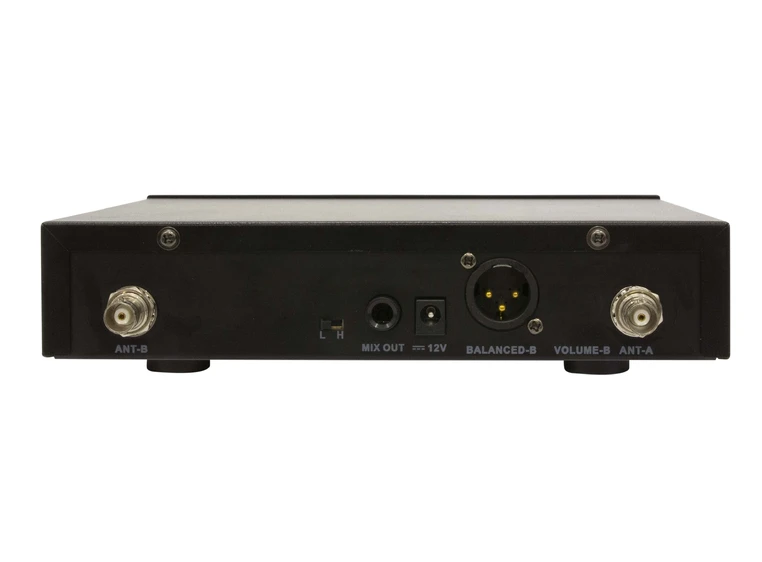

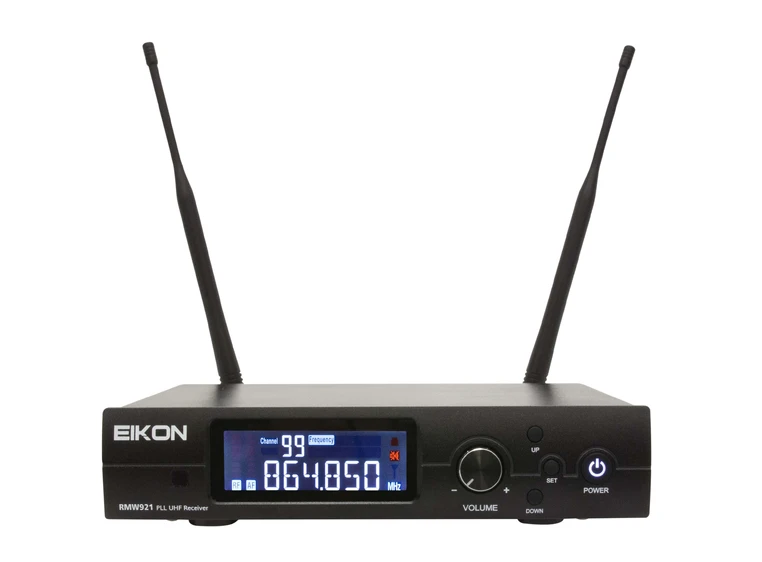

  • RECEIVER
    Receiver Type UHF Band
    Frequency Range

    821 - 832 MHz and 863 - 865 MHz

    or 551 -581 Mhz (RMW921MA)

    RF Frequency Stability 0,00%
    Modulation Method FM (F3E)
    RF Image / Spurious Rej > 70 dBm
    RF Interference Rej > 70 dBm
    Sensitivity -105 dB
    Audio Frequency Response 60 - 18000 Hz
    THD < 1 %
    S/N Ratio > 100 dB
    Power Requirement +12 - 15 vdc 500 mA
    Output Connector Unbalanced ¼ “ jack - XLR 3 balanced

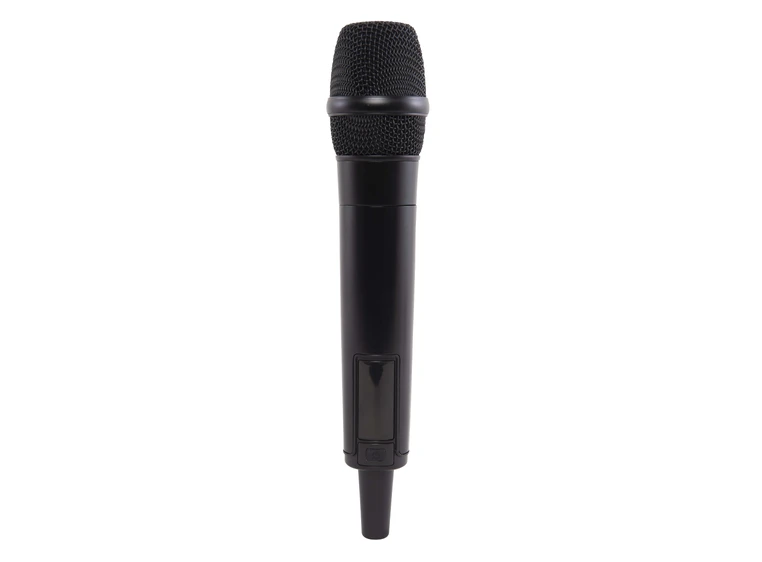

    HANDHELD TRANSMITTER
    Carrier Frequency Range

    821- 832 MHz and 863 - 865 MHz

    or 551 -581 Mhz (RMW921MA)

    Modulation Method FM (F3E)
    Transmission Distance Up to 50m (open space)
    RF Frequency Stability 0,00%
    Audio Frequency Response 50 -15000 Hz
    RF Max Deviation ±50 kHz
    Spurious Emission Under limits EN300422
    RF Output Power < 10 dBm Max Erp (Effective Radiated Power )
    Polar Pattern Cardioid
    Power Requirement 2 x 1,5 Volt AA type
    Battery Life Up to 8 hours
