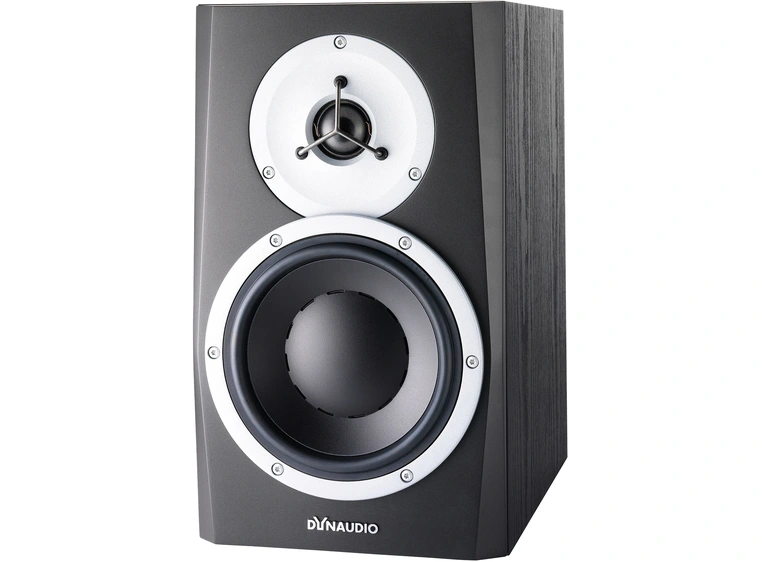

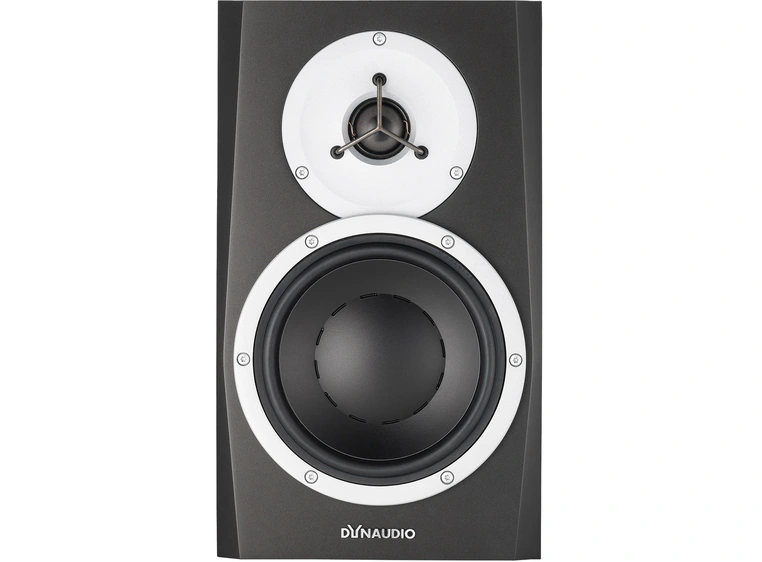

The BM5 mkIII is the next generation of the tremendously successful BM5A MKII. With greater SPL, broader frequency and power response compared to the previous model, its ultra-high dynamic range and hand-crafted drivers deliver performance superior to many larger, more expensive monitors.

• Extended excursion 7” woofer with pure aluminum voice coil.
• 1.1” soft dome tweeter with pure aluminum voice coil.
• Flexible operation with XLR and RCA inputs
• Bundled with IsoAcoustics ISO-L8R155 speaker stand for decoupling and proper angling.
• Optional Dynaudio Professional Volume Box for precision level control
• Made in Denmark

Features

• Higher SPL and greater frequency and power response to many others in its class.
• 50W LF and 50W HF RMS Class D amplifier with DSP crossover.
• 118dB SPL peak power output.
• Frequency response of 42Hz-24kHz
• Extended bass with BM9S II or 14S II precision subwoofers.
• HF, MF, LF analog room filters allow flexible positioning.
• High pass filters at 60/80Hz for perfect subwoofer adaption.
• Input sensitivity switch (-10/+4dB range).

Tech Spec

• Input level for 85 dB SPL @ 1m, @ 0 dB setting, unbalanced: 80 mVrms
• Max input level (@setting): 4.8 Vrms (-10dB) 1.5 Vrms (0dB) 1 Vrms (+4dB)
• Power consumption: Standby: 0.3 W Idle: 5.8 Max: 94 W
• Amplifier power: Tweeter: 50 Woofer: 50 W
• Max SPL 1m, normal room, short term IEC signal: 118 dB peak
• Frequency Response: (+/- 3dB): 42 Hz – 24 kHz
• Resonance Frequency: 45 Hz
• Bass Principle: Bass reflex
• Internal Cabinet Volume: 9.5 litres
• Weight: 7.7 kg
• Dimensions (W x H x D): 186 x 320 x 296 mm
• Crossover: 2 way
• Crossover Frequencies: 1900 Hz
• Crossover Slope: 12 dB/oct
• Connection: XLR balanced and RCA unbalanced
• Recommended Placing: Desktop or stands

Tweeter:

• D-281 - 28 mm soft dome, rear chamber, magnetic fluid, 4 mm aluminum front, pure aluminum wire voice coil

Woofer:

• 180mm molded aluminum frame/ one piece thermo formed MSP cone
• 75 mm voice coil with pure aluminum wire on aluminum former.

Cabinet:

• Designed to be placed on a desk/stands.
• 18 mm MDF
• Crossover:Active, DSP based

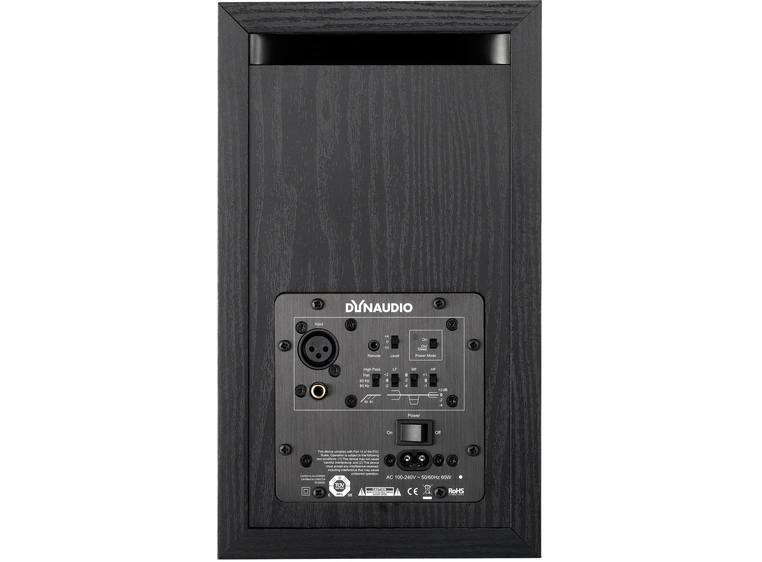

Amplifier:

• Input sensitivity selector
• HF, MF and LF trim selector
• High pass frequency selector
• Auto standby/On selector
• Optional remote volume control (Volume Box)
• High efficiency digital power amplifiers.
• Switch mode power supply with wide range input
