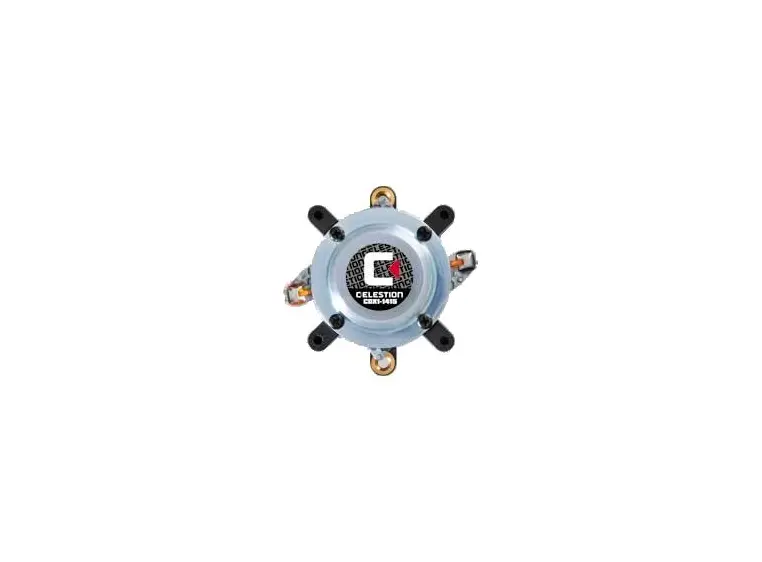

Celestion CDX1-1415 T5343AWP 8R

Product nr: 1023414
Celestion CDX1-1415 T5343AWP 8R
945,-
-+
Must be ordered. Product in stock at our supplier
Can be sent from our warehouse by
12/2/2024

View this product description in Norwegian.



 Features:
1" exit neodymium compression driver with 1.4" copper clad aluminium voice coil
 20Wrms power handling (AES standard) and 104dB sensitivity
 Copper sleeve on pole reduces inductive rise for improved HF performance
 Ferrofluid in magnet gap prevents sensitivity loss through thermal compression
 Aluminium diaphragm combined with elastomer surround delivers lower
distortion performance
 Compact pot magnet design reduces weight and minimises stray flux
 Suitable for 2-way and 3-way systems
General Specifications:

  • Power rating: 20Wrms
  • Nominal impedance: 8 Ohm
  • Frequency range: 2000-20,000Hz
  • Sensitivity: 104dB
  • Recommended min. crossover: (12dB/oct)  2500Hz
  • Voice coil diameter: 35mm/1.4in
  • Voice coil material: Copper clad aluminium
  • Magnet type: Neodymium
  • Diaphragm material: Aluminium
  • Surround material: Elastomer

Mounting Information:

  • Width: 90mm/3.5in
  • Depth: 57mm/2.2in
  • Weight: 0.25kg/0.6lb
  • Fitting: Flange (2 x M6 holes on 76mm, 3.0in PCD)
  • Throat exit: 25.4mm/1in
