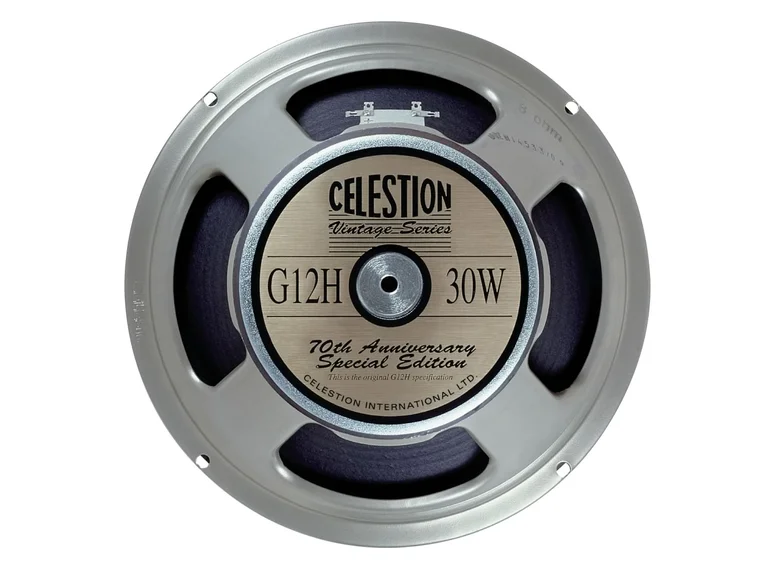

Celestion CLASSIC G12H ANNIV T4534AWD

16R (T4534)

Product nr: 1023369
1 916,-
-+
Temporarily out of stock
Send an email to post@evenstadmusikk.no for delivery time
Notify me

View this product description in Norwegian.



It's hard to escape the sound of the G12H, just listen to any Hendrix recording and chances are you'll be hearing a whole raft of them powering the guitar out of the mix.
With a heavier magnet than the G12M, this faithful recreation captures the unmistakable mojo of late 60s rock guitar tones. Used singly it exhibits a pleasing, strong low-end, but it's in a 4x12 configuration that it generates the great chugging "thump" that the guitar heroes of the day were renowned for. With a densely complex and buttery mid-range and a finely detailed top-end, the G12H is excellent for cranking out huge, dark power chords, with smooth and rich bridge pickup tones and flutey neck pickup tones.
General specifications

  • Nominal diameter: 12", 305mm
  • Power Rating: 30W
  • Nominal impedance: 16 Ohms
  •  Sensitivity: 100dB
  • Chassis type: Pressed steel
  • Voice coil diameter: 1.75", 44.5mm
  • Voice coil material: Rounded copper
  • Magnet type: Ceramic
  • Magnet weight: 50oz, 1.42kg
  • Frequency range: 75-5000Hz
  • Resonance frequency, Fs: 85Hz
  • DC resistance, Re: 13,1 Ohms


Mounting Information

  • Diameter: 12.2", 309mm
  • Overall depth: 5.3", 135mm
  • Magnet structure diameter: 6.1", 156mm
  • Cut-out diameter: 11.1", 283mm
  • Mounting slot dimensions: 0.31", 7.9mm Ø
  • Number of mounting slots: 4
  • Mounting slot PCD: 11.7", 297mm
  • Unit weight: 10.4lb, 4.7kg
