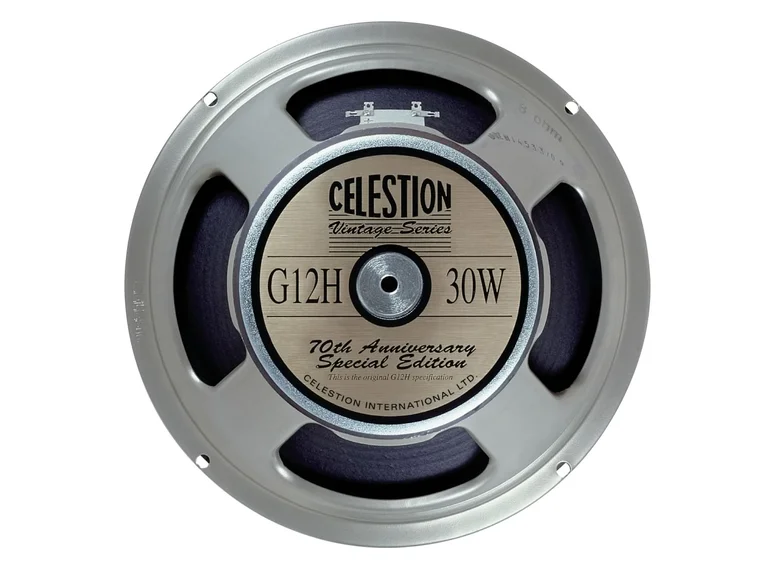

It's hard to escape the sound of the G12H, just listen to any Hendrix recording and chances are you'll be hearing a whole raft of them powering the guitar out of the mix.
With a heavier magnet than the G12M, this faithful recreation captures the unmistakable mojo of late 60s rock guitar tones. Used singly it exhibits a pleasing, strong low-end, but it's in a 4x12 configuration that it generates the great chugging "thump" that the guitar heroes of the day were renowned for. With a densely complex and buttery mid-range and a finely detailed top-end, the G12H is excellent for cranking out huge, dark power chords, with smooth and rich bridge pickup tones and flutey neck pickup tones.
General specifications
- Nominal diameter: 12", 305mm
- Power Rating: 30W
- Nominal impedance: 8 Ohms
- Sensitivity: 100dB
- Chassis type: Pressed steel
- Voice coil diameter: 1.75", 44.5mm
- Voice coil material: Rounded copper
- Magnet type: Ceramic
- Magnet weight: 50oz, 1.42kg
- Frequency range: 75-5000Hz
- Resonance frequency, Fs: 85Hz
- DC resistance, Re: 6.7 Ohms
Mounting Information
- Diameter: 12.2", 309mm
- Overall depth: 5.3", 135mm
- Magnet structure diameter: 6.1", 156mm
- Cut-out diameter: 11.1", 283mm
- Mounting slot dimensions: 0.31", 7.9mm Ø
- Number of mounting slots: 4
- Mounting slot PCD: 11.7", 297mm
- Unit weight: 10.4lb, 4.7kg
