The British Pedal Company Zonk Machine from the Vintage Series is a detailed replica of the original Zonk Machine MKI pedal that was developed by Wilsic Sound for John Hornby Skewes and produced in Leeds, England from 1965 to 1966. The design and circuit topology of the Zonk Machine looks very similar to the original MKI Tone Bender (designed by Gary Hurst) that uses a 3 transistor circuit, but the modified circuit offers a slightly different, tighter tone with less low-end and more boost than the Tone Bender. Based on the limited production period originals are exceptionally scarce and amongst the most sought-after pedals in the world.
- fuzz effects pedal
- detailed replica of the original 1965 Zonk Machine MKI

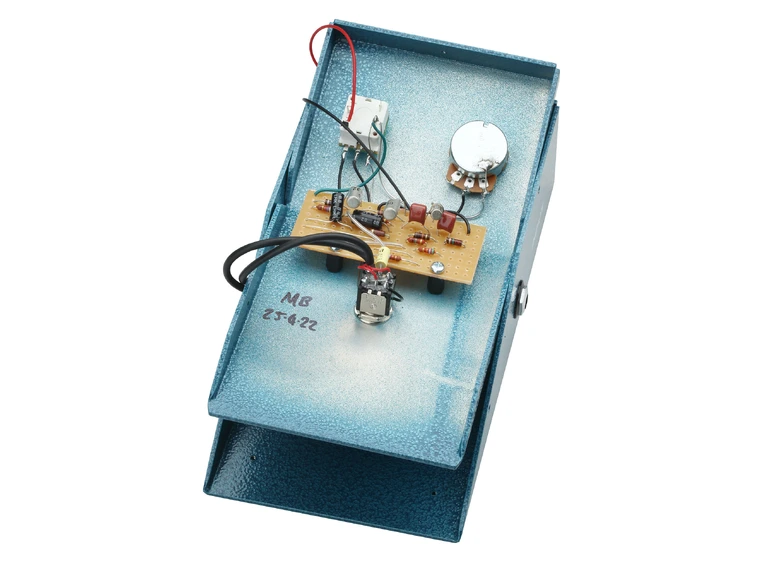

- authentic configuration with 3 transistors
- tight fuzz sound with slight but pleasing oscillation
- less low-end and more boost than the MKI Tone Bender
- Swell control is a switched potentiometer
- limited production
- hardwire true bypass

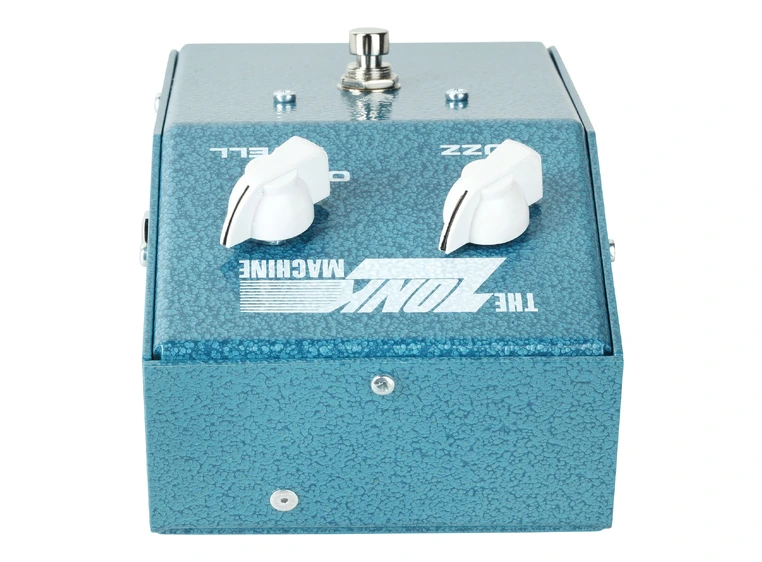

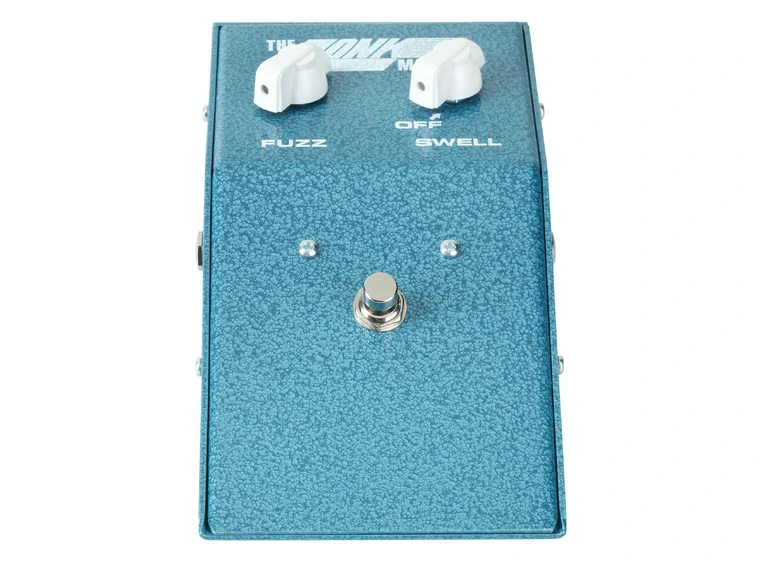

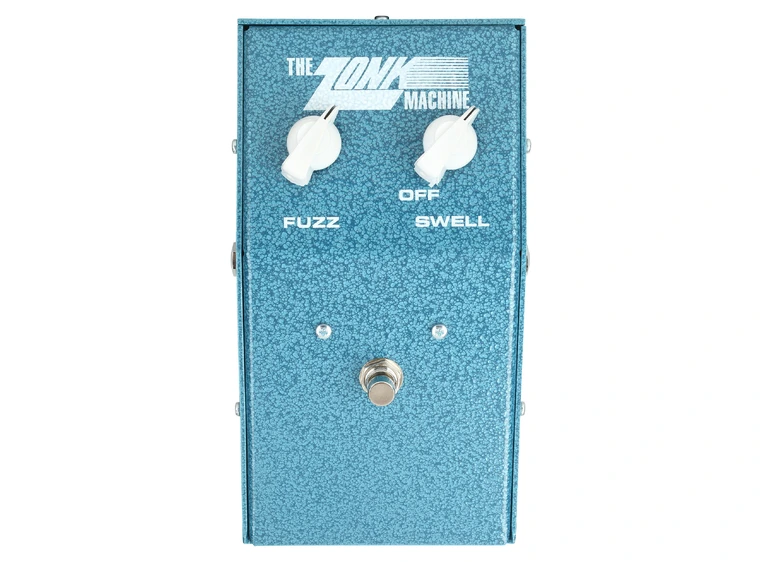

- controls for Fuzz, Swell
- bypass footswitch

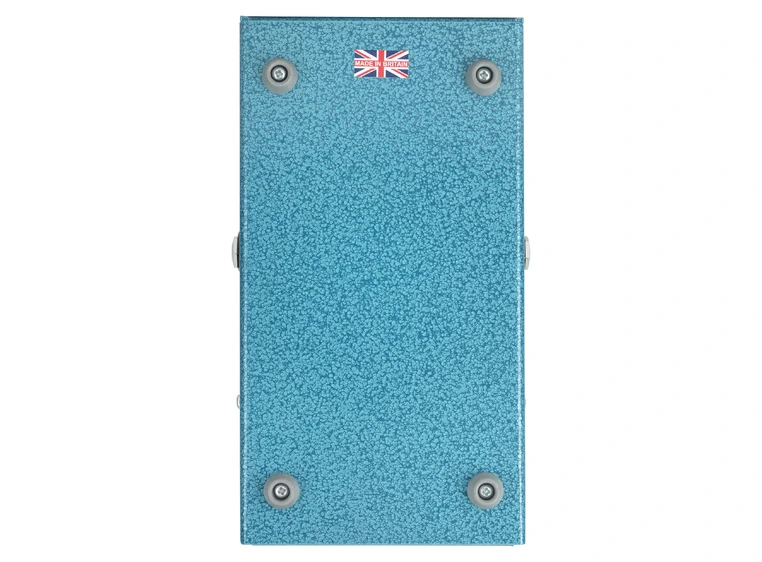

- folded metal casing
- blue / green hammerite finish

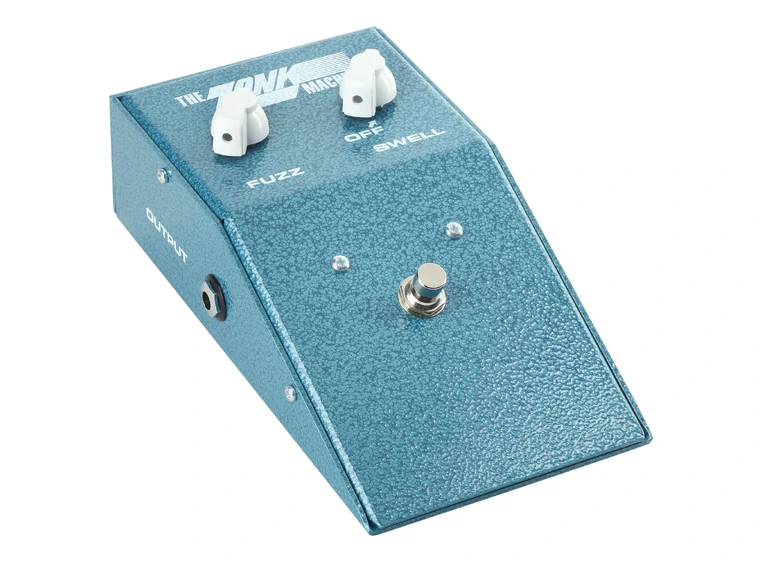

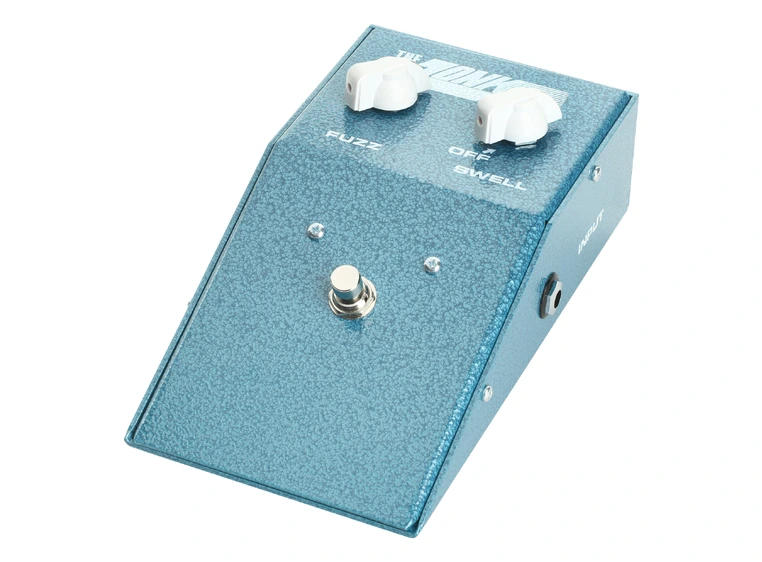

- 6.3 mm mono in / output jacks
- power supply only via 9V battery (battery is included in the delivery)
- current draw ca. 6 mA
- dimensions (L x W x H) 210 x 103 x 74 mm / 8.3 x 4.1 x 2.9
- weight 575 g / 1.27 lbs
- incl. certificate of authenticity
