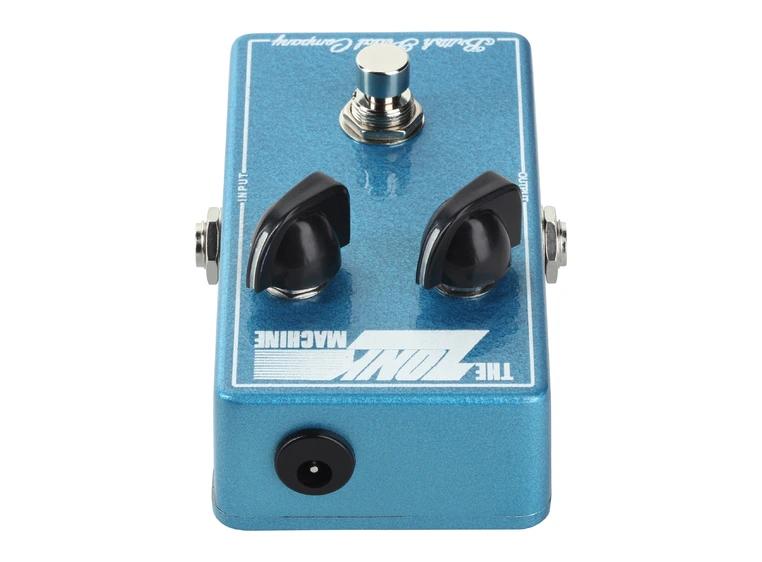

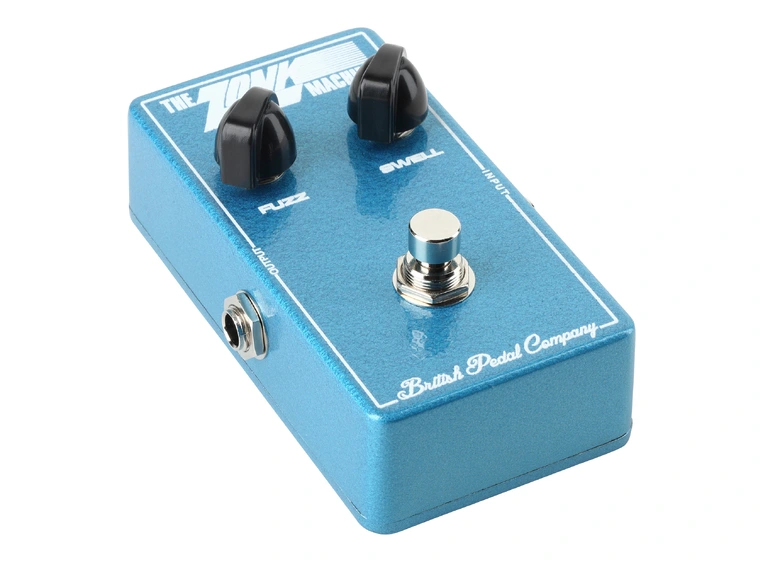

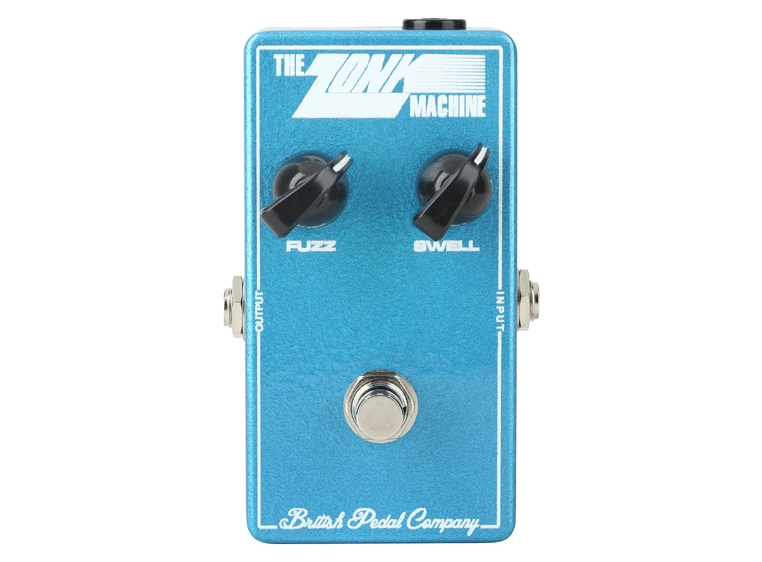

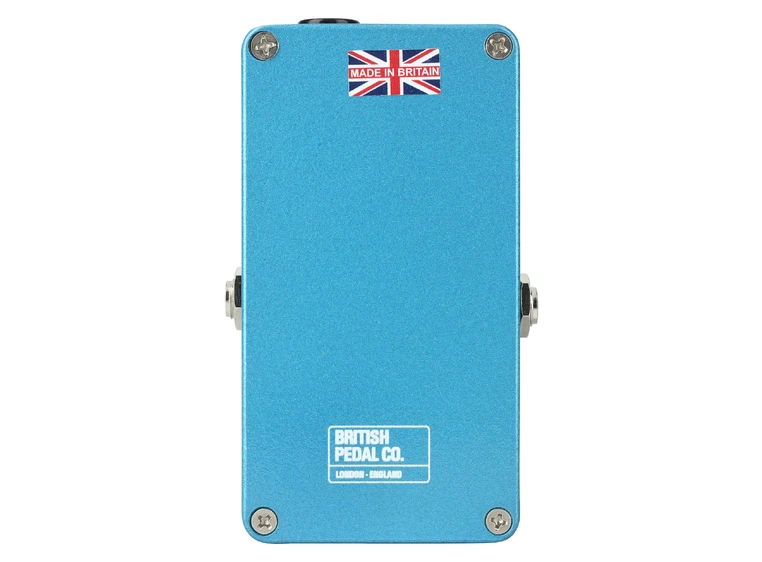

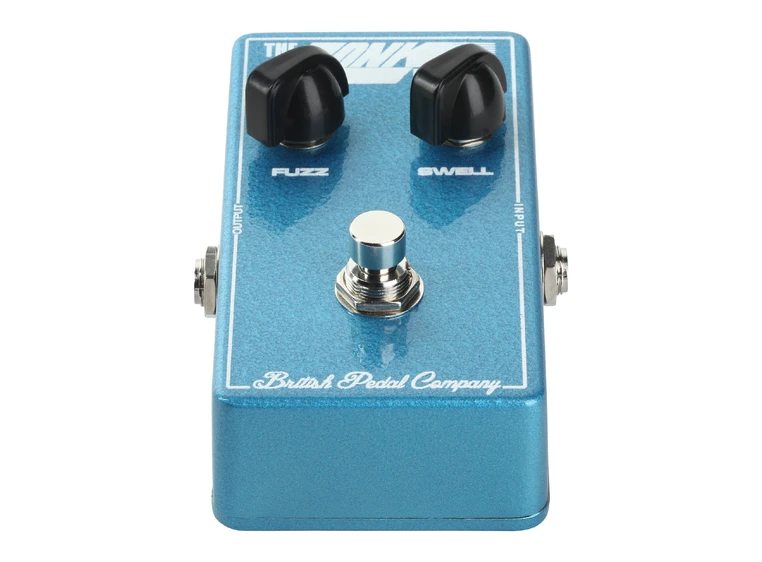

The British Pedal Company Compact Series Zonk Machine is a compact, modern replica of the original Zonk Machine MKI pedal that was developed by Wilsic Sound for John Hornby Skewes and produced in Leeds, England from 1965 to 1966. The design and circuit topology of the Zonk Machine looks very similar to the original MKI Tone Bender (designed by Gary Hurst) that uses a 3 transistor circuit, but the modified circuit offers a slightly different, tighter tone with less low-end and more boost than the Tone Bender. Based on the limited production period originals are exceptionally scarce and amongst the most sought-after pedals in the world.
- fuzz effects pedal
- compact, modern replica of the original 1965 Zonk Machine MKI
- authentic configuration with 3 specially selected transistors
- tight fuzz sound with slight but pleasing oscillation
- less low-end and more boost than the MKI Tone Bender
- limited production
- hardwire true bypass
- controls for Fuzz, Swell
- bypass footswitch
- diecast case
- blue / green hammerite finish
- 6.3 mm mono in / output jacks
- power supply via 9V battery or optional 9V DC adapter, 2.1 x 5.5 mm barrel plug, polarity (-) center (battery is included in the delivery)
- current draw ca. 6 mA
- dimensions (L x W x H) 112 x 68 x 50 mm / 4.4 x 2.7 x 2.0
- weight 212 g / 0.46 lbs
- incl. certificate of authenticity
- Please note: All BPC Compact Series pedals require their own isolated 9V power supply. This is due to the nature of the PNP transistors which cannot be used with a daisy chained supply.
