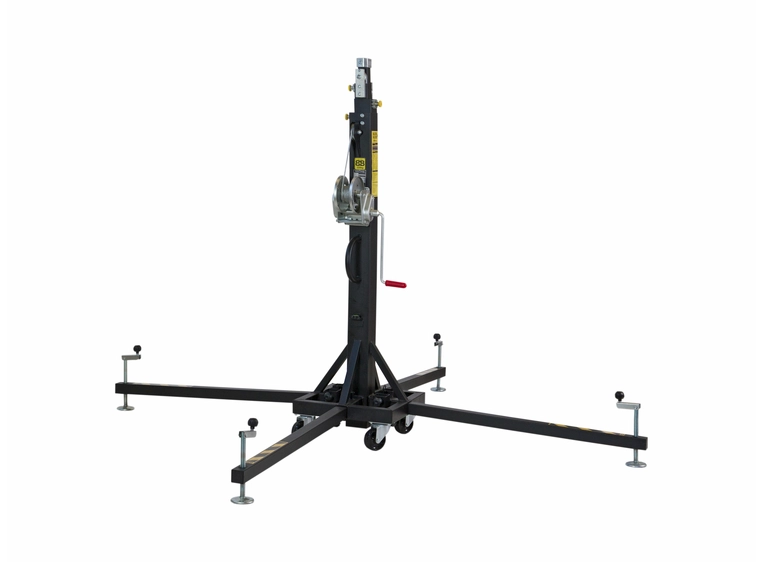

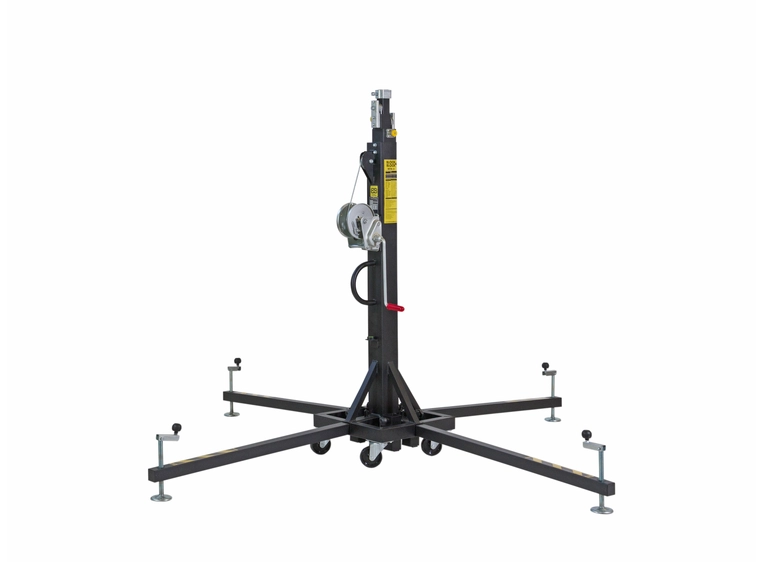

High-quality ground support for weights up to 220 kg, made in EU
- Five-part telescopic ground support
- 6 mm steel rope
- Safety bolts to lock the different sections at different heights
- Locking bolts in the base area to lock the booms
- Booms with adjustable spindle and steel plate with non-slip rubber base
- Corrosion protection through epoxy coating
- Water level to ensure a vertical position
- Earthing connection

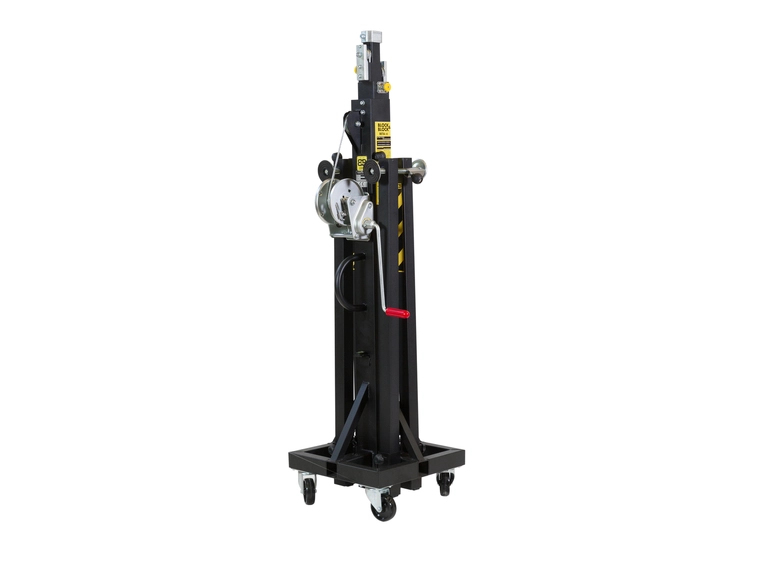

- Transport rolls to move the lift when retracted

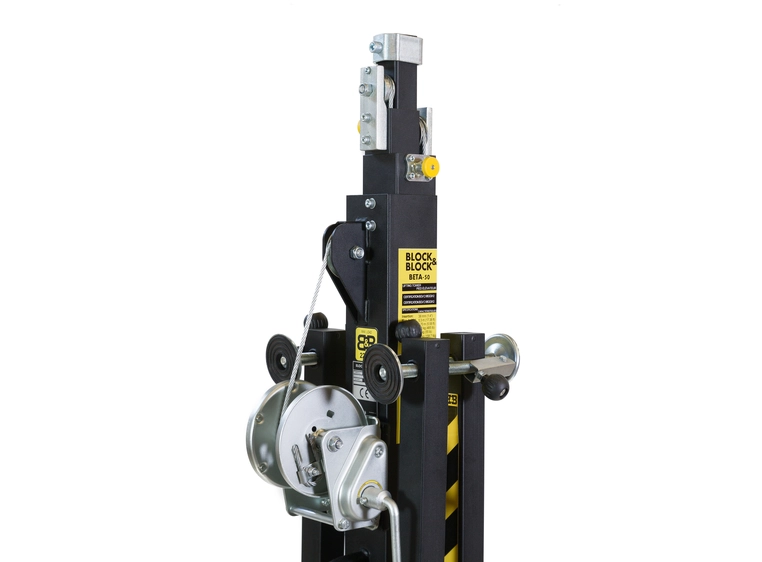

- AL-KO COMPAC 900 winch: Maximum load 900 kg with automatic holding brake. CE declaration of conformity in compliance with the harmonized standards DIN EN 13157, EN 12100 I and II, EC Machinery Directive 2006/42/CE
- Galvanized steel ropes 6x19+1, manufactured in compliance with the standard 13414-1:2004, tensile strength 1770N/mm2
- Material: Carbon steel S-275-J0H, manufactured in compliance with the standards EN10219 and EN10305.5
- With BGV-C1 test certificate
| Maximum carrying capacity: | 220 kg |
| Minimum load: | 25 kg |
| Height: | Maximum: 530 cm
Minimum: 170 cm |
| Attachment system: | 38mm (BLOCK AND BLOCK) |
| Type (general stands): | Truss lifter |
| Base area: | 2,11 m x 2,11 m x |
| Weight: | 72,00 kg |
