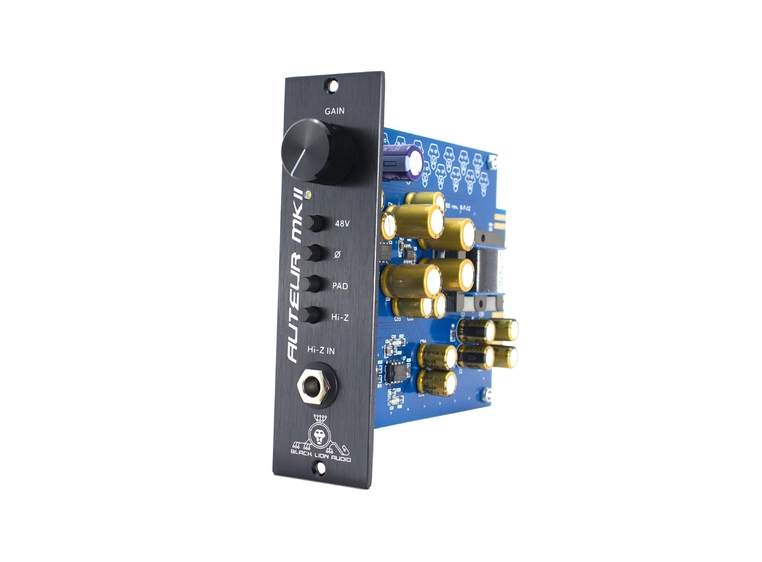

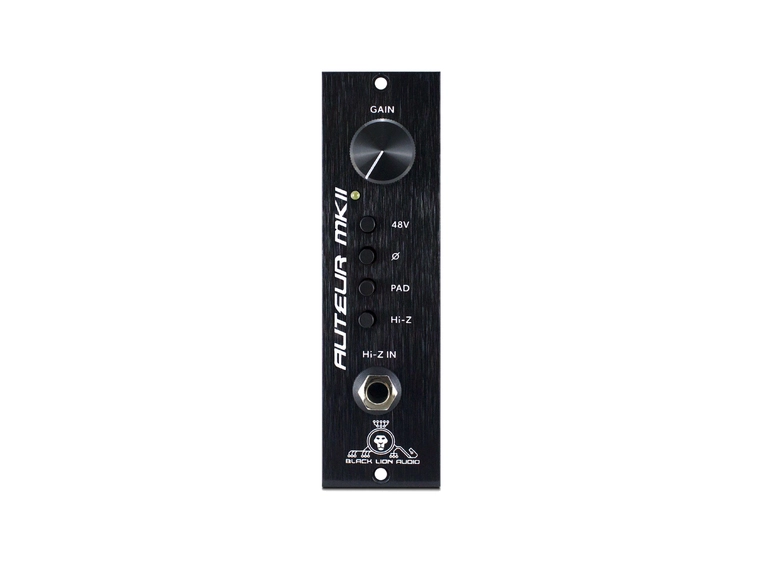

The Auteur MKII 500 is a single channel, 500 series preamp that features phantom power, phase, a 13dBu pad, and a Hi-Z input.

• 500 Series format (500 series rack required)
• Single Channel
• Ultra High-Speed Input Stage
• Edcor Output Transformer
• 67dB Gain
• Phantom Power
• Phase Switch
• 13dBu Pad
• Hi-Z Input

The Auteur MKII 500 is one of the most “bang for your buck" 500-series preamps in existence! You get all of the sound of the 1/2 rack version, but with the addition of a Hi-Z input! It features an ultra-fast input stage that captures lots of detail and nuance, and a signal path transformer that adds some “beef" on the way out. Once you hear the Auteur MKII 500, you’ll want to load your 500 rack full of ‘em!

Mic Section

• Max Microphone Input Level: +1dBu
• Input Impedance: 6000O
• Pad: 13dBu
• Gain (no pad): +16dB to +67dB
• Equivalent Input Noise (noise floor): -108dBu
• THD+N (@ +4dBu output):
  • .0046% @ +12dBu Gain
  • .0064% @ +24dBu Gain
  • .012% @ +32dBu Gain
  • .028% @ +40dBu Gain
  • .085% @ +50dBu Gain
  • .3% @ +62dBu Gain
• Bandwidth (1kHz, 600O unbalanced source, unweighted): 10Hz to 30kHz

D.I. Section

• Max D.I. Input Level: +18dBu
• Input Impedance Balanced: 2.2MO
• Input Impedance Unbalanced: 1.1MO
• Pad: 13dBu
• Gain: +16dB to +67dB
• Equivalent Input Noise (noise floor): -82dB
• THD+N (@ +4dBu output):
  • .007% @ +12dBu
  • .11% @ +40dBu
• Bandwidth (1kHz, 600O unbalanced source, unweighted): 10Hz to 30kHz

Output Section

• Max Output Level: +28dBu
• Output Impedance: 600O

Power Supply

• +/- 15v from 500 series rack

Product Dimensions

• 1.5" x 6.5" x 5.25"

Product Weight

• .8 lbs

Shipping Dimensions

• 13" x 13" x 5"

Shipping Weight

• 3 lbs
